Crestron FT2-700-ELEC-PTL-AL – FlipTop 700 Electrical Cable Management System

Product Overview

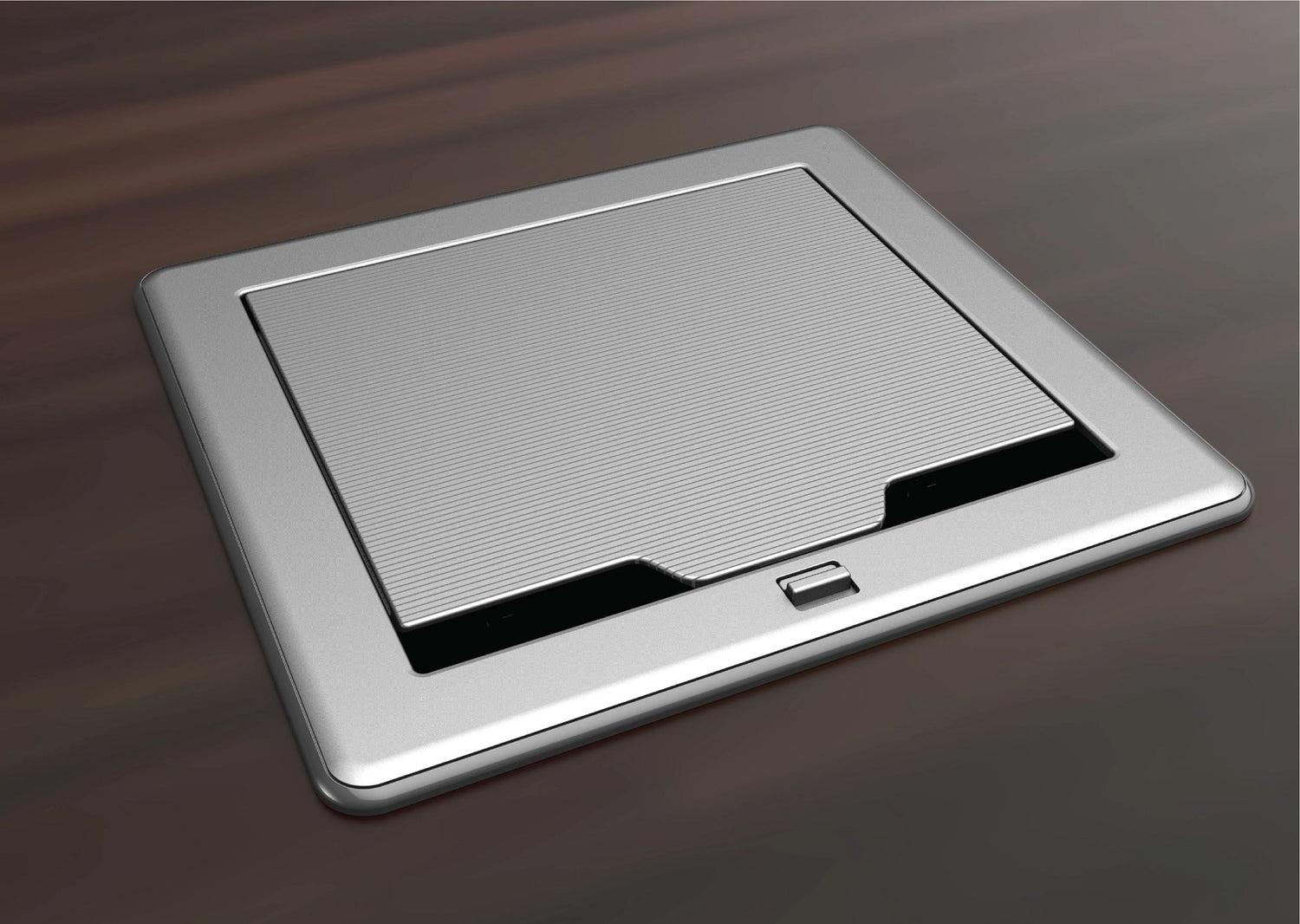

The Crestron FT2-700-ELEC-PTL-AL is a 700-size FlipTop cable management enclosure designed for conference tables and collaborative workspaces. It features a pass-through lid in an alloy finish, with 12 configurable module slots for housing Crestron FT2-series connectivity and control modules. The unit integrates with the Cresnet control network, enabling centralized management of table-top AV and power resources.

Product Description

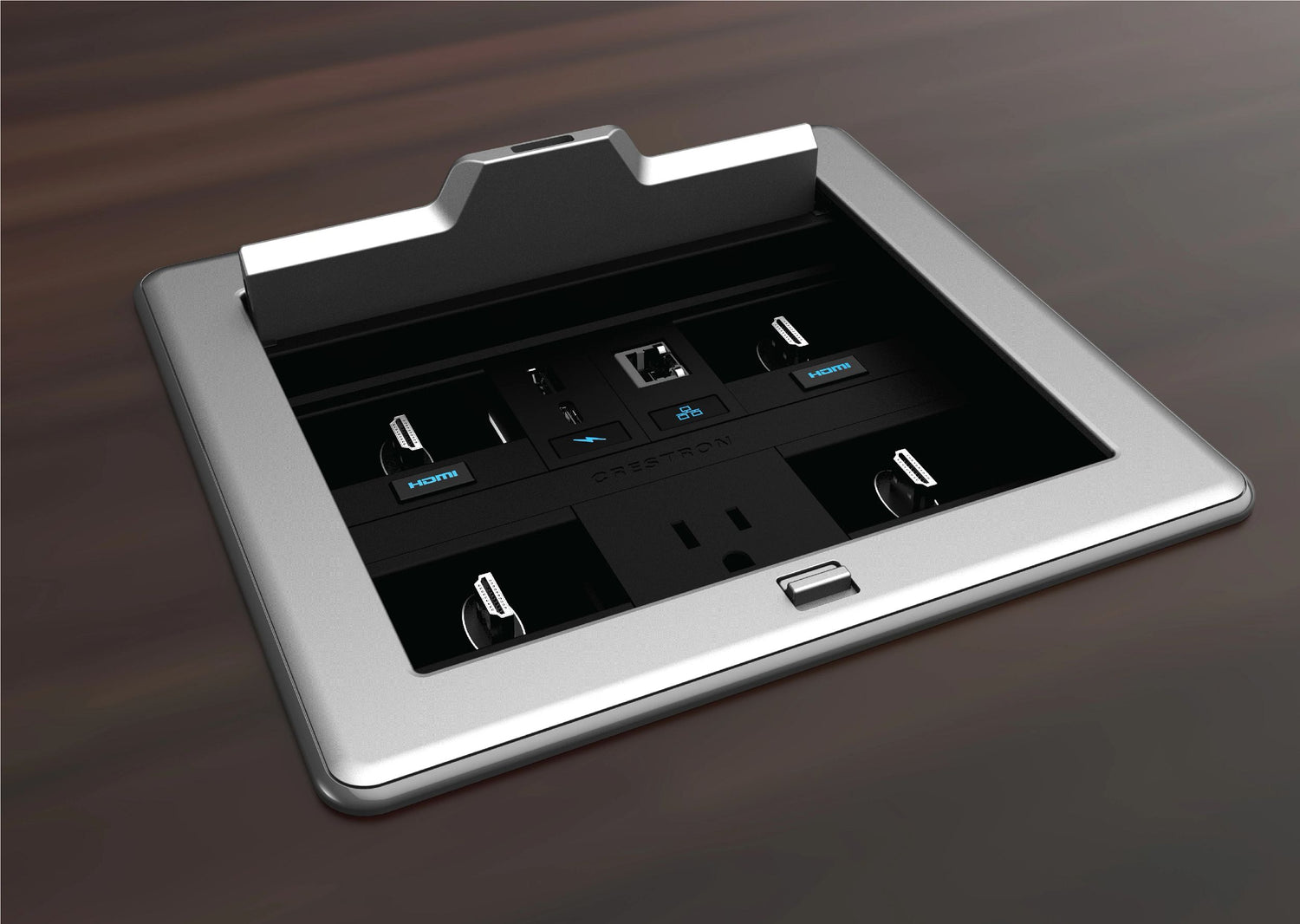

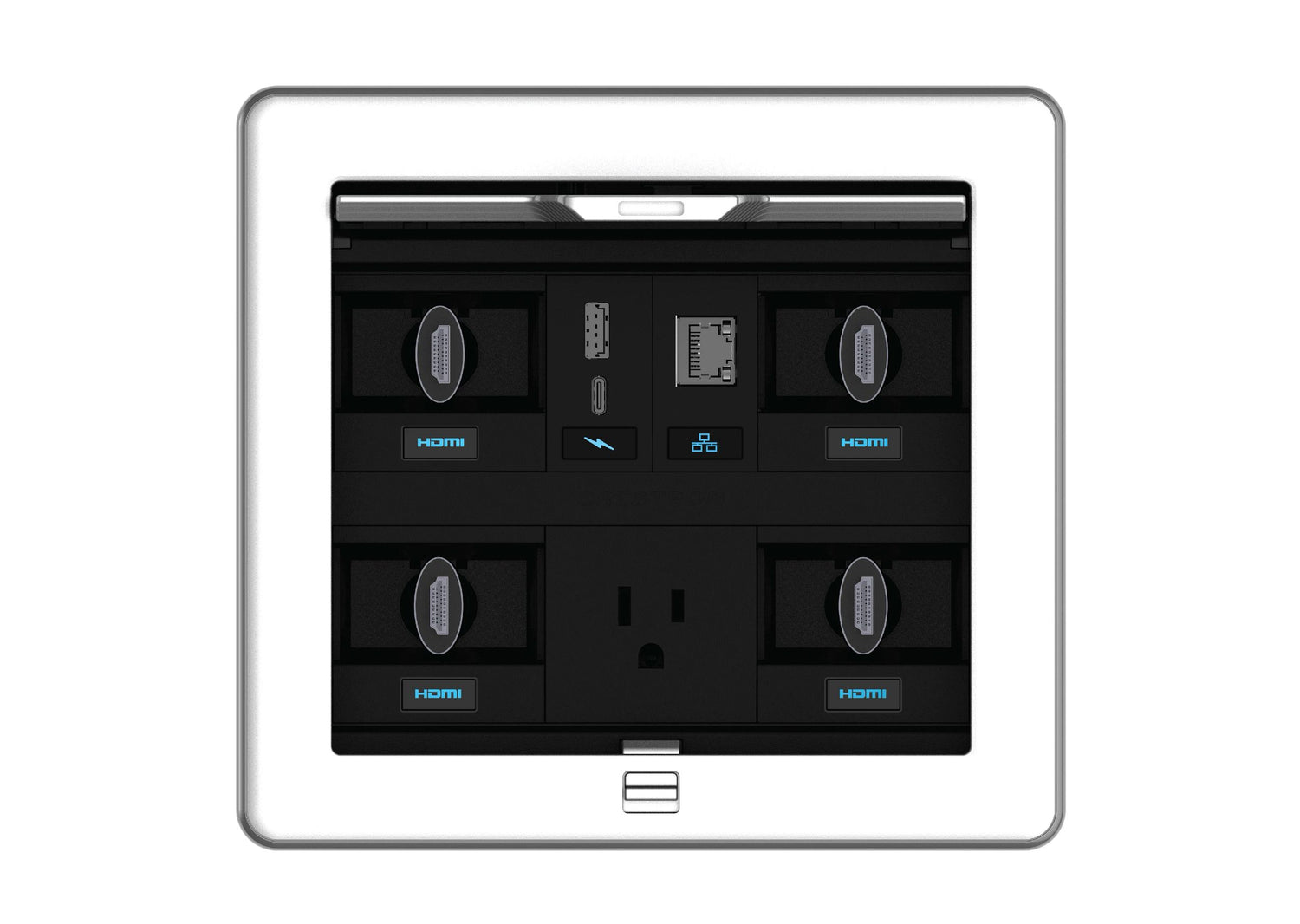

Designed for permanent table installation, the FT2-700-ELEC-PTL-AL accommodates up to 12 module slots arranged in two rows of six, supporting combinations of power outlets, cable retractors, USB charging, and AV connectivity modules. The pass-through lid allows cables to route out of the enclosure when in the closed position, keeping the workspace organized between meetings. An included 24 VDC power supply feeds connected modules via the enclosure’s internal distribution, while the Cresnet port enables integration with a Crestron control processor for automated control scenarios. The alloy finish provides a professional appearance suitable for both executive boardrooms and standard conference environments.

Key Features

• 12 configurable module slots in 700-size footprint (2 rows of 6)

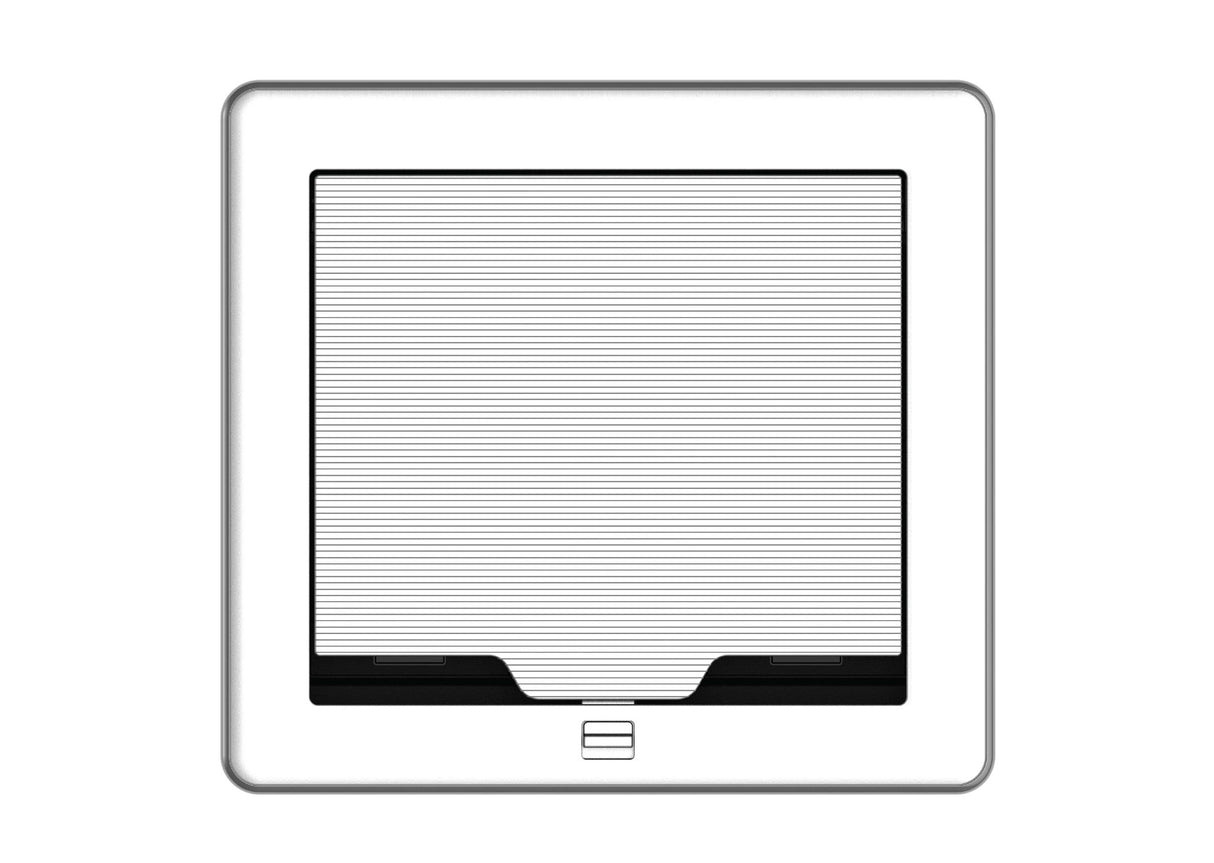

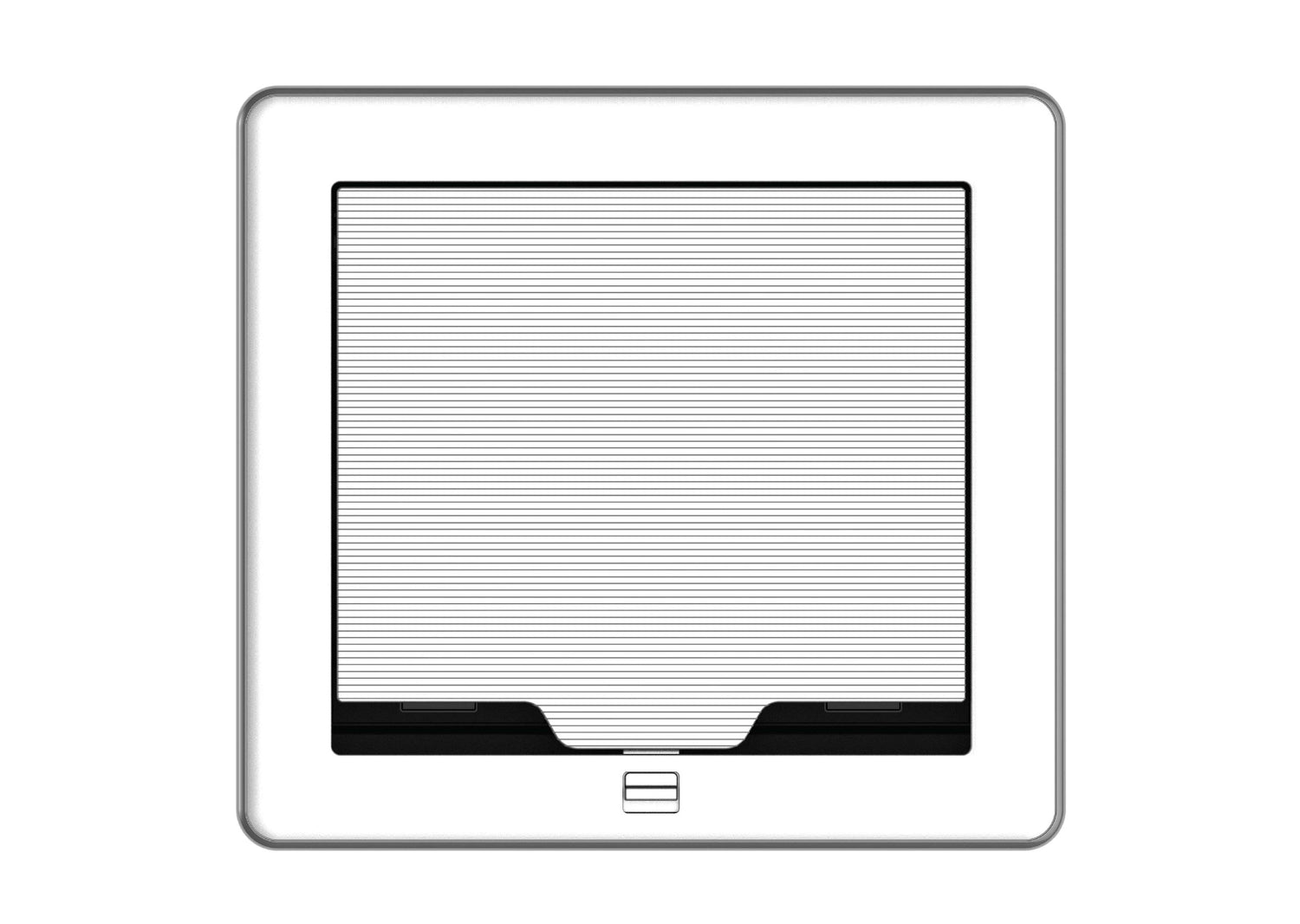

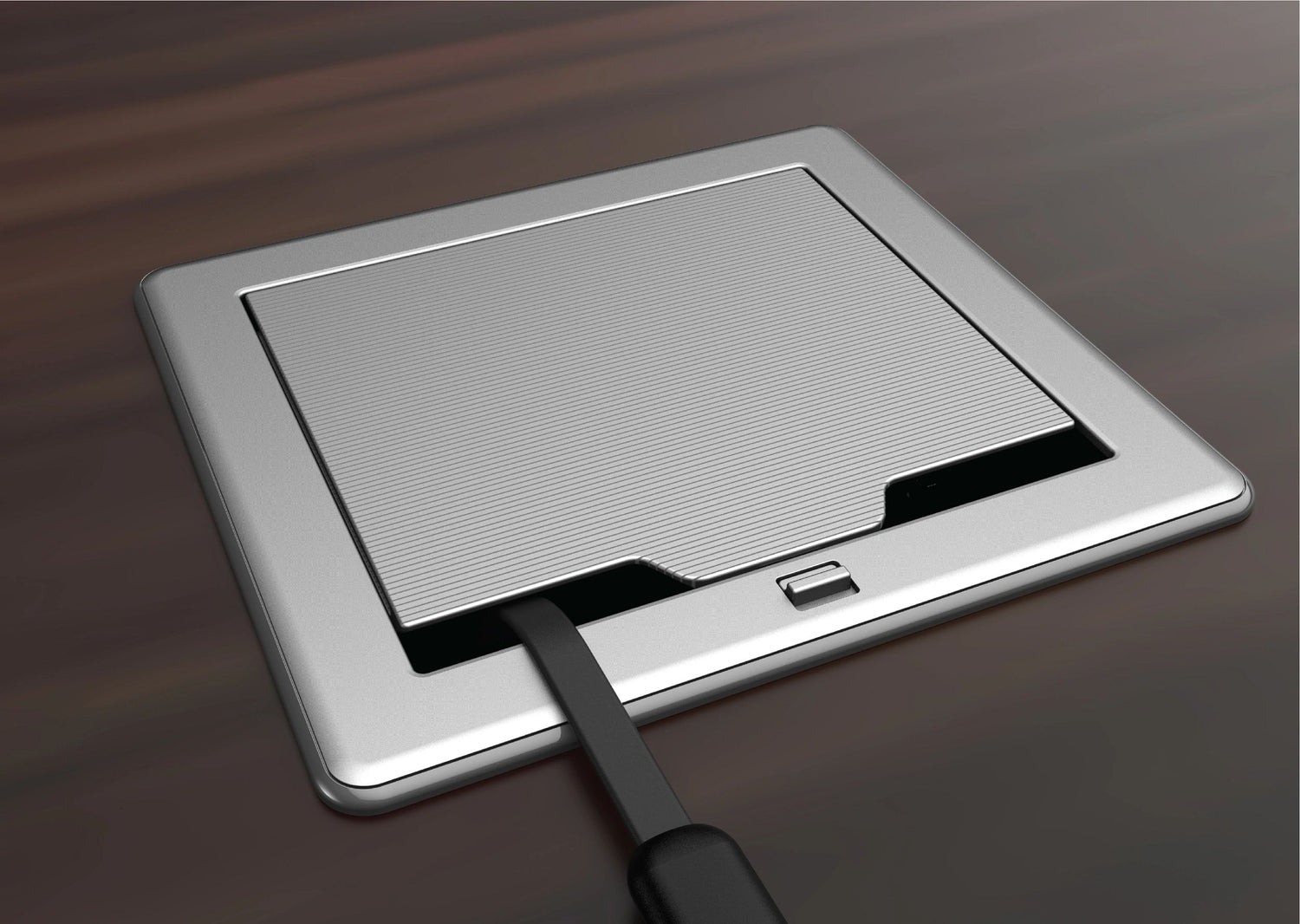

• Pass-through lid design allows cable routing with lid closed
• Alloy finish for a professional table-top appearance
• Built-in 24 VDC, 2.5A power output for connected FT2A modules
• Cresnet port (3-pin 3.5 mm detachable terminal block) for control system integration
• Accepts 100–240 VAC, 50/60 Hz input via included power supply
• Max surface installation thickness: 1-3/4 in. (44 mm)
• Table cutout: 5-3/4 in. deep x 7-1/8 in. wide (146 mm x 181 mm)

Typical Applications

• Conference room table-top AV and power distribution
• Executive boardroom cable and connectivity management
• Higher-education collaborative classroom installations
• Corporate huddle spaces requiring integrated table connectivity
• Government and enterprise meeting room deployments

Technical Specifications

• Weight: 5.5 lb (2.50 kg)
• Dimensions (H x W x D, lid closed): 7.26 in. x 7.81 in. x 7.21 in. (186 x 198 x 184 mm)
• Height with lid open: 7.73 in. (198 mm)
• Table cutout: 5-3/4 in. deep x 7-1/8 in. wide (146 x 181 mm)
• Max surface thickness: 1-3/4 in. (44 mm)
• Module slots: 12 (two rows of six)
• Power input: 100–240 VAC, 50/60 Hz
• Power output: 24 VDC, 2.5A
• Cresnet port: 3-pin 3.5 mm detachable terminal block
• Operating temperature: 32° to 112°F (0° to 45°C)
• Humidity: 10% to 95% RH, non-condensing
• Certifications: CE, FCC Part 15 Class B, IC, RU Listed (UL, US and Canada)

FAQs

What modules are compatible with this enclosure?

The FT2-700-ELEC-PTL-AL accepts the full range of Crestron FT2A-series modules, including cable retractors, power outlets, USB chargers, and AV connectivity modules. Browse compatible accessories at creationnetworks.net.

Does the enclosure include a power supply?

Yes. The FT2-700-ELEC-PTL-AL ships with the FT2A-UTK-PWS power supply module, which accepts 100–240 VAC and provides 24 VDC at 2.5A for powered modules in the enclosure.

Is Cresnet control required for operation?

No. Basic pass-through and passive connectivity modules operate without a Crestron control processor. The Cresnet port is used only when deploying motorized cable retractors or other control-dependent FT2A modules.
