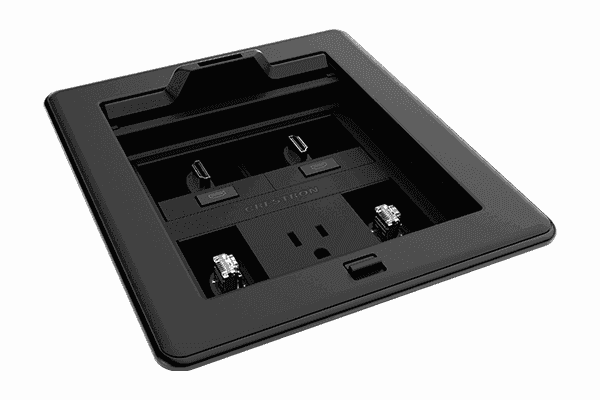

Crestron FT2-500-MECH-PTL-B FlipTop FT2 Series Cable Management System, 500 Size, Mechanical, Pass-Through Lid, Black

Product Overview

The Crestron FT2-500-MECH-PTL-B is a FlipTop FT2 tabletop cable management system that installs into a conference table or lectern to provide modular connectivity at the work surface. Its mechanical one-touch lid retracts and disappears at the tap of a button, revealing eight module slots arranged in two rows of four. The unit accepts a range of drop-in modules for cables, power, and connectors, all sold separately. The 500-size black-finish chassis keeps connections close to the surface for easy access.

Product Description

The FT2-500-MECH-PTL-B is part of the FlipTop FT2 500 mechanical series, which features a fully retracting one-touch lid and a magnetically attached top cover bezel for a clean, contiguous surface with no visible screws. Installation is straightforward: cut the provided template opening, place the unit, and turn four screws to engage the swiveling dogs that secure the FlipTop in surfaces up to 1-3/4 in. (44 mm) thick. The flexible modular design accepts pass-through cable plates, gravity cable retractors, flush-mount keystone connector plates, USB rapid chargers, and domestic or international AC power outlet modules, with blank plates available to fill unused slots. An optional under-table utility shelf eases mounting of a DigitalMedia transmitter or other interface device. All connections reside at the top surface, clearly visible and readily accessible, and modules can be rearranged at any time. Operating power depends on the AC outlet module installed. Note that all modules and accessories are sold separately and are not included with the FlipTop. To plan a configuration, use the Crestron FlipTop Configuration Tool. For module compatibility and accessory part numbers, refer to the Crestron data sheet.

Key Features

• One-touch mechanical lid — Press to retract the lid fully so it disappears below the surface.
• Eight module slots — Two rows of four accept a mix of drop-in modules for flexible connectivity.
• Modular cable management — Pass-through cables, gravity retractors, and keystone plates handle a variety of connectors.
• AC power options — Domestic and international AC outlet modules are available in single, dual, and triple configurations.
• USB charging support — Optional USB rapid charging module for mobile devices at the table.
• Clean installation — Magnetically attached bezel and concealed swiveling dogs leave no visible screws.
• Tabletop mounting — Fits a 5-3/4 in. square cutout in surfaces up to 1-3/4 in. thick, template included.
• Under-table utility shelf — Optional shelf mounts a DigitalMedia transmitter or interface device beneath the table.

Typical Applications

• Conference tables — Modular AV and power connectivity at the meeting surface.
• Lecterns and presentation podiums — Quick laptop connection points for presenters.
• Training rooms — Reconfigurable table connectivity for changing layouts.
• Huddle and collaboration spaces — Concealed cabling with one-touch access.

Technical Specifications

Frequently Asked Questions

Are modules included with the FlipTop?
No. All cable, power, and connector modules and accessories are sold separately. The FT2-500-MECH-PTL-B provides the chassis and lid with eight open module slots.

What size cutout does it require?
It mounts into a 5-3/4 in. square cutout (template provided) in a surface up to 1-3/4 in. thick, secured by four swiveling dogs.

What types of modules can I install?
Pass-through cable plates, gravity cable retractors, flush-mount keystone plates, USB rapid chargers, AC power outlets, and blank plates are supported. Refer to the Crestron data sheet for compatible part numbers.

Can I mount equipment beneath the table?
Yes. An optional FT2A-UTK-SHELF under-table utility shelf is available to mount a DigitalMedia transmitter or other interface device.

What warranty applies and where can I get help?
The unit carries the Crestron 3-year limited warranty. For configuration planning or volume orders, Contact Creation Networks.
