Crestron FT2-500-ELEC-PTL-AL – FlipTop FT2 Series Tabletop Cable Management, 500 Size, Alloy

Product Overview

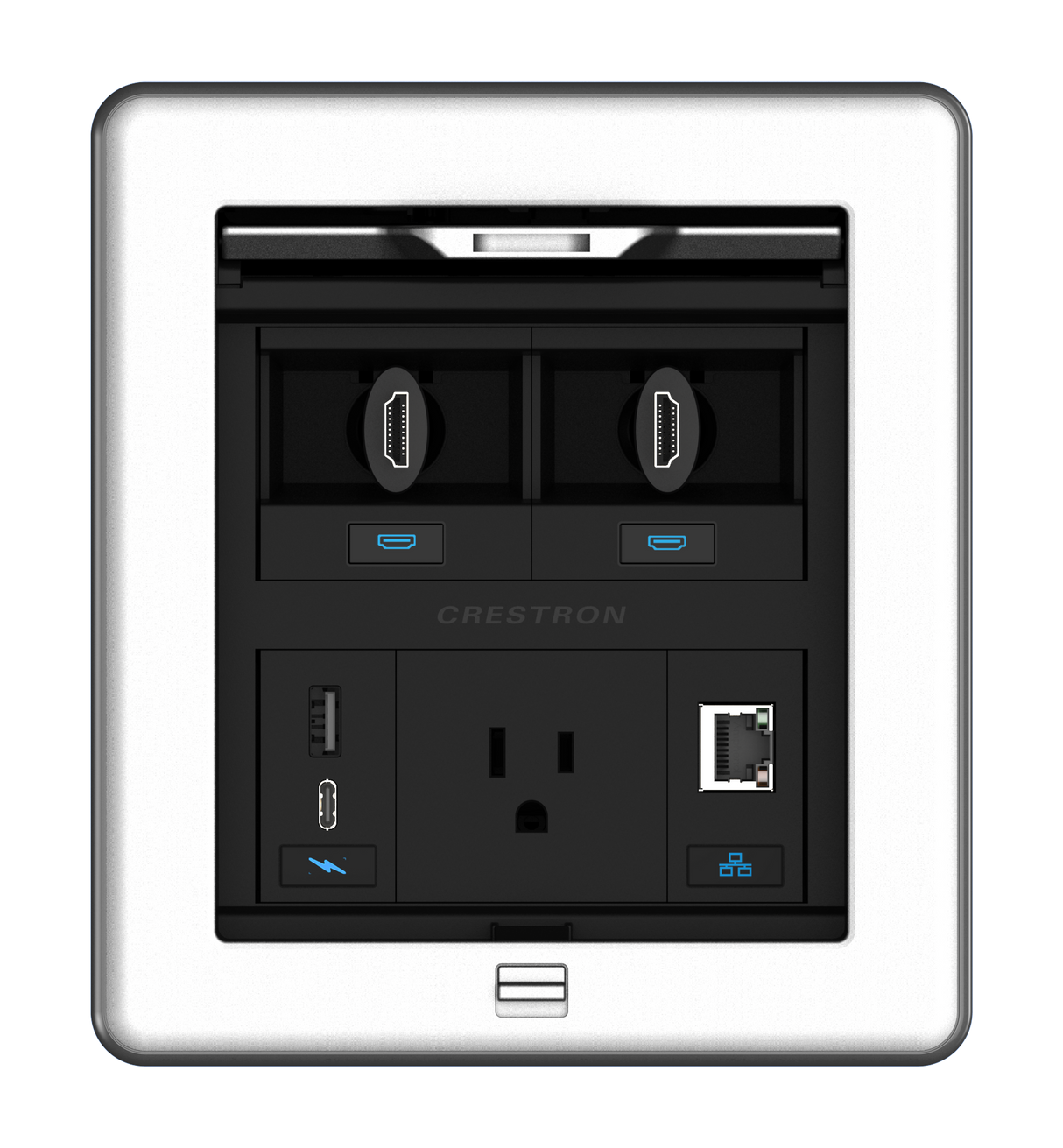

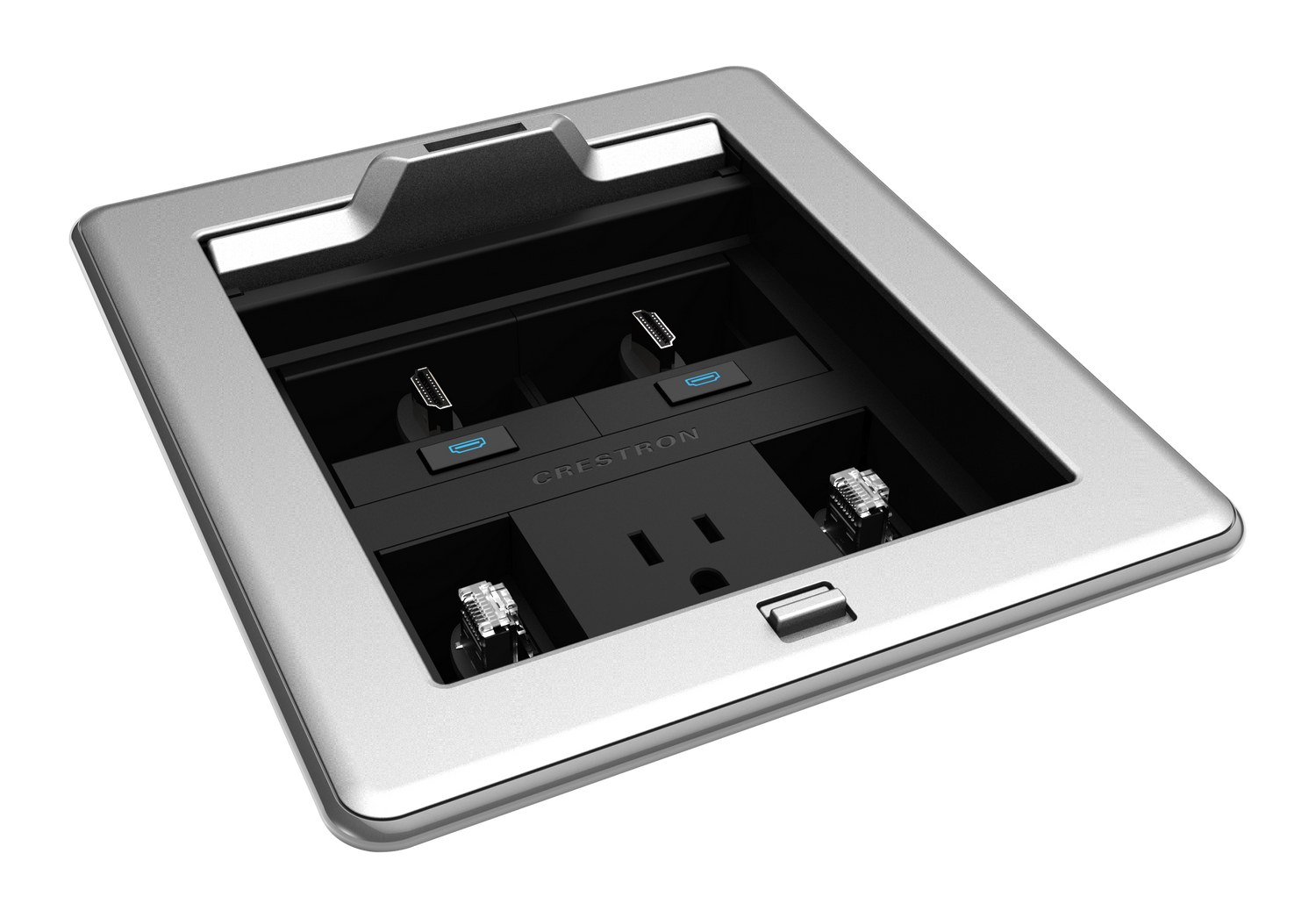

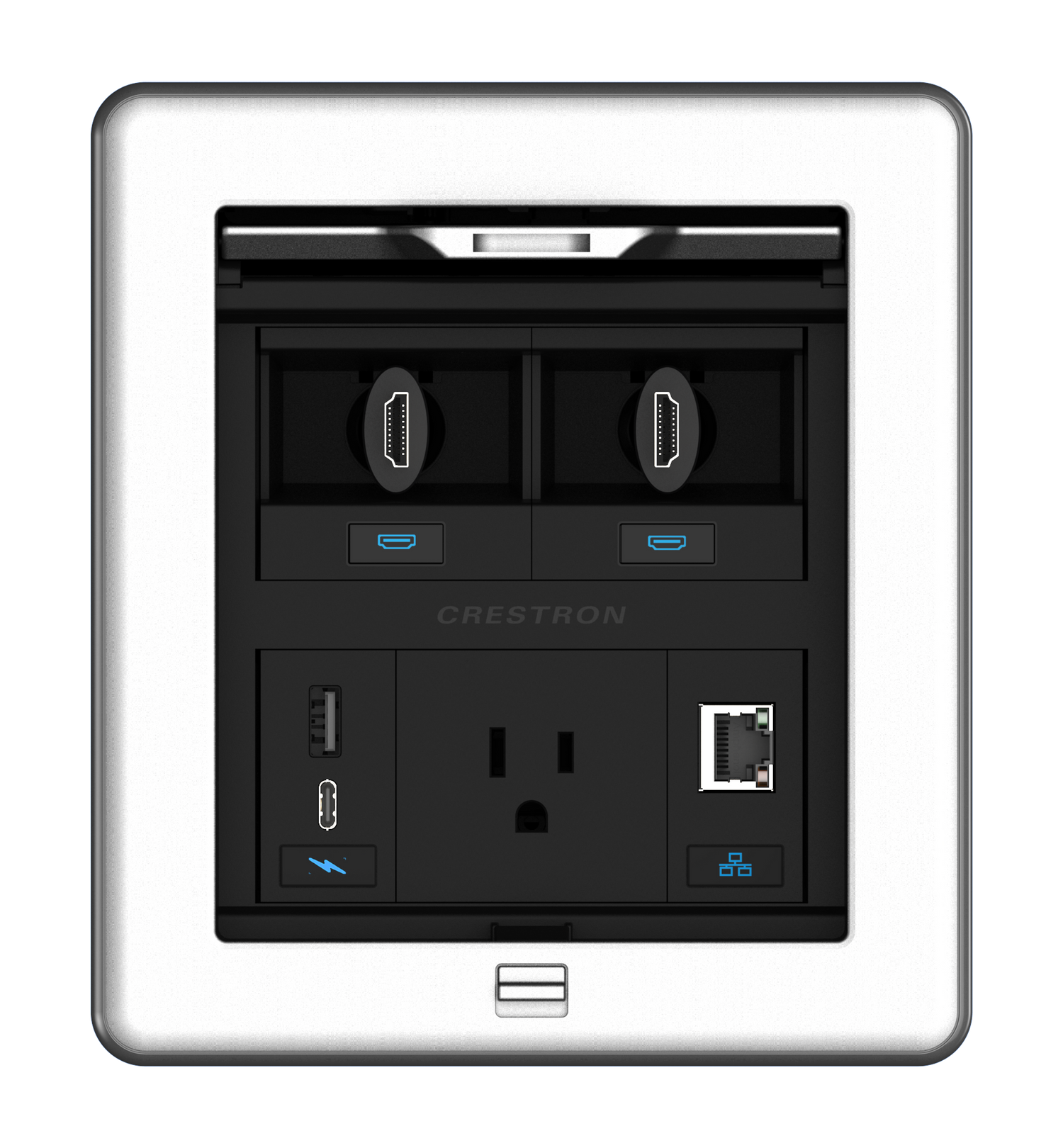

The Crestron FT2-500-ELEC-PTL-AL is a compact modular tabletop cable management system from the FlipTop FT2 Series, engineered for smaller conference tables, huddle rooms, and workstation environments. It features 8 module slots arranged in 2 rows (4 per row), a built-in 24VDC electrical power bus, and a pass-through lid that permits cables to remain extended while the lid is fully closed. The alloy metal finish provides a neutral appearance compatible with a broad range of table surface materials.

Product Description

The FT2-500-ELEC-PTL-AL accepts the same FT2 Series connectivity modules as larger units in the lineup, including pass-through cable retractors, active connector plates, USB rapid charging modules, and AC power outlet modules. Its two-row layout provides flexibility to assign different connection types to each row. The included FT2A-UTK-PWS power supply and Y-adapter cable powers both rows from a single supply; a second power supply is required if a USB rapid charging module is installed in each row. The unit flush-mounts into a 5-3/4 in. square table cutout using four swiveling dog fasteners, accommodating surfaces up to 1-3/4 in. thick. Cresnet data ports on both rows allow optional integration with Crestron control systems.

The 500 size designation refers to the unit's compact footprint, making it well-suited to installations where table real estate is limited but BYOD connectivity is still required. The alloy finish model is interchangeable with the black model (FT2-500-ELEC-PTL-B) in mixed-finish table configurations.

Key Features

• 8 module slots in a 2-row configuration (4 per row) for flexible connectivity layout

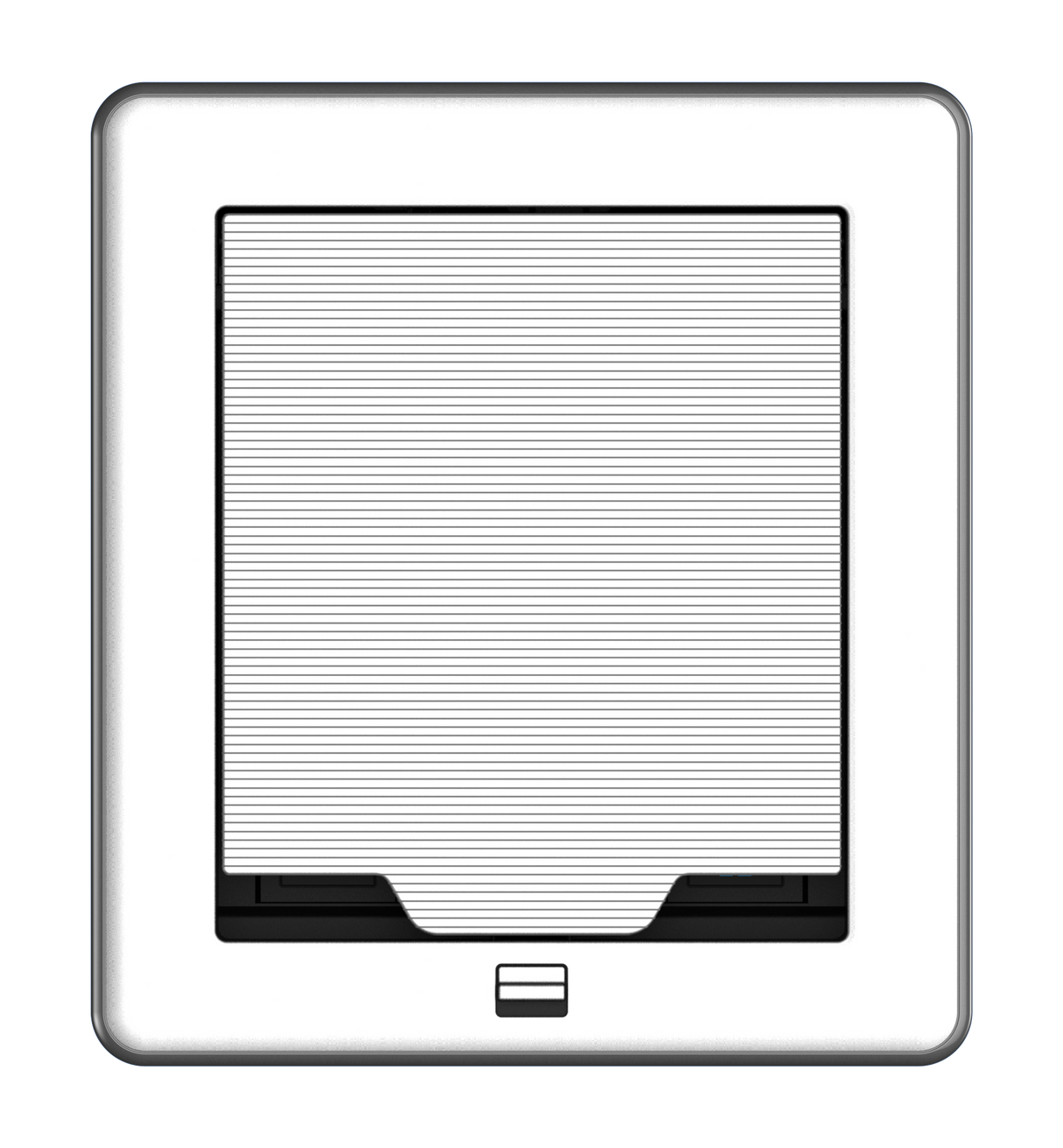

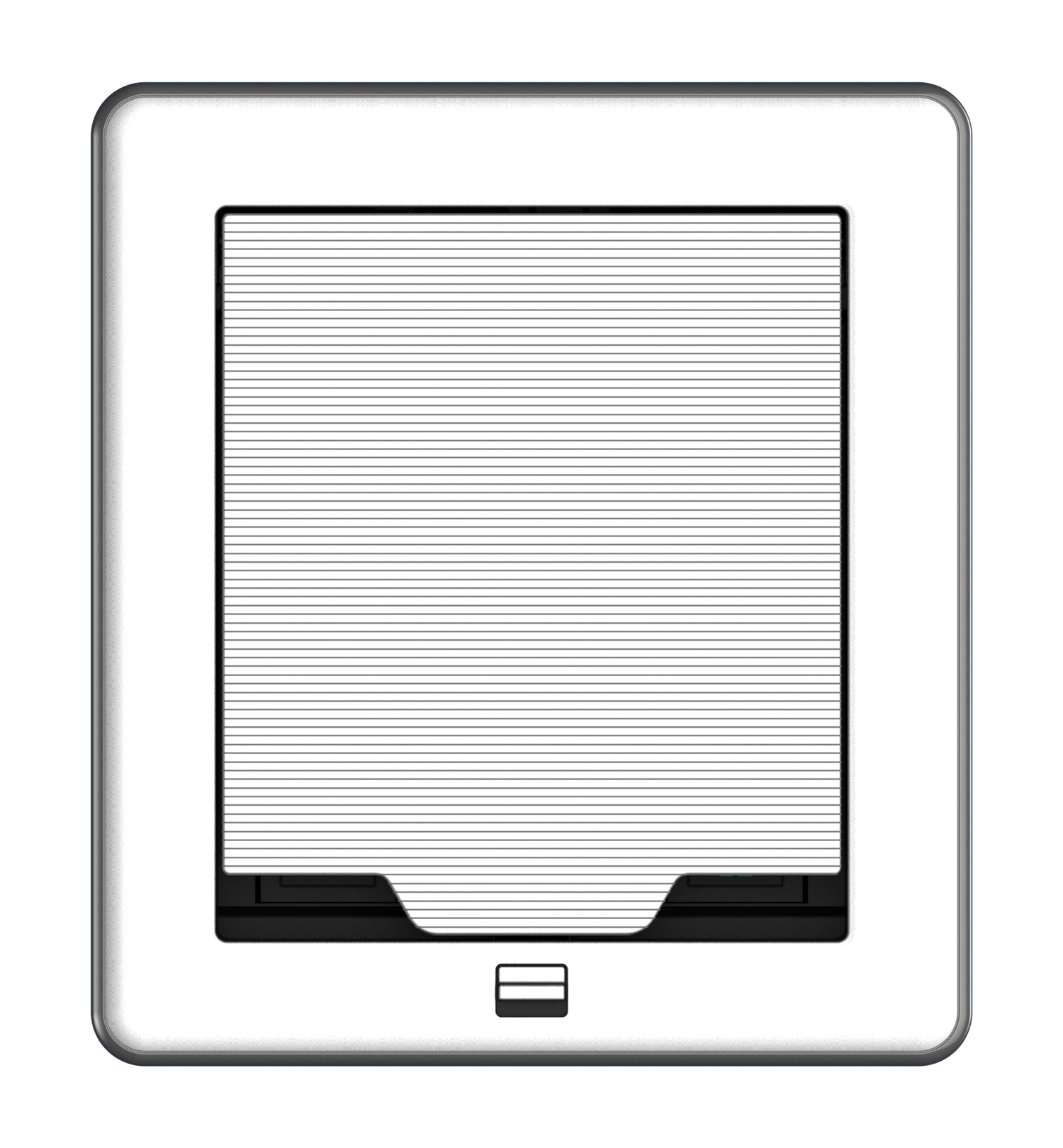

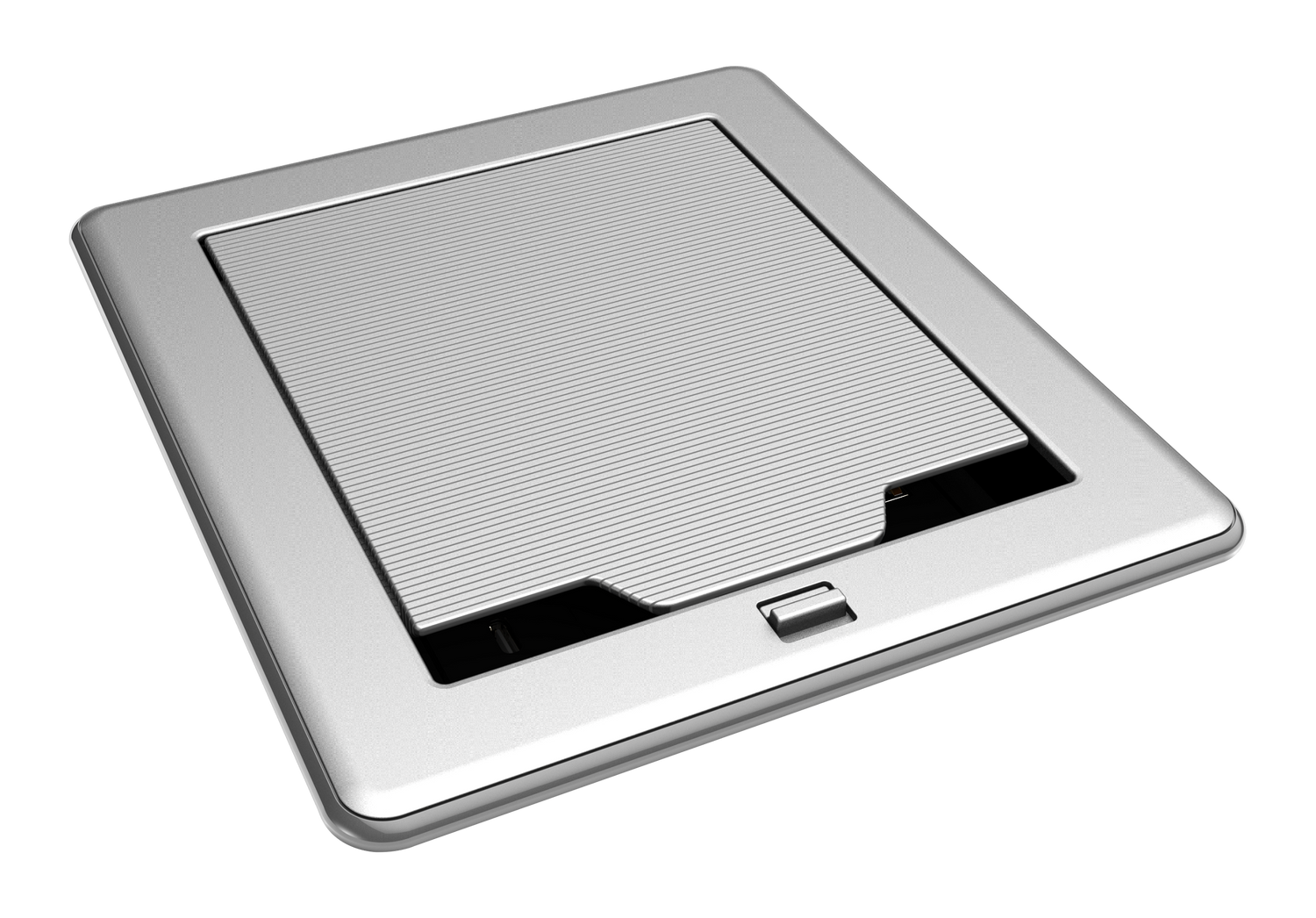

• Pass-through lid — cables remain connected with the lid fully closed
• Built-in 24VDC power bus with included FT2A-UTK-PWS power supply and Y-adapter for dual-row power
• Two independent Cresnet data ports (one per row) for control system integration
• Two DC power inputs (one per row), 2.1 x 5.5 mm, 24VDC
• Chassis ground lug for reliable safety grounding
• Compact square footprint: table cutout 5-3/4 in. (146 mm) W x 5-3/4 in. (146 mm) D
• Flush tabletop mount secured by 4 swiveling dogs, surfaces up to 1-3/4 in. thick
• CE, FCC Part 15 Class B, IC, and RU Listed for US and Canada

Typical Applications

• Small conference and huddle room tables requiring BYOD connectivity in a compact footprint
• Workstation desks with video conferencing equipment needing USB and HDMI access
• Training room tables where two connection types per position are needed in a compact unit
• Hotel meeting rooms where a non-obtrusive table connectivity solution is required
• Executive office desks requiring professional-grade cable management and power access

Technical Specifications

Frequently Asked Questions

What is the difference between the FT2-500-ELEC-PTL-AL and the FT2-500-ELEC-PTL-B?

The two models are mechanically identical. The AL suffix denotes an alloy (silver-tone) metal finish; the B suffix denotes a black finish. Both accept the same FT2 Series modules and use the same mounting cutout dimensions.

Can the FT2-500 accept a USB rapid charging module in both rows simultaneously?

Yes, but each row requires its own power supply. The included FT2A-UTK-PWS and Y-adapter supports one USB rapid charging module per configuration. A second FT2A-UTK-PWS power supply (sold separately) must be installed to power a USB charger in the second row as well.

Does the 500 size designation indicate the number of available module slots?

No. The 500 designation refers to the product family size grouping within the FT2 Series and corresponds to its compact square form factor. This unit has 8 module slots across 2 rows.
