Crestron FT2-1400-ELEC-PTL-B – FlipTop FT2 Cable Management System, 1400 Size, Electrical, Pass-Through Lid, Black

Product Overview

The Crestron FT2-1400-ELEC-PTL-B is a FlipTop FT2 Series surface-mount cable management enclosure for conference tables and training room furniture. It installs flush into a table cutout and houses AV connectivity modules, AC power outlets, USB chargers, and cable retractors within a compact enclosure that closes flush with the table surface when not in use. The 1400 size with electrical configuration includes a built-in power supply unit, and the pass-through lid (PTL) design allows cables to route through the lid when it is open. This model has a black finish and is designed for facilities managers and AV integrators specifying conference room cable management infrastructure.

Product Description

The FT2-1400-ELEC-PTL-B accepts up to 18 modules across 2 rows of 9 module slots, accommodating combinations of AC power outlets, USB rapid chargers, HDMI or other AV connector plates, and cable retractors. The included power supply (FT2A-UTK-PWS) accepts 100–240 VAC input and provides 24 VDC / 2.5 A for powered modules. Two Cresnet data ports (for data signal only) allow integration with Crestron control modules if installed. The pass-through lid allows cables to remain connected through the lid opening while the unit is in use, reducing setup time during meetings. The enclosure requires a 6.75 in. x 10 in. table cutout and supports table surfaces up to 1.75 in. thick.

Key Features

• FlipTop FT2 Series 1400 size enclosure with pass-through lid
• 18 module slots (2 rows of 9) for AC outlets, USB chargers, AV connectors, and cable retractors
• Included power supply: 100–240 VAC input, 24 VDC / 2.5 A output
• 2x Cresnet data ports for control module integration

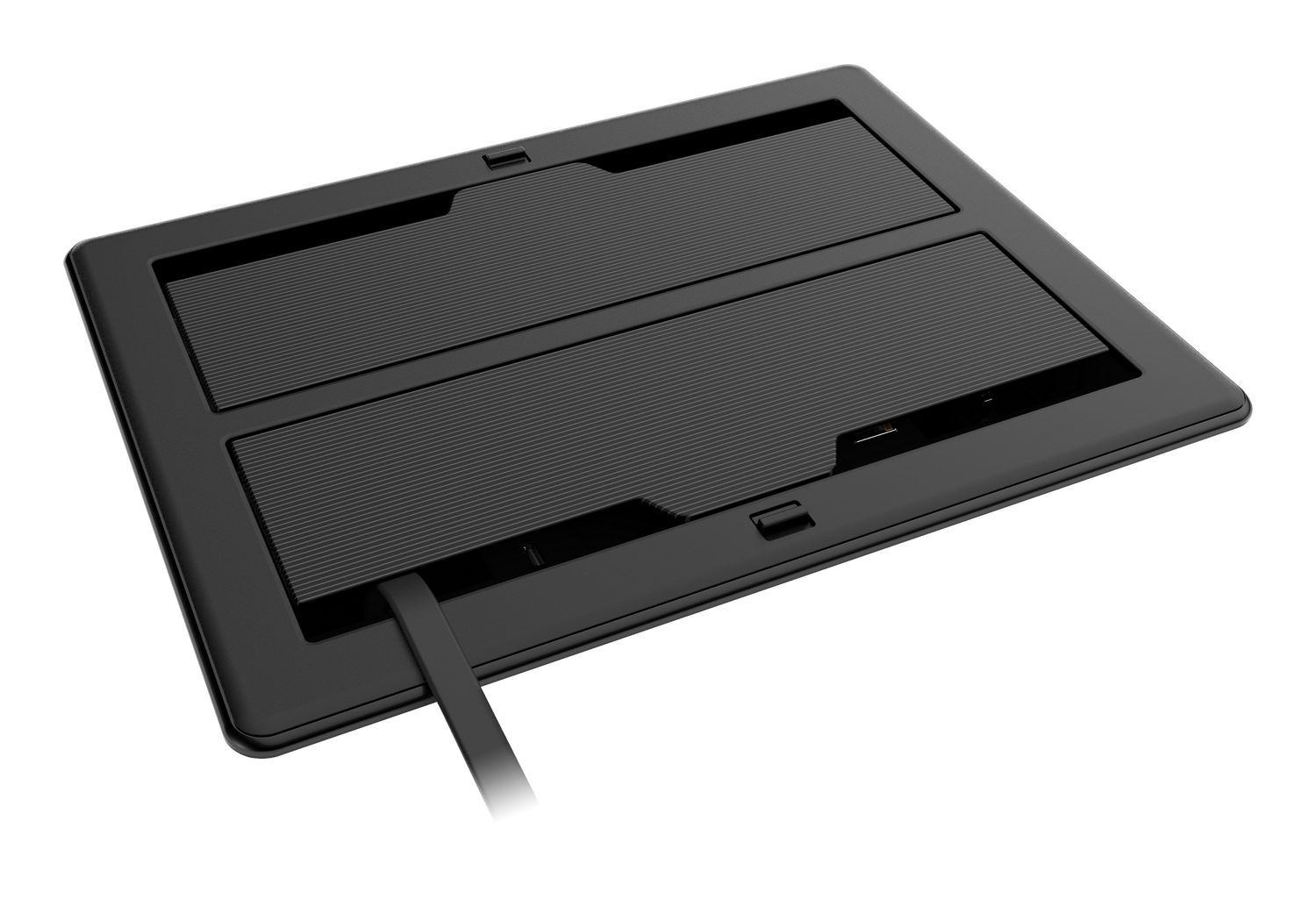

• Pass-through lid design allows cables to route through the lid opening
• Black finish
• Table cutout: 6.75 in. deep x 10 in. wide; max surface thickness 1.75 in.
• CE, FCC Part 15 Class B, IC, RU Listed (US and Canada)

Typical Applications

• Conference table cable management in corporate boardrooms and meeting rooms
• Training room furniture cable management for laptop and device connectivity
• Huddle space and collaboration room table cable access points
• Hotel meeting room and convention center table connectivity stations
• Education classroom and lecture hall table-integrated AV connectivity

Technical Specifications

• Model: FT2-1400-ELEC-PTL-B
• Series: FlipTop FT2
• Size: 1400
• Configuration: Electrical (with power supply)
• Lid Type: Pass-Through Lid (PTL)
• Finish: Black
• Module Slots: 18 (2 rows of 9)
• Included Power Supply: FT2A-UTK-PWS; Input: 100–240 VAC, 50/60 Hz, 1.5 A max; Output: 24 VDC, 2.5 A
• Cresnet Ports: 2 (data only)
• 24 VDC Power Inputs: 2
• Table Cutout Required: 6.75 in. deep x 10 in. wide (171 x 254 mm)
• Max Surface Thickness: 1.75 in. (44 mm)
• Dimensions (Lid Closed): H 7.26 in. x W 8.15 in. x D 10.79 in. (186 x 207 x 274 mm)
• Dimensions (Lid Open): H 7.73 in. x W 8.15 in. x D 10.79 in. (198 x 207 x 274 mm)
• Weight: 8.0 lb (3.6 kg) without power supply or accessories
• Certifications: CE, FCC Part 15 Class B, IC, RU Listed (US and Canada)

Frequently Asked Questions

Q: What modules are compatible with the FT2-1400-ELEC-PTL-B?
A: The FT2-1400 enclosure accepts standard FlipTop FT2 Series modules. Compatible modules include AC power outlets, USB rapid charger modules, HDMI and other AV connector plates, blank cover plates, and Crestron cable retractor modules. Modules are sold separately.

Q: Does the FT2-1400-ELEC-PTL-B include AC power outlets?
A: The base enclosure includes the power supply unit but does not include individual outlet modules. AC outlet modules for the module slots are available separately and must be specified and ordered based on the required outlet type and quantity.

Q: How deep must the conference table be to install the FT2-1400-ELEC-PTL-B?
A: The table cutout required is 6.75 in. deep x 10 in. wide, and the table surface must be no more than 1.75 in. thick. Ensure the table has sufficient internal clearance below the surface to accommodate the enclosure body depth.
