FlipTop FT2 Series Cable Management System, 1400, Electrical, Pass-Through Lid, Alloy

Product Overview

The Crestron FT2-1400-ELEC-PTL-AL is a 1400-size FlipTop FT2 Series flush-mount cable management system for conference tables and training room surfaces. This is a discontinued product that remains available for purchase. The electrical version integrates an internal 24 VDC power supply, eliminating the need for external power bricks when deploying powered AV tabletop modules.

Product Description

Designed for AV integrators who need a clean, table-flush enclosure for tabletop AV modules, the FT2-1400-ELEC-PTL-AL accommodates up to 18 TS Series modules across two rows of nine slots each. The pass-through lid opens to route cables from below the table surface through the enclosure, keeping installations tidy and compliant with facility requirements. The alloy finish suits professional conference environments where aesthetics are a specification requirement.

The mechanically retracting lid uses a magnetically attached bezel for a flush appearance when closed. Four swiveling mounting dogs secure the enclosure to table surfaces up to 1-3/4 in. (44 mm) thick without adhesives or visible hardware from above. The internal power supply accepts 100–240 VAC input and delivers 24 VDC at 2.5 A per row via 2.1×5.5 mm DC connectors, with dedicated 3-pin Cresnet ports on each row for control network data.

Key Features

• 18 total module slots in a 2-row, 9-slot-per-row chassis
• Flush tabletop mount with four swiveling dogs; fits surfaces up to 1-3/4 in. (44 mm) thick
• Internal 24 VDC power supply (100–240 VAC input, 2.5 A @ 24 VDC per row)
• 2x 2.1×5.5 mm DC output connectors (one per row)
• 2x 3-pin Cresnet data ports (one per row)

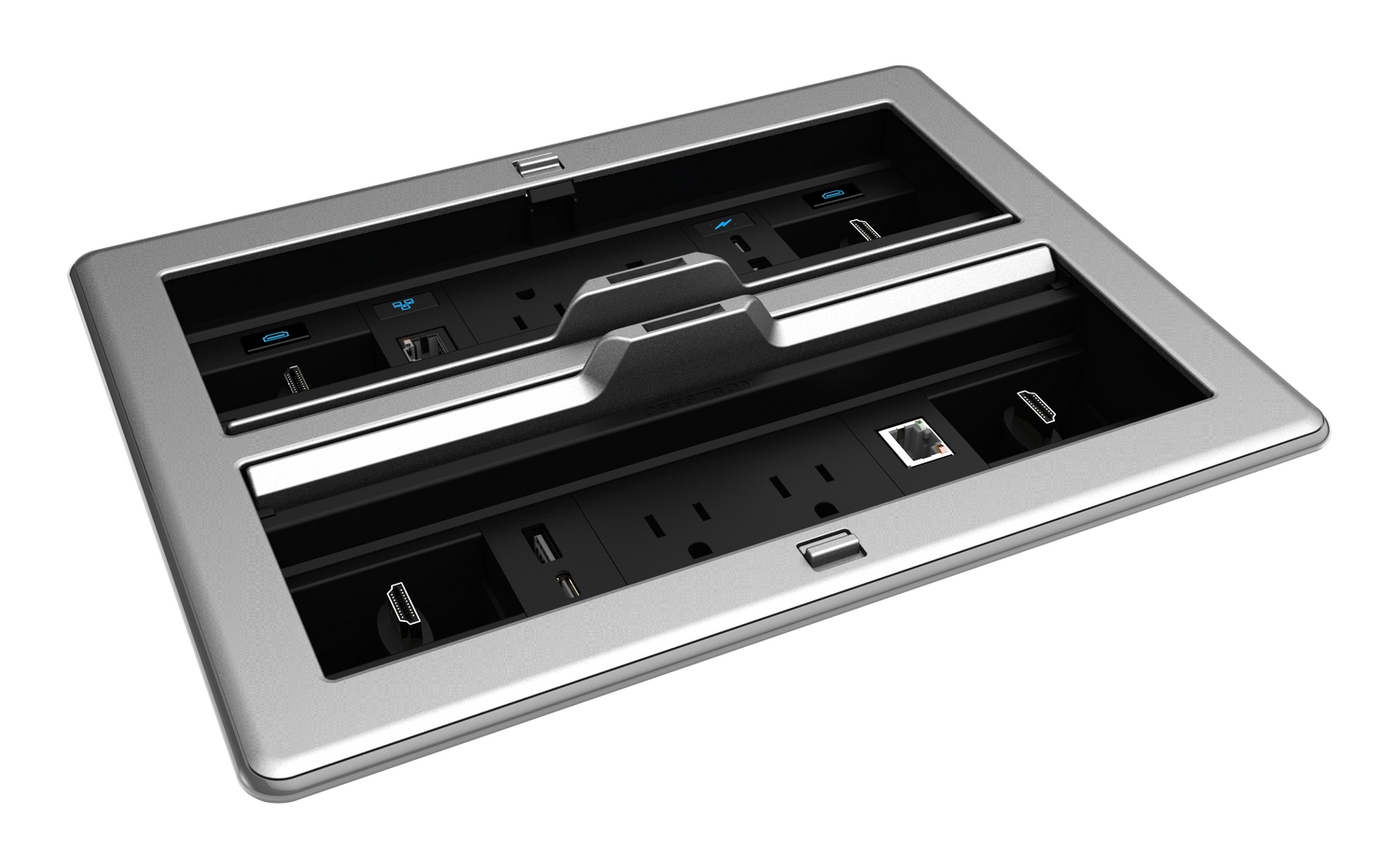

• Pass-through lid for clean cable routing from below the table

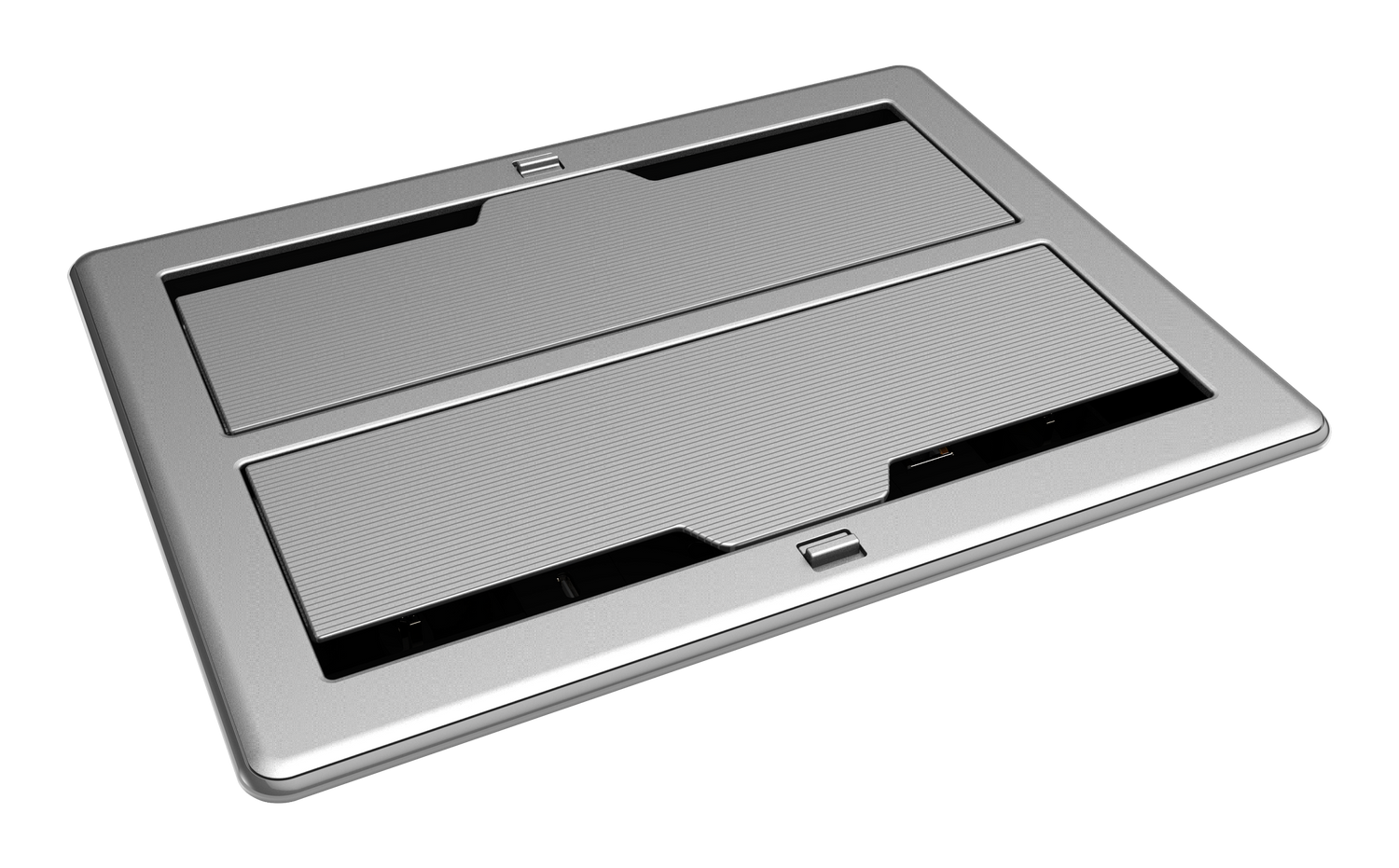

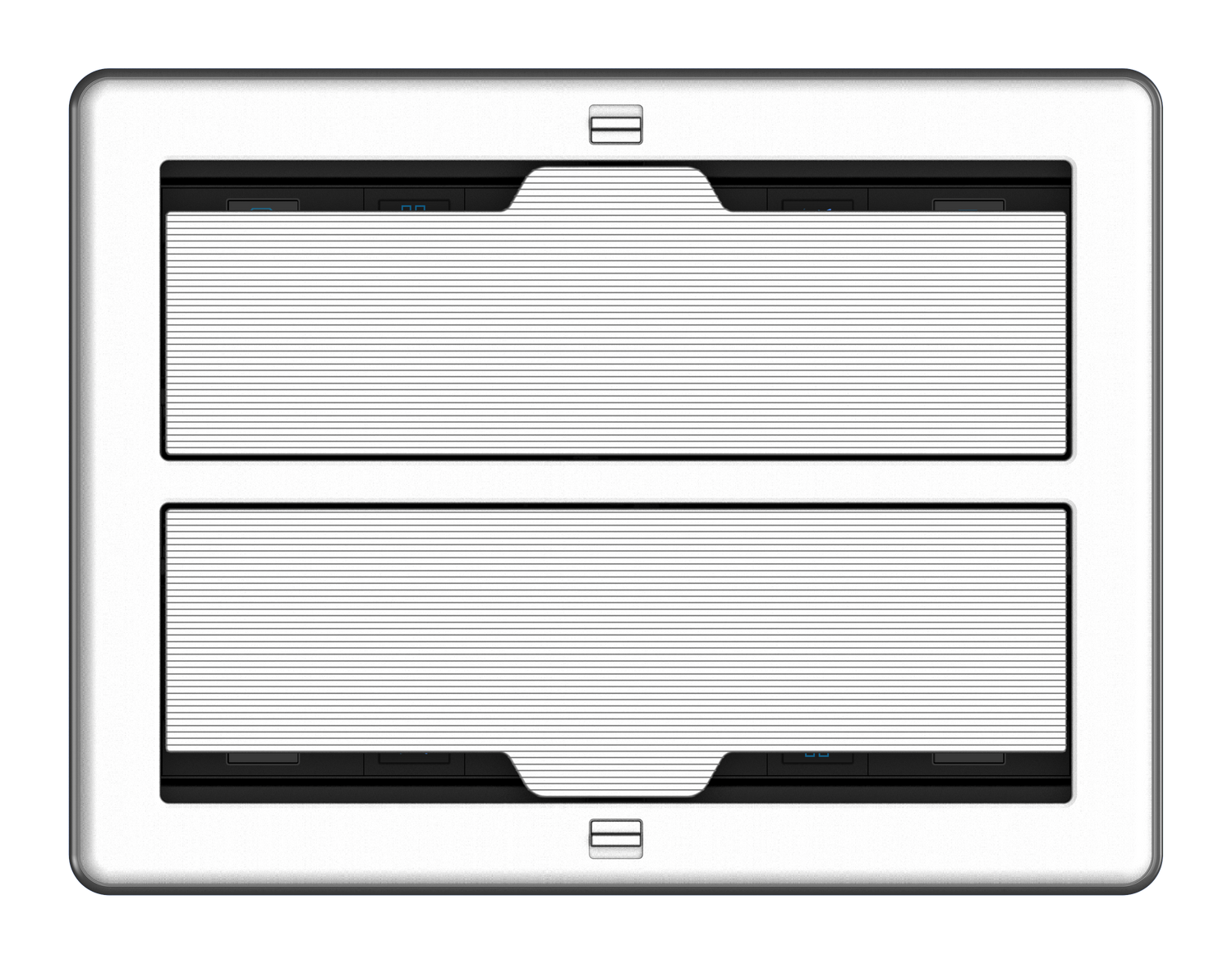

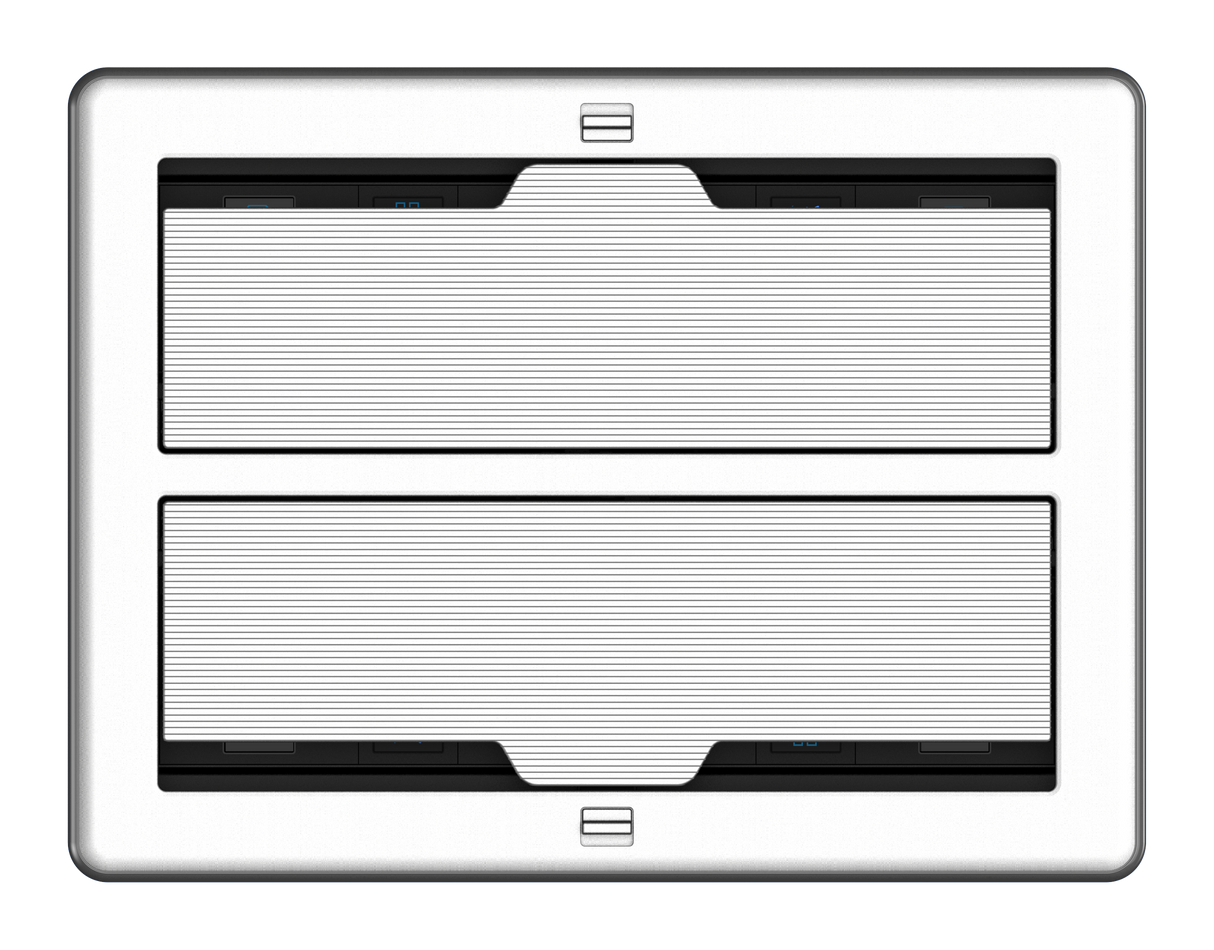

• Mechanically retracting lid with magnetically attached bezel
• Alloy finish
• CE, FCC Part 15 Class B, IC, UL Listed

Typical Applications

• Conference room table AV integration with TS Series touch screens and button panels
• Training room tables requiring multi-module AV control surfaces
• Board rooms and executive conference spaces where alloy finish is specified
• Tabletop deployments requiring on-board 24 VDC power distribution to modules

Technical Specifications

Frequently Asked Questions

How many modules does the FT2-1400-ELEC-PTL-AL support?

The enclosure holds 18 modules total — two rows with nine module slots each. Compatible modules include Crestron TS Series touch screens, button panels, and other tabletop AV interface components designed for the FT2 chassis.

Does this unit require an external power supply?

No. The electrical version includes an internal 24 VDC power supply that accepts 100–240 VAC input. Each row has its own 2.1×5.5 mm DC output connector delivering up to 2.5 A at 24 VDC.

What is the pass-through lid?

The pass-through lid opens to allow cables to route from below the table surface up through the enclosure and into installed modules, without requiring a separate cable access cutout in the table.

What table thickness is supported?

The four swiveling mounting dogs accommodate table surfaces up to 1-3/4 in. (44 mm) thick. No adhesives or visible hardware above the table surface are required.

Is this product still being manufactured?

The FT2-1400-ELEC-PTL-AL is a discontinued Crestron product. Units remain available for purchase while supply lasts. For new installations, verify compatibility with current Crestron module offerings.

What is the difference between the electrical and mechanical versions?

The electrical version (this unit) includes an internal 24 VDC power supply and Cresnet data ports. The mechanical version (FT2-1400-MECH-PTL series) has no internal power supply — modules in the mechanical version must supply their own power.
