Crestron FT2-1200-ELEC-PTL-B – FlipTop FT2 Series Tabletop Cable Management, 1200 Size, Black

Product Overview

The Crestron FT2-1200-ELEC-PTL-B is a modular tabletop cable management system from the FlipTop FT2 Series, designed for conference rooms, boardrooms, and training facilities. It provides 9 module slots in a single row, accepts a wide range of active and passive connectivity modules, and features a mechanically retracting lid with pass-through cutouts that allow cables to remain connected while the lid is closed. The black metal finish integrates cleanly with table surfaces in corporate environments.

Product Description

The FT2-1200-ELEC-PTL-B incorporates a built-in 24VDC electrical power bus that enables one-touch cable retractors, active connector plates, and USB rapid charging modules. A single FT2A-UTK-PWS power supply is included, supporting up to one USB rapid charging module; additional power supplies are available separately for expanded configurations. The unit flush-mounts through a 10 in. x 4 in. table cutout using two swiveling dogs rated for surfaces up to 1-3/4 in. thick, with the power supply attaching beneath the table. Cresnet connectivity is routed through a 3-pin 3.5 mm terminal block, enabling integration with Crestron control systems where needed.

The pass-through lid design distinguishes this unit from standard lift-top FlipTops: cables can be fully extended through lid cutouts without opening the lid, reducing wear on the mechanism in high-use installations. The magnetically-attached bezel provides a clean, consistent finished appearance when the lid is closed.

Key Features

• 9 module slots, single row — accommodates pass-through cables, one-touch retractors, gravity retractors, active connector plates, keystone plates, USB rapid chargers, and AC power outlets

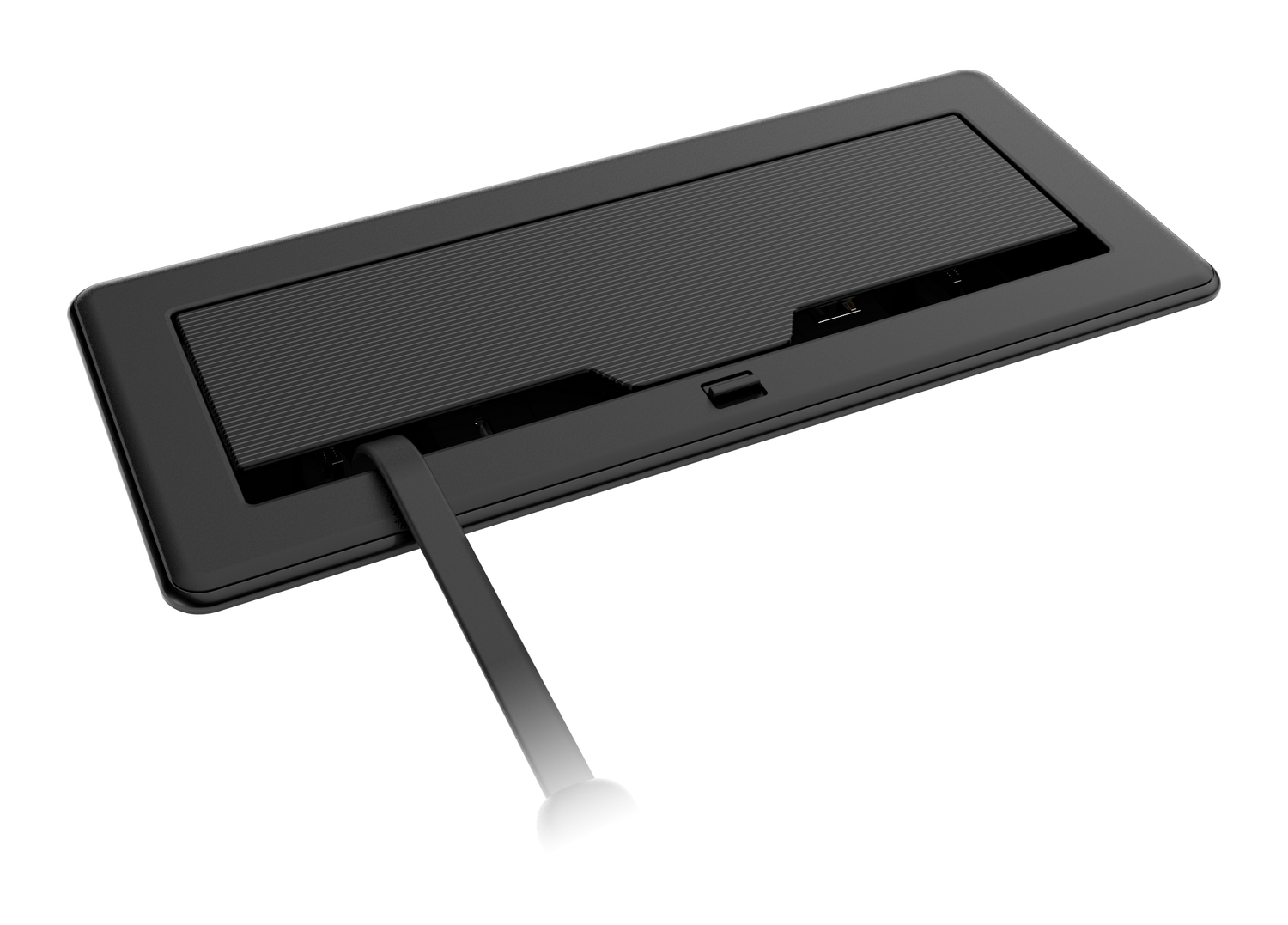

• Pass-through lid with integrated cutouts — cables remain connected with lid closed
• Built-in 24VDC electrical power bus — eliminates separate wiring for powered modules
• Included FT2A-UTK-PWS power supply (100-240VAC input, 2.5A/24VDC output)
• Cresnet data port (3-pin 3.5 mm terminal block) for control system integration
• Chassis ground lug for reliable grounding in AV rack and table installations
• Flush tabletop mount with swiveling dog hardware, fits surfaces up to 1-3/4 in. thick
• Table cutout: 10 in. (254 mm) wide x 4 in. (102 mm) deep (template included)
• CE, FCC Part 15 Class B, IC, and RU Listed for US and Canada

Typical Applications

• Corporate conference tables and boardroom presentation lecterns requiring recessed cable management
• Training room tables with multiple BYOD connections (HDMI, USB-C, USB-A, power)
• Huddle space tables where clean aesthetics and flexible connectivity are both required
• Hotel meeting room tables requiring guest-accessible A/V and power connections
• Higher-education classroom tables with faculty presentation station connectivity

Technical Specifications

Frequently Asked Questions

What types of modules does the FT2-1200-ELEC-PTL-B accept?

The unit accepts FT2 Series modules including pass-through cables, one-touch cable retractors, gravity cable retractors, active connector plates, keystone connector plates, USB rapid charging modules, and international AC power outlet modules. See creationnetworks.net for compatible FT2 module accessories.

Does the included power supply support multiple USB charging modules?

The included FT2A-UTK-PWS power supply supports one USB rapid charging module. For installations requiring more USB charging capacity, additional FT2A-UTK-PWS power supplies must be purchased separately and daisy-chained to the chassis.

Can this unit be used without a Crestron control system?

Yes. The Cresnet port is optional and used only when control system integration is desired. The FT2-1200-ELEC-PTL-B operates fully as a passive cable management and power distribution unit without any Crestron controller.
