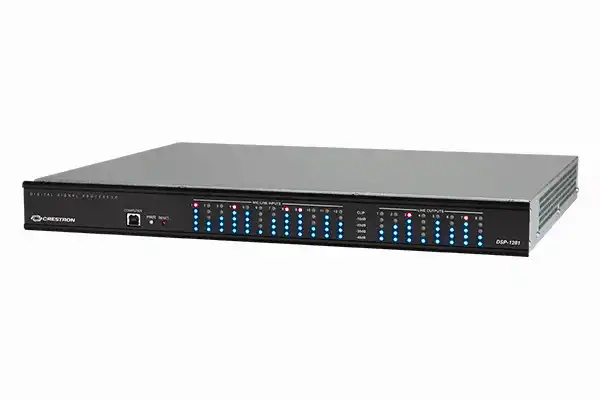

Crestron DSP-1281 – Avia DSP Engine, 12×8 Audio Matrix with 128 DSP Channels

Product Overview

The Crestron DSP-1281 is an Avia DSP Engine providing a 12-input by 8-output audio matrix with 128 channels of DSP processing — 48 more DSP channels than the DSP-1280 — for commercial AV environments requiring higher processing channel depth for complex signal chains, larger multi-zone speaker systems, or audio installations with more extensive EQ, dynamic processing, and routing requirements per channel. Like the DSP-1280, it supports AEC, noise cancellation, AGC, parametric EQ, compression, and room correction, is configured using Crestron DSP Configurator software, and integrates natively with Crestron 4-Series control processors.

Product Description

The additional 48 DSP channels in the DSP-1281 over the DSP-1280 address installations where the processing chain per channel requires more DSP blocks than the DSP-1280’s 80-channel budget supports — for example, large conference rooms with extensive multi-band EQ curves on each speaker zone output, complex routing matrices with per-route gain and dynamics processing, or audio systems where every input and output requires a full chain of processing modules. The DSP-1281 is the appropriate specification for larger conference rooms, auditoriums, and multi-room audio systems where the DSP-1280 channel count is projected to be insufficient for the complete signal processing design. The 12×8 physical I/O is identical between the DSP-1280 and DSP-1281 — the difference is exclusively in the available DSP processing channel budget. Contact Creation Networks for DSP channel count estimation for your specific audio system design to determine whether the DSP-1280 or DSP-1281 is appropriate.

Key Features

• 12×8 Audio Matrix, 128 DSP Channels: 48 additional DSP channels vs. DSP-1280 for complex signal chains in larger conference rooms, auditoriums, and multi-zone commercial audio installations requiring extensive per-channel processing.
• Full AEC, Noise Cancellation, AGC Processing: Same professional-grade acoustic echo cancellation, noise cancellation, and automatic gain control as the DSP-1280 on AEC-enabled input channels.
• Parametric EQ, Compression, Room Correction: Full per-channel processing for precise acoustic tuning of commercial speaker systems with complex frequency response and dynamic control requirements.
• Crestron 4-Series Native Integration: Direct IP control from Crestron 4-Series processors — no third-party driver configuration for volume, mute, source routing, and preset recall from touch panels and scheduling systems.
• Crestron DSP Configurator: Graphical signal flow configuration tool — same tool as DSP-1280, no SIMPL programming required for DSP design.
• 1RU Rack Mount: Standard 1RU rack-mount chassis alongside Crestron control processors and amplifiers in commercial AV racks.

Typical Applications

• Large conference rooms and boardrooms with complex multi-zone speaker systems and extensive per-channel EQ and dynamics processing requirements exceeding the DSP-1280 channel budget
• Auditoriums and performance venues with multi-zone speaker systems, complex routing matrices, and full-chain processing per speaker zone
• Higher education lecture halls with ceiling speaker arrays, delay zones, and per-zone processing requiring the additional DSP channel depth of the DSP-1281
• Houses of worship with complex multi-zone audio systems including sanctuary, lobby, green room, and monitor feeds with full per-channel processing
• Government and corporate command centers with multi-zone audio requiring extensive signal processing beyond the DSP-1280 channel capacity

Technical Specifications

Competitor comparison: not applicable for this product.

Frequently Asked Questions

When should I specify DSP-1281 over DSP-1280?
Specify the DSP-1281 when the audio system design requires more than 80 DSP processing channels. This is typically determined by the number of inputs, outputs, and the processing chain depth per channel in the DSP Configurator design. Contact Creation Networks for DSP channel count estimation for your specific installation.

Is the physical I/O the same as the DSP-1280?
Yes — both the DSP-1280 and DSP-1281 provide a 12×8 audio matrix with the same physical input and output connectors. The difference is exclusively the DSP channel budget: 80 channels (DSP-1280) vs. 128 channels (DSP-1281).

What is the warranty on the Crestron DSP-1281?
Crestron provides a standard 3-year limited warranty. Contact Creation Networks for warranty service and support details.
