Overview

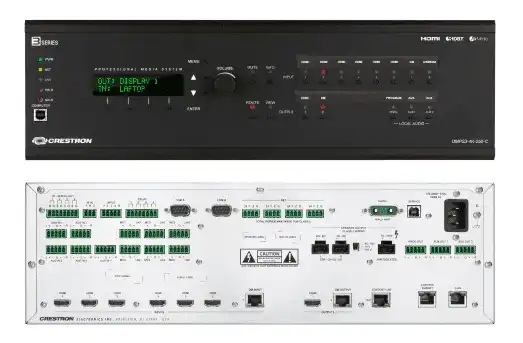

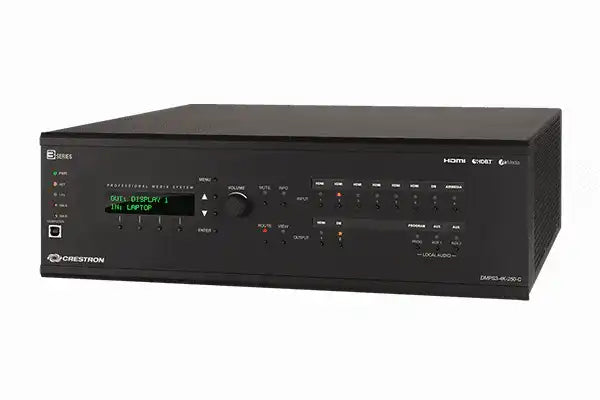

The DMPS3-4K-250-C from Crestron® offers an all-in-one 4K AV presentation system for classrooms, boardrooms, lecture halls, and videoconference rooms. Delivering a complete, custom-programmable room solution with fully-configurable signal routing and processing is easy and cost-effective using the DMPS3-4K-250-C. In one 3-space rack mount package, it integrates the control system, matrix switcher, video scaler, streaming decoder, mic mixer, audio DSP, and amplifier. Its built-in AirMedia® gateway, when activated [1], enables wireless presentation from computers and mobile devices. DigitalMedia 8G+® and HDBaseT® connectivity affords a streamlined, long-distance wiring solution for remote sources and display devices, and for facility-wide integration as part of a larger media distribution system.
Overview
4K Ultra HD
Crestron DigitalMedia™ continues to advance the standard for digital AV signal management, delivering the most complete end-to-end 4K system solutions available. The DMPS3-4K-250-C handles 4K/60 video with HDCP 2.2 encryption, ensuring support for all the latest 4K and Ultra HD displays and media sources. Support for 4K is also essential to support the latest generation of computers and monitors with native resolutions beyond 1080p and WUXGA.
No Programming Required!
Installing the DMPS3-4K-250-C is easy, fast, and affordable. Built-in .AV Framework™ technology delivers a fully-functional presentation system with simplified configuration and a choice of control options and other add-ons. For complete details on the capabilities supported by .AV Framework, please visit: http://www.crestron.com/avframework.[2]
AirMedia® Wireless Presentation [1]
Built-in AirMedia technology allows for wireless presentation of content from a laptop, smartphone, or tablet device via a Wi-Fi® wireless network. With AirMedia, anyone can walk into the room with a Windows® or MacBook® laptop and connect without wires, enabling the presentation of any content including Full HD video at frame rates up to 30 fps. iPhone®, iPad®, and Android™ devices can present PowerPoint®, Excel®, Word, and PDF documents, as well as pictures, videos, or any app content with full-screen mirroring. AirMedia lets up to 32 participants connect at once, switching from one to the next for seamless collaboration on the fly.[1]
HD Streaming Video
Its onboard streaming decoder enables the DMPS3-4K-250-C to receive a high-definition AV signal over the network or internet from a DigitalMedia switcher, IP camera, or streaming encoder (Crestron DM-TXRX-100-STR or similar). H.264 and MJPEG streaming formats are supported with resolutions up to HD 1080p and bitrates up to 25 Mbps. High-quality AAC audio decoding is employed to handle 2-channel stereo audio with full frequency response.[3]
4K System Switcher
The DMPS3-4K-250-C provides high-performance routing of HDMI®, AirMedia [1], and streaming AV sources to two separate displays, projectors, codecs, and other devices. Its video inputs include six HDMI, one DM 8G+®, and one streaming/AirMedia. The HDMI inputs are compatible with DVI and Dual-Mode DisplayPort sources [4], and the DM 8G+ input is compatible with HDBaseT. Five balanced analog audio inputs are also included. Each HDMI and analog audio input includes adjustable input compensation to accommodate a range of signals and maintain consistent volume levels when switching between sources.
Built-in 8x2 video matrix switching allows two different video sources to be routed simultaneously to two different display devices. Video outputs are comprised of one HDMI and one DM 8G+. The HDMI output is compatible with DVI [4] and the DM 8G+ output is compatible with HDBaseT.
The audio signal from any input can be freely routed to any of three separate stereo analog audio outputs. Audio can also be routed to the digital outputs via two independently switchable signal paths, either of which may be selected to feed the HDMI output, the DM 8G+ output, or both.
4K/60 Video Scaling
A high-performance 4K scaler is included on the HDMI output to ensure an optimal image on the display no matter what source is selected. The scaler allows all types of video and computer sources to be viewed reliably and look their best on any display up to 4K.
Input resolutions from standard definition NTSC 480i to ultra high-definition 4K DCI are scaled beautifully to any output resolution up to 4K DCI (4096 x 2160 @ 60 Hz). Interlaced sources are converted to progressive scan using motion-adaptive deinterlacing. Intelligent frame rate conversion enables support for 24p and PAL format sources. And, 3D to 2D conversion allows 3D content to be viewed on a 2D-only display.[5] Fully automatic operation eliminates any complicated setup by utilizing the display's EDID to configure the scaler.
Scaling can be added to the DM 8G+ output using the DM-RMC-4K-SCALER-C receiver [6], which features its own built-in 4K scaler. This method of employing an independent scaler for each display device delivers the most versatile and reliable solution for handling a wide array of input sources and routing them to two disparate display devices.
DigitalMedia 8G+®
Its DM 8G+ input and output endow the DMPS3-4K-250-C with incredible potential for connecting remote sources and display devices, and integrating with larger systems. DM 8G+ provides a true one-wire interface for transporting ultra high-definition video, audio, control, power, and networking signals over CAT type cable at distances up to 330 feet (100 meters). Connecting a DM 8G+ receiver to the DM 8G+ output provides a streamlined AV and control interface for a projector or flat panel display located anywhere in the room. Connecting a DM 8G+ transmitter provides expanded input connectivity to incorporate remote AV sources and mobile devices at a conference table, lectern, credenza, wall plate, or some other location. DM 8G+ can also provide the interface to a centralized DigitalMedia matrix switcher to enable the distribution of signals between multiple rooms and buildings.[7,8]
HDBaseT® Certified
Crestron DM 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via DM 8G+, the DMPS3-4K-250-C can be connected directly to an HDBaseT compliant source or display device without requiring a DM® transmitter or receiver.
6-Channel Microphone Mixer
The DMPS3-4K-250-C includes built-in mixing and processing for six microphones. Each mic input provides 60 dB of gain adjustment, switchable 48V phantom power, fully-adjustable gating, compression, delay, and 4-band semi-parametric EQ. Sophisticated matrix mixing allows for a completely different stereo mix of all six microphones at each of the DMPS3-4K-250-C’s three analog audio outputs. Two additional mixes can be configured and selected to feed the HDMI and DM 8G+ outputs.
Professional Audio DSP
Each analog audio output on the DMPS3-4K-250-C includes its own digital signal processor, allowing each output to be optimized to feed a power amplifier, codec, recorder, or assistive listening system. In addition to real-time adjustable volume, bass, treble, and mute controls, each DSP provides 10-band graphic equalization, 4-band parametric equalization, fully-adjustable limiting, and up to 85 ms of speaker delay adjustment.
Built-in Power Amplifier
Its built-in power amplifier allows the DMPS3-4K-250-C to directly drive a pair of stereo speakers (25 Watts per channel @ 8Ω), or a group of distributed ceiling speakers (50 Watts mono @ 70 or 100 Volts). Fed by the main “Program” output, the internal amplifier benefits fully from the onboard DSP. For larger applications, Crestron AMP-Series power amplifiers may be added to provide a complete solution for driving separate program and speech speakers, or any multi-zone speaker system.
Audio Embedding & De-Embedding
The inclusion of professionally balanced analog audio inputs and outputs, combined with the ability to route audio signals independent of video, affords extensive flexibility for many specialized applications — without the need for any extra equipment! For instance, its balanced inputs allow the DMPS3-4K-250-C to interface directly with an audio mixing console, allowing the live sound mix to be embedded with the video signal from a digital camera and combined into a single HDMI output signal. Or, any of its balanced outputs may be used to de-embed audio from a digital AV source to feed the mixing console. An “Aux” output may even be re-routed back through an analog input to allow its built-in DSP, or an external DSP, to be used to process the audio signal feeding the HDMI and DM 8G+ outputs.
EDID Format Management
The DMPS3-4K-250-C allows for management of the EDID (Extended Display Identification Data) information that passes between the display devices, scaler, and input sources in the system. From the web browser setup screen, the format and resolution capabilities of each device can be assessed, allowing the installer to configure EDID signals appropriately for the most desirable and predictable behavior.
QuickSwitch HD™ Technology
Handling digital media signals means handling HDCP (High-bandwidth Digital Content Protection), the encryption scheme used by content providers to protect their DVDs, Blu-ray™ discs, and broadcast signals against unauthorized copying. Viewing HDCP encrypted content requires a source device to “authenticate” each display and signal processor in the system and issue it a “key” before delivering an output signal. Crestron QuickSwitch HD manages these keys to ensure fast, reliable switching and immunity to “blackouts” for every source and display device connected to the system.
Auto-Locking® Technology
Crestron Auto-Locking Technology enables super-fast signal switching by instantaneously configuring every device in the signal path, including DM transmitters, DM receivers, and scalers, as soon as the signal hits the first device. Whether switching between sources or changing TV channels, Auto-Locking significantly reduces the time it takes each device to sense the new signal and configure itself to handle the changes, virtually eliminating any noticeable gap while switching.
USB Signal Routing
Along with video and audio, the DMPS3-4K-250-C can also provide for the routing of USB HID (Human Interface Device) signals, allowing a USB HID compliant keyboard and/or mouse at one location to control a computer or media server at another location. USB HID connectivity is provided through select DM receivers and transmitters. Crestron also offers USB over Ethernet Extenders (USB-EXT-DM-LOCAL and USB-EXT-DM-REMOTE [6]), which may be used to enable the routing of multiple USB devices of virtually any type, all seamlessly managed through the DMPS3-4K-250-C.[9]
Integrated 3-Series Control System®
Its built-in 3-Series control system enables the DMPS3-4K-250-C to provide complete, customizable control of every AV device, as well as room lighting, window shades, and projection screens, without requiring a separate control processor. Onboard control ports include four IR ports, two RS-232 COM ports, four relay ports, and four digital input ports, as well as Cresnet® and Ethernet. The DMPS3-4K-250-C supports the full line of Crestron touch screens, keypads, and wireless remotes for a user experience custom tailored to the specific requirements of each end-user. Support for Crestron control apps and Crestron Fusion® delivers the industry’s most powerful platform for remotely controlling, monitoring, and managing multiple rooms using computers and mobile devices.
CEC Embedded Device Control
For controlling third-party AV devices, the DMPS3-4K-250-C provides an alternative to conventional IR, RS-232, and Ethernet by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Using CEC, many devices can be controlled right through their HDMI or HDBaseT connections, eliminating the need for any dedicated serial cables or IR emitters.
Built-in Ethernet Switch
In addition to transporting digital video and audio, the DM 8G+ ports on the DMPS3-4K-250-C can also extend Ethernet out to the display and source devices (via select DM transmitters and receivers), providing high-speed connectivity for each room device that requires a LAN connection. Ethernet is also utilized internally by the Crestron control bus to manage each transmitter and receiver and provide device control.
Dedicated Control Subnet
The Crestron Control Subnet is a Gigabit Ethernet network dedicated to Crestron devices. Via the DMPS3-4K-250-C’s Control Subnet port, an installer may simply connect a single touch screen or wireless gateway, or add a Crestron PoE switch (CEN-SW-POE-5 or CEN-SWPOE-16 [6]) to handle multiple touch screens, gateways, and other devices. PoE can be enabled at the Control Subnet port to power a single touch screen or other PoE powered device.[8] Auto-configuration of the entire subnet is performed by the DMPS3-4K-250-C, discovering each device and assigning IP addresses without any extra effort from the installer.
Private Network Mode
To streamline its implementation on a corporate or university LAN, the DMPS3-4K-250-C employs Private Network Mode. Using Private Network Mode, the DMPS3-4K-250-C requires just one IP address for the complete room system including all connected DM receivers and transmitters.
Easy Setup
Every step of the DMPS3-4K-250-C setup process is designed to be quick and easy. Out of the box, the front panel supports basic signal routing for easy testing and troubleshooting during installation. Simplified system configuration is enabled using .AV Framework, which is easily configurable via a computer web browser.[2] Advanced configuration and adjustment is enabled through the front panel or a web browser. The front panel label strips can be customized using Crestron Engraver software or standard 3/8” tape labels, allowing for the clear designation of each input and output. Inputs and outputs may also be designated by name to appear on the LCD display when selected.
Features
- Ultra high-definition 8x2 system switcher, scaler, mic mixer, audio DSP, amplifier, and control system
- Built-in .AV Framework™ delivers a fully-functional system without any programming [2]
- Integrated 3-Series Control System® allows fully-programmable room control
- Onboard AirMedia® gateway enables wireless BYOD presentation capability [1]
- Built-in H.264 streaming video decoder [3]
- Provides matrix signal routing for up to 8 video sources and 2 displays
- Handles video resolutions up to 4K DCI and Ultra HD
- Includes HDMI®, DM 8G+®, and balanced stereo analog audio inputs
- Also supports Dual-Mode DisplayPort, DVI, and HDBaseT® sources [4]
- QuickSwitch HD™ technology manages HDCP keys for fast, reliable switching
- Auto-Locking® technology achieves rapid switching between disparate sources
- Performs automatic AV signal format management via EDID
- HDCP 2.2 compliant
- Provides adjustable input level compensation on each audio input
- Includes built-in 6-channel gated microphone mixing with DSP
- Provides one HDMI output and one DM 8G+ (HDBaseT compatible) output
- DigitalMedia 8G+® connectivity enables long-distance wiring over CAT type twisted pair cable [7]
- HDBaseT Certified — Enables direct connection to other HDBaseT certified equipment
- Features a high-performance 4K scaler on the HDMI output
- Upscales input signals to match the native resolution of any screen — including 4K and Ultra HD displays!
- Downscales 4K, UHD, and ultra high-resolution computer signals to fit 1080p and other lower-resolution displays
- Handles any input resolution from standard NTSC 480i or PAL 576i, to UHD and 4K
- Provides intelligent frame rate conversion, content-adaptive noise reduction, and motion-adaptive de-interlacing
- Provides 3D to 2D signal conversion [5]
- Provides three balanced stereo audio outputs, each with independent mixer and DSP
- Provides two additional audio mixes, either of which is selectable at either digital output
- Features a built-in amplifier, selectable for 25W/Ch. @ 8Ω stereo or 50W @ 70/100 Volts mono
- Enables analog-to-HDMI audio embedding and de-embedding
- Enables USB signal routing via DM® transmitters and receivers or USB-EXT-DM series extenders [9]

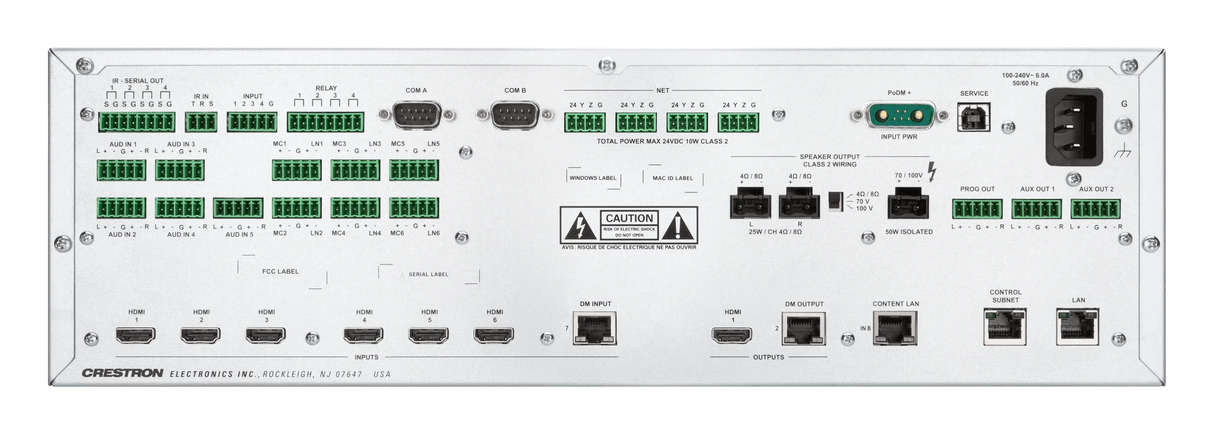

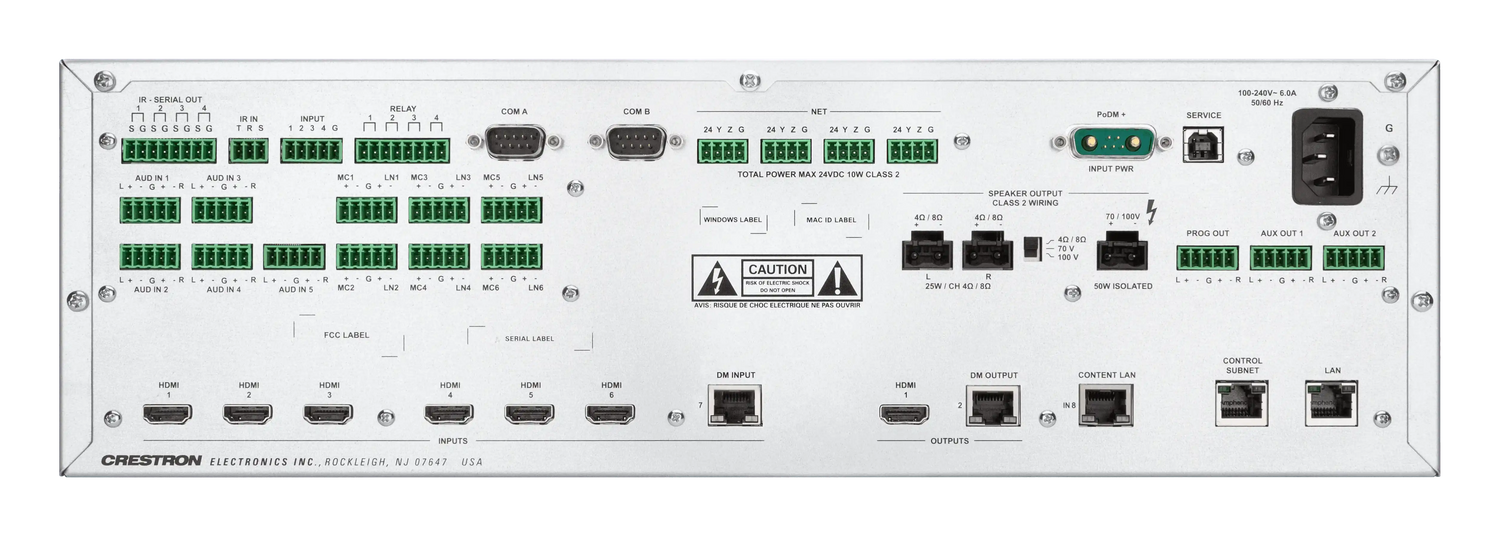

- Includes onboard IR, RS-232, relay, digital input, and Cresnet® control ports
- Supports Crestron® touch screens, keypads, and wireless remotes
- Supports XPanel with Smart Graphics® computer and web based control
- Supports iPhone®, iPad®, and Android™ control apps
- Supports universal remotes via external RC-5 compatible IR receiver [6]
- Communicates natively with Crestron Fusion®
- Enables IT-friendly network integration via SNMP
- Integrated Ethernet switch provides a single-point LAN connection
- Control Subnet — provides a dedicated local network for Crestron devices
- Private Network Mode — requires just one IP address for the complete system
- Content LAN port allows streaming and AirMedia traffic to be isolated on a secondary network

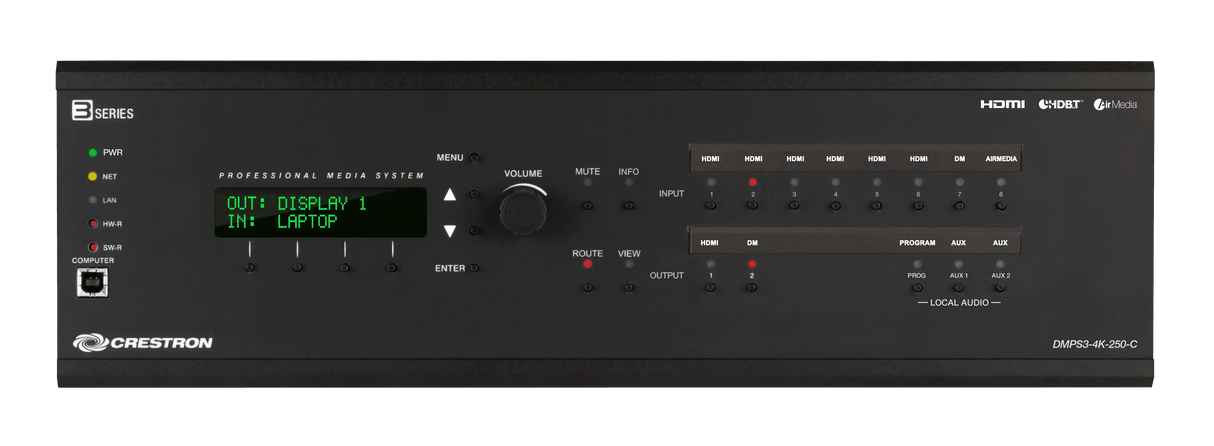

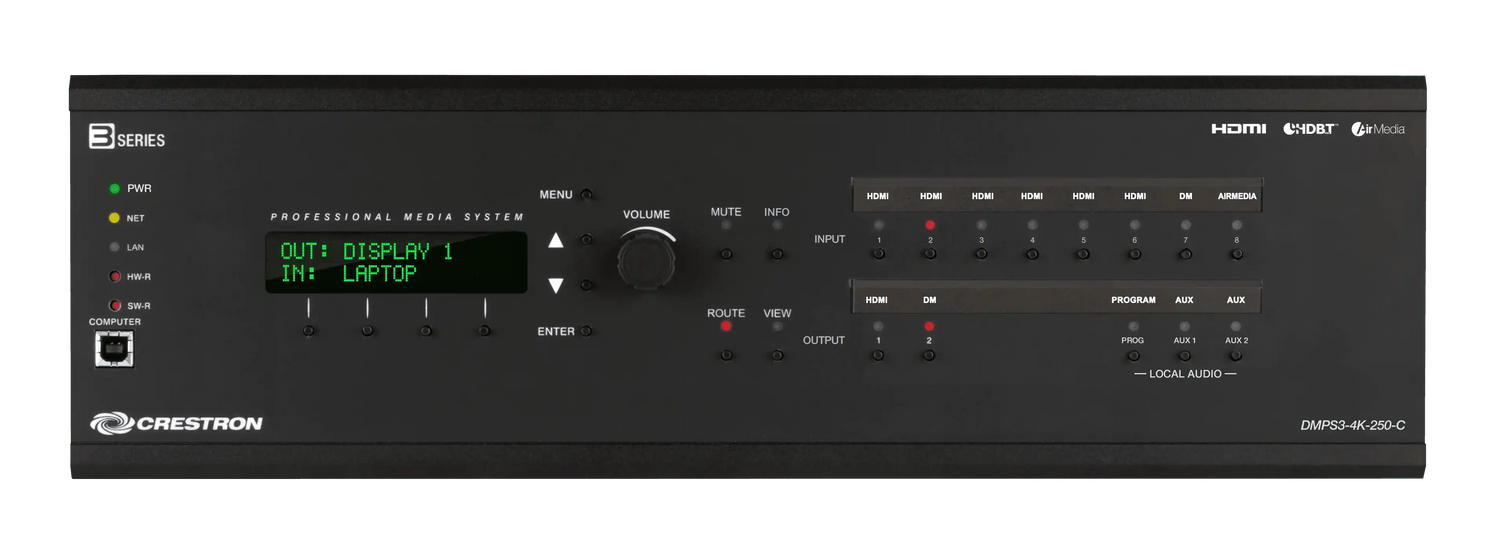

- Includes front panel controls for basic configuration, diagnostics, and signal routing
- Includes customizable front panel label strips and LCD display
- Allows advanced setup and adjustment via a web browser
- Features an internal universal power supply for worldwide compatibility
- Furnishes power to PoDM+ and HDBaseT PoE+ powered devices [8]
- 3-space 19-inch rack-mountable
Specs
| Operating System | |||||||||||||||||||||||||||||||||
| Crestron 3‑Series®; real‑time, preemptive, multi‑threaded/multitasking kernel; Transaction‑Safe Extended FAT file system; supports up to 10 simultaneously running programs; preloaded DMPS3 .AV Framework Base Program | |||||||||||||||||||||||||||||||||
| Memory | |||||||||||||||||||||||||||||||||
| SDRAM | 512 MB | ||||||||||||||||||||||||||||||||
| Flash | 4 GB | ||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||
| Ethernet | 100/1000 Mbps, auto‑switching, auto‑negotiating, autodiscovery, full/half duplex, industry‑standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140‑2 compliant encryption, IEEE 802.1X, SNMP, BACnet™ connectivity and IP10, IPv4 or IPv6, Active Directory® authentication, IIS v.6.0 Web Server, SMTP e‑mail client, RSTP, Private Network Mode | ||||||||||||||||||||||||||||||||
| Control Subnet | 100/1000 Mbps Ethernet, auto‑switching, autonegotiating, auto‑discovery, full/half duplex, DHCP server, DNS Server, port forwarding, Isolation Mode, IEEE 802.3at Type 1 compliant PoE PSE | ||||||||||||||||||||||||||||||||
| AirMedia1 | (Via Ethernet) 100 Mbps, IPv4, DHCP, TLS, AES, mDNS, HTTPS web server | ||||||||||||||||||||||||||||||||
| Streaming | (Via Ethernet) 100 Mbps, DHCP, H.264 decoding, MJPEG decoding, HDCP 2.2, RTP, RTSP, SDP | ||||||||||||||||||||||||||||||||
| Cresnet | Cresnet master mode | ||||||||||||||||||||||||||||||||
| USB | USB signal routing via select DM transmitters and receivers, or via USB‑EXT‑DM series extenders9; USB device port for computer console (setup) | ||||||||||||||||||||||||||||||||
| RS‑232 | 2‑way device control and monitoring up to 115.2k baud with hardware and software handshaking | ||||||||||||||||||||||||||||||||
| IR/Serial | 1‑way device control via infrared up to 1.2 MHz or serial TTL/ RS‑232 (0‑5V) up to 115.2k baud | ||||||||||||||||||||||||||||||||
| DigitalMedia | DM 8G+, HDCP 2.2, EDID, CEC, PoDM+8, Ethernet | ||||||||||||||||||||||||||||||||
| HDBaseT | HDCP 2.2, EDID, CEC, RS‑232, PoE+8, Ethernet | ||||||||||||||||||||||||||||||||
| HDMI® | HDCP 2.2, EDID, CEC | ||||||||||||||||||||||||||||||||
|
NOTES:
|
|||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||
| Switcher | 8x2 matrix, Crestron QuickSwitch HD technology | ||||||||||||||||||||||||||||||||
| Scaler (HDMI output) | (1) 4K video scaler with motion‑adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, 3D to 2D conversion6, content‑adaptive noise reduction, and widescreen format selection (zoom, stretch, maintain aspect‑ratio, or 1:1) | ||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI w/Deep Color, 3D6, & 4K (DVI & Dual‑Mode DisplayPort compatible5) on Inputs 1‑6; DM 8G+ & HDBaseT w/Deep Color, 3D6, & 4K on Input 7; Streaming & AirMedia on Input 8 (LAN) |
||||||||||||||||||||||||||||||||
| Output Signal Types | HDMI w/Deep Color & 4K (DVI compatible5) on Output 1; DM 8G+ & HDBaseT w/Deep Color, 3D, & 4K on Output 2 |
||||||||||||||||||||||||||||||||
| Maximum Resolutions | |||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
|
NOTES:
|
|||||||||||||||||||||||||||||||||
| Streaming Decoder | |||||||||||||||||||||||||||||||||
| Video Formats | H.264 (MPEG‑4 part 10 AVC), MJPEG | ||||||||||||||||||||||||||||||||
| Audio Format | AAC stereo | ||||||||||||||||||||||||||||||||
| Bitrates | Up to 25 Mbps | ||||||||||||||||||||||||||||||||
| Resolutions | Up to 1080p60 | ||||||||||||||||||||||||||||||||
| AirMedia 1 | |||||||||||||||||||||||||||||||||
| Users | Supports up to 32 users (presentation device connections) | ||||||||||||||||||||||||||||||||
| Client Software OS Support | Windows 7, Windows 8, Windows 10, Mac® OS X® (versions 10.10 through 10.13) | ||||||||||||||||||||||||||||||||
| Client Software Video Frame Rate | 30 fps | ||||||||||||||||||||||||||||||||
| Mobile App OS Support | Apple® iOS®, Android | ||||||||||||||||||||||||||||||||
| Full Screen Device Mirroring | Shares the screen image and audio from an Apple iOS, Android, Mac OS X, or Windows device | ||||||||||||||||||||||||||||||||
| Resolutions | 800x600@60 Hz, 1024x768@60 Hz, 1280x720@60 Hz, 1280x768@60 Hz, 1280x800@60 Hz, 1280x1024@60 Hz, 1360x768@60 Hz, 1400x1050@60 Hz, 1440x900@60 Hz, 1600x1200@60 Hz, 1920x1080@60 Hz, 1920x1200@60 Hz | ||||||||||||||||||||||||||||||||
| Audio Format | Stereo | ||||||||||||||||||||||||||||||||
| Audio – General | |||||||||||||||||||||||||||||||||
| Switcher/Mixer | 13x5 stereo source matrix switcher, digital & analog source inputs, streaming & AirMedia source input, 6‑channel gated mic mixer w/DSP, independent mixer per analog output (6‑ch mic + 1 stereo source), independent stereo DSP per analog output, integrated power amplifier, two independent digital output mixers (6‑ch mic + 1 stereo source), 2x1 digital output mix selector per digital output | ||||||||||||||||||||||||||||||||
| Analog‑To‑Digital Conversion | 24‑bit 48 kHz | ||||||||||||||||||||||||||||||||
| Digital‑To‑Analog Conversion | 24‑bit 48 kHz | ||||||||||||||||||||||||||||||||
| Frequency Response, Digital & Analog Line Outputs | 20 Hz to 20 kHz ±0.5 dB (digital source); 20 Hz to 20 kHz ±0.5 dB (analog line source); 20 Hz to 20 kHz ±0.7 dB (microphone source) |
||||||||||||||||||||||||||||||||
| Frequency Response, Speaker Output | 20 Hz to 20 kHz ±1 dB @ 25 W into 8 Ω; 100 Hz to 20 kHz ±2.5 dB @ 70 or 100V |
||||||||||||||||||||||||||||||||
| S/N Ratio, Digital & Analog Line Outputs | >108 dB, 1 kHz, A‑weighted (digital source); >103 dB, 1 kHz, A‑weighted (analog line source) |
||||||||||||||||||||||||||||||||
| S/N Ratio, Speaker Output | 98 dB @ 25 W into 8 Ω, 1 kHz, A‑weighted; 96 dB @ 25 W into 4 Ω, 1 kHz, A‑weighted |
||||||||||||||||||||||||||||||||
| THD+N, Digital & Analog Line Outputs | <0.002%, 20 Hz to 20 kHz (digital source); <0.005%, 20 Hz to 20 kHz (analog line source); <0.05%, 20 Hz to 20 kHz (microphone source) |
||||||||||||||||||||||||||||||||
| THD+N, Speaker Output | <0.1%, 1 kHz @ 25 W into 4 or 8 Ω; <0.7%, 20 Hz to 20 kHz @ 25 W into 4 or 8 Ω |
||||||||||||||||||||||||||||||||
| Stereo Separation, Digital & Analog Line Outputs | >108 dB (digital source); >103 dB (analog source) |
||||||||||||||||||||||||||||||||
| Stereo Separation, Speaker Output | >65 dB @ 25 W, 1 kHz | ||||||||||||||||||||||||||||||||
| Channel Separation, Digital Outputs | >108 dB (digital source); >103 dB (analog source) |
||||||||||||||||||||||||||||||||
| Channel Separation, Analog Line Outputs | >103 dB | ||||||||||||||||||||||||||||||||
| Speaker Output Modes | 4 Ω/8 Ω stereo, 70V mono, or 100V mono | ||||||||||||||||||||||||||||||||
| Speaker Amplifier Output Power | 25 W RMS per channel @ 4 or 8 Ω; 50 W RMS @ 70 or 100V |
||||||||||||||||||||||||||||||||
| Audio – Microphone Inputs | |||||||||||||||||||||||||||||||||
| Applies to 6 microphone input channels (Mic/Line 1 – 6): | |||||||||||||||||||||||||||||||||
| Input Signal Types | Mono analog mic or line level | ||||||||||||||||||||||||||||||||
| Phantom Power | Enable/Disable per channel | ||||||||||||||||||||||||||||||||
| Gain | 0 to +60 dB gain adjustment in 3 dB increments, plus mute | ||||||||||||||||||||||||||||||||
| Delay | 0.0 to 85.0 ms | ||||||||||||||||||||||||||||||||
| EQ Center Frequencies | 50 to 200 Hz (Band 1), 200 to 800 Hz (Band 2), 800 to 3.2k Hz (Band 3), 3.2k to 12.8k Hz (Band 4) | ||||||||||||||||||||||||||||||||
| EQ Gain | ±12.0 dB per band | ||||||||||||||||||||||||||||||||
| High‑Pass Filter | On or Off | ||||||||||||||||||||||||||||||||
| Gating Threshold | ‑80 to 0 dB | ||||||||||||||||||||||||||||||||
| Gating Depth (Attenuation) | ‑80 to 0 dB | ||||||||||||||||||||||||||||||||
| Gating Attack | 1 to 250 ms | ||||||||||||||||||||||||||||||||
| Gating Release | 1 to 1000 ms | ||||||||||||||||||||||||||||||||
| Compression Threshold | ‑80 to 0 dB | ||||||||||||||||||||||||||||||||
| Compression Ratio | 1:1 to 10:1 | ||||||||||||||||||||||||||||||||
| Compression Attack | 1 to 250 ms | ||||||||||||||||||||||||||||||||
| Compression Release | 1 to 1000 ms | ||||||||||||||||||||||||||||||||
| Compression Curve | Hard or soft knee | ||||||||||||||||||||||||||||||||
| Audio – Source Inputs | |||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI (Dual‑Mode DisplayPort compatible5) on Inputs 1‑6; DM 8G+ & HDBaseT on Input 7; Streaming & AirMedia on Input 8 (LAN); Analog 2‑channel on Aud In 1‑5 |
||||||||||||||||||||||||||||||||
| Analog Formats | Stereo 2‑channel | ||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Input Compensation | ±10.0 dB, adjustable per input | ||||||||||||||||||||||||||||||||
| Audio – Analog Line & Speaker Outputs | |||||||||||||||||||||||||||||||||
| Applies to Program Out, Speaker Outputs, and Aux Out 1 – 2 | |||||||||||||||||||||||||||||||||
| Output Signal Format | Stereo | ||||||||||||||||||||||||||||||||
| Mic 1 – 6 | ‑80 to +10 dB level adjustment range, plus mute and pan | ||||||||||||||||||||||||||||||||
| Mic Master | ‑80 to +10 dB level adjustment range, plus mute | ||||||||||||||||||||||||||||||||
| Source | ‑80 to +10 dB level adjustment range, plus mute and balance | ||||||||||||||||||||||||||||||||
| Master Volume | ‑80 to +10 dB level adjustment range, plus mute and mono | ||||||||||||||||||||||||||||||||
| Mixer Presets | 1 through 5 | ||||||||||||||||||||||||||||||||
| Bass | ±12.0 dB | ||||||||||||||||||||||||||||||||
| Treble | ±12.0 dB | ||||||||||||||||||||||||||||||||
| Equalization | 10‑band graphic + 4‑band parametric | ||||||||||||||||||||||||||||||||
| GEQ Center Frequencies | 31.5, 63, 125, 250, 500, 1k, 2k, 4k, 8k, and 16k Hz | ||||||||||||||||||||||||||||||||
| GEQ Gain | ±12.0 dB per band | ||||||||||||||||||||||||||||||||
| PEQ Center Frequencies | 10 to 22000 Hz per band | ||||||||||||||||||||||||||||||||
| PEQ Gain | ‑36.0 to +24.0 dB per band | ||||||||||||||||||||||||||||||||
| PEQ Bandwidth | 0.02 to 3.50 octaves per band | ||||||||||||||||||||||||||||||||
| PEQ Types | Parametric, High Pass, Low Pass, High Shelf, Low Shelf, Notch | ||||||||||||||||||||||||||||||||
| Delay | 0.0 to 85.0 ms | ||||||||||||||||||||||||||||||||
| Limiter Threshold | ‑80 to 0 dB | ||||||||||||||||||||||||||||||||
| Limiter Ratio | 1:1 to 10:1 | ||||||||||||||||||||||||||||||||
| Limiter Attack | 1 to 250 ms | ||||||||||||||||||||||||||||||||
| Limiter Hold | 1 to 200 ms | ||||||||||||||||||||||||||||||||
| Limiter Release | 1 to 1000 ms | ||||||||||||||||||||||||||||||||
| Limiter Curve | Hard or soft knee | ||||||||||||||||||||||||||||||||
| EQ Presets | 1 through 10 (includes Delay and Limiter settings) | ||||||||||||||||||||||||||||||||
| Audio – Digital Outputs | |||||||||||||||||||||||||||||||||
| Output Signal Types | HDMI (DVI compatible5) on Output 1; DM 8G+ & HDBaseT on Output 2 |
||||||||||||||||||||||||||||||||
| Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Digital Output Mix Select 1 – 2 | Selects which mix is routed to the corresponding output | ||||||||||||||||||||||||||||||||
| Digital output mixer options (per mix): | |||||||||||||||||||||||||||||||||
| Mic 1 – 6 | ‑80 to +10 dB level adjustment range, plus mute and pan | ||||||||||||||||||||||||||||||||
| Mic Master | ‑80 to +10 dB level adjustment range, plus mute | ||||||||||||||||||||||||||||||||
| Source | ‑80 to +10 dB level adjustment range, plus mute and balance | ||||||||||||||||||||||||||||||||
| Master Volume | ‑80 to +10 dB level adjustment range, plus mute | ||||||||||||||||||||||||||||||||
| Mixer Presets | 1 through 5 | ||||||||||||||||||||||||||||||||
| Connectors – Audio/Video Inputs | |||||||||||||||||||||||||||||||||
| AUD IN 1 – 5 | (5) 5‑pin 3.5 mm detachable terminal blocks Balanced/unbalanced stereo line‑level analog audio inputs; Input Impedance: 24 kΩ balanced/unbalanced; Maximum Input Level: 4Vrms balanced, 2Vrms unbalanced |
||||||||||||||||||||||||||||||||
| MC1/LN1 – MC6/LN6 | (6) 5‑pin 3.5 mm detachable terminal blocks; Comprises (6) balanced microphone/line audio inputs; Mic Input Level: ‑60 to 0 dBV, 1Vrms maximum; Balanced Line Input Level: ‑31 to +11 dBV, 3.7Vrms maximum; Unbalanced Line Input Level: ‑37 to +5 dBV, 1.85Vrms maximum; Mic Input Impedance: 3.9 kΩ balanced; Line Input Impedance: 19 kΩ balanced, 9.5 kΩ unbalanced; Phantom Power: +48VDC, software enabled/disabled per channel |
||||||||||||||||||||||||||||||||
| HDMI 1 – 6 INPUTS |
(6) HDMI Type A connectors, female; Digital video/audio inputs; (DVI and Dual‑Mode DisplayPort compatible 5) |
||||||||||||||||||||||||||||||||
| DM INPUT 7 | (1) 8‑pin RJ45 connector, female, shielded; DM 8G+ input, HDBaseT compliant; PoDM+ PSE port (HDBaseT PoE+ compatible)8; Connects to the DM 8G+ output of a DM transmitter or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM‑CBL‑8G, or Crestron DM‑CBL‑ULTRA cable7 |
||||||||||||||||||||||||||||||||
| Connectors – Audio/Video Outputs | |||||||||||||||||||||||||||||||||
| SPEAKER OUTPUT 4Ω/8Ω L – R | (2) 2‑pin 7.62 mm 15A detachable terminal blocks; 4‑8 Ω stereo speaker‑level audio output; Wire Size: Terminals accept up to 14 AWG (2.5 mm²); Output Power: 25 W RMS per channel stereo at 4 or 8 Ω |
||||||||||||||||||||||||||||||||
| SPEAKER OUTPUT 70/100V |
(1) 2‑pin 7.62 mm 15A detachable terminal block; NOTE: The 4Ω/8 Ω and 70/100V outputs are mutually exclusive |
||||||||||||||||||||||||||||||||
| PROG OUT | (1) 5‑pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line‑level audio output; Output Impedance: 200 Ω balanced, 100 Ω unbalanced; Maximum Output Level: 4Vrms balanced, 2Vrms unbalanced |
||||||||||||||||||||||||||||||||
| AUX OUT 1 – 2 | (2) 5‑pin 3.5 mm detachable terminal blocks; Balanced/unbalanced stereo line‑level audio outputs; Output Impedance: 200 Ω balanced, 100 Ω unbalanced; Maximum Output Level: 4Vrms balanced, 2Vrms unbalanced |
||||||||||||||||||||||||||||||||
| HDMI 1 OUTPUTS | (1) HDMI Type A connector, female; Digital video/audio output; (DVI compatible3) |
||||||||||||||||||||||||||||||||
| DM OUTPUT 2 | (1) 8‑pin RJ45 connector, female, shielded; DM 8G+ output, HDBaseT compliant; PoDM+ PSE port (HDBaseT PoE+ compatible)8; Connects to the DM 8G+ input of a DM receiver or other DM device, or to an HDBaseT device, via CAT5e, DM‑CBL‑8G, or DM‑CBL‑ULTRA cable7 (sold separately) |
||||||||||||||||||||||||||||||||
| Connectors – Networking, Control, & Power | |||||||||||||||||||||||||||||||||
| IR/SERIAL OUT 1 – 4 | (4) 2‑pin 3.5 mm detachable terminal blocks; IR/Serial output ports; IR output up to 1.2 MHz; 1‑way serial TTL/RS‑232 (0‑5V) up to 115.2k baud |
||||||||||||||||||||||||||||||||
| IR IN | (1) 3‑pin 3.5 mm detachable terminal block; Allows control from IR wireless remotes using RC‑5 command set |
||||||||||||||||||||||||||||||||
| INPUT 1 – 4 | (1) 5‑pin 3.5 mm detachable terminal block; Comprises (4) programmable digital inputs; Input Voltage Range: 0 to 24VDC, referenced to GND; Logic Threshold: 2.5VDC nominal with 1V hysteresis band; Input Impedance: 10 kΩ at >5V, 1 MΩ at <5V; Pull‑up Resistor: 2.2 kΩ per input |
||||||||||||||||||||||||||||||||
| RELAY 1 – 4 | (1) 8‑pin 3.5 mm detachable terminal block; Comprises (4) normally open, isolated relays; Rated 1A, 30VAC/VDC; MOV arc suppression across contacts |
||||||||||||||||||||||||||||||||
| COM A – B | (2) DB9 connectors, male; Bidirectional RS‑232 ports; Up to 115.2k baud, hardware and software handshaking support |
||||||||||||||||||||||||||||||||
| NET | (4) 4‑pin 3.5 mm detachable terminal blocks; Cresnet Master ports, paralleled; Available Cresnet Power: 10 W |
||||||||||||||||||||||||||||||||
| PoDM+ INPUT PWR | (1) Combo D‑Sub 7w2 connector, male; 48VDC power input for PoDM power supply8; Enables PoDM+ power sourcing on each DM INPUT/OUTPUT port; Enables PoE power sourcing on the CONTROL SUBNET port |
||||||||||||||||||||||||||||||||
| SERVICE | (1) USB Type B connector, female; For factory use only |
||||||||||||||||||||||||||||||||
| 100‑240V~ 6.0A 50/60Hz | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
||||||||||||||||||||||||||||||||
| G | (1) 6‑32 screw; Chassis ground lug |
||||||||||||||||||||||||||||||||
| CONTENT LAN IN 8 | (1) 8‑pin RJ45 connector, female; 10Base‑T/100Base‑TX Ethernet port; Provides a dedicated LAN connection for streaming input & AirMedia1 |
||||||||||||||||||||||||||||||||
| CONTROL SUBNET | (1) 8‑pin RJ45 connector, female; 10Base‑T/100Base‑TX/1000Base‑T Ethernet port; PoE PSE (Power Sourcing Equipment) port8; Provides a dedicated local network for Crestron devices |
||||||||||||||||||||||||||||||||
| LAN | (1) 8‑pin RJ45 connector, female; 10Base‑T/100Base‑TX/1000Base‑T Ethernet port |
||||||||||||||||||||||||||||||||
| COMPUTER (front) | (1) USB Type B connector, female; USB computer console port (for setup only) |
||||||||||||||||||||||||||||||||
| Controls & Indicators | |||||||||||||||||||||||||||||||||
| PWR | (1) Green LED, indicates operating power supplied from AC power line | ||||||||||||||||||||||||||||||||
| NET | (1) Yellow LED, indicates Cresnet bus activity | ||||||||||||||||||||||||||||||||
| LAN | (1) Yellow LED, indicates Ethernet activity | ||||||||||||||||||||||||||||||||
| HW‑R | (1) Recessed pushbutton for hardware reset, reboots the control system | ||||||||||||||||||||||||||||||||
| SW‑R | (1) Recessed pushbutton for software reset, restarts the software program | ||||||||||||||||||||||||||||||||
| LCD Display | (1) Green LCD alphanumeric; adjustable backlight; 2 lines x 20 characters per line; displays input/outputs by name, volume levels, setup menus, signal routing, device info, and other system information | ||||||||||||||||||||||||||||||||
| SOFTKEYS | (4) Pushbuttons for activation of LCD driven functions and passcode entry | ||||||||||||||||||||||||||||||||
| MENU | (1) Pushbutton, steps menu back one level | ||||||||||||||||||||||||||||||||
| Λ, V | (2) Pushbuttons, for scrolling up or down through the menu and adjusting menu parameters | ||||||||||||||||||||||||||||||||
| ENTER | (1) Pushbutton, executes the highlighted menu or value | ||||||||||||||||||||||||||||||||
| VOLUME | (1) Continuous turn rotary encoder, adjusts menu parameters; Defaults to Program audio volume control |
||||||||||||||||||||||||||||||||
| MUTE | (1) Pushbutton and red LED, mutes the Program audio output | ||||||||||||||||||||||||||||||||
| INFO | (1) Pushbutton and red LED; Selects INFO mode to view AV and device info |
||||||||||||||||||||||||||||||||
| ROUTE | (1) Pushbutton and red LED; Selects ROUTE mode to allow routing changes |
||||||||||||||||||||||||||||||||
| VIEW | (1) Pushbutton and red LED; Selects VIEW mode to view current routing |
||||||||||||||||||||||||||||||||
| INPUT 1 – 8 | (8) Pushbuttons and red LEDs; Selects the corresponding video input for routing |
||||||||||||||||||||||||||||||||
| OUTPUT 1 – 2, PROG, AUX 1 – 2 | (5) Pushbuttons and red LEDs; Selects the corresponding video or audio output for routing |
||||||||||||||||||||||||||||||||
| SPEAKER OUTPUT (rear) | (1) 3‑position slide switch; Selects amplifier output configuration |
||||||||||||||||||||||||||||||||
| DM INPUT 7 (rear) | (2) LEDs, (1) green and (1) amber; Green LED indicates DM link status, amber LED indicates video and HDCP signal presence |
||||||||||||||||||||||||||||||||
| DM OUTPUT 2 (rear) | (2) LEDs, (1) green and (1) amber; Green LED indicates DM link status, amber LED indicates video signal presence |
||||||||||||||||||||||||||||||||
| CONTENT LAN IN 8 (rear) | (2) LEDs, (1) green and (1) amber, for indication of Ethernet speed, activity, and link status | ||||||||||||||||||||||||||||||||
| CONTROL SUBNET (rear) | (2) LEDs, (1) green and (1) amber, for indication of Ethernet speed, activity, and link status | ||||||||||||||||||||||||||||||||
| LAN (rear) | (2) LEDs, (1) green and (1) amber, for indication of Ethernet speed, activity, and link status | ||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||
| Main Power | 6A @ 100‑240VAC, 50/60 Hz | ||||||||||||||||||||||||||||||||
| Power Consumption | 75 W typical; 60 W idle |
||||||||||||||||||||||||||||||||
| Available Cresnet Power | 10 W | ||||||||||||||||||||||||||||||||
| Power over DM (PoDM) | IEEE 802.3at compliant PoDM+ PSE (Power Sourcing Equipment), each DM INPUT/OUTPUT port supplies up to 30 W to power one PoDM (Class 0‑3) or PoDM+ (Class 4) PD (Powered Device)8 | ||||||||||||||||||||||||||||||||
| Power over HDBaseT | IEEE 802.3at PoE+ compliant PSE, each DM INPUT/OUTPUT port supplies up to 30 W to power one HDBaseT PoE or PoE+ PD8 | ||||||||||||||||||||||||||||||||
| Power over Ethernet (PoE) | IEEE 802.3at compliant PoE PSE (Power Sourcing Equipment), the CONTROL SUBNET port supplies up to 15.4 W to power one PoE (Class 0‑3) PD (Powered Device)8 | ||||||||||||||||||||||||||||||||
| PoDM Power Supply | Compatible with model PW‑5430DUS (sold separately) | ||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||
| Temperature | 41° to 104° F (5° to 40° C) | ||||||||||||||||||||||||||||||||
| Humidity | 10% to 90% RH (non‑condensing) | ||||||||||||||||||||||||||||||||
| Heat Dissipation | 256 BTU/hr typical; 205 BTU/hr idle |
||||||||||||||||||||||||||||||||
| Enclosure | |||||||||||||||||||||||||||||||||
| Chassis | Metal, fan‑cooled, vented sides | ||||||||||||||||||||||||||||||||
| Front Panel | Metal, black finish with polycarbonate label overlay | ||||||||||||||||||||||||||||||||
| Mounting | Freestanding or 3 RU 19 in. rack‑mountable (adhesive feet and rack ears included) | ||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||
| Height | 5.20 in. (133 mm) without feet | ||||||||||||||||||||||||||||||||
| Width | 17.28 in. (439 mm); 19.00 in. (483 mm) with rack ears |
||||||||||||||||||||||||||||||||
| Depth | 15.75 in. (400 mm) | ||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||
| 15.5 lb (7.1 kg) | |||||||||||||||||||||||||||||||||
| Compliance | |||||||||||||||||||||||||||||||||
| UL Listed for US & Canada, IC, CE, FCC Part 15 Class A digital device | |||||||||||||||||||||||||||||||||
| Maximum DM 8G+ Cable Lengths | |||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
Shipping & Returns
At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.
- Most in-stock orders placed Monday-Friday before 1PM PST ship the same day. Orders placed after 1PM will ship the next day of business. General restrictions apply; please see our full shipping policy here.
- We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
Reviews
Nationwide Audiovisual Services - Design, Installation & Support - A Partner You Can Trust
Certifications
Our AV experts have earned their professional certifications to design, build, and manage the best AV services for you. View Our Certifications
Product Selection
Choose from products and national brands to find the right technology for your needs. View Our Vendor Partners
