Crestron DMF-CI-8 DigitalMedia™ Card Chassis for DM-NVX-C & DMCF, 8 Slots

Availability: Call for Availability
Crestron SKU: DMF-CI-8
No reviews
Price:
$2,200.00

Description

Spec Sheet

The DMF-CI-8 is a 2-space rack-mountable chassis designed to house up to eight Crestron® DM-NVX-C or DMCF series cards. Any of these cards may be installed in any slot.

  • Eight-slot card frame for Crestron® DM-NVX-C and DMCF series cards
  • Provides a high-density, multi-endpoint 4K video solution
  • Hot-swappable card serviceability
  • Front panel 2 inch color LCD display and status indicators
  • Network setup for each card through front panel
  • Variable-speed fan cooling
  • Universal 100-240V internal power supply
  • 2-space 19-inch rack-mountable
Communications
  USB Host For loading of firmware via a USB mass storage device
  USB Device Computer console for setup
  RS-232 Computer console for setup

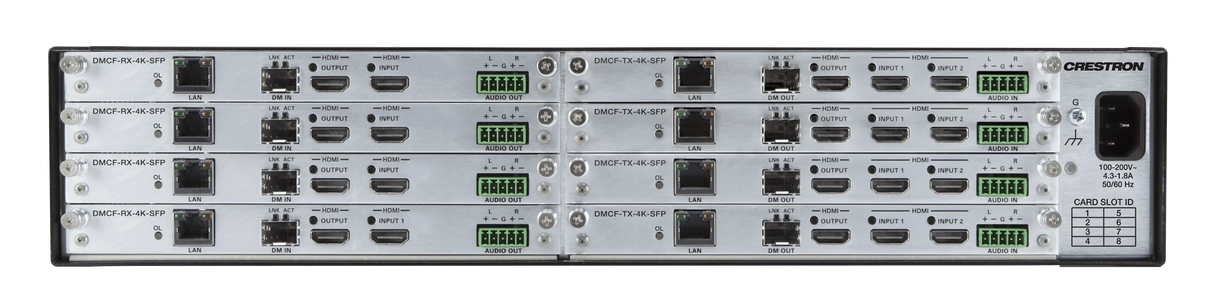

Card Slots
  CARD SLOT ID 1 – 8 (8) Card slots;
Each slot accepts (1) DM-NVX-C series encoder/decoder card or (1) DMCF series transmitter or receiver card
Connectors
  G (1) 6-32 screw;
Chassis ground lug
  100-240V~4.3-1.8A 50/60Hz (1) IEC 60320 C14 main power inlet;
Mates with removable power cord, included
  CONSOLE, SERIAL (front) (1) 8-pin RJ45 female;
RS-232 computer console port
  CONSOLE, USB (front) (1) USB Type-B female;
USB computer console port
  USB (front) (1) USB Type A female;
Supports USB mass storage devices for firmware update

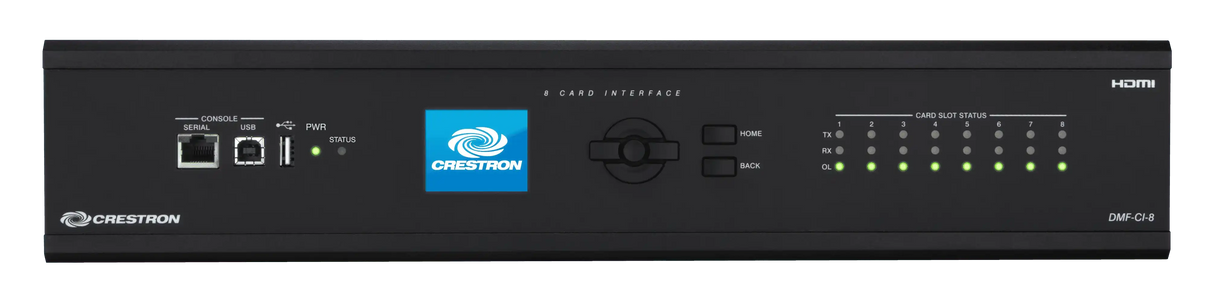

Controls & Indicators
  PWR (1) Bi-color green/amber LED, indicates operating power supplied from AC line, turns amber while booting and green when operating
  STATUS (1) Bi-color green/red LED, indicates a normal (green) or critical error (red) condition
  Display (1) 2 inch (52 mm) diagonal, 220 x 176 pixels, 16-bit TFT active matrix color LCD, displays IP address settings for each installed card
  Nav Pad (1) 5-way navigation pad for menu navigation and adjustment of settings
  HOME (1) Pushbutton, enters or returns to the home menu
  BACK (1) Pushbutton, steps menu back one level
  CARD SLOT STATUS, TX 1 – 8 (8) Green LEDs, each indicates the corresponding card is in transmitter mode
  CARD SLOT STATUS, RX 1 – 8 (8) Green LEDs, each indicates the corresponding card is in receiver mode
  CARD SLOT STATUS, OL 1 – 8 (8) Green LEDs, each indicates the corresponding card is online
Power
  Main Power 4.3-1.8 Amps @ 100-240 Volts AC, 50/60 Hz
  Power Consumption 350 Watts fully loaded
Environmental
  Temperature 32° to 104° F (0° to 40° C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 1195 BTU/hr fully loaded
Enclosure
  Chassis Metal with black finish, vented sides, fan-cooled
  Front Panel Metal, black finish with polycarbonate label overlay
  Mounting Freestanding or 2 RU 19-inch rack-mountable (rack ears included)
Dimensions
  Height 3.47 in (89 mm)
  Width 17.40 in (442 mm);
19.00 in (483 mm) with rack ears
  Depth 15.43 in (392 mm)
Weight
  9.9 lb (4.5 kg) without cards
