Overview

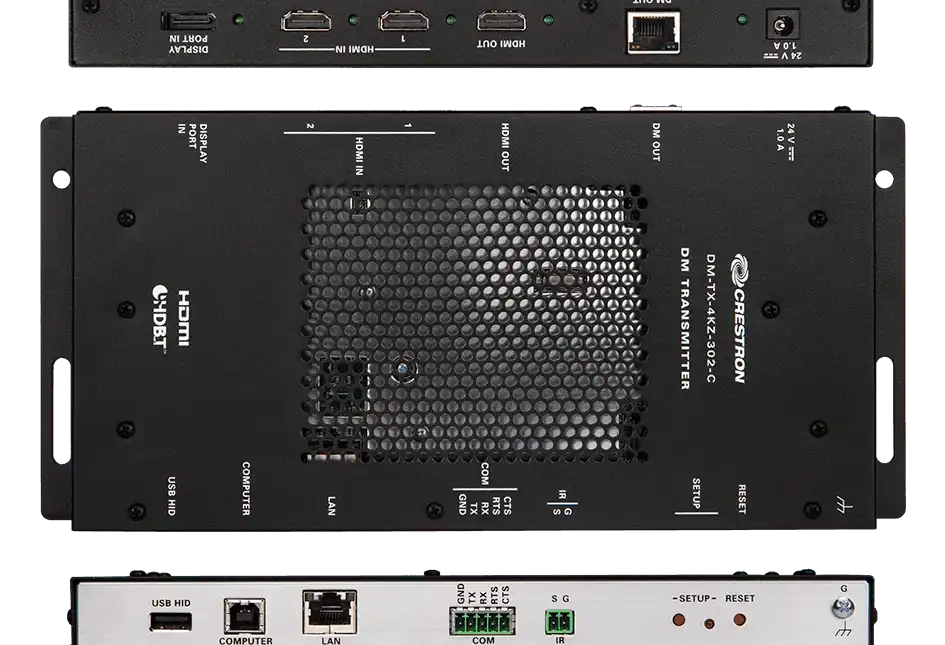

The DM‑TX‑4KZ‑302‑C provides a versatile interface for ultra high-definition AV and computer sources as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G+® transmitter and switcher with HDMI® and DisplayPort™ inputs and as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution.
4K60 4:4:4 & HDR Support
Crestron DigitalMedia was the world’s first AV signal distribution solution to deliver end-to-end 4K signal management for large-scale commercial and residential applications. DM 4KZ endpoints and cards enable new and existing DM® systems to handle full 4K60 4:4:4 video signals, as well as HDR video signals (HDR10), without having to replace any wiring or switchers. Any Crestron DM system that supports 4K can be upgraded to handle 4K60 4:4:4 and HDR by simply installing DM 4KZ based transmitters, receivers, and I/O cards.2
DM 4KZ technology employs VESA® Display Stream Compression (DSC) to enhance the capabilities of DigitalMedia to handle the extreme bandwidth requirement of resolutions beyond 4K30 4:4:4 and 4K60 4:2:0. DSC is a lightweight, line-based 2:1 compression standard that delivers visually lossless performance for 4K60 4:4:4 and HDR signals. DSC is applied only to 4K60 4:4:4 and HDR input signals. All other signals are transported uncompressed.
Key Features
- 4K DigitalMedia 8G+® transmitter and multimedia interface
- Built-in 3x1 AV switcher with two HDMI® inputs and one DisplayPort™ input3
- QuickSwitch HD™ technology manages HDCP keys for fast, reliable switching
- Connects to a DM® switcher or receiver over a single CAT type twisted pair cable1
- Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM Ultra cable1
- Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e1
- Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e1
- HDBaseT® Certified standard — Enables direct connection to other HDBaseT certified equipment
- Local HDMI output (DVI compatible6)
- Handles 3D video and Deep Color
- Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®,DTS:X®, and uncompressed 7.1 linear PCM audio
- HDCP 2.2 compliant
- Performs automatic AV signal format management via EDID
- Enables device control via CEC, IR, RS-232, and Ethernet
- Enables USB HID signal extension for a local computer5
- Compatible with Crestron® USB over Ethernet Extenders7
- Compatible with Crestron Connect It™ Cable Caddies8
- Powered via the DM connection or optional power pack, PW‑2412WU, (sold separately)
Specs
| Maximum Cable Lengths | |||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
| Maximum Resolutions | |||||||||||||||||||||||||||||||||
NOTE: Custom resolutions may be supported at pixel clock rates up to 600 MHz*. |
|||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||
| Switcher | 3x1 manual or auto-switching, Crestron QuickSwitch HD technology | ||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support 2 (DVI & Dual-Mode DisplayPort™ compatible 3); DisplayPort w/Deep Color & 4K60 4:4:4 support 2 | ||||||||||||||||||||||||||||||||
| Output Signal Types | DM 8G+ & HDBaseT w/, Deep Color, 3D, & 4K60 4:4:4 support; HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support 2 (DVI compatible 6) | ||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.2 | ||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||
| Switcher | 3x1 audio-follow-video | ||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI (Dual-Mode DisplayPort compatible 3), DisplayPort | ||||||||||||||||||||||||||||||||
| Output Signal Types | DM 8G+ & HDBaseT, HDMI | ||||||||||||||||||||||||||||||||
| Formats, HDMI | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio™,DTS:X, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Formats, DisplayPort | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||
| Ethernet | 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP | ||||||||||||||||||||||||||||||||
| USB Host | Supports signal extension of USB HID class devices, supports a TT-100 series cable caddy 8 | ||||||||||||||||||||||||||||||||
| USB Device | USB HID signal extension to a USB host, supports computer console (for setup) | ||||||||||||||||||||||||||||||||
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system) | ||||||||||||||||||||||||||||||||
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 V) up to 19.2k baud (via control system) | ||||||||||||||||||||||||||||||||
| DigitalMedia | DM 8G+, HDCP 2.2, EDID, CEC, PoDM + Ethernet | ||||||||||||||||||||||||||||||||
| HDBaseT | HDCP 2.2, EDID, RS-232, PoE+, Ethernet | ||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.2, EDID, CEC
NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and a control system. |
||||||||||||||||||||||||||||||||
| DisplayPort | HDCP 2.2, EDID | ||||||||||||||||||||||||||||||||
| Connectors | |||||||||||||||||||||||||||||||||
| 24 VDC 1.0 A | (1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW‑2412WU, optional power pack (sold separately) |
||||||||||||||||||||||||||||||||
| DM OUT | (1) 8-pin shielded RJ-45, female; DM 8G+ output, HDBaseT compliant; PoDM+ PD port (HDBaseT PoE+ compatible) 4,5; Connects to the DM 8G+ input of a DM switcher, receiver, or other DM device, or to a HDBaseT device, via CAT5e or Crestron DM‑CBL‑8G cable, or Crestron DM‑CBL‑ULTRA cable 1 |
||||||||||||||||||||||||||||||||
| HDMI OUT | (1) HDMI Type A, female; HDMI digital video/audio output (DVI compatible 6) 2 |
||||||||||||||||||||||||||||||||
| HDMI IN 1 – 2 | (2) HDMI Type A, female; HDMI digital video/audio inputs; (DVI & Dual-Mode DisplayPort compatible 3) 2 |
||||||||||||||||||||||||||||||||
| DISPLAY PORT IN | (1) DisplayPort, female; DisplayPort digital video/audio input 2 |
||||||||||||||||||||||||||||||||
| USB HID | (1) USB Type A, female; SB 2.0 host port for connection of a mouse/keyboard or other USB HID-compliant device (USB signal extension & routing), or for connection of a Crestron TT-100 series device (Crestron Connect It) 8 |
||||||||||||||||||||||||||||||||
| COMPUTER | (1) USB Type B, female; USB 2.0 device port for computer console (setup), or for connection to a computer or other USB HID-compliant host (USB signal extension & routing) |
||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ-45, female; 10Base-T/100Base-TX Ethernet port |
||||||||||||||||||||||||||||||||
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support |
||||||||||||||||||||||||||||||||
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial port; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5 V) up to 19200 baud |
||||||||||||||||||||||||||||||||
| Ground | (1) 6-32 screw; Chassis ground lug |
||||||||||||||||||||||||||||||||
| Controls & Indicators | |||||||||||||||||||||||||||||||||
| 24 VDC | (1) Green LED, indicates operating power supplied via PoDM+, HDBaseT PoE+, or the optional PW‑2412WU power pack (sold separately) | ||||||||||||||||||||||||||||||||
| DM OUT | (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence | ||||||||||||||||||||||||||||||||
| HDMI OUT | (1) Green LED, indicates HDMI signal presence at the HDMI output | ||||||||||||||||||||||||||||||||
| HDMI IN 1 – 2 | (2) Green LEDs, each indicates HDMI signal presence at the corresponding HDMI input | ||||||||||||||||||||||||||||||||
| DISPLAY PORT IN | (1) Green LED, indicates video signal presence at the DisplayPort input | ||||||||||||||||||||||||||||||||
| LAN | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity | ||||||||||||||||||||||||||||||||
| SETUP | (1) Red LED and (1) recessed pushbutton for Ethernet setup | ||||||||||||||||||||||||||||||||
| RESET | (1) Recessed pushbutton for hardware reset | ||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||
| Power over DM (PoDM) | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant PoDM+ PD (Powered Device), capable of being powered by a PoDM+ PSE (Power Sourcing Equipment) 4 | ||||||||||||||||||||||||||||||||
| Power over HDBaseT | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant HDBaseT PoE+ PD (Powered Device), capable of being powered by an HDBaseT PoE+ PSE (Power Sourcing Equipment) 5 | ||||||||||||||||||||||||||||||||
| Power pack (optional) | Input: 100-240 VAC, 50/60 Hz Output: 1.25 A @ 24 VDC Model: PW‑2412WU (sold separately) |
||||||||||||||||||||||||||||||||
| Power Consumption | 12.6 Watts typical using power pack; 13.4 Watts typical using PoDM+ or HDBaseT PoE+; (without a USB powered device connected) |
||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | ||||||||||||||||||||||||||||||||
| Humidity | 10% to 95% RH (non‑condensing) | ||||||||||||||||||||||||||||||||
| Heat Dissipation | 43 BTU/hr using power pack; 13.4 BTU/hr using PoDM+ or HDBaseT PoE+ (without a USB powered device connected) |
||||||||||||||||||||||||||||||||
| Enclosure | |||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented top, front, and bottom | ||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mount, or attach to a single rack rail | ||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||
| Height | 11.02 in (280 mm) | ||||||||||||||||||||||||||||||||
| Width | 5.34 in (136 mm) | ||||||||||||||||||||||||||||||||
| Depth | 1.07 in (27 mm) | ||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||
| 19.2 oz (545 g) | |||||||||||||||||||||||||||||||||
