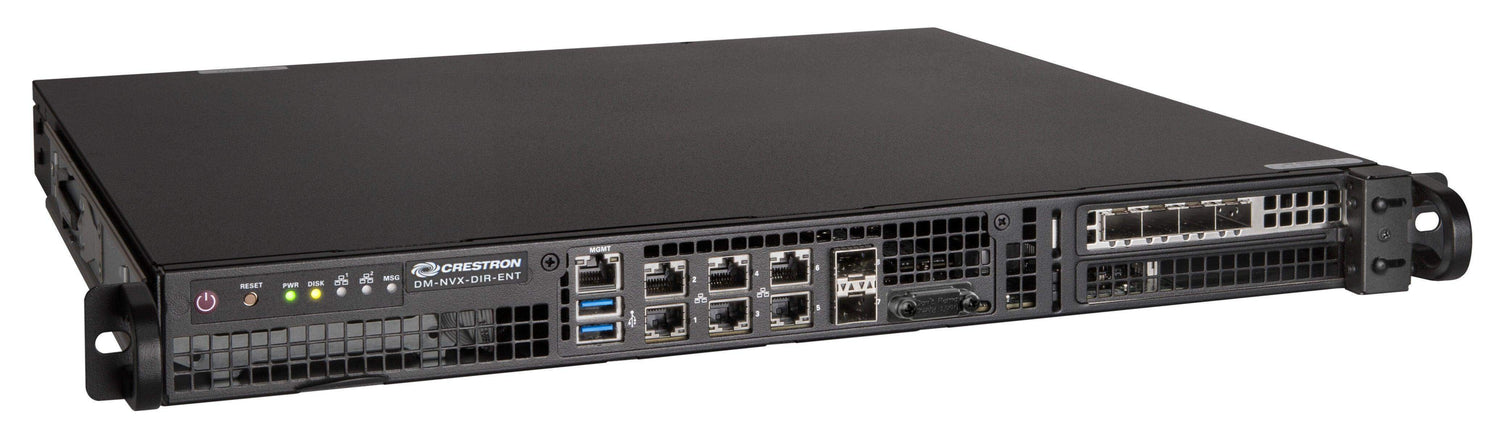

Crestron DM-NVX-DIR-ENT DM NVX Director™ Virtual Switching Appliance, 1000 Endpoints

No reviews

Sale price$22,000.00


The Crestron DM-NVX-DIR-ENT is an enterprise-grade network appliance that facilitates configuration, control, and management of a large-scale AV network using DM NVX® encoder and decoder endpoints. The DM-NVX-DIR-ENT virtually emulates the functionality of a traditional hardware-based DM® matrix switcher, routing high-quality 4K streaming AV signals throughout a room, building, or campus.

The DM-NVX-DIR-ENT supports a maximum of 1000 DM NVX endpoints. Multiple DM NVX Director™ network appliances can be deployed to handle corporate enterprise, university, government, military, medical, transportation, sports, entertainment, hospitality, gaming, and retail applications.

Simple and Flexible Configuration
The DM-NVX-DIR-ENT automatically discovers up to 1000 DM NVX endpoints on the network and enables each endpoint to be assigned as a logical input or output within a domain. Up to 240 domains are supported. For larger systems, multiple DM-NVX-DIR-ENT network appliances can be used.


Redundant Power Supplies
Onboard dual redundant power supplies provide enhanced reliability for demanding applications. In the unlikely event of an individual power supply fault, the DM-NVX-DIR-ENT will continue to operate unhindered on only one functioning power supply. A modular, hot-swappable design allows either power supply to be replaced in seconds from the rear panel without powering down or rebooting the system. The DM-NVX-DIR-ENT ships complete with both power supply modules installed.

Multiple Control System Support
The DM-NVX-DIR-ENT supports Crestron 3-Series® or later control systems. A single control system, referred to as the Global Domain control system, can be assigned to all domains simultaneously. In addition, support of multiple control systems enables the Global Domain control system or another control system, referred to as a Domain control system, to be assigned to each domain on an individual basis. The Domain control system that is assigned on an individual basis must be different for each domain. Assignment of multiple control systems is accomplished by using the web interface or control system programming.

  • Network AV system configuration, management, and signal routing
  • Compatible with Crestron® DM NVX® encoders and decoders
  • Support of 1000 endpoints and 240 domains
  • Fully scalable for a network of any size
  • Intuitive web-based graphical user interface
  • Full programmable control of virtual matrices and physical endpoints
  • Automatic endpoint device discovery
  • Interdomain routing
  • Multicast address control
  • Credential management of DM NVX endpoints
  • Custom naming and search tools
  • Easy diagnostics and signal status display
  • XML device map file import and export
  • Built-in logging
  • Six 1000BASE-T RJ-45 ports
  • Six 10GBASE-X SFP+ ports (four are 1000BASE-T compatible)
  • Fiber-optic connectivity via SFP or SFP+ transceivers (sold separately)
  • 1 RU 19-inch rack mountable
  • Onboard 100-240V hot-swappable redundant power supplies
