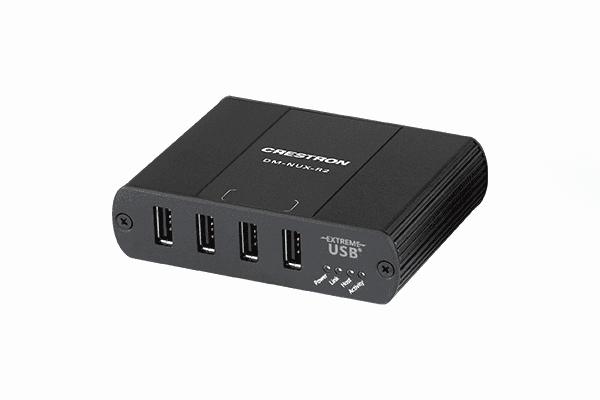

Crestron DM-NUX-R2 DM NUX USB over Network with Routing, Remote

Crestron SKU: DM-NUX-R2
No reviews

Sale price$660.00


The DM NUX USB over Network with Routing (DM‑NUX‑L2 and DM‑NUX‑R2) deliver reliable, high‑speed USB signal extension and routing for USB 1.0, 1.1, and 2.0 devices throughout a home, business, or campus for distances up to 330 ft (100 m).2 Two types of USB endpoints are available:

  • DM-NUX-L2 - Provides connectivity for a single USB host (computer, media server, codec, etc.)
  • DM-NUX-R2 - Provides connectivity for up to four USB devices (keyboards, whiteboards, mobile devices, etc.) at one location

USB Signal Routing
When integrated with a DigitalMedia™ system, the USB endpoints provide seamless routing of USB signals alongside video and audio. The USB endpoints can connect directly to a DM® transmitter, DM receiver, or Ethernet network via CAT5e (or better) cable.2 From any room with a video display, you can switch between several computers, media servers, and game consoles anywhere in the building and control each one using a mouse and keyboard, game controller, or electronic whiteboard.1

Virtual Hub
Using Virtual Hub technology, five DM-NUX-R2 endpoints may simultaneously be connected to a single DM-NUX-L2 endpoint. Creating this virtual hub allows numerous USB devices to control a single host device (such as a PC).1 The USB signals are transported over the local network and managed through a Crestron control system.

USB HID Connectivity
The USB endpoints expand on DigitalMedia’s built-in USB HID routing abilities, adding enhanced USB connectivity to DM transmitters, receivers, or switchers without requiring any additional wiring. Simply connect a USB endpoint to the LAN port of a DM transmitter or receiver, or to a port on the local area network.2

Point-to-Point Connectivity
The USB endpoints may be used to provide simple, point‑to‑point USB signal extension, either over an Ethernet LAN or a dedicated CAT5e (or better) cable.2 At least one remote (device) endpoint (DM-NUX-R2) and one local (host) endpoint (DM-NUX-L2) are required to form a working system. The endpoints are sold individually to accommodate any system configuration.

NOTE: For alternative point‑to‑point USB signal extension, refer to the USB over Category Cable Extender Wall Plates (USB‑EXT‑2‑REMOTE‑1G and USB-EXT-2-LOCAL-1G) or the USB over Category Cable Extenders (USB‑EXT‑3‑KIT).

Endpoint Compatibility
The DM-NUX-L2 and DM-NUX-R2 are compatible with the DM‑NUX‑L2‑1G and DM‑NUX‑R2‑1G wallplates and DM NVX® endpoints that support USB 2.0 signal extension.


Key Features

  • Provide reliable, high-speed USB signal extension for most USB 1.1 or 2.0 devices1
  • Compatible with DM NUX Wall Plates (DM-NUX-L2‑1G and DM-NUX-R2‑1G)
  • Compatible with DM NVX® endpoints that support USB 2.0 signal extension
  • Support Virtual Hub capabilities with up to five DM‑NUX‑R2 endpoints
  • Enable USB signal routing under the control of a Crestron® control system or DigitalMedia™ system2
  • Plug-and-play compatible with most types of USB 1.1 and 2.0 devices and hosts1
  • No drivers required with Windows®, macOS®, or Linux® operating systems1
  • Transport USB over Ethernet or CAT5e (or better) at speeds up to 480 Mbps
  • Mass Storage Acceleration maximizes USB 2.0 bulk transfer speeds

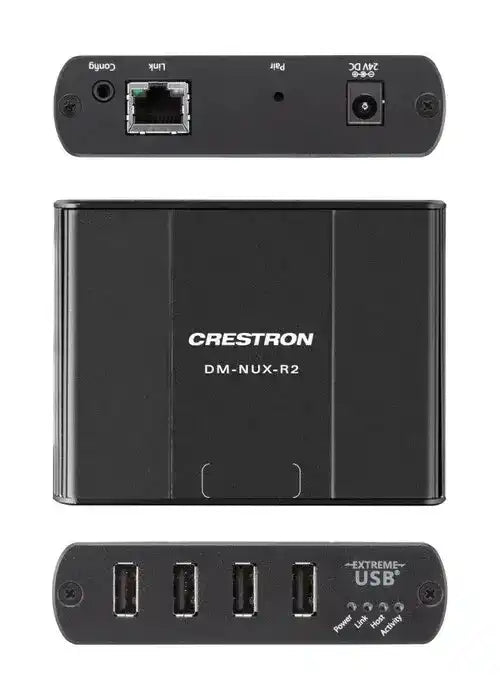

  • DM‑NUX‑R2 provides 2 USB Type A ports, expandable using up to 4 USB hubs (not included)
  • Expand upon the USB-HID routing capabilities of a DigitalMedia™ system without additional wiring
  • Add USB host or device ports to any DM® transmitter, receiver, or switcher
  • USB local (host) or remote (device) endpoint sold individually for maximum flexibility
