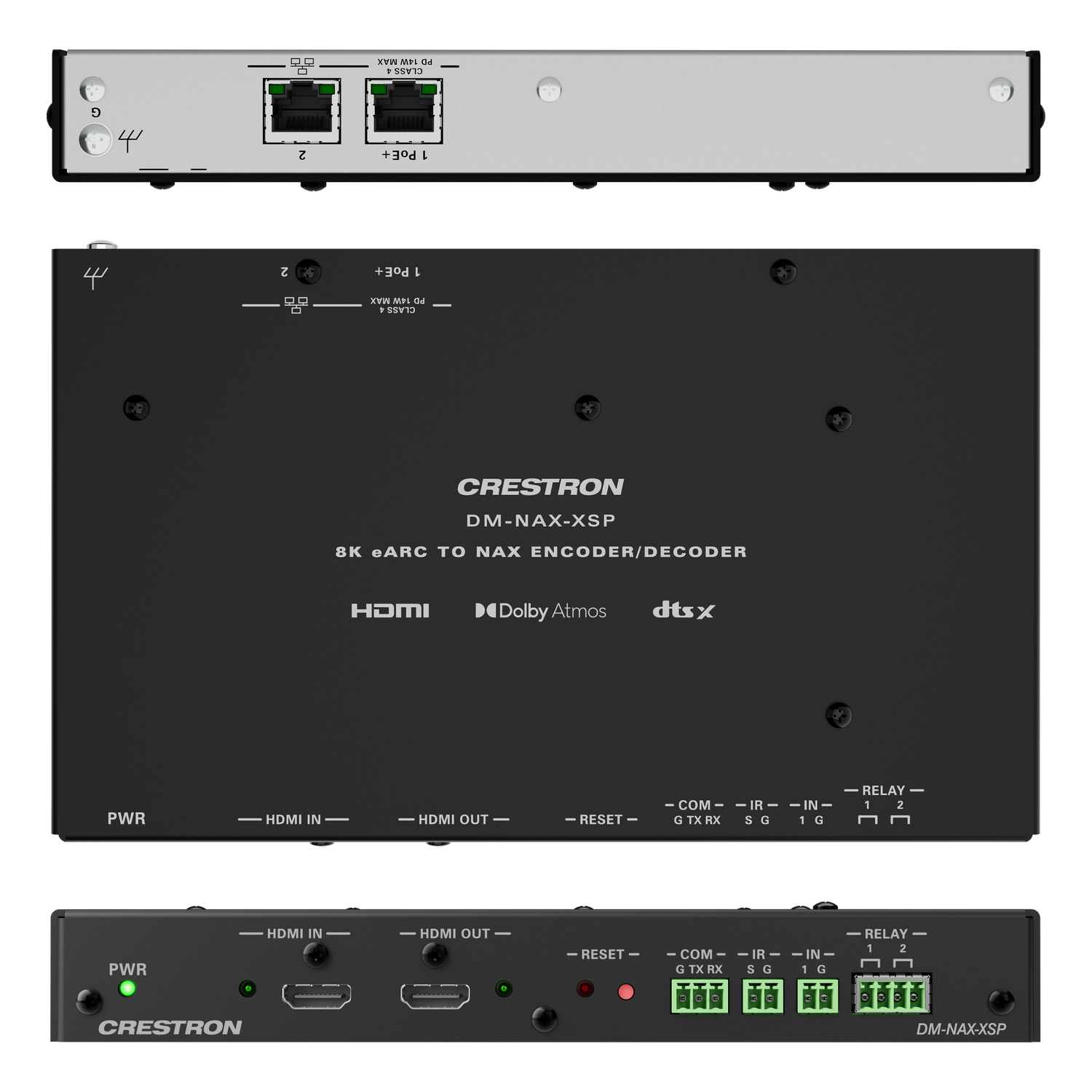

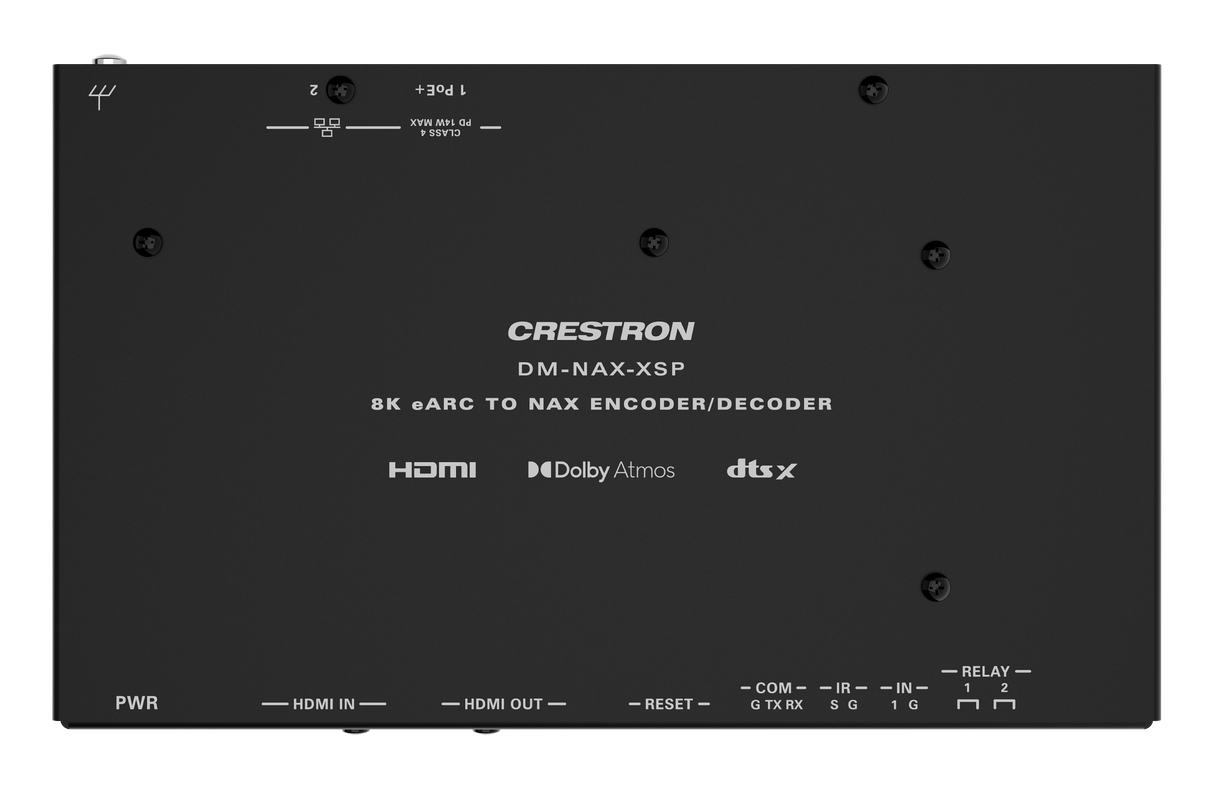

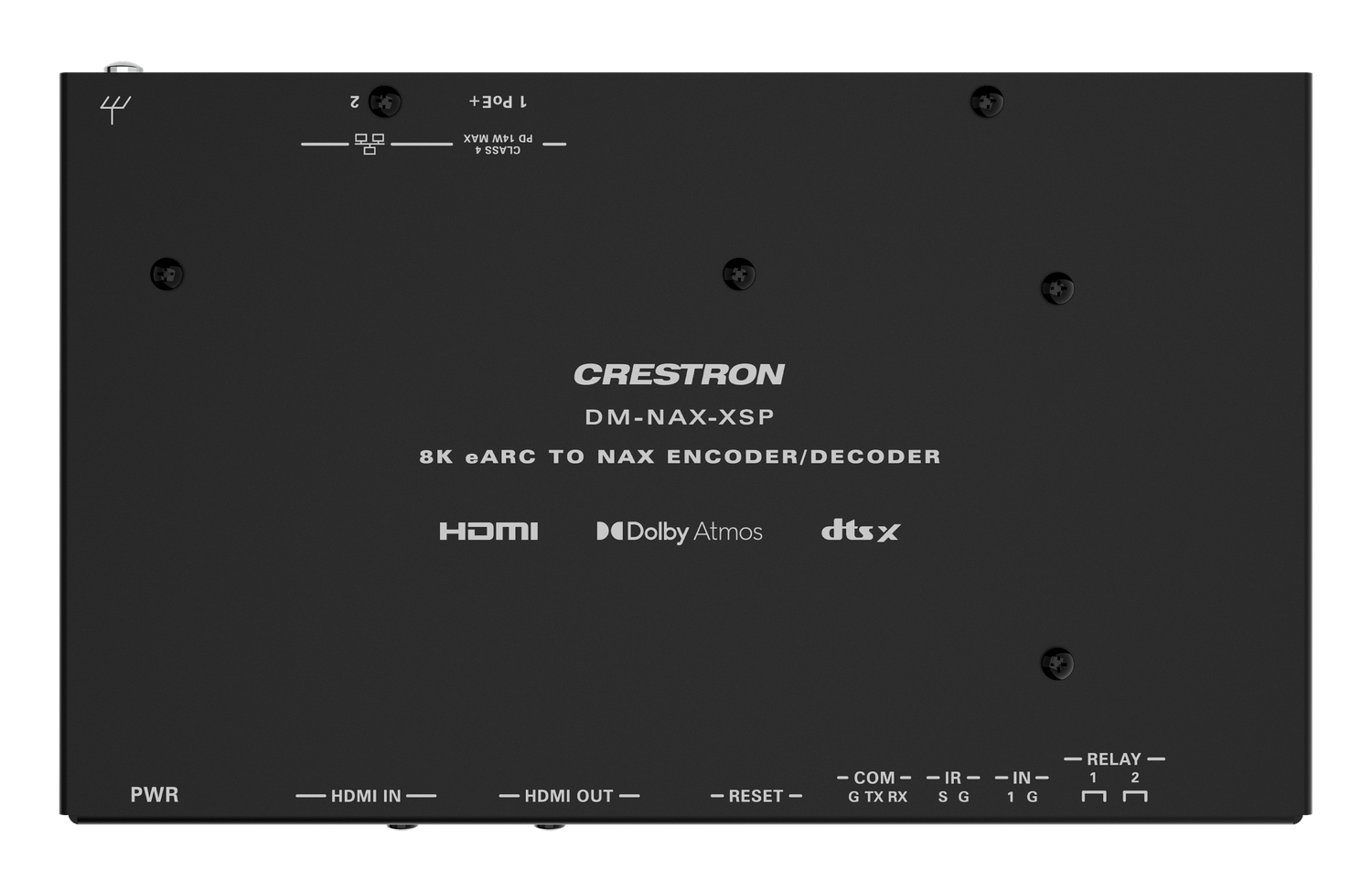

Crestron DM-NAX-XSP – 8K Smart Display Controller and Network Audio Encoder/Decoder with eARC

Product Overview

The Crestron DM-NAX-XSP is an 8K Smart Display Controller and Network Audio Encoder/Decoder that combines HDMI video distribution, eARC audio extraction, and DM NAX audio-over-IP in a single PoE+-powered device. It is designed for commercial AV installers deploying distributed audio and display control in conference rooms, classrooms, and enterprise collaboration spaces. The device bridges traditional HDMI sources with IP-based audio distribution, eliminating the need for multiple standalone components.

Product Description

The DM-NAX-XSP connects to a display via HDMI and passes 8K30 or 4K120 video with HDR10, HDR10+, Dolby Vision, and HDCP 2.3 support. Its eARC port extracts audio from the display for routing into a DM NAX audio-over-IP distribution network. The device supports Dolby Atmos, DTS:X, TrueHD, and DTS HD Master Audio. Two independent Gigabit Ethernet ports separate AV-over-IP and control traffic. RS-232, IR, relay, and digital input ports provide local device control capabilities. The unit is PoE+-powered via its LAN 1 port, requiring no separate power supply.

Key Features

• 8K30 4:4:4 12-bit and 4K120 4:4:4 12-bit HDMI video pass-through
• HDR10, HDR10+, Dolby Vision, Deep Color; HDCP 2.3
• eARC support for audio extraction from display to DM NAX audio network
• Dolby Atmos, DTS:X, TrueHD, DTS HD Master Audio support
• PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W) via LAN 1; no separate power supply
• Dual Gigabit Ethernet ports for separated AV-over-IP and control networks

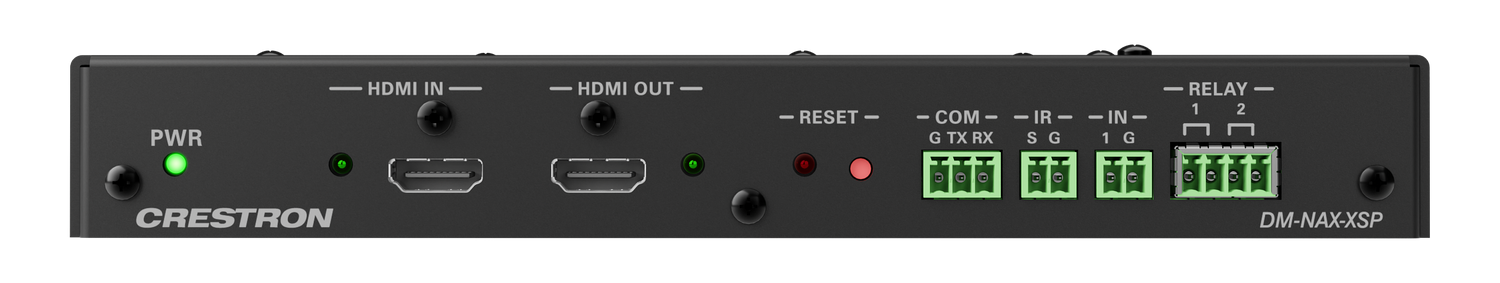

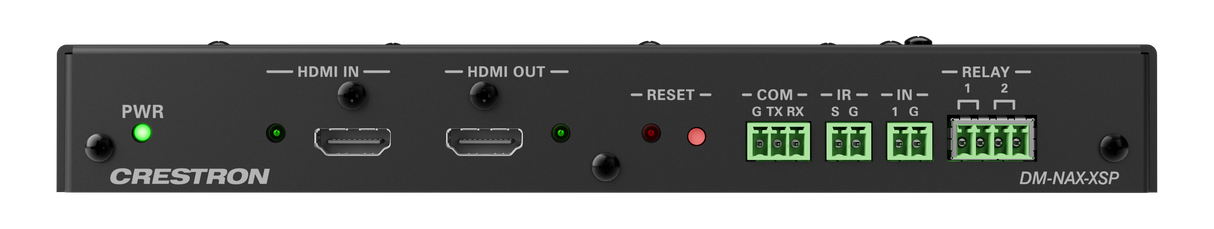

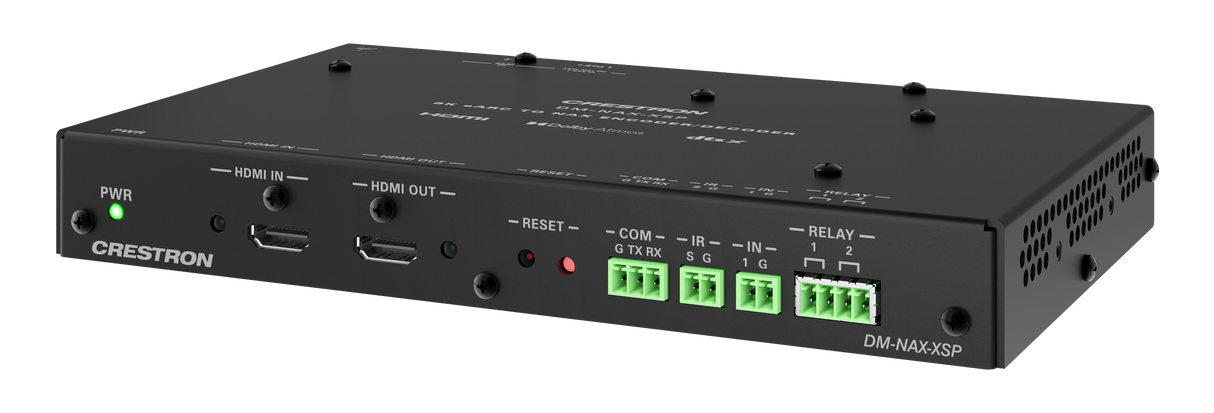

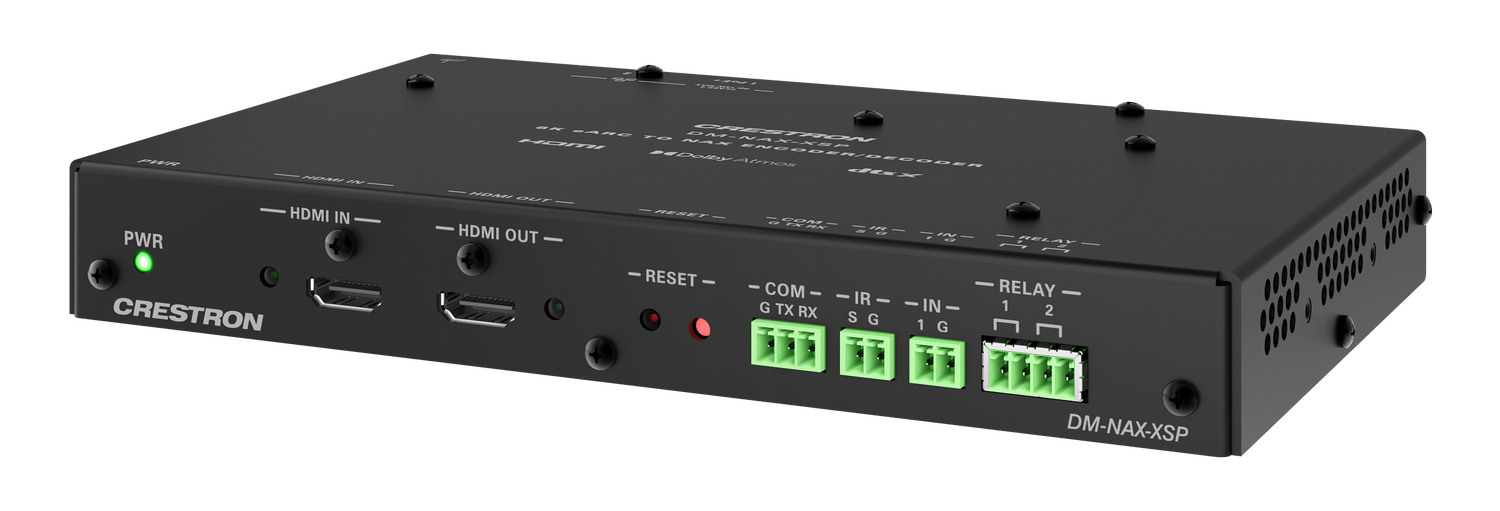

• 1x RS-232, 1x IR output, 2x relays, 1x digital input for local device control
• Certifications: Intertek Listed (US & Canada), CE, IC, FCC Part 15 Class B

Typical Applications

• Conference room display controller integrating HDMI and DM NAX audio distribution
• Corporate AV-over-IP deployment combining display control and audio routing
• Classroom AV system with eARC audio extraction from interactive flat panel
• Hotel room AV controller combining display management with networked audio
• Multi-room audio distribution headend connected to HDMI display sources

Technical Specifications

• Model: DM-NAX-XSP
• Weight: 1.82 lb (0.83 kg)
• Dimensions (H x W x D): 5.03 in. x 8.36 in. x 1.12 in. (128 mm x 213 mm x 29 mm)
• Video: HDMI In/Out; 8K30 4:4:4 12-bit; 4K120 4:4:4 12-bit; HDR10, HDR10+, Dolby Vision, Deep Color; HDCP 2.3
• Audio: eARC; Dolby Atmos, DTS:X, TrueHD, DTS HD Master Audio
• Power: PoE+ IEEE 802.3at Type 2 Class 4 (25.5 W PD); 14 W max consumption

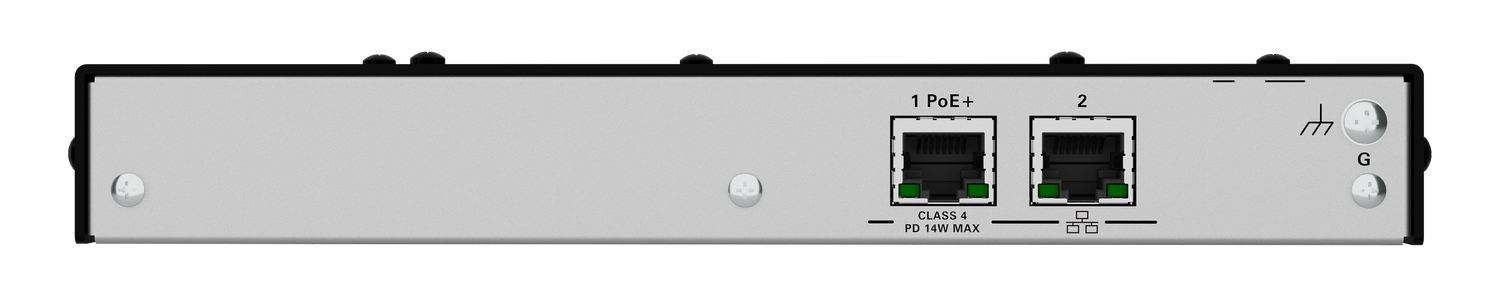

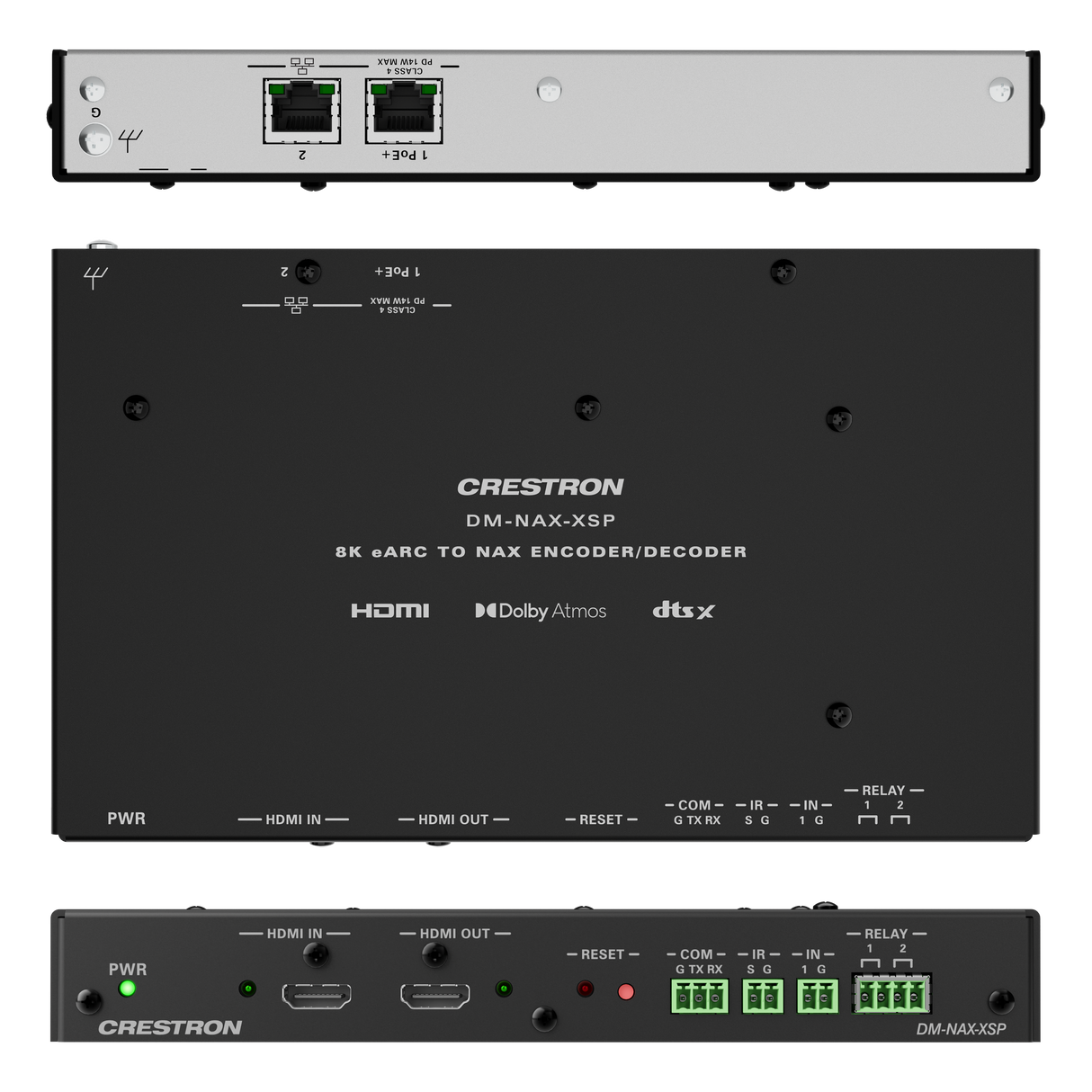

• Network: (2) RJ-45 ports, 100/1000BASE-T; PoE+ on LAN 1
• Control I/O: 1x RS-232 (115.2k baud); 1x IR output (1.1 MHz max); 2x relays (1A, 30 VAC/VDC); 1x digital input (0-24 VDC)
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Humidity: 10 to 90% RH (non-condensing)
• Certifications: Intertek Listed (US & Canada), CE, IC, FCC Part 15 Class B

Frequently Asked Questions

Q: What is the difference between eARC and ARC, and does the DM-NAX-XSP support both?
A: eARC (Enhanced Audio Return Channel) supports lossless audio formats including Dolby Atmos and DTS:X at full quality. Standard ARC is limited to compressed formats. The DM-NAX-XSP supports eARC, which is backward compatible with ARC-equipped displays.

Q: Can the DM-NAX-XSP distribute audio to multiple rooms via DM NAX?
A: Yes. The DM-NAX-XSP acts as a DM NAX network audio encoder, allowing audio from its HDMI input or eARC port to be distributed over IP to DM NAX decoders and amplifiers throughout a building.

Q: Does the DM-NAX-XSP require a separate power supply?
A: No. The DM-NAX-XSP is powered entirely via PoE+ (IEEE 802.3at Type 2) over its LAN 1 Ethernet port. A PoE+ switch or injector is required.
