Crestron DM-NAX-AUD-USB DM NAX® Audio-over-IP Converter with USB-C® Audio Input and Output

Availability: Call for Availability
Crestron SKU: DM-NAX-AUD-USB
No reviews
Price:
$800.00

Description

Available Starting March 29th, 2024

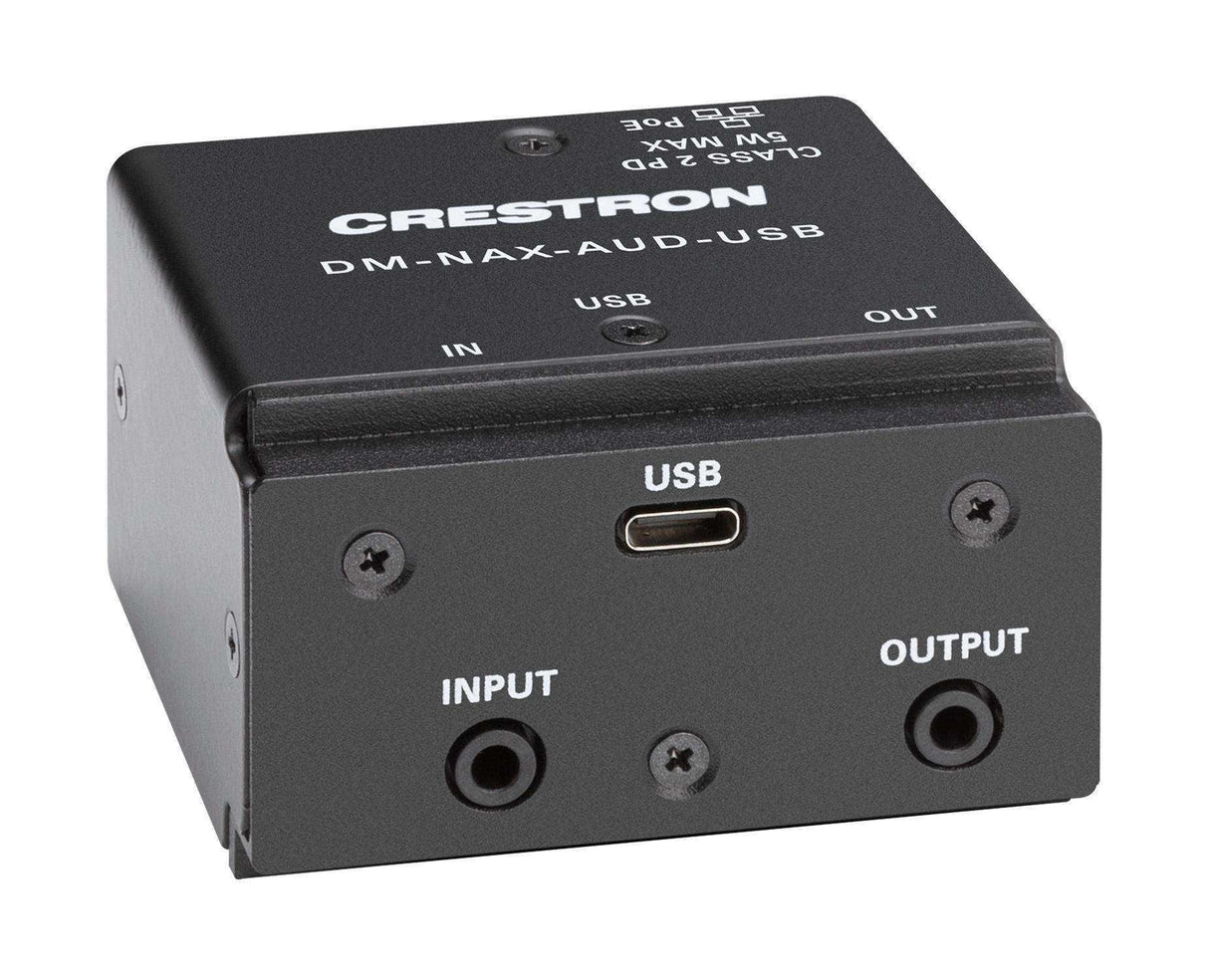

The DM‑NAX‑AUD‑USB is a DM NAX encoder and decoder with support for USB audio and analog line-level audio input and output. The device is housed in a versatile form factor that can be mounted in a single-gang standard electrical box, under a table, or on a rack rail. An additional polycarbonate label is included with rotated text to make the front panel more legible in electrical box installations. Two 1/8 in. (3.5 mm) TRS connectors for analog line-level audio input and output are also included on the front panel. The rear panel of the device features an Ethernet connection for PoE, Audio over IP (AoIP), and control.

DM NAX is built on the AES67 standards with additional ease of configuration via a web interface, SIMPL Windows, C#, and/or a RESTful API. It is compatible with DM NVX through the AES67 secondary audio stream and also with third-party AES67 solutions and Dante via the compatibility mode enabled through Dante Controller.

USB Audio

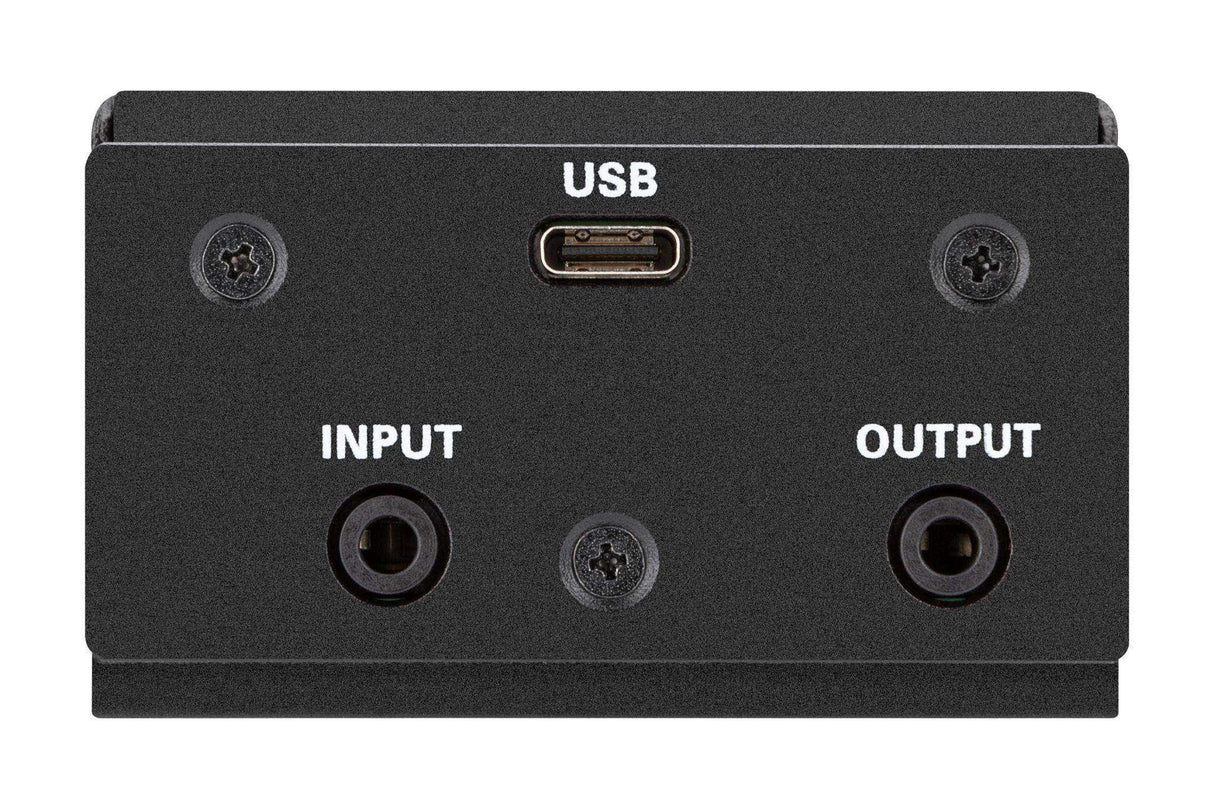

A USB-C® connector is built-in to the front panel of the DM‑NAX‑AUD‑USB, allowing for bidirectional stereo USB audio transfer at rates up to 24-bit/48 kHz. This stereo signal can be output as a DM NAX AoIP stream onto the network or as an unbalanced line-level analog signal from the local 1/8 in. (3.5 mm) audio output connector.

Audio-over-IP
DM NAX takes audio distribution to a whole new level by putting it on the network. The DM‑NAX‑AUD‑USB sends and receives DM NAX and AES67 encoded audio over a standard IP network. A single DM NAX system can handle audio distribution between 32 DM NAX devices and supports up to 256 audio output zones. DM NAX devices can seamlessly pull and distribute the audio from DM NVX sources.

Digital Signal Processing (DSP)
DSP capabilities such as bass and treble boost and cut, loudness, adjustable delay, speaker protection and limiting, tone profiles, a full 10-band EQ per output, and an option to have line output as a fixed or variable level with or without DSP applied are available. Speaker profiles for first and third party speaker models are built in to simplify output DSP tuning.

Encoder and Decoder Functionality
The DM‑NAX‑AUD‑USB can operate as a network AV encoder and decoder. The local input sources on the adapter can be sent as AoIP streams to DM NAX, Dante, or AES67 capable devices. Simultaneously, the DM‑NAX‑AUD‑USB can receive AoIP streams from these same devices and decode them for local output.


  • USB Audio Class 1 (UAC1) device with bidirectional stereo USB audio support
  • Power over Ethernet (PoE) network powered
  • Line-level, unbalanced analog audio input and output via 1/8 in. (3.5 mm) TRS connectors
  • Mountable in a standard US electrical box, under a table, or on a rack rail via included hardware
  • Connects directly to a managed network to route to or from other DM NAX® and DM NVX® devices
  • Interoperable with Dante® audio networking devices via AES67 compatibility
  • Streamlined configuration through a web interface
  • Seamless Crestron system integration with Crestron Home® OS and SIMPL Windows programming
Audio
Input Signal Types

USB stereo;
Unbalanced stereo analog line-level;
DM NAX/AES67 audio-over-IP
Output Signal Types USB stereo;
Unbalanced stereo analog line-level;
DM NAX/AES67 audio-over-IP
Source Compensation ±10.0 dB per input
Input Monitoring Source Signal Detect
Frequency Response (at line-level output) 20 Hz to 20 kHz ±0.5 dB
THD+N (at line-level output) 0.005% @ 1 kHz, max output
S/N Ratio (at line-level output) From line-level input: 108 dB, 20 Hz to 20 kHz, A‑weighted;
From digital input: 111 dB, 20 Hz to 20 kHz, A‑weighted
Balance Control Left/right adjustable
EQ Filter Types EQ, High Pass, Low Pass, Treble Shelf, Bass Shelf, Notch
EQ Center Frequency 10 to 20,000 Hz per band
EQ Gain +20/-40 dB per band
EQ Bandwidth 0.1 to 4.0 octaves per band
Communications

Ethernet

 For control and PoE, AoIP, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
USB Bidirectional USB Audio Class 1 (UAC1) device connection, up to 24-bit/48 kHz stereo audio transfer
Connectors
USB (1) USB Type-C connector, female;
UAC1 audio support;
Enumerates as a Non-AEC Enabled Speakerphone
INPUT (1) 1/8 in. 3.5 mm connector, female TRS;
Unbalanced line-level audio input;
Maximum input level: 2Vrms;
Input Impedance: 10 kΩ
OUTPUT (1) 1/8 in. 3.5 mm connector, female TRS;
Unbalanced line-level audio output;
Maximum output level: 2Vrms;
Channel separation: 100 dB @ 1 kHz;
Output impedance: 100 Ω

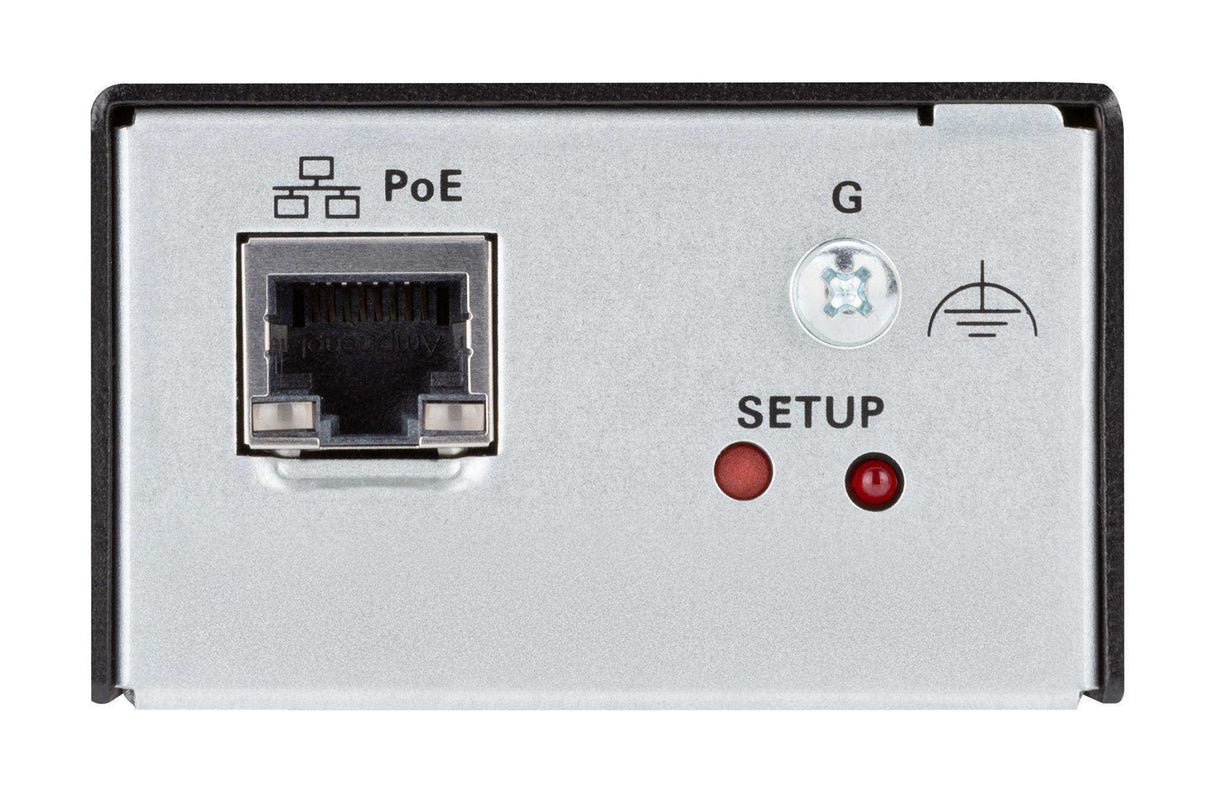

G (1) 6-32 screw;
Chassis ground lug
ETHERNET PoE

(1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port
Controls and Indicators
ETHERNET PoE Left amber LED indicates 1000 Mb link status;
Left green LED indicates 100 Mb link status;
Flashing right amber LED indicates Ethernet activity
SETUP

(1) Push button: Used for factory reset procedures;
(1) LED, illuminates red when the button is pressed, flashes red when reset has been initiated
Power
PoE IEEE 802.3af Class 0 (12.95 W) compliant;
Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE
Power Consumption 5 W
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 17 BTU/hr
Construction
Chassis Metal, black and silver finish
Mounting Mountable on the following via included hardware:
1-gang U.S. electrical box or plaster ring (not included), 3.5 in. (26 mm) electrical box depth recommended;
Rack rail;
Surface mount
Dimensions
Height 1.59 in. (41 mm)
Width 2.60 in. (66 mm)
Depth 2.11 in. (54 mm)
Weight
7 oz. (199 g)
