Crestron DM-NAX-2XLRI-1G DM NAX® Audio-over-IP Wall Plate with XLR, Black, 1‑Gang

Crestron SKU: DM-NAX-2XLRI-1G
No reviews

Price:
Sale price$860.00

Description

Available Starting March 29th, 2024

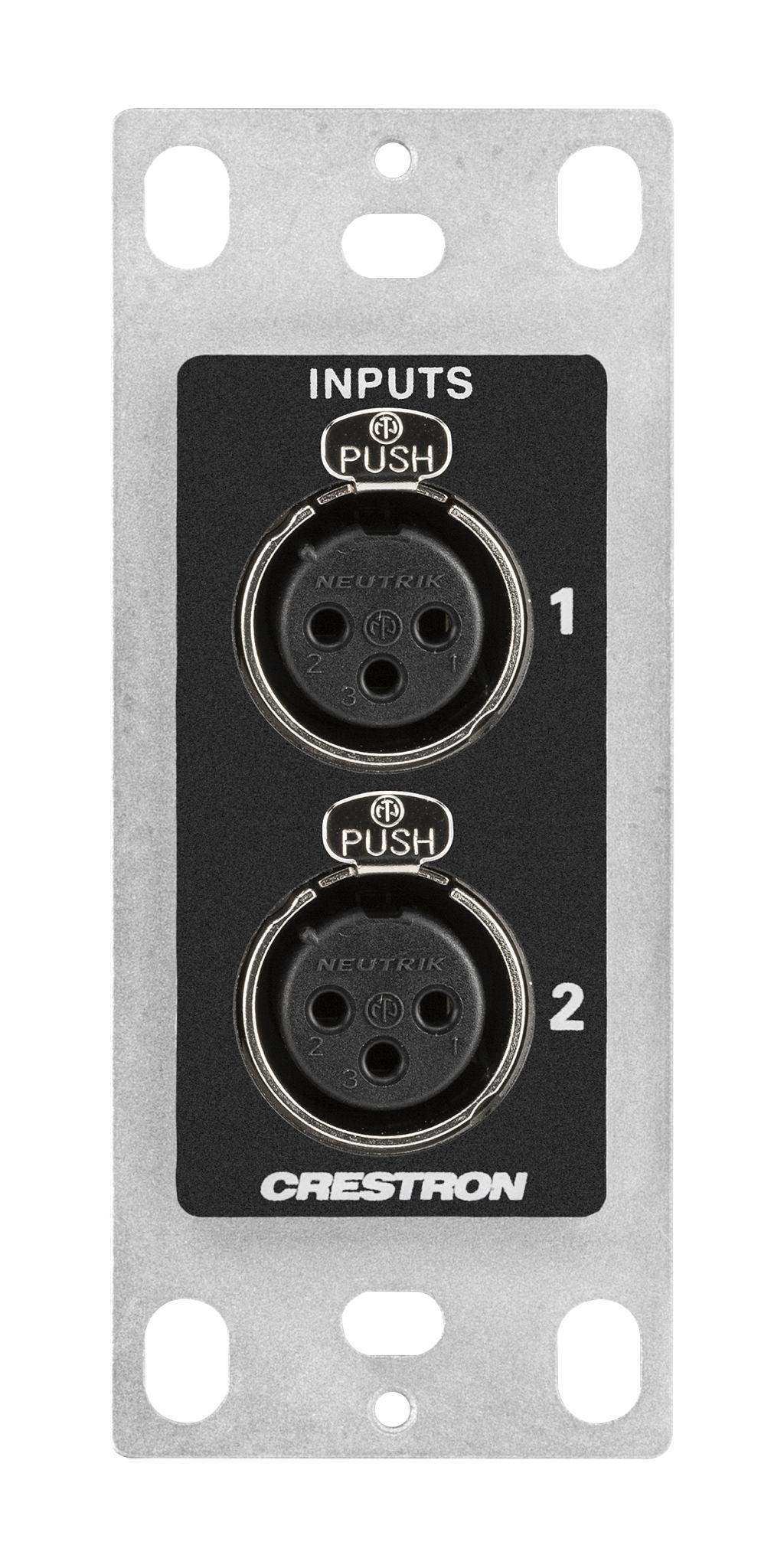

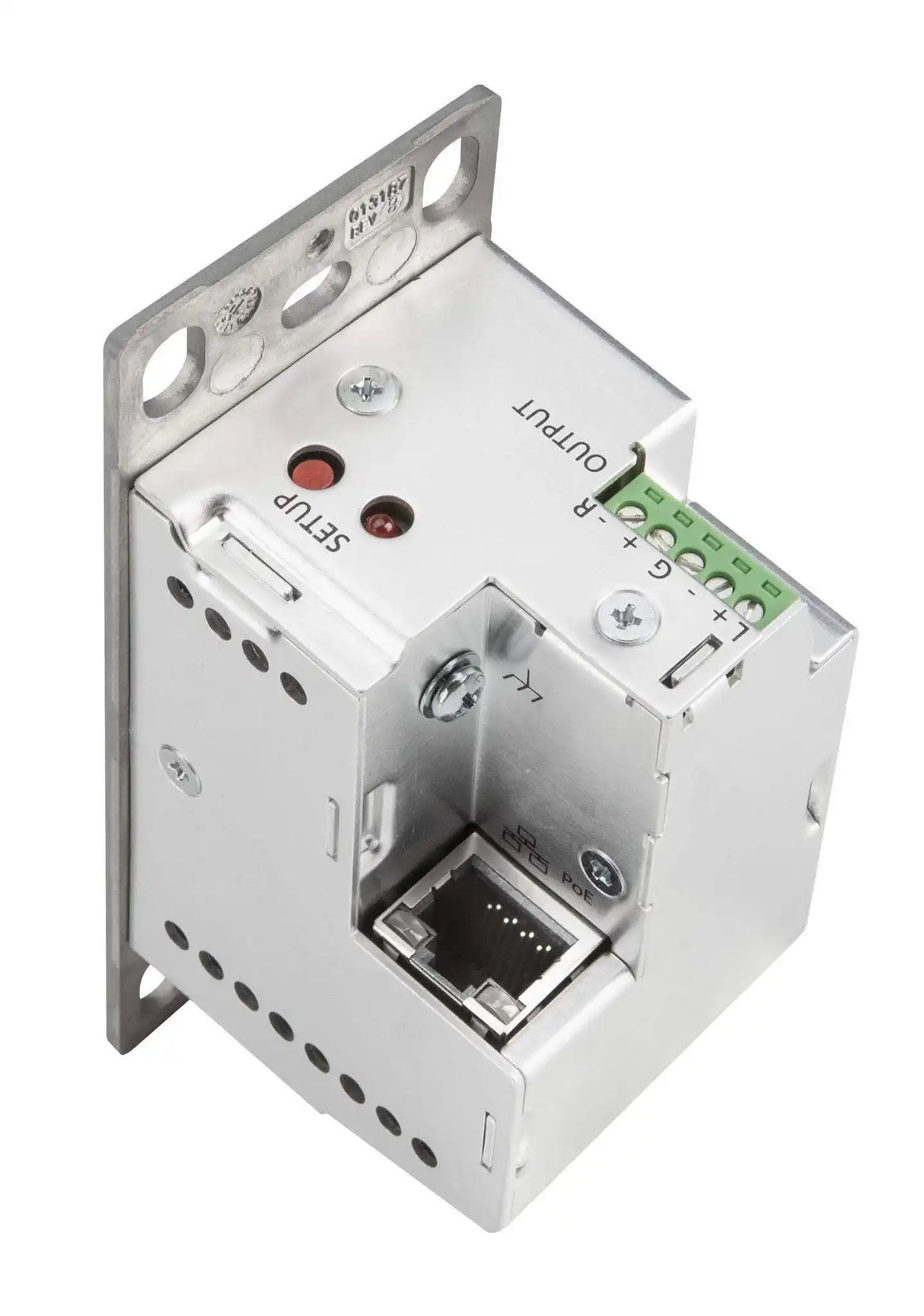

The DM-NAX-2XLRI-1G provides a single-gang wall mount for (2) XLR inputs. The rear of the wall plate features an Ethernet connection for power and DM NAX audio-over-IP (AOIP) networking. The rear panel also features a five-pin line-level audio output for transmitting an audio signal to a Crestron media wall plate (MP‑WP‑2XLRO‑1G and MP‑WP‑2RCAO‑1G).

DM NAX is built on the AES67 standards with additional ease of configuration via a web interface, SIMPL Windows, C#, and/or a RESTful API. It is compatible with DM NVX through the AES67 secondary audio stream and also with third-party AES67 solutions and Dante via the compatibility mode enabled through Dante Controller. Full DSP capabilities are available on the line outputs.

Audio-over-IP
DM NAX takes audio distribution to a whole new level by putting it on the network. The DM-NAX-2XLRI-1G sends and receives DM NAX and AES67 encoded audio over a standard IP network. A single DM NAX system can handle audio distribution between 32 DM NAX devices and supports up to 256 audio output zones. DM NAX devices can seamlessly pull and distribute the audio from DM NVX sources.

Line Level and Microphone Level Support
The front panel XLR connectors of the DM-NAX-2XLRI-1G can be configured for either line level or microphone level input. Each XLR input can be configured to send a +48V phantom power signal to power a connected condenser microphone.

Digital Signal Processing (DSP)
DSP capabilities such as a 5-band EQ per XLR input and level control of all input and output signal types are available to configure via the web user interface.

Encoder and Decoder Functionality
The DM-NAX-2XLRI-1G can operate as a network AV encoder and decoder. The local input sources on one amplifier can be sent as AoIP streams to DM NAX, Dante, or AES67 capable devices. Simultaneously, the DM-NAX-2XLRI-1G can receive AoIP streams from these same devices and decode them for local output.


  • Two XLR input connectors
  • Two rear-panel line-level audio outputs
  • Single-gang U.S. wall box installation
  • Power over Ethernet (PoE) network powered
  • Mountable in a standard US electrical box or on a rack rail via included hardware
  • Connects directly to a managed network to route to or from other DM NAX® and DM NVX® devices
  • Interoperable with Dante® audio networking devices via AES67 compatibility
  • Streamlined configuration through a web interface
  • Seamless Crestron system integration with Crestron Home® OS and SIMPL Windows programming
Audio
Input Signal Types Balanced/unbalanced analog line/mic-level;
DM NAX/AES67 audio-over-IP
Output Signal Types Balanced/unbalanced analog line-level;
DM NAX/AES67 audio-over-IP
Source Compensation ±10.0 dB per input
Input Monitoring Source Signal Detect
Frequency Response (at line-level output) From mic-level input: 20 Hz to 20 kHz ±1.0 dB;
From line-level input: 20 Hz to 20 kHz +0.1/-1.0 dB
THD+N (at line-level output) From mic-level input: 0.3% @ 1 kHz, max output
From line-level input: 0.005% @ 1 kHz, max output
S/N Ratio (at line-level output) From analog input: 105 dB, 20 Hz to 20 kHz, A‑weighted;
From digital input: 111 dB, 20 Hz to 20 kHz, A‑weighted
Balance Control Left/right adjustable
EQ Filter Types EQ, High Pass, Low Pass, Treble Shelf, Bass Shelf, Notch
EQ Center Frequency 10 Hz to 20 kHz per band
EQ Gain +20/-40 dB per band
EQ Bandwidth 0.1 to 4.0 octaves per band
Connectors
INPUTS 1-2 (2) Balanced XLR input ports
Line or microphone-level audio inputs;
Mic-level maximum gain: 60 dB
Mic-level maximum signal level: 2Vrms;
Mic-level channel separation: 70 dB @ 60 dB gain @ 1 kHz;
Line-level maximum signal level: +21 dBu (8.7Vrms)
Impedance: >10 kΩ;
+48V phantom power is available when used as mic-level inputs

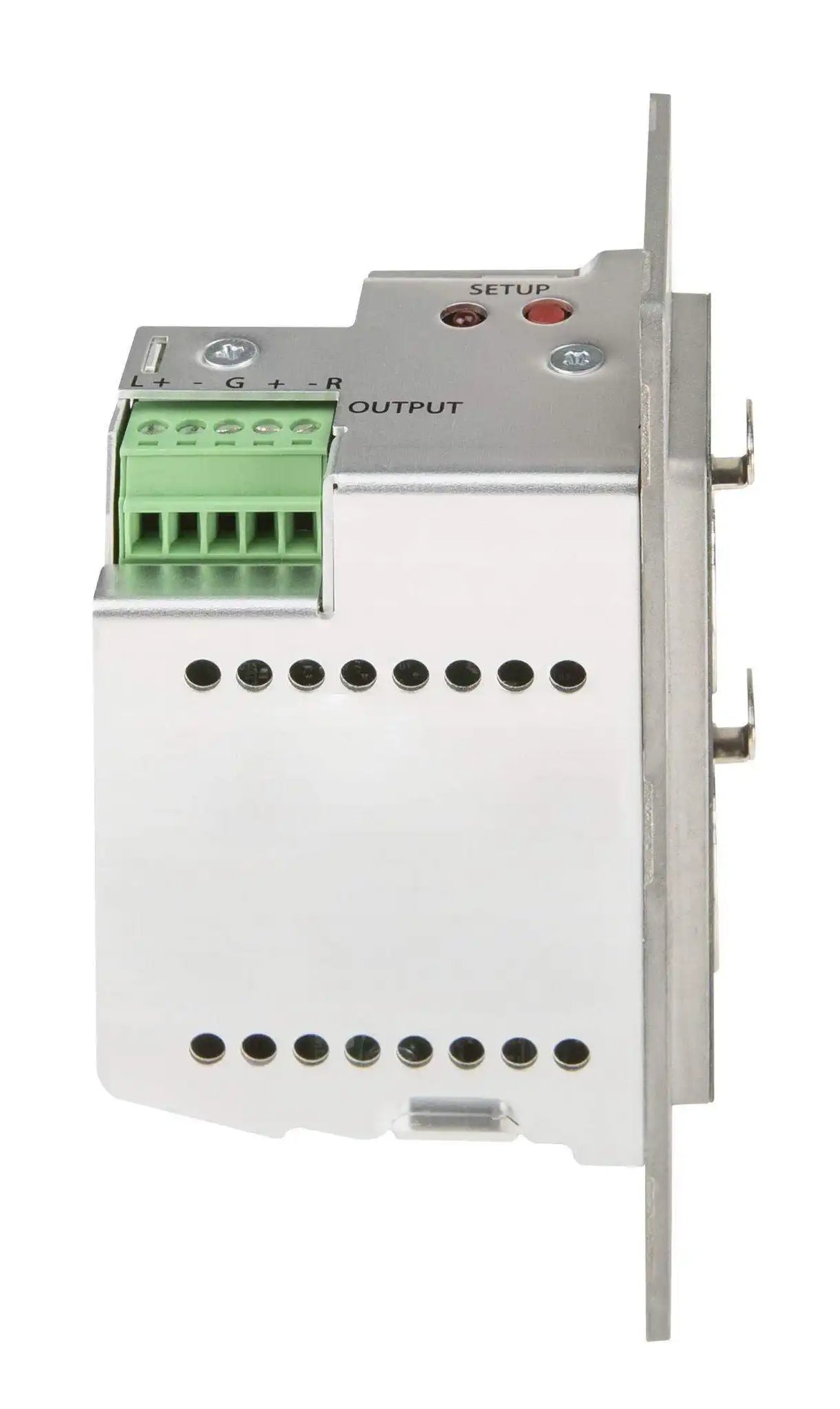

OUTPUT L-R (1) 5-pin 3.5 mm screw terminal block;
Balanced line-level audio output;
Pins 1-2: Left channel output;
Pin 3: Shared ground;
Pins 4-5: Right channel output;
Maximum signal level: +14.7 dBu (4.2Vrms)
Impedance: 200 Ω;
Channel separation: 100 dB @ 1 kHz
G (1) 6-32 screw;
Chassis ground lug
ETHERNET PoE (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port
Controls and Indicators
ETHERNET PoE Left amber LED indicates 1000 Mb link status;
Left green LED indicates 100 Mb link status;
Flashing right amber LED indicates Ethernet activity
SETUP

(1) Push button: Used for factory reset procedures;
(1) LED, illuminates red when the button is pressed, flashes red when reset has been initiated

Power
PoE IEEE 802.3af Class 0 (12.95 W) compliant;
Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE
Power Consumption 2.9 W
Environmental
Temperature 32° to 95° F (0° to 35° C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 9.9 BTU/hr
Construction
Chassis Metal, black and silver finish, vented sides
Mounting Mountable on the following:
1-gang U.S. electrical box or plaster ring (not included), 3.5 in. (26 mm) electrical box depth recommended;
Rack rail
Dimensions
Height 4.12 in. (105 mm)
Width 1.72 in. (44 mm)
Depth 2.14 in. (55 mm)
Weight
6 oz. (170 g)
