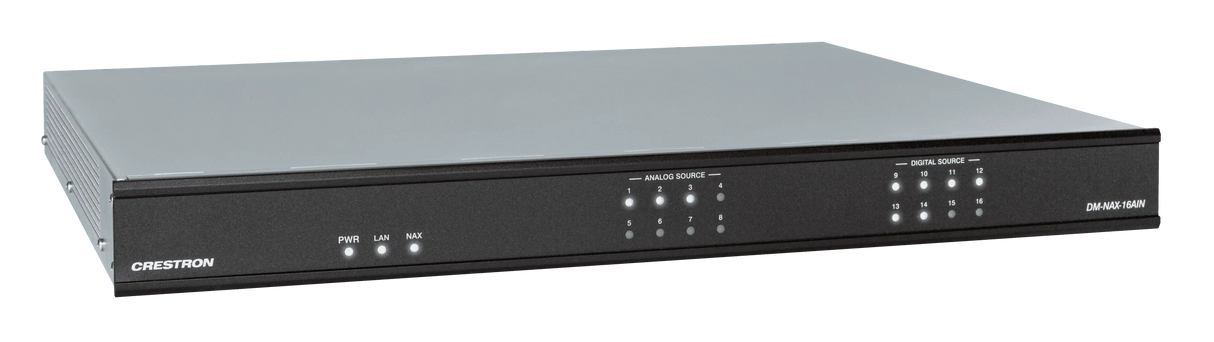

Crestron DM-NAX-16AIN – DM NAX 16-Channel Analog Audio Input Module

Product Overview

The Crestron DM-NAX-16AIN is a DM NAX 16-channel analog audio input module that bridges up to 16 analog line-level audio sources into the DM NAX networked audio ecosystem. It converts analog audio inputs — from CD players, turntables, AV receivers, broadcast sources, external DSPs, and other analog audio devices — to DM NAX network audio streams that can be routed to any zone amplifier or streaming preamplifier on the DM NAX network. A fundamental building block of large-scale DM NAX multi-zone audio systems where analog sources must be distributed across many amplified zones.

Product Description

DM NAX multi-zone audio systems route audio primarily as network streams, but commercial installations frequently include analog audio sources — external CD players, cable television audio outputs, AV receiver zone 2 outputs, broadcast feeds, and line-level sources from AV systems that predate network audio. The DM-NAX-16AIN makes these analog sources available to the DM NAX network by converting up to 16 analog line-level inputs to DM NAX network audio streams, after which any connected DM-NAX-8ZSA zone amplifier or DM-NAX-4ZSP preamplifier can receive and play any of the 16 sources in any of its controlled zones by 4-Series control system command. In a large commercial installation — a hotel with satellite TV audio on multiple channels, a background music system with several streaming sources plus vinyl/CD inputs, or an office with multiple AV system audio outputs to distribute — the DM-NAX-16AIN consolidates all analog inputs into the DM NAX routing fabric for any-to-any distribution without additional analog switcher hardware.

Key Features

• 16-Channel Analog Input to DM NAX: Converts up to 16 analog line-level sources to DM NAX network audio streams — makes all 16 sources available for routing to any zone amplifier or preamplifier on the DM NAX network.
• Any-to-Any Routing: All 16 analog sources become DM NAX streams routable to any zone in any DM-NAX-8ZSA or DM-NAX-4ZSP on the same DM NAX network by 4-Series control system command.
• Line-Level Analog Inputs: Accepts standard line-level analog audio from CD players, AV receivers, cable TV, DSP outputs, and other analog sources.
• Crestron 4-Series Integration: Source routing controlled by 4-Series control processors for schedule-based, occupancy-based, and touch panel-triggered source selection across all zones.
• Scalable Architecture: Multiple DM-NAX-16AIN modules can be combined in large installations requiring more than 16 analog sources on the DM NAX network.

Technical Specifications

Competitor comparison: not applicable for this product.

Frequently Asked Questions

Can streaming audio services be used as sources on the DM NAX network without the DM-NAX-16AIN?
Yes — streaming audio services (Spotify, Apple Music, etc.) are typically connected via the DM NAX streaming infrastructure. The DM-NAX-16AIN is specifically for analog line-level sources that need to be added to the DM NAX network. Contact Creation Networks for DM NAX source configuration guidance for your specific audio source types.

What is the warranty on the Crestron DM-NAX-16AIN?
Crestron provides a standard 3-year limited warranty. Contact Creation Networks for warranty service details.
