Overview

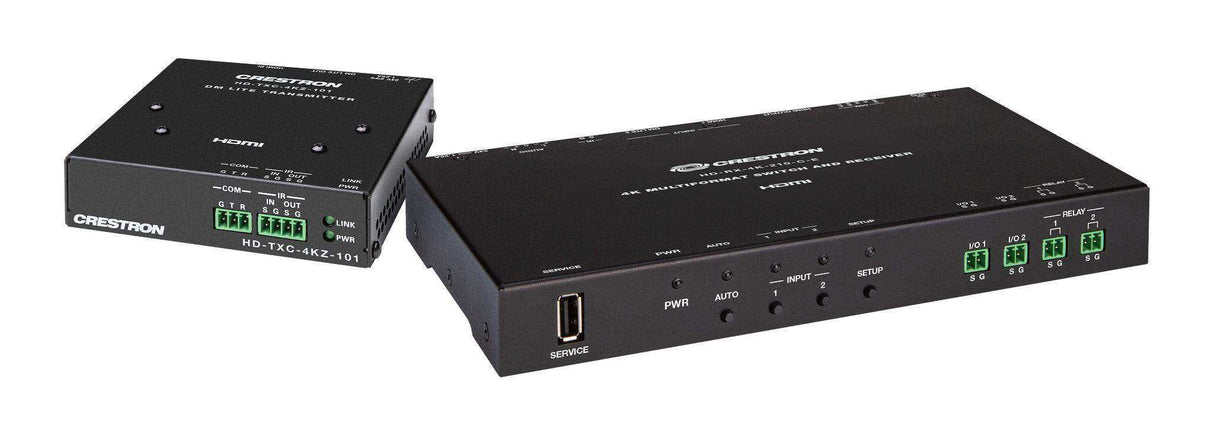

The DM‑EXT‑1021 KIT provides a cost-effective multimedia presentation solution for classrooms and meeting spaces. Consisting of a transmitter (HD‑TXC‑4KZ‑101) and receiver (HD‑RX‑4K‑210‑C‑E), the kit extends an HDMI® signal over a CATx (CAT5e or higher) twisted pair cable. For resolutions up to 2K, the maximum transmission distance is 230 ft (70 m). For higher resolutions up to 4K, the maximum transmission distance is 130 ft (40 m).1
NOTE: Power is transmitted over the CATx cable that connects the transmitter to the receiver. The transmitter provides one HDMI input. The receiver provides an additional HDMI input that can be connected to a local AV source or to an optional Crestron media presentation wall plate (MP‑WP152, sold separately).
Automatic Input Switching
Automatic switching between the DM input and HDMI input on the receiver occurs based on the last connected input or on an assigned routing priority. Switching behavior is configurable using the web interface or programmable using a Crestron control system. In addition to automatic switching, input selection push buttons on the receiver enable the desired input to be selected manually.
HDMI Output with 4K Scaler
A single HDMI output with a built-in scaler connects the receiver to a display or other device with an HDMI input. Input resolutions are automatically scaled to match the native resolution of the display device, resulting in optimal image quality. For applications requiring comprehensive EDID management, the web interface is used to ensure that every input is displayed at its optimal resolution and format. Input resolutions up to 4K60 4:2:0 are supported.
Audio De-embedding
The analog audio output on the receiver extracts the stereo audio signal from digital sources to feed a sound bar, amplified speakers, or a separate sound system. The analog audio output is active only when the input is receiving a two‑channel stereo signal.
Device Control
Equipped with onboard control ports, the receiver can control various devices in a room. The COM (RS-232) port and CEC over the HDMI output enable the display device to be turned on or off automatically without the use of a control system. With the use of a control system, the IR port can also control the display device. Two relay ports are provided for controlling a projection screen and other low-voltage contact closure activated equipment. Two Versiport I/O ports enable the integration of devices such as power sensors and motion detectors. An Ethernet port connection to a LAN also provides control by enabling use of the built-in web interface as well as connection to a control system.
Features
- 4K60 video with 4:2:0 color sampling
- Transmitter and receiver with 2x1 AV switching, scaling, and signal extension functionality
- One HDMI® input on the transmitter
- One HDMI input and one 4K HDMI scaling output on the receiver
- Automatic input switching
- Video, audio, and power extension over a CATx cable - up to 230 ft (70 m) for resolutions up to 2K or up to 130 ft (40 m) for higher resolutions up to 4K
- EDID and HDCP 2.2 management
- Consumer Electronics Control (CEC) capability
- Stereo audio de-embedding via analog audio output
- IR, RS-232, relay, and I/O control ports
- USB power port
- Built-in web interface for easy configuration and monitoring
- Compatible with Crestron® 3-Series® control systems or later
- .AV Framework™ technology support
- XiO Cloud® service support
- Native integration with Cisco® Webex® and Touch 10 devices
- Low-profile installation
- 100-240VAC power pack included
Specs
| Video | ||||||||||||||||||||||||||||||
| Switcher | 2x1 (1 input at transmitter plus 1 input at receiver x 1 output at receiver) auto-switching or manual, audio-follows-video, Crestron Auto‑Locking® and QuickSwitch HD™ technology | |||||||||||||||||||||||||||||
| Scaler, HDMI Output | 4K video scaler with intelligent frame rate conversion, Deep Color support, content adaptive noise reduction, 3:2/2:2 pull-down detection and recovery | |||||||||||||||||||||||||||||
| Input Signal Type | HDMI with Deep Color and 4K (DVI and Dual-Mode DisplayPort™ interface compatible2) | |||||||||||||||||||||||||||||
| Output Signal Type | HDMI with Deep Color and 4K (DVI compatible3) | |||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.2 | |||||||||||||||||||||||||||||
| Maximum Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||
| Input Signal Type | HDMI (Dual-Mode DisplayPort interface compatible2) | |||||||||||||||||||||||||||||
| Output Signal Type | HDMI, analog stereo line-level | |||||||||||||||||||||||||||||
| Digital Formats | 2-channel LPCM | |||||||||||||||||||||||||||||
| Digital to Analog Conversion | 24-bit, 48 kHz | |||||||||||||||||||||||||||||
| Output Volume | -80 to +20 dB level adjustment range; Independent mute for HDMI and analog audio outputs |
|||||||||||||||||||||||||||||
| Analog Output Performance |
Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB @ 10 dBV, 20 Hz to 20 kHz, A-weighted; THD+N: <0.005% @ 1 kHz and 10 dBV; Stereo Separation: 20 Hz to 20 kHz ≤80 dB |

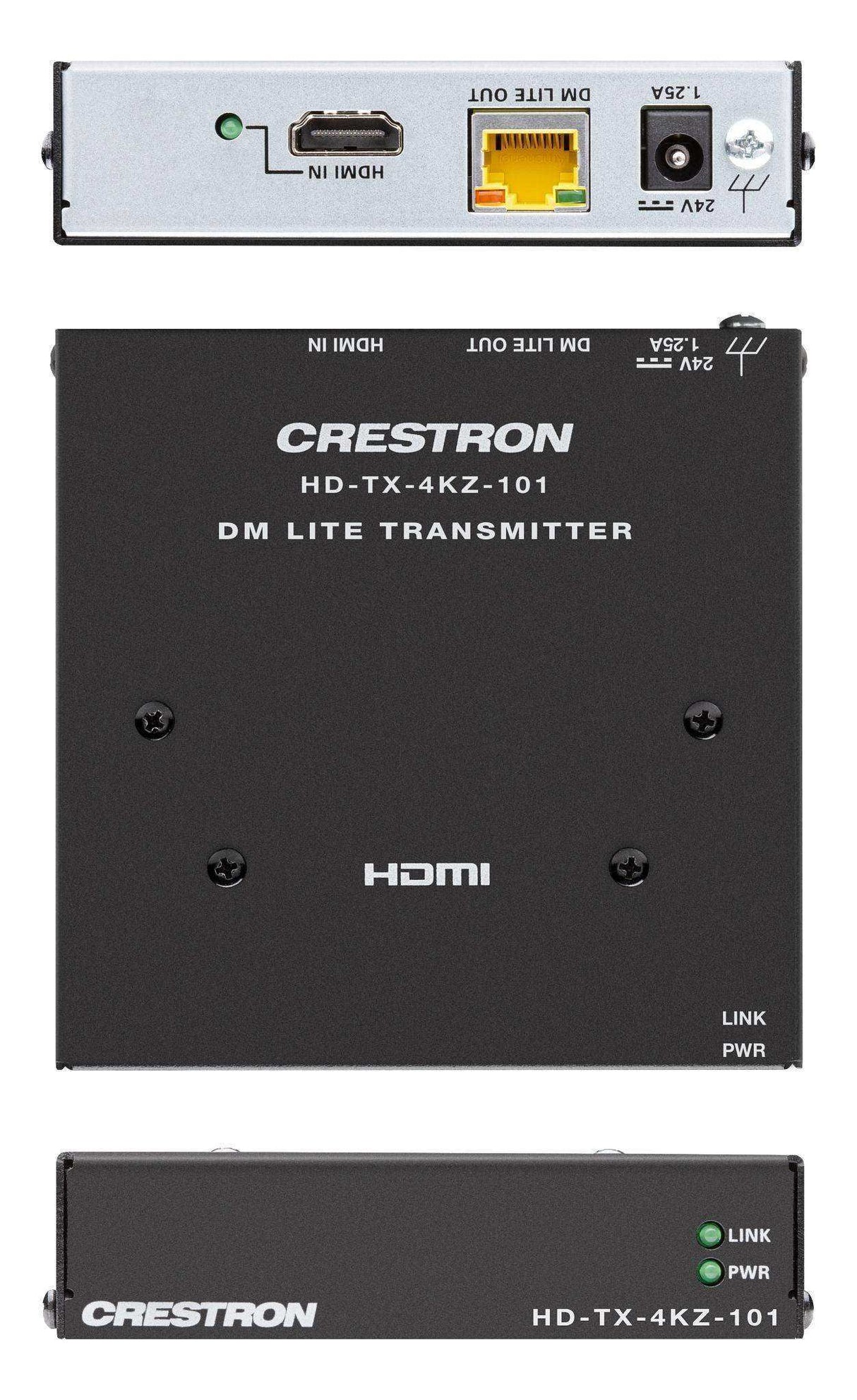

|||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||
| Ethernet | 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, CIP, DHCP, web browser setup and control | |||||||||||||||||||||||||||||
| RS-232 | Two way device control and monitoring up to 115.2k baud; Hardware and software handshaking |
|||||||||||||||||||||||||||||
| IR | One way device control via infrared up to 60 kHz | |||||||||||||||||||||||||||||
| HDMI | HDCP 2.2, EDID, CEC | |||||||||||||||||||||||||||||
| DM | HDCP 2.2, EDID | |||||||||||||||||||||||||||||
| Connectors - Transmitter (HD‑TXC‑4KZ‑101) | ||||||||||||||||||||||||||||||
| 24 VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included NOTE: Either included power pack will power both the transmitter and the connected receiver. Do not connect both power packs at once. |
|||||||||||||||||||||||||||||
| DM | (1) 8-pin RJ-45 connector, female, shielded; DM output port for connection to the receiver1 |
|||||||||||||||||||||||||||||
| HDMI IN | (1) HDMI Type A connectors, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible2 |
|||||||||||||||||||||||||||||
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Supports RS-232 up to 115.2k baud; Hardware and software handshaking |
|||||||||||||||||||||||||||||
| IR IN/OUT | (1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port; IR IN is for connection from a Crestron IR control port or other IR signal source and passes the IR input signal to the IR OUT port on the HD‑RX‑4K‑210‑C‑E receiver; IR OUT is for connection to an IR emitter (IRP2, sold separately) and transmits the IR signal from the IR IN port on the HD‑RX‑4K‑210‑C‑E receiver; Supports IR up to 60 kHz |
|||||||||||||||||||||||||||||

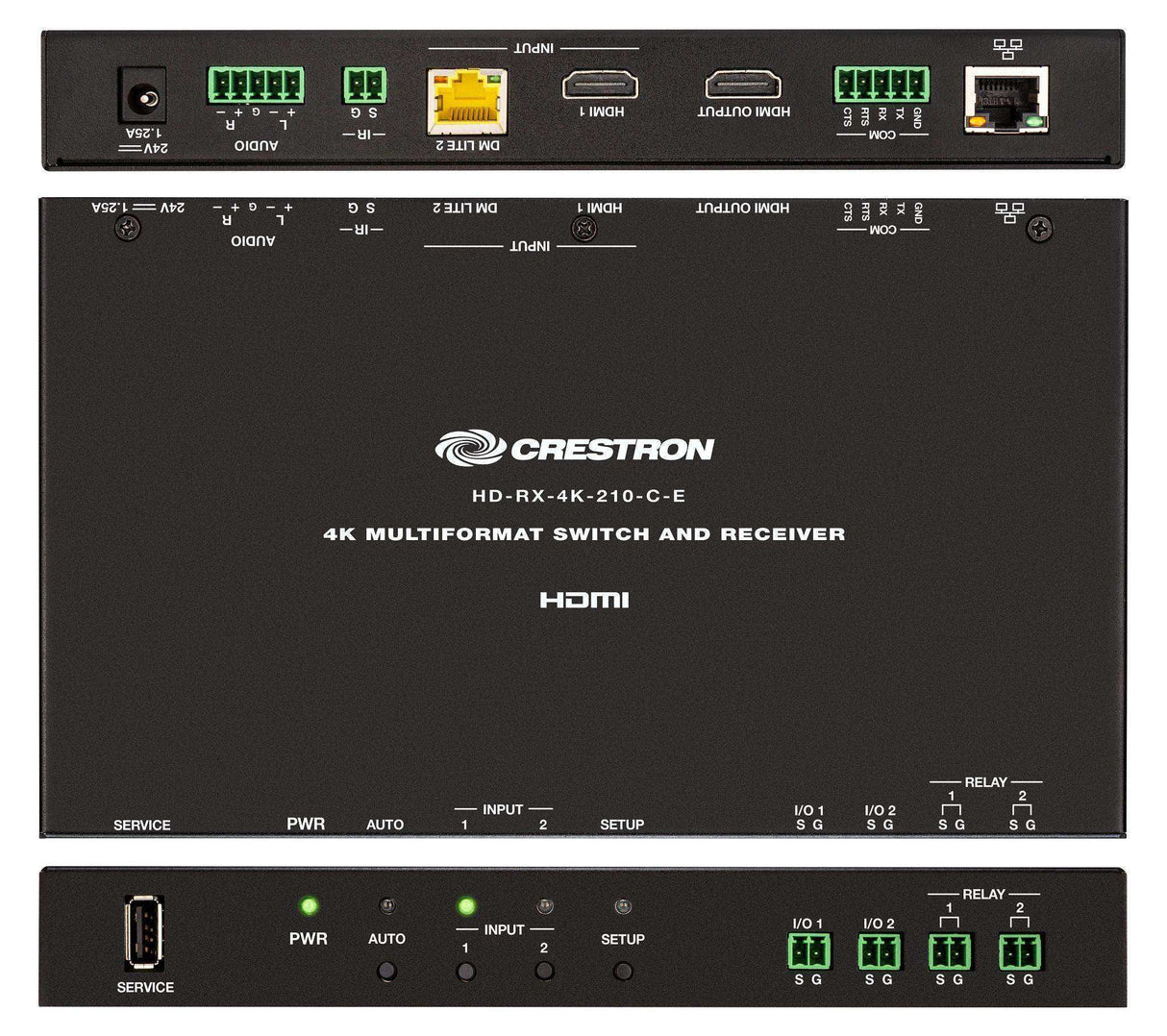

| Connectors - Receiver (HD‑RX‑4K‑210‑C‑E) | ||||||||||||||||||||||||||||||
| HDMI INPUT 1 | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible2 |
|||||||||||||||||||||||||||||
| DM INPUT 2 | (1) 8-pin RJ-45 yellow connector, female, shielded; DM link port for connection to the HD‑TX‑4KZ‑101 transmitter1 |
|||||||||||||||||||||||||||||
| HDMI OUTPUT | (1) HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible3) NOTE: CEC over the HDMI output provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system. |
|||||||||||||||||||||||||||||
| AUDIO L/R | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Maximum Output Level: 4Vrms balanced, 2Vrms unbalanced; Output Impedance: 200Ω balanced, 100Ω unbalanced |
|||||||||||||||||||||||||||||
| Ethernet | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port |
|||||||||||||||||||||||||||||
| I/O 1-2 | (2) 2-pin detachable terminal blocks; Comprised of 2 Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated to 0-24VDC, input impedance 20kΩ, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 0-10VDC, protected to 24VDC maximum, input impedance 21kΩ with pull-up resistor disabled; Programmable 5V, 2kΩ pull-up resistor per pin |
|||||||||||||||||||||||||||||
| RELAY 1-2 | (2) 2-pin detachable terminal blocks; Comprised of 2 normally open, isolated relays; Rated 1A, 30VAC/VDC; MOV arc suppression across contacts |
|||||||||||||||||||||||||||||
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR output control port; Supports IR up to 60 kHz; IRP2 emitter sold separately NOTE: The IR port provides Power On/Off control of the display device with the use of a control system. |
|||||||||||||||||||||||||||||
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Supports RS-232 up to 115.2k baud; Hardware and software handshaking NOTE: The COM port provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system. |
|||||||||||||||||||||||||||||
| 24 VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2412WU power pack included NOTE: Either included power pack will power both the receiver and the connected transmitter. Do not connect both power packs at once. |
|||||||||||||||||||||||||||||
| SERVICE | (1) USB Type A connector, female; For factory use only |
|||||||||||||||||||||||||||||
| Controls and Indicators - Transmitter (HD‑TXC‑4KZ‑101) | ||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates that DM link is established. | |||||||||||||||||||||||||||||
| PWR | (1) Green/amber bi-color LED; Amber indicates that the device is booting; Green indicates that the device is operational |
|||||||||||||||||||||||||||||
| HDMI IN | (1) Green LED, indicates that the device is receiving an HDMI signal | |||||||||||||||||||||||||||||
| DM OUT | (2) LEDs on RJ‑45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non‑HDCP video; Solid amber indicates HDCP video |
|||||||||||||||||||||||||||||
| Controls and Indicators - Receiver (HD‑RX‑4K‑210‑C‑E) | ||||||||||||||||||||||||||||||
| PWR | (1) Green/amber bi-color LED; Amber indicates that the device is booting; Green indicates that the device is operational |
|||||||||||||||||||||||||||||
| INPUT 1-2 | (2) Push buttons for manual input selection and (2) LEDs; Green indicates that video source is selected; Amber indicates that video is detected but source is not selected |
|||||||||||||||||||||||||||||
| AUTO | (1) Push button to enable or disable automatic switching; (1) LED, green indicates that automatic switching is enabled |
|||||||||||||||||||||||||||||
| SETUP | (1) Red LED and (1) push button for display of IP address on the HDMI output | |||||||||||||||||||||||||||||
| DM | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non-HDCP video; Solid amber indicates HDCP video |
|||||||||||||||||||||||||||||
| Ethernet | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that Ethernet link is established; Flashing amber indicates Ethernet activity |
|||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||
| Power Pack (included with Transmitter and Receiver) | Input: 100-240VAC; Output: 24VDC 2.5A; Models: PW‑2420RU and PW-2412WU NOTE: Either included power pack will power both the transmitter and receiver. Do not connect both power packs at once. |
|||||||||||||||||||||||||||||
| Power Consumption | 14.8 W typical | |||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | |||||||||||||||||||||||||||||
| Humidity |
Transmitter: 20% to 90% RH (non-condensing); Receiver: 10% to 90% RH (non-condensing) |
|||||||||||||||||||||||||||||
| Heat Dissipation | 50.5 BTU/hr | |||||||||||||||||||||||||||||
| Ambient Noise Level | N/A (fanless) | |||||||||||||||||||||||||||||
| Construction | ||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, vented sides, 2 mounting flanges | |||||||||||||||||||||||||||||
| Mounting | Surface or rack rail mount | |||||||||||||||||||||||||||||
| Dimensions - Transmitter (HD‑TXC‑4KZ‑101) | ||||||||||||||||||||||||||||||
| Height | 1.20 in. (30 mm) | |||||||||||||||||||||||||||||
| Width | 4.19 in. (106 mm) | |||||||||||||||||||||||||||||
| Depth | 1.08 in. (27 mm) | |||||||||||||||||||||||||||||
| Dimensions - Receiver (HD‑RX‑4K‑210‑C‑E) | ||||||||||||||||||||||||||||||
| Height | 5.11 in. (130 mm) | |||||||||||||||||||||||||||||
| Width | 4.19 in. (106 mm) with mounting flanges attached | |||||||||||||||||||||||||||||
| Depth | 7.94 in. (202 mm) | |||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||
| Transmitter | 1.2 lb (0.55 kg) | |||||||||||||||||||||||||||||
| Receiver | 1.19 lb (0.54 kg) | |||||||||||||||||||||||||||||
