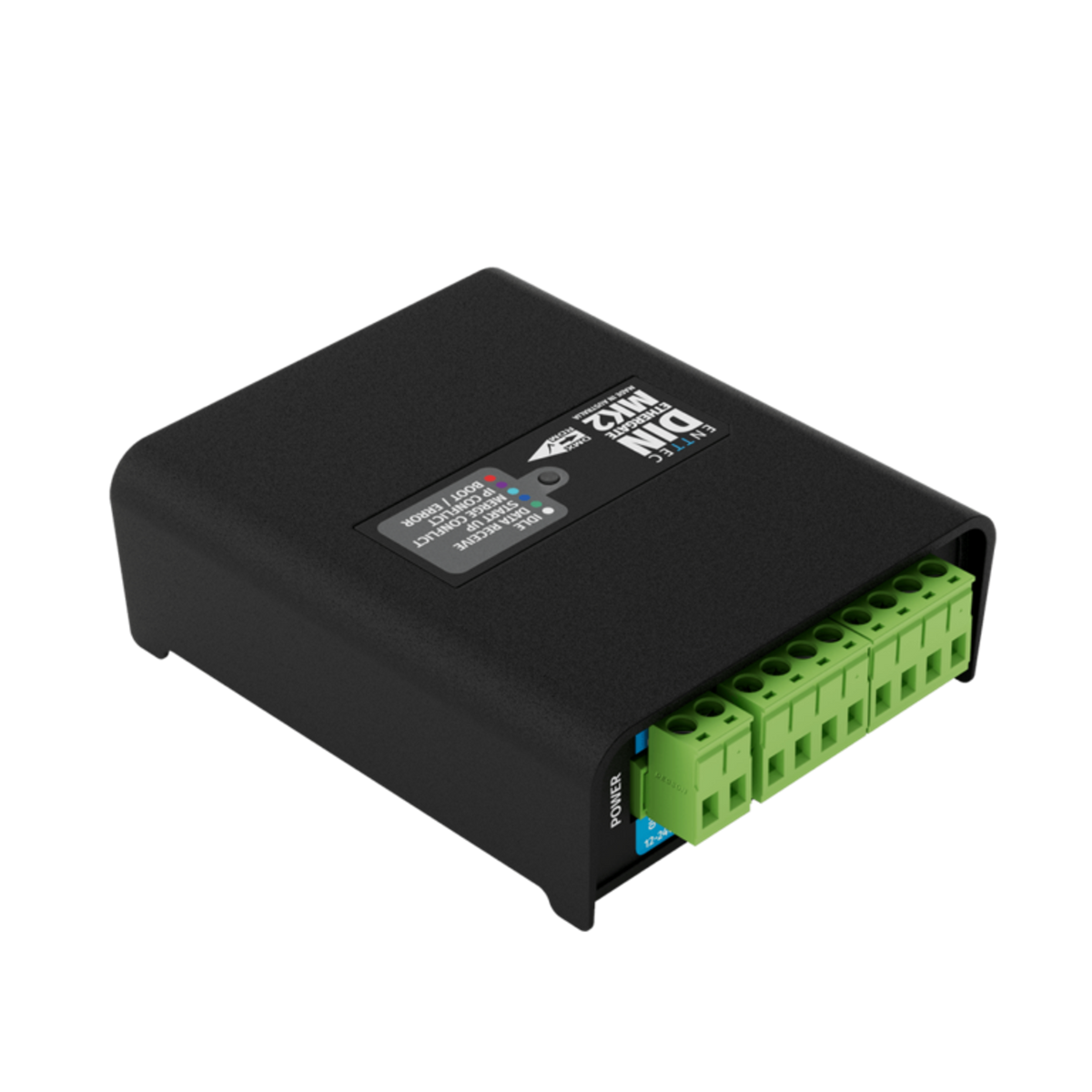

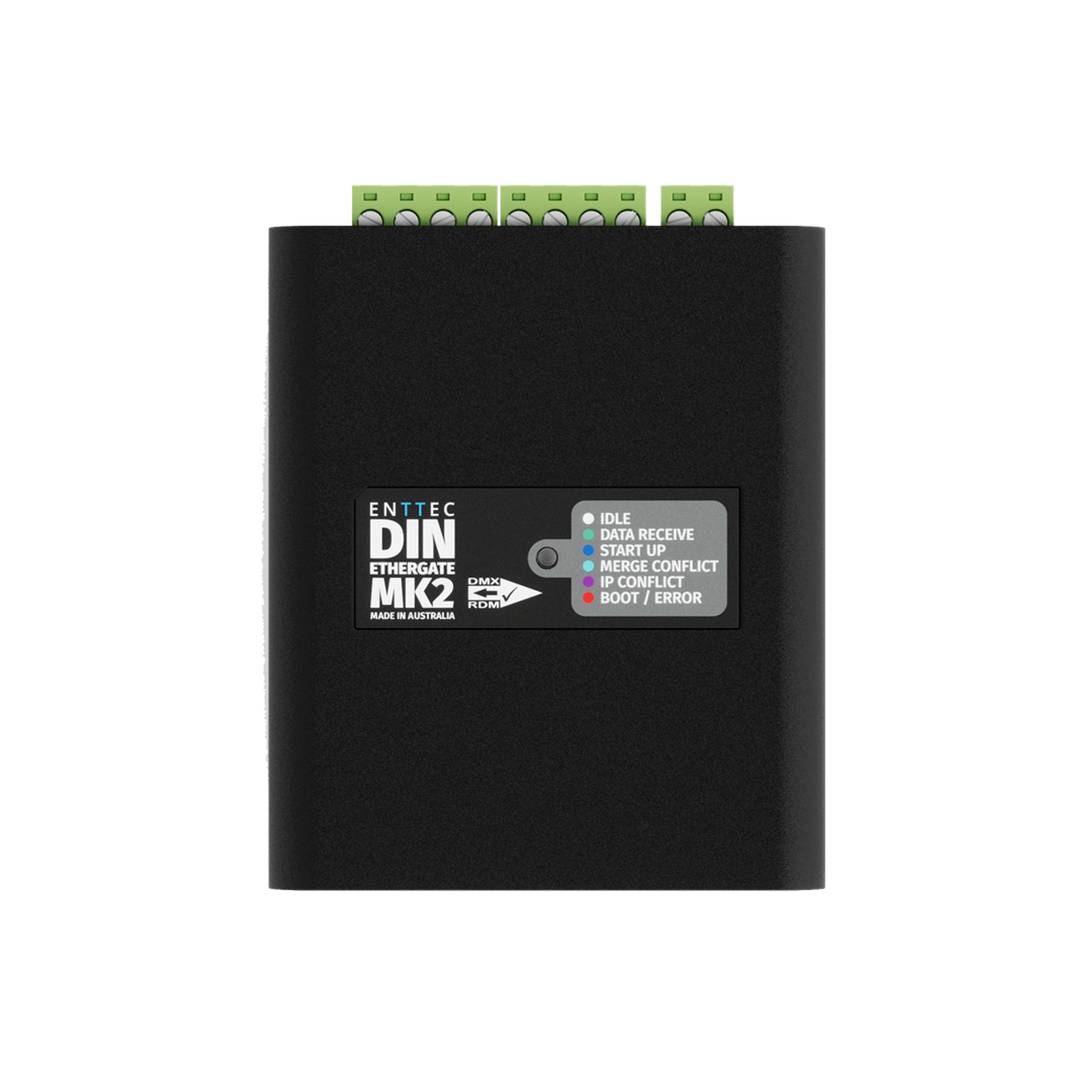

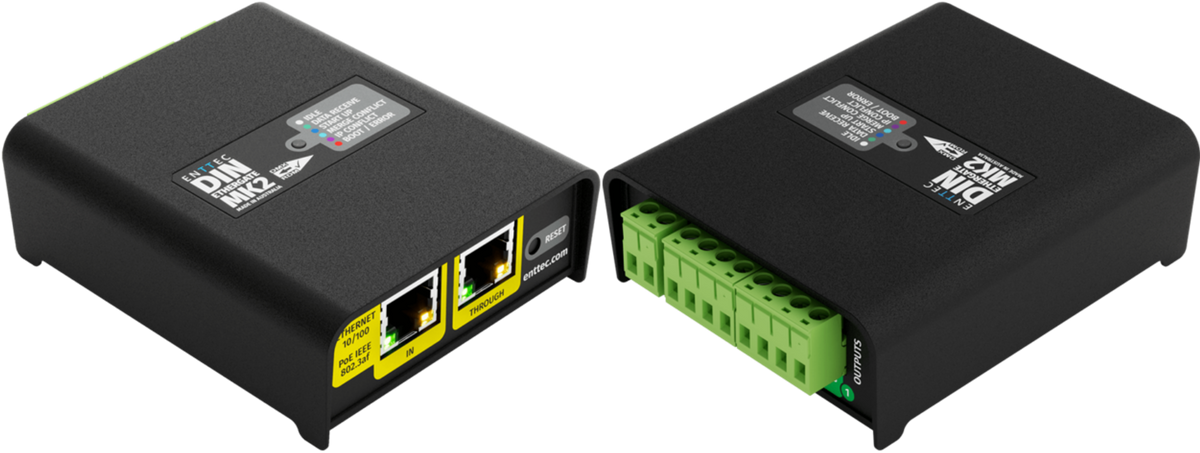

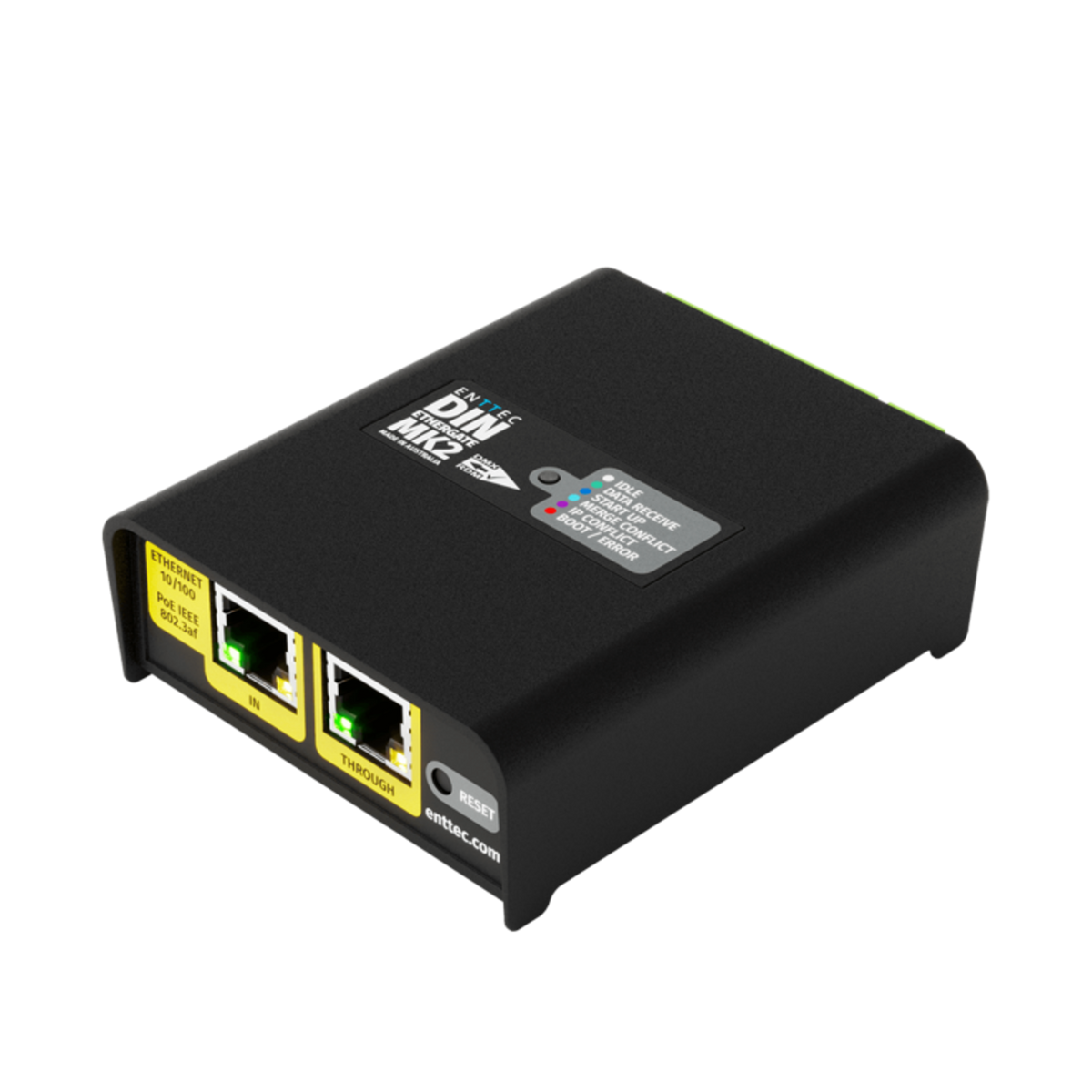

Crestron DIN-SACN-DMX – ENTTEC DIN Ethergate Mk2 Ethernet to DMX Converter
Crestron DIN-SACN-DMX – ENTTEC DIN Ethergate Mk2 Ethernet to DMX Converter is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron DIN-SACN-DMX – ENTTEC DIN Ethergate Mk2 Ethernet to DMX Co...
Product Overview
The Crestron DIN-SACN-DMX is a DIN rail-mount Ethernet to DMX converter that translates sACN (E1.31) or Art-Net data from an IP network into a DMX-512 output for control of DMX-compatible lighting fixtures and dimmers. Based on the ENTTEC DIN Ethergate Mk2 platform, it provides a compact and reliable gateway for bridging network-based lighting control protocols with legacy or modern DMX lighting infrastructure.
Product Description
The DIN-SACN-DMX accepts sACN (ANSI E1.31) or Art-Net lighting data over a standard Ethernet connection and outputs a standard DMX-512 signal to connected lighting equipment. This allows Crestron systems and other IP-based lighting controllers to communicate directly with DMX fixtures, dimmers, and other DMX devices without requiring a separate dedicated DMX control network. The DIN rail form factor enables installation in the same enclosure as Crestron DIN-mount control equipment. The unit supports a single DMX universe of 512 channels and is powered via the DIN rail bus or external supply.
Key Features
- Converts sACN (E1.31) or Art-Net over Ethernet to DMX-512 output
- DIN rail mount for installation in equipment enclosures
- Single DMX universe (512 channels) output
- Based on ENTTEC DIN Ethergate Mk2 platform
- Enables IP lighting control systems to drive DMX fixtures
- Standard DMX-512 output compatible with all DMX lighting equipment
- Compact form factor for space-efficient installation
Typical Applications
- Bridging Crestron or other IP lighting control to DMX fixtures and dimmers
- Houses of worship and theaters with mixed IP and DMX lighting infrastructure
- Conference centers and auditoriums requiring integration of DMX stage lighting with IP control systems
- Architectural lighting projects using sACN or Art-Net control sources with DMX fixtures
- Entertainment and broadcast facilities converting IP lighting protocol to DMX output
Technical Specifications
- Model: DIN-SACN-DMX
- Input Protocol: sACN (ANSI E1.31), Art-Net
- Input Interface: Ethernet (RJ-45)
- Output Protocol: DMX-512
- DMX Universes: 1 (512 channels)
- Form Factor: DIN Rail Mount
- Based On: ENTTEC DIN Ethergate Mk2
Frequently Asked Questions
Q: What lighting control protocols does the DIN-SACN-DMX accept as input?
A: The unit accepts sACN (ANSI E1.31) and Art-Net, both of which are standard IP-based DMX distribution protocols supported by Crestron and many other lighting controllers.
Q: How many DMX universes can be output simultaneously?
A: The DIN-SACN-DMX provides a single DMX universe output (512 channels). For multi-universe installations, multiple units can be deployed on the same network.
Q: Is special configuration software required?
A: The DIN-SACN-DMX can be configured via a web browser interface on the unit's IP address. No proprietary software installation is required for basic operation.
