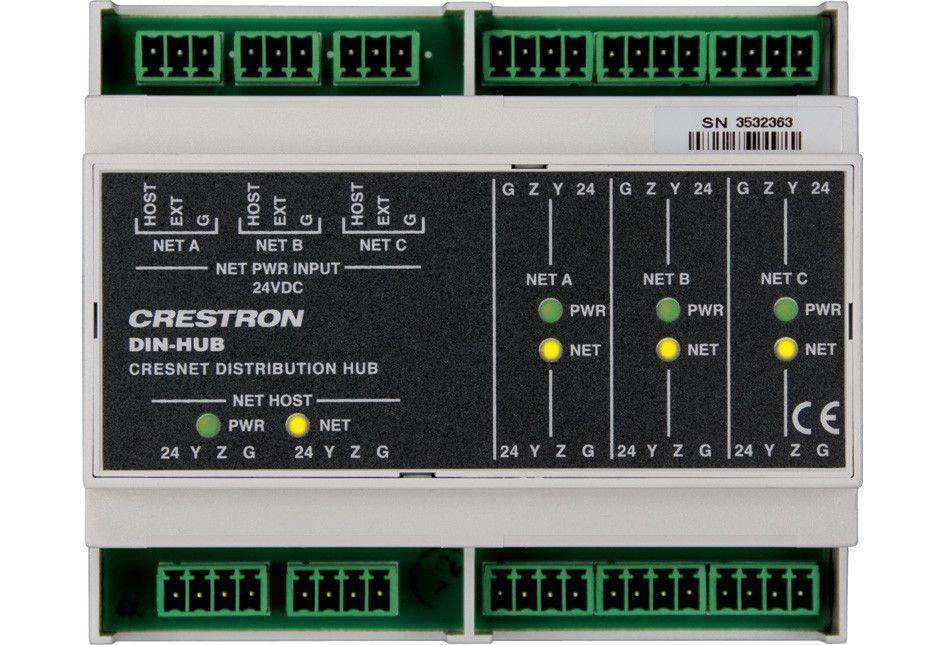

Crestron DIN Rail Cresnet Distribution Hub - DIN-HUB
Roll over image to zoom in Click on image to zoom
Crestron DIN Rail Cresnet Distribution Hub - DIN-HUB
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Crestron DIN Rail Cresnet Distribution Hub - DIN-HUB

Availability: Call for Availability
Crestron SKU: DIN-HUB
No reviews
Price:
$330.00

Description

The DIN-HUB is a DIN rail-mounted Cresnet hub designed to facilitate the configuration of large Cresnet networks. DIN rail mounting enables modular installation alongside Crestron DIN Rail lighting and automation control modules and other third-party DIN rail mountable devices.

3-Segment Cresnet® Hub

Cresnet is the communications backbone for Crestron lighting modules, wall box dimmers, shade controllers, thermostats, keypads, touchpanels, and many other devices. This flexible 4-wire bus normally supports approximately 20 Cresnet devices without requiring a hub. Larger systems are easily enabled by adding the DIN-HUB. The DIN-HUB features 3 isolated Cresnet segments, each supporting an additional 20 devices, allowing for systems of approximately 80 devices total (including the "host" segment). More hubs may be added to allow up to a maximum potential of 252 devices.*

Cresnet Power Distribution

In addition to data, Cresnet carries 24 Volts DC for powering the devices connected to it. The DIN-HUB provides an easy way to manage the distribution of power for a complete Cresnet network. Each segment can be configured to receive its power from the "host" power source or from another power supply. Separate power supplies may be dedicated to each segment, or a single supply can be shared amongst multiple segments as needed. Each segment supports up to 75 Watts.

DIN Rail Installation

The DIN-HUB is designed to snap onto a standard DIN rail for installation in a wall mount enclosure or mounted on a wall panel. Wiring connections are made using detachable screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. Diagnostic indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-HUB's front panel stays visible while the connections are concealed.


  • 3-segment Cresnet hub
  • For Cresnet networks with more than 20 devices
  • Configurable power distribution
  • No programming required
  • 6M wide DIN rail mounting
