Crestron DIN Rail 0-10V Dimmer Module, 4 feeds, 4 channels - DIN-4DIMFLV4

Product Overview

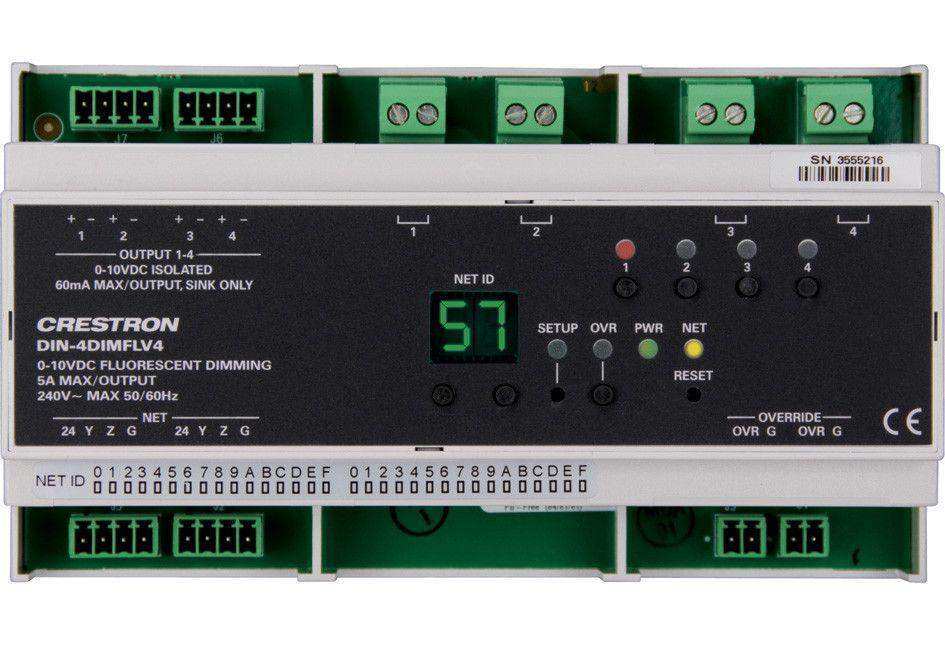

The Crestron DIN-4DIMFLV4 is a DIN rail-mounted 0-10V dimmer module with four feeds and four channels for controlling fluorescent ballasts and LED drivers. It combines isolated relay switching with 0-10V dimming control on each channel, providing both on/off and level control of compatible loads. The module mounts on standard 35 mm DIN rail and connects to a Cresnet control system. It is designed for integration into commercial lighting control panels and electrical enclosures.

Product Description

The DIN-4DIMFLV4 provides four channels of 0-10V dimming, each with its own line feed, allowing flexible distribution across lighting circuits. Each channel pairs a Class 1 SPST relay for switching with a 0-10V control output for dimming 0-10V fluorescent ballasts or four-wire LED drivers. Channels are rated up to 5 A at 120 to 240VAC, supporting up to 600 W at 120VAC, 1150 W at 230VAC, and 1200 W at 240VAC per channel, with a module total of 20 A. The module supports up to 30 dimmable ballasts or drivers and connects to the control system through Cresnet, drawing 4.2 W (0.18 A) at 24VDC from the network. Override inputs allow local control independent of the control system. The light gray polycarbonate housing is UL94 V-0 rated and occupies nine DIN module spaces on a 35 mm EN 60715 rail. The unit is designed and warranted for professional commercial lighting installations.

Key Features

• Four 0-10V channels — Provides independent dimming control of four lighting circuits.
• Four feeds — Each channel has its own line feed for flexible circuit distribution.
• Relay plus dimming — Combines an isolated Class 1 SPST relay with 0-10V level control per channel.
• 0-10V load support — Drives 0-10V fluorescent ballasts and four-wire LED drivers, up to 30 dimmable ballasts/drivers.
• High channel rating — Up to 5 A per channel at 120 to 240VAC; module total 20 A.
• Cresnet connectivity — Connects to a Crestron control system over Cresnet at 4.2 W (0.18 A) @ 24VDC.
• Override inputs — Detachable terminal blocks allow local override control.
• DIN rail mount — Mounts on 35 mm EN 60715 rail, occupying nine module spaces.
• UL94 V-0 housing — Light gray polycarbonate enclosure rated for flame retardance.

Typical Applications

• Commercial lighting control — Dims office and common-area fluorescent or LED lighting.
• Lighting control panels — Integrates into DIN rail enclosures alongside other Crestron modules.
• Education and healthcare — Provides scheduled and scene-based dimming of 0-10V loads.
• Conference and multipurpose rooms — Adjusts lighting levels under control-system scenes.

Technical Specifications

Frequently Asked Questions

What lighting loads does this module control?
It controls 0-10V fluorescent ballasts and four-wire LED drivers, supporting up to 30 dimmable ballasts or drivers across four channels.

How does it connect to a control system?
It connects over Cresnet, drawing 4.2 W (0.18 A) at 24VDC from the network for control and power.

How is it mounted?
It mounts on standard 35 mm DIN EN 60715 rail and occupies nine DIN module spaces within an enclosure.

What are the load ratings?
Each channel is rated up to 5 A at 120 to 240VAC, with a module total of 20 A. See the specifications table for per-voltage wattage limits.

What warranty and support apply?
This product carries a Crestron 3-year limited warranty. For lighting integration help, Contact Creation Networks.
