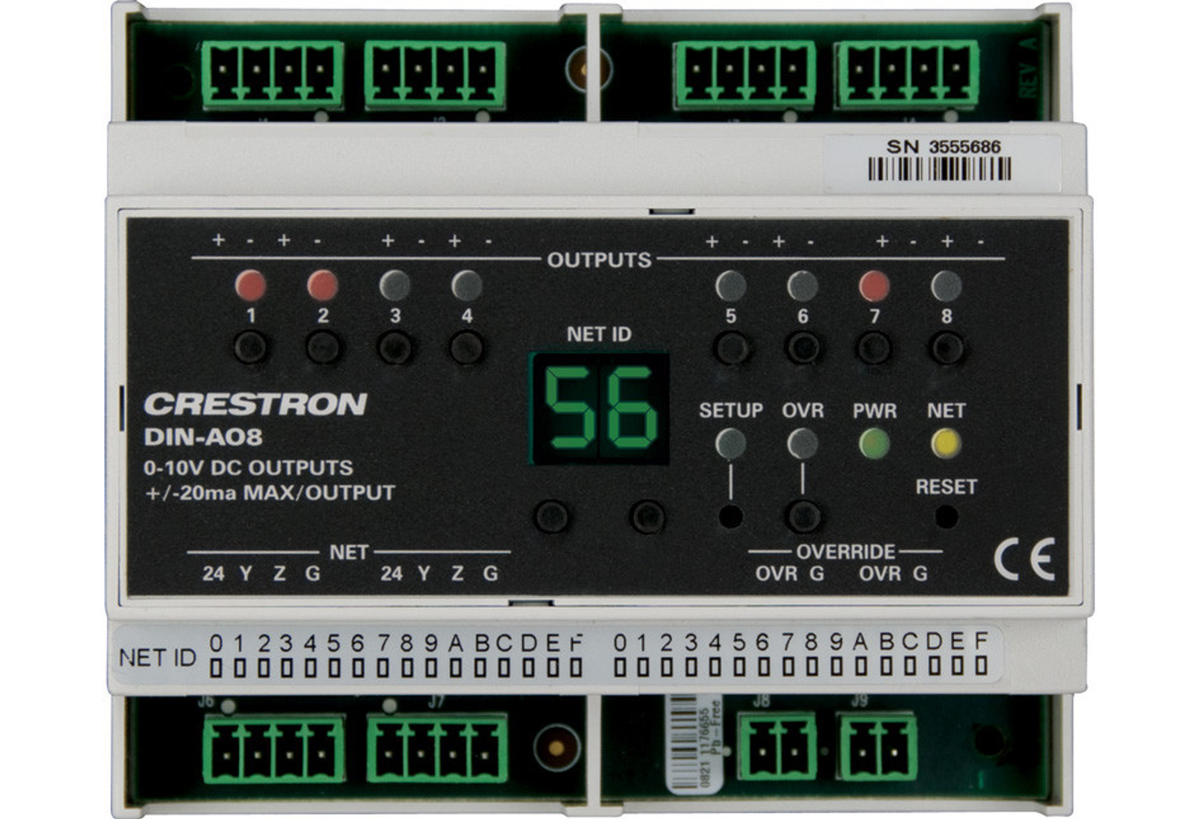

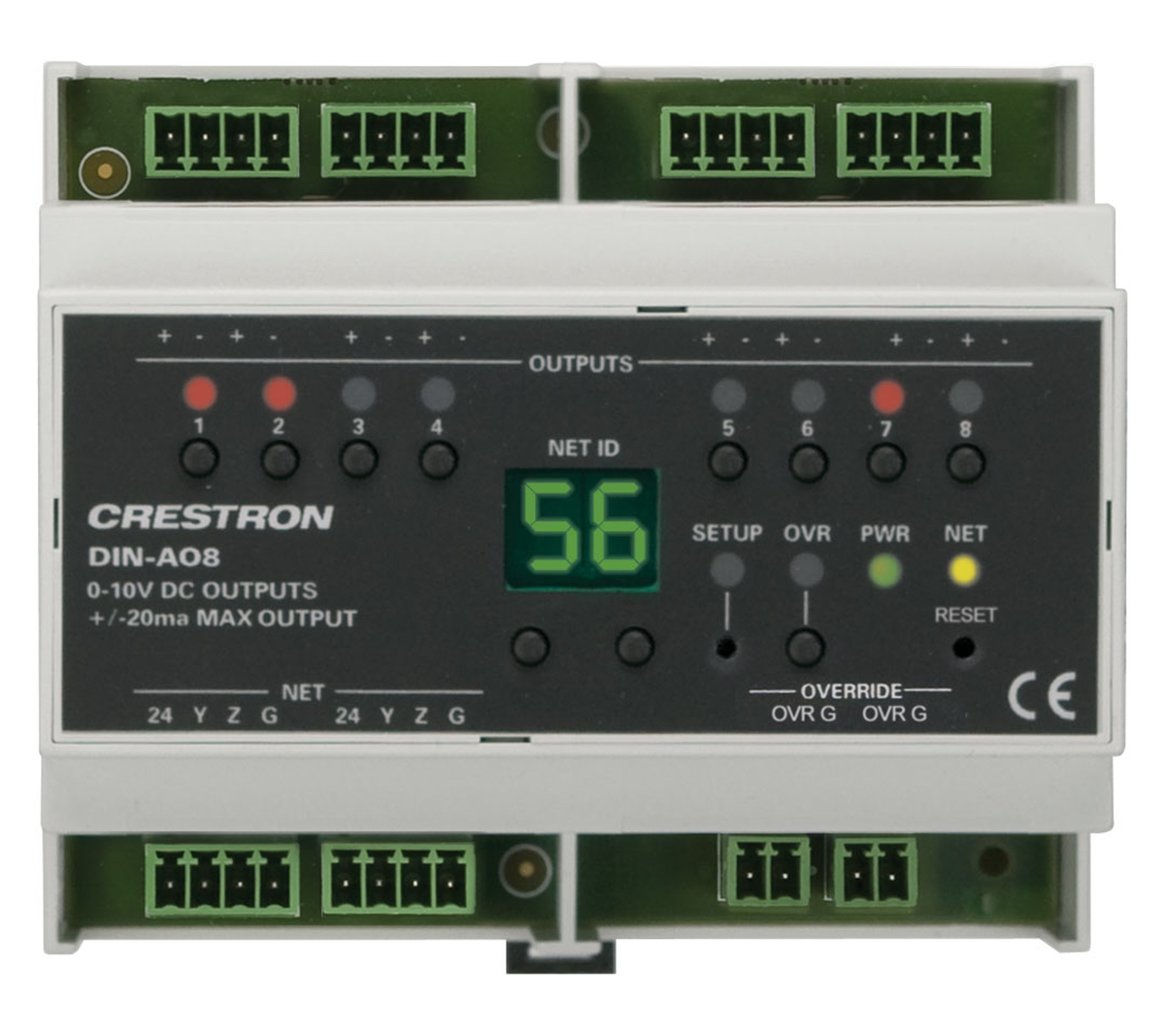

Crestron DIN-AO8 – DIN Rail 8-Channel Analog Output Module
Product Overview
The Crestron DIN-AO8 is an 8-channel analog output module designed for DIN rail installation in Crestron control systems. It provides eight 0-10V DC analog output signals for driving dimmable ballasts, LED drivers, HVAC control inputs, and other analog-controlled devices. The module connects to a Crestron processor via Cresnet for centralized management of all output channels.
Product Description
The DIN-AO8 extends a Crestron system's analog output capacity by eight channels from a compact DIN rail enclosure, simplifying installation in structured wiring panels and dedicated equipment rooms. Each of the eight outputs independently generates a 0-10V DC signal, allowing precise control over dimming levels, valve positions, and other proportional control applications. The unit is compatible with all SIMPL Windows and Crestron Studio programming environments, supporting full scene control, scheduling, and conditional logic. Its DIN rail mounting format integrates cleanly alongside other DIN rail components such as breakers, relays, and power supplies.
Key Features
- 8 independent 0-10V DC analog output channels
- Cresnet communication interface for processor integration
- DIN rail mounting for installation in structured wiring panels
- Compatible with SIMPL Windows and Crestron Studio programming
- Supports dimmer control, HVAC inputs, and proportional load control
- Compact form factor minimizes enclosure space
- Full scene and schedule support via Crestron programming
Typical Applications
- Driving 0-10V dimmable LED drivers and fluorescent ballasts in commercial lighting projects
- HVAC analog input control (fan speeds, damper positions, chilled water valves)
- Motor speed control and proportional actuation in building automation
- Multi-zone analog dimming in conference centers and hospitality installations
Technical Specifications
- Channels: 8
- Output Signal: 0–10V DC
- Communication: Cresnet
- Mounting: DIN rail
Frequently Asked Questions
Q: What does the DIN-AO8 output voltage range?
A: Each channel outputs a 0–10V DC analog signal, compatible with standard 0-10V dimmable drivers and control inputs.
Q: Does the DIN-AO8 need a separate power supply?
A: The DIN-AO8 is powered via the Cresnet bus from the Crestron control processor. Refer to Cresnet power budgeting guidelines for multi-device installations.
Q: Where can I purchase the DIN-AO8?
A: Available at creationnetworks.net.
