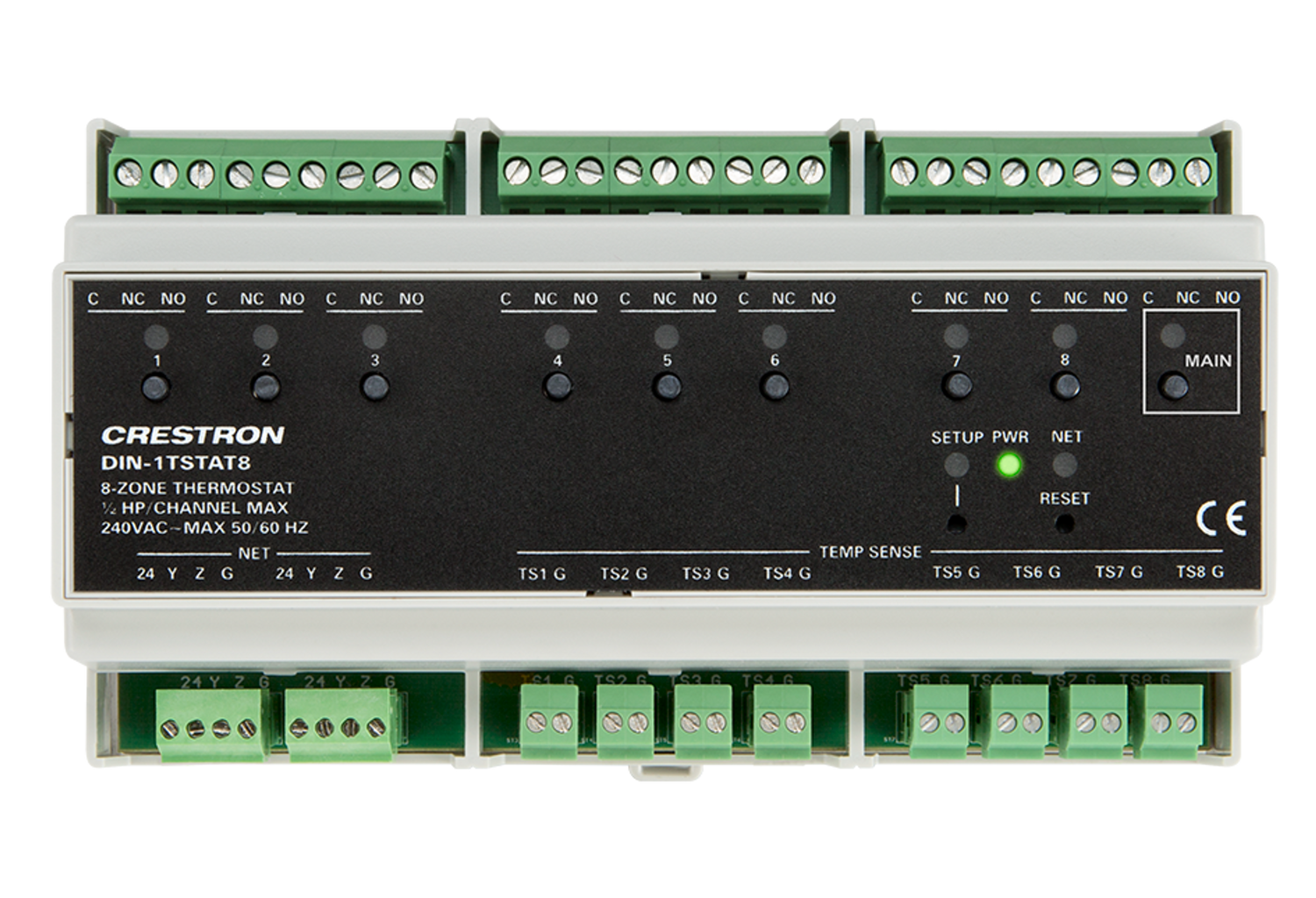

Crestron DIN-1TSTAT8 – 8-Zone Radiant Heat Thermostat, DIN Rail Mount
Product Overview
The Crestron DIN-1TSTAT8 is an eight-zone radiant heat thermostat designed for DIN rail installation in electrical panels and equipment enclosures. It provides independent temperature control for up to eight radiant heating zones from a single device, reducing panel space requirements while supporting Cresnet integration with a full Crestron control system.
Product Description
Engineered for commercial and high-end residential radiant floor heating applications, the DIN-1TSTAT8 connects directly to a Crestron control system via Cresnet, enabling centralized scheduling, setpoint management, and status monitoring across all eight zones. Each zone uses an independent SPDT relay output rated for switching heating loads. The unit occupies nine DIN module spaces, making it efficient for multi-zone projects where panel real estate is limited. Firmware updates and system configuration are handled through the Crestron control processor, eliminating the need for standalone thermostats at each zone. For ordering information and integration support, visit creationnetworks.net.
Key Features
- Controls up to 8 independent radiant heating zones from a single DIN rail device
- SPDT relay outputs for each zone for reliable load switching
- Occupies 9 DIN module spaces in standard DIN rail enclosures
- Cresnet communication bus: 6W / 250mA power draw
- Operating temperature range: 32°F to 110°F (0°C to 43°C)
- Certifications: CE, IC, FCC
Typical Applications
- Multi-zone radiant floor heating in commercial offices, lobbies, or conference rooms
- High-end residential radiant heat systems requiring centralized control
- Hospitality and hotel guest room climate management via Crestron automation
- Building management systems integrating radiant heat with lighting and HVAC control
Technical Specifications
| Specification | Value |
|---|---|
| Heating Zones | 8 |
| Output Type | SPDT relay per zone |
| DIN Module Spaces | 9 |
| Communication | Cresnet |
| Power Draw | 6W / 250mA |
| Operating Temperature | 32°F – 110°F (0°C – 43°C) |
| Certifications | CE, IC, FCC |
| Weight | 395g (13.9 oz) |
Frequently Asked Questions
- Can the DIN-1TSTAT8 control cooling zones as well as heating?
- The DIN-1TSTAT8 is designed specifically for radiant heating applications. Cooling control requires additional Crestron components suited to that purpose.
- Does each zone require its own temperature sensor?
- Yes, individual zone sensors are connected to the Crestron control system to provide feedback for each zone's setpoint logic.
- What DIN rail enclosure is compatible?
- The DIN-1TSTAT8 mounts on standard 35mm DIN rail and requires 9 module spaces. Any compliant DIN enclosure of sufficient width is suitable.
