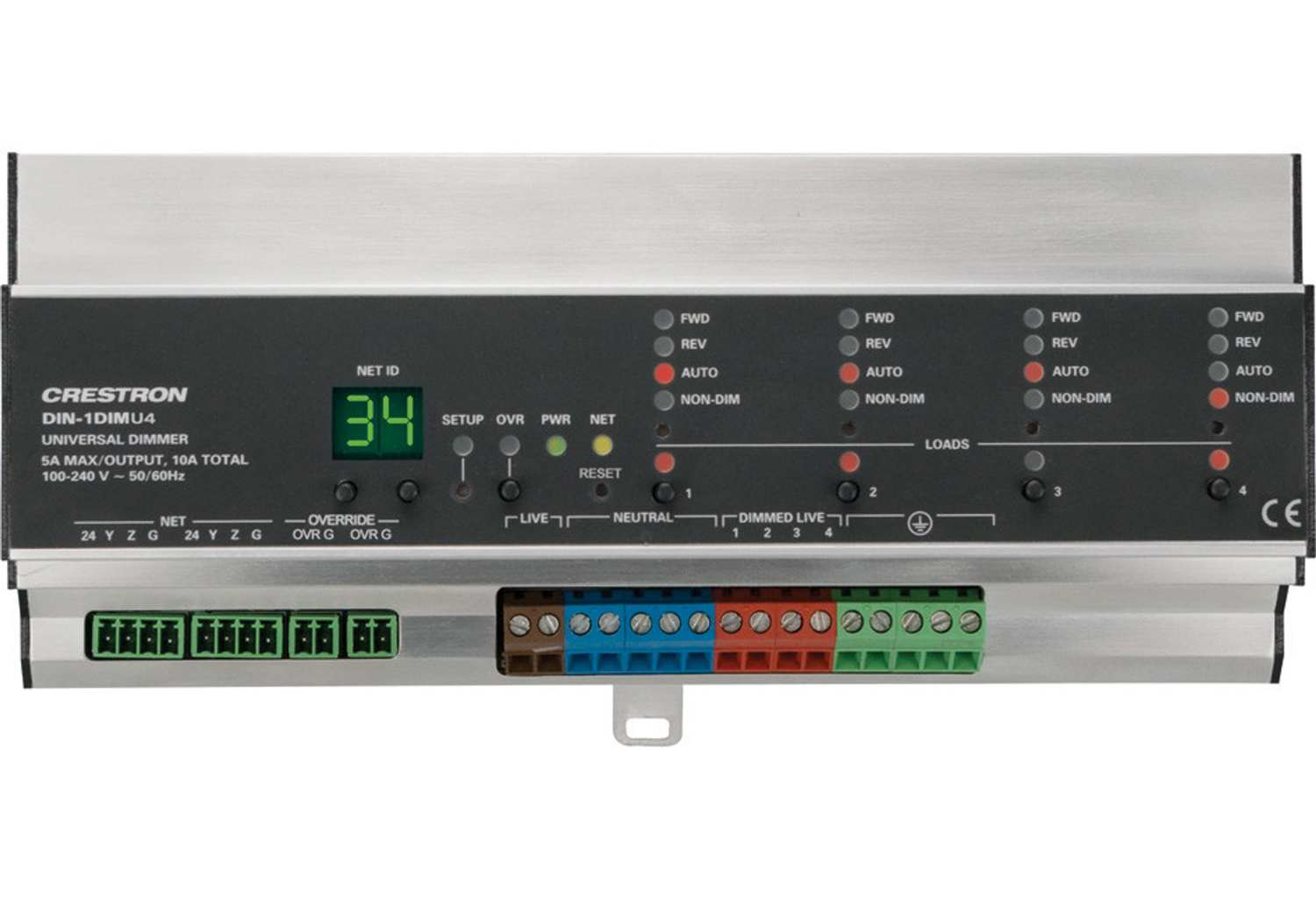

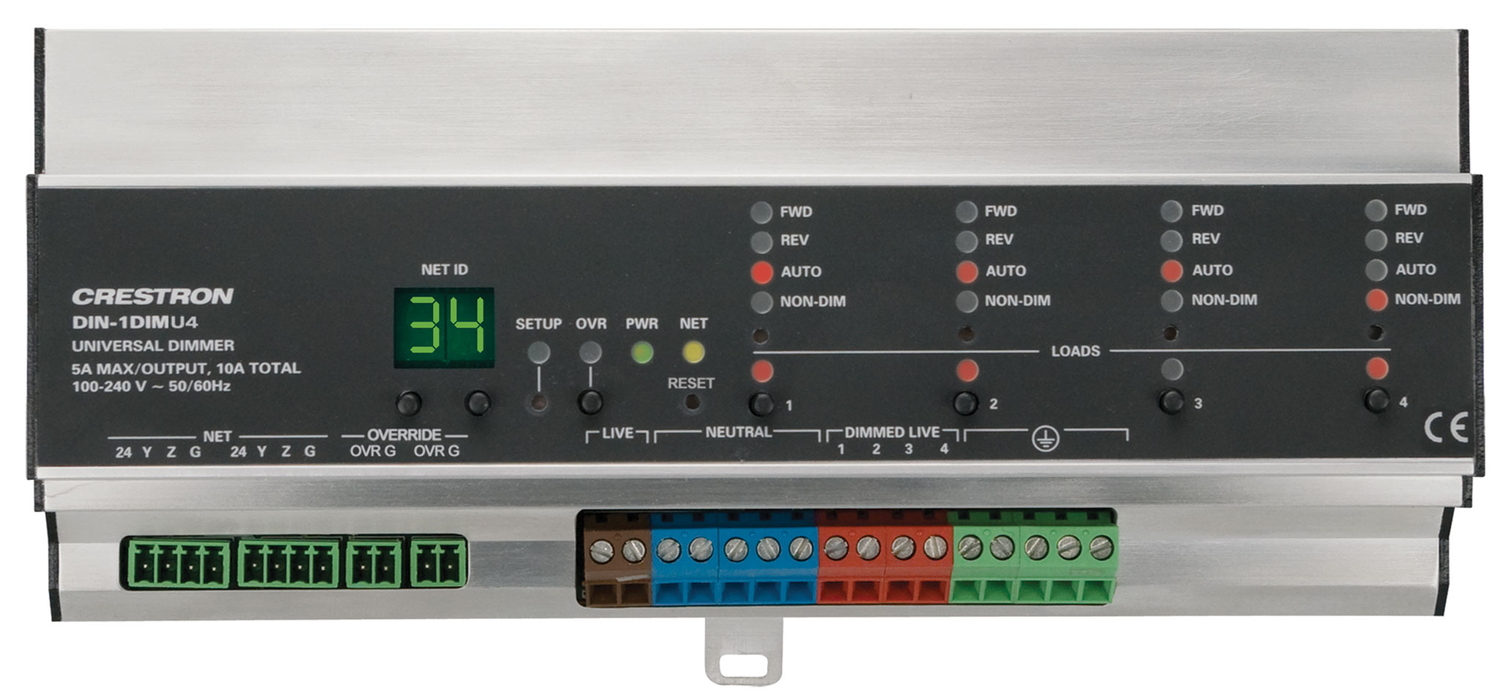

Crestron DIN-1DIMU4 – 4-Channel Universal Dimmer, 1 Feed, DIN Rail Mount

Product Overview

The Crestron DIN-1DIMU4 is a 4-channel universal dimmer module that mounts on a 35 mm DIN rail, designed for integration into Crestron CAEN enclosures or standard DIN rail panels. It accepts a single 120-240 VAC feed and provides 4 independently controlled output channels rated at 5A/600W per channel (at 120VAC). It is controlled via Cresnet secondary mode and is compatible with a wide range of dimmable load types including LED, incandescent, and low-voltage fixtures.

Product Description

The DIN-1DIMU4 operates as a secondary Cresnet device, receiving commands from a Crestron control processor. Its forward and reverse phase dimming modes accommodate incandescent, magnetic and electronic low-voltage, neon/cold cathode, and dimmable 2-wire fluorescent loads. LED compatibility is also supported in mode-dependent configurations. It fits standard 35 mm DIN EN 60715 rails and occupies 12 DIN module spaces (216 mm wide). Adequate ventilation clearance of 4-6 in. is required above and below the unit. UL, CE, CEC Title 24 2013, and FCC certifications are included.

Key Features

• 4 independently controlled dimmer channels via Cresnet secondary mode
• 5A / 600W per channel at 120VAC (1150W at 230VAC)
• Universal dimming: forward and reverse phase; LED, incandescent, ELV, MLV, neon/cold cathode, dimmable fluorescent
• 120-240 VAC, 50/60 Hz single-phase input; 1 feed
• 35 mm DIN rail mount (DIN EN 60715); 12 DIN module spaces
• Up to 12 AWG (2.5 mm²) load wiring
• 4-6 in. ventilation clearance required above and below
• Certifications: FCC Part 15 Class B, IC, CE, UL Listed (US & Canada), CEC Title 24 2013

Typical Applications

• Residential DIN rail panel lighting control integrated with a Crestron CAEN enclosure
• Light commercial office lighting control with Cresnet connectivity
• Retrofit installation where DIN rail mounting is preferred over CAEN wall-mount enclosures
• Multi-circuit lighting control with LED and incandescent load mixing
• Crestron Home OS system integration using DIN-AP4-R controller in a DIN rail panel

Technical Specifications

• Model: DIN-1DIMU4
• Weight: 2.23 lb (1.01 kg)
• Dimensions (H x W x D): 3.71 in. x 8.48 in. x 2.35 in. (95 mm x 216 mm x 60 mm)
• Power Input: 120-240 VAC, 50/60 Hz, single-phase; 1 feed
• Per Channel Load: 5A / 600W (120VAC); 1150W (230VAC)
• Module Total Load: 10A / 1200W (120VAC); 2300W (230VAC)
• Heat Dissipation: 60 BTU/hr (240V, 2 channels at 5A); 50 BTU/hr (120V, 2 channels at 5A)
• Load Types: LED, incandescent, ELV, MLV, neon/cold cathode, 2-wire dimmable fluorescent, non-dim
• Minimum Load: 15W/ch (incandescent); 50W/ch (MLV); 15-50W/ch (LED, mode dependent)
• Communications: Cresnet secondary mode
• Wire Gauge: Up to 12 AWG (2.5 mm²)
• Mounting: 35 mm DIN EN 60715 rail; 12 DIN module spaces (216 mm)
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: FCC Part 15 Class B, IC, CE, UL Listed (US & Canada), CEC Title 24 2013

Frequently Asked Questions

Q: Is the DIN-1DIMU4 compatible with all LED drivers and bulbs?
A: LED compatibility depends on the specific fixture and driver. The DIN-1DIMU4 supports dimmable LED loads in mode-dependent configurations with minimum loads of 15-50W per channel. Compatibility testing with specific LED products is recommended before full deployment.

Q: Can the DIN-1DIMU4 be used without a Crestron processor?
A: No. The DIN-1DIMU4 operates in Cresnet secondary mode and requires a Crestron processor (such as the DIN-AP4-R or MC4-R) to send control commands. It cannot operate as a standalone dimmer.

Q: What is the maximum load per channel on 240 VAC?
A: At 240VAC, each channel of the DIN-1DIMU4 is rated at up to 1150W (5A). The total module load is limited to 2300W (10A) across all 4 channels combined.
