Overview
New Product! Shipping in Nov 2024!

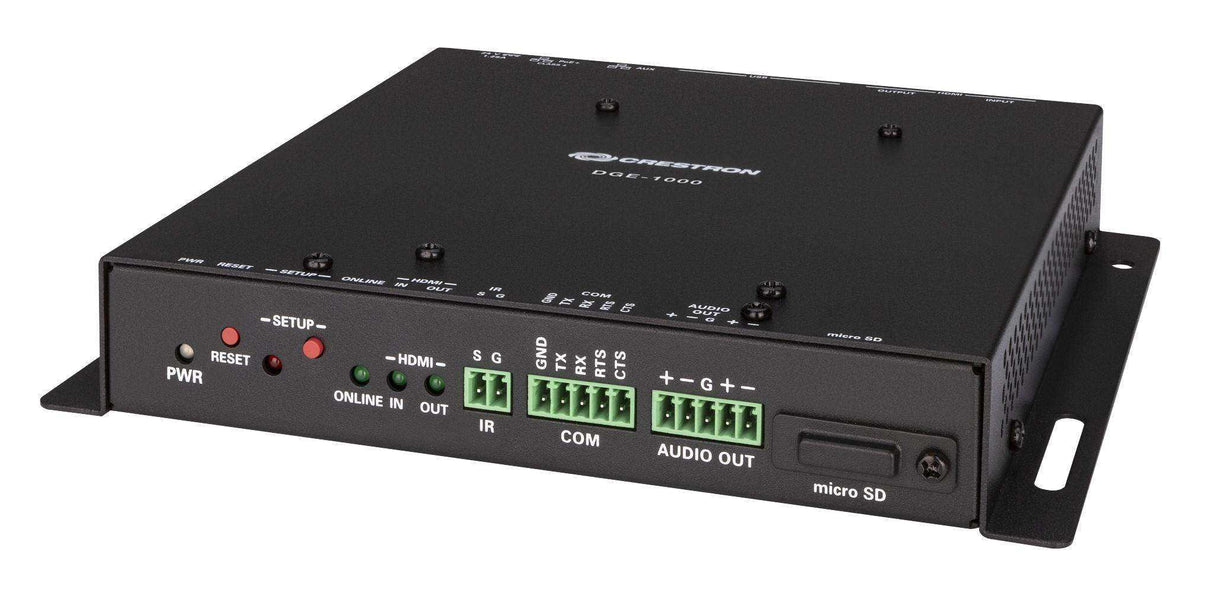

The Crestron® DGE-1000 digital graphics engine transforms an HD touch screen display into an advanced Crestron controller. The DGE-1000 features Crestron HTML5 technology that may be used to create a custom graphical environment for controlling audio, video, lighting, shades, HVAC, security, and other amenities. It is also used for functions with dual-window video display, and web browsing. Its low-profile, surface-mountable design allows for discreet installation behind a flat-panel display, under a table, or inside a lectern or equipment rack.
The DGE-1000 offers HDMI® output to connect a display device, and includes two USB HID port for touch screen, mouse, or keyboard input. Additional control ports are provided for controlling the display device and other equipment. The HDMI input allows an AirMedia® wireless presentation gateway or other high-definition video source to be connected and displayed on-screen. Additionally, H.264/H.265 and MJPEG streaming video signals can be received over a high-speed Ethernet connection, which also provides an interface to a Crestron control system.1
Touch Screen Interface
The DGE-1000 can be paired with the TSD-2220 HD touch screen display to deliver a high-definition 21.5 in. touch screen control panel that is ideal for home, corporate, and government applications. It is also compatible with third-party touch screen displays to support a range of control, collaboration, video display, and interactive kiosk solutions.
Crestron HTML5 Technology
Crestron HTML5 User Interface is a collection of design components used for creating a JavaScript™ programming library that is compatible with HTML5. This library allows web application developers to create UI projects that communicate to Crestron control systems instead of normal HTTP servers.
HD Streaming Video
The DGE-1000 supports high-definition streaming video, making it possible to view security cameras and other video sources over the network via the touch screen display. Native support for H.264, H.265 and MJPEG formats allows the DGE-1000 to display live streaming video from an IP camera, a streaming encoder (DM-TXRX-100-STR or similar), or a DigitalMedia™ switcher.1
HDMI Input
An HDMI input is provided for connecting and displaying an HD video source. Wireless presentation is also supported by connecting an AirMedia® gateway to the HDMI input, allowing for laptops and mobile devices to connect to the DGE-1000 over Wi-Fi® communications.2
HDCP Support
Support for HDCP (High-bandwidth Digital Content Protection) ensures seamless compatibility with content- protected optical disc, television, and streaming sources.
Web Browsing
Using its built-in Crestron General Web app or the web browser for custom projects, the DGE-1000 provides access to online program guides and other web-based services3
On-screen Keyboard
Typing in passwords, URLs, and text searches is facilitated using the on-screen multilanguage keyboard.
Onboard Control Ports
The DGE-1000 provides built-in RS-232 and IR ports for programmable control of the connected display and other devices via a control system. When connected to a control system via Ethernet, the DGE-1000 offers a gateway for controlling the display device directly through its HDMI connection, which reduces the need for dedicated serial cables or IR emitters. Additional control capabilities are available by using CEC (Consumer Electronics Control) that is embedded within the HDMI signal.
Low-Profile Installation
The DGE-1000 mounts conveniently to a wall, ceiling, or other flat surface. Its compact, surface-mountable form factor fits easily behind a flat panel display, beneath a tabletop, or inside a lectern or other furniture. It can even be attached directly to a single rack rail in the back of an equipment cabinet. The DGE-1000 can be powered using the included wall mount power pack or via PoE (Power over Ethernet) for a true single-wire solution.
Enterprise-Grade Security
The DGE-1000 employs enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features help to protect your network and to ensure compliance with your organization’s network policies. Cloud-based provisioning and management streamlines the process of configuring, monitoring, and updating each DGE-1000 on the network. Additional support for SNMP allows the DGE-1000 to be monitored by your IT administrator.
XiO Cloud® Service
The DGE-1000 is compatible with the XiO Cloud® service, which is an IoT (Internet of Things) based platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's industry-leading Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices simultaneously. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.
Features
- Touch screen graphics engine for a third-party USB HID-compliant touch screen
- HDMI® output supports display resolutions up to 3840x2160@60Hz (2160p60)
- Displays dual-window or full screen video from HDMI and H.264 streaming sources
- Supports video input resolutions up to 1080p60 via HDMI
- Receives H.264 streaming video signals up to 1080p60/25 Mpbs
- HDCP 1.4 compliant (HDMI only)
- Crestron® HTML5 technology used for custom user projects
- Built-in web browsing
- Supports Crestron Home® and Crestron General Web apps
- Onboard COM, HDMI, IR/serial, and high-speed Ethernet ports
- High-speed USB 2.0, 3.0 ports for USB HID-compliant peripheral devices
- Powered via PoE+ or power pack (sold separately)
- Enterprise-grade security and authentication
- Web or cloud-based configuration
- Compact, surface-mountable form factor
Specs
| Graphics Engine | |
| Crestron HTML5 technology, landscape or portrait orientation, local and remote annotation, multilanguage web browser3, multilanguage on-screen keyboard, screensaver, scalable dual streaming video windowing, displays any combination of HDMI® and streaming sources1,2, setup and diagnostics via web browser, on-screen UI, or cloud | |
| Languages | |
| On-screen Keyboard | Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish |
| Web Browser | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brasil), Romanian, Russian, Slovak, Spanish,Swedish, Thai |
| Communications | |
| Ethernet | 100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS5, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3af compliant |
| USB Host | USB 2.0 and 3.0, Supports TSD-2220 touch screen display and most third-party USB HID compliant peripherals |
| USB Device | For computer console (installer setup and firmware updates) |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system) |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0–5V) up to 19200 baud (via control system) |
| HDMI (Input) | HDCP 1.4, EDID; Supports management of HDCP and EDID |
| HDMI (Output) | HDCP 2.2, EDID, CEC; Supports management of HDCP and EDID |
| Pointing Device Support | |
| Compatible with the TSD-2220 touch screen display and most third-party USB HID compliant touch screens, mice, and keyboards | |
| Streaming Decoder | |
| Video Formats | H.264 and H.265 (MPEG-4 part 10 AVC, MJPEG) |
| Audio Formats | AAC stereo |
| Bitrates | Up to 20 Mbps |
| Resolutions | Up to 1080p30 |
| Video | |
| Input Signal Types | HDMI (DVI and dual-mode DisplayPort™ signal compatible4) |
| Output Signal Types | HDMI (DVI compatible4) |
| Maximum Input Resolutions | HDMI Input: 1920x1080@60Hz (HD 1080p60); |
| NOTE: Interlaced video is not supported. All video inputs will be scaled to the selected HDMI. | |
| HDMI Output Resolutions | 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz5, 1366x768@60Hz5, 1440x900@60Hz5, 1600x900@60Hz6, 1600x1200@60Hz, 1680x1050@60Hz5, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 3840x2160@30Hz(2160p30) 3840x2160@50Hz(2160p50) 3840x2160@60Hx(2160p) |
| NOTE: All video inputs are scaled to the selected HDMI output resolution. | |
| Audio | |
| Input Signal Types | HDMI (dual-mode DisplayPort compatible4) |
| Output Signal Types | HDMI |
| Input/Output Format | 2 channel LPCM |

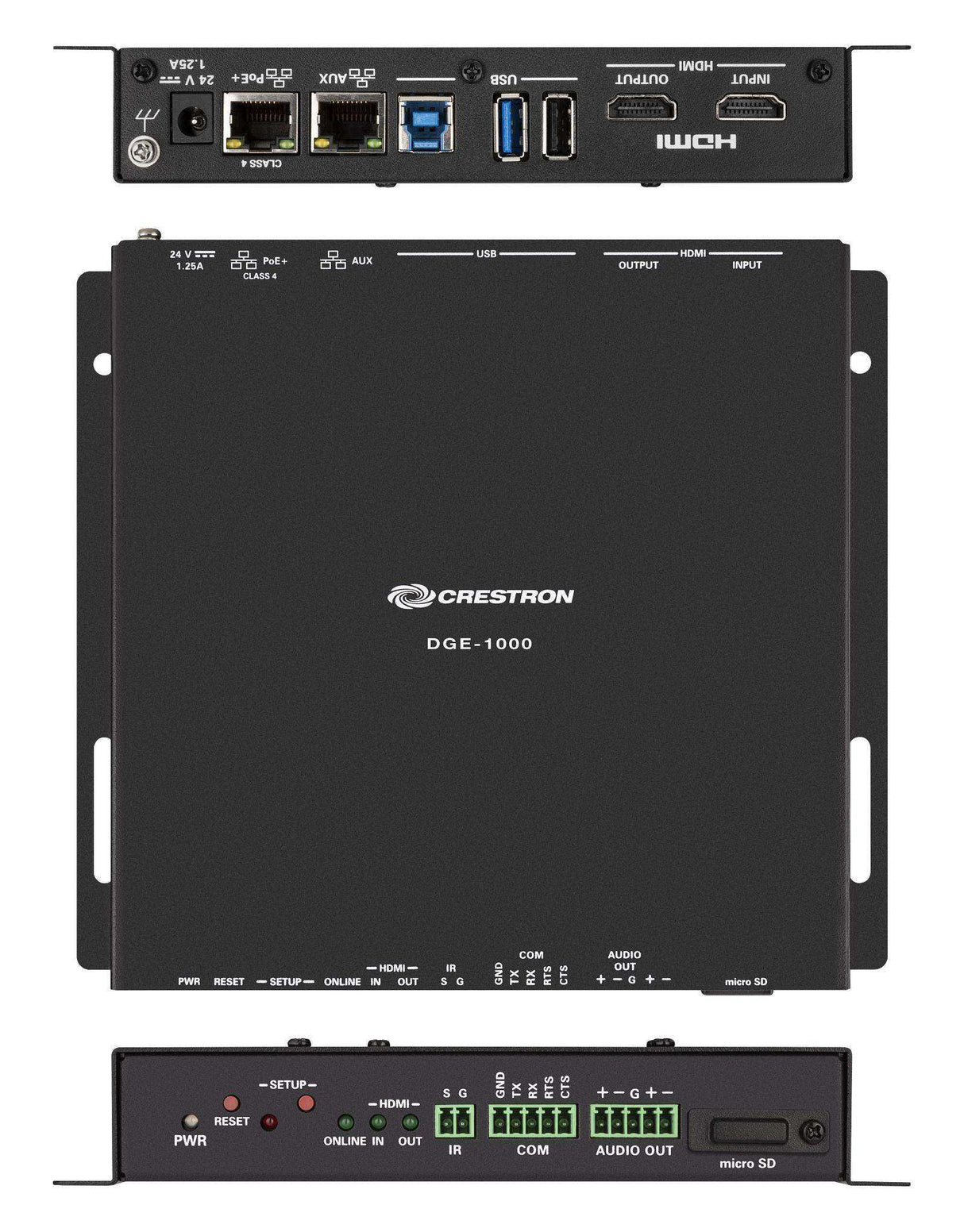

| Connectors and Card Slots | |
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial output port for display device control; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5V) up to 19200 baud |
| NOTE: IR port 2 is not used. IRP2 emitter is sold separately. | |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port for display device control; Up to 115.2k baud, hardware and software handshaking support |
| AUDIO OUT | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 200 ohms balanced, 100 ohms unbalanced |
| HDMI Input | (1) HDMI Type A connector; HDMI digital video/audio input; (DVI & Dual-Mode DisplayPort compatible) |
| HDMI Output | (1) HDMI Type A connector; HDMI digital video/audio output (DVI compatible2) |
| USB | (2) USB Type A connectors; USB 2.0 host port for USB conferencing peripheral; USB 3.0 host port for USB conferencing peripheral; (1) USB Type B connector; USB 3.0 device port for computer console |
| LAN PoE+ | (1) 8-pin RJ-45 connector; 100Base-TX/1000Base-T Ethernet port and PoE+ Class 4 |
| 24 V 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2412WU power pack sold separately |
| Controls and Indicators | |
| PWR | (1) Green LED, indicates operating power supplied via the local power pack or PoE+ |
| RESET | (1) Recessed push button for hardware reset |
| SETUP | (1) Red LED and (1) recessed push button for onscreen IP address display |
| ONLINE | (1) Green LED, indicates control system connection |
| HDMI IN/OUT | (2) Green LEDs, indicate HDMI signal presence at the HDMI input/output |
| LAN PoE+ | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Power | |
| Power over Ethernet | IEEE 802.3af Class 4 Powered Device |
| Power Pack (Sold Separately) | Input: 100-240VAC, 50/60 Hz; Output: 1.25A @ 24VDC; Model: PW-2412WU |
| Power Consumption | 14 W (typical) |
| Environmental | |
| Temperature | 32° to 104°F (-0° to 40° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 47.8 BTU/hr |
| Construction | |
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides |
| Mounting | Freestanding, surface mount, or attach to a single rack rail |
| Dimensions | |
| Height | 1.26 in. (33 mm) |
| Width | 7.40 in. (188 mm) |
| Depth | 6.54 in. (166 mm) |
