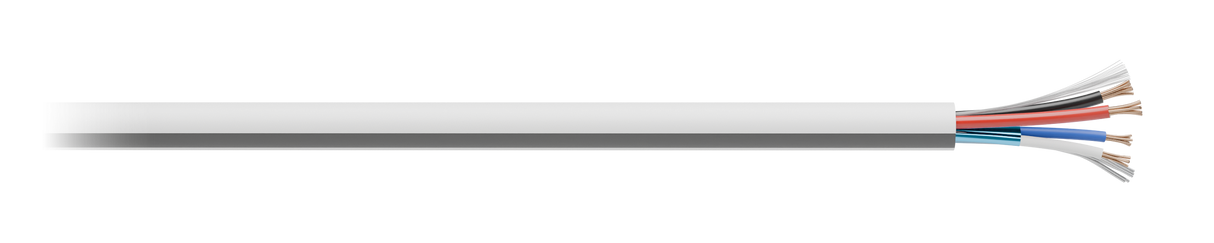

Crestron CRESNET-NP-WH-SP1000 – Cresnet Non-Plenum Cable, White, 1000 ft Spool
Crestron CRESNET-NP-WH-SP1000 – Cresnet Non-Plenum Cable, White, 1000 ft Spool is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CRESNET-NP-WH-SP1000 – Cresnet Non-Plenum Cable, White, 10...
Product Overview

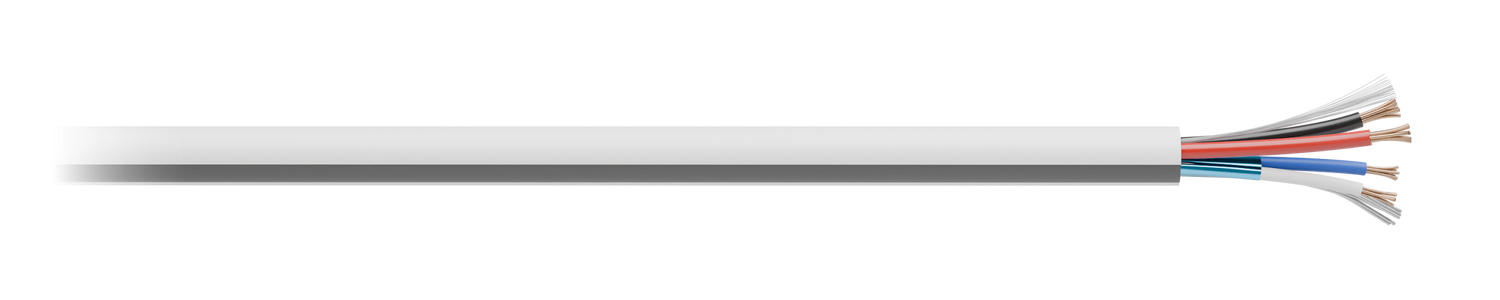

The Crestron CRESNET-NP-WH-SP1000 is a 1000 ft (304 m) spool of white Cresnet control cable for wiring Cresnet-bus devices in non-plenum installations. The cable combines a shielded 22 AWG twisted pair for Cresnet control data with an 18 AWG pair for 24 VDC power, all within a PVC outer jacket rated for in-wall, conduit, and under-floor runs.
Product Description
Cresnet is Crestron's four-wire control bus used to connect keypads, thermostats, lighting controllers, shade motors, sensors, and other peripherals to a central Crestron processor. This non-plenum white cable is Crestron-certified and ships on a 1000 ft spool, making it the standard choice for larger projects requiring significant cable runs. The white jacket with gray stripe provides easy identification during installation and inside panels. The cable supports both home-run and daisy-chain Cresnet wiring topologies with a maximum recommended run of approximately 3000 ft (915 m). For orders and bulk project pricing, visit creationnetworks.net.
Key Features
- 1000 ft (304 m) spool of white Cresnet control cable for large project deployments
- Data pair: 22 AWG shielded twisted pair (blue/white) with aluminum/polyester foil shield, 100% coverage
- Power pair: 18 AWG unshielded pair (red/black) for 24 VDC and ground
- Outer jacket: PVC, 0.25 in. (6.35 mm) OD, white with gray stripe
- Temperature rating: -4° to 167°F (-20° to 75°C)
- Spool weight: 32 lb (14.5 kg)
- Compliant: NEC Article 800, UL CM, CSA CMG, RoHS
Typical Applications
- Home-run or daisy-chain wiring of Cresnet keypads, thermostats, and lighting controllers
- Shade motor and sensor wiring in commercial and residential Crestron installations
- In-wall, conduit, and under-floor cable runs in non-plenum spaces
- Large commercial projects requiring bulk cable quantities for Cresnet infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Length | 1000 ft (304.8 m) per spool |
| Jacket Color | White with gray stripe |
| Data Pair AWG | 22 AWG (0.33 mm²) |
| Data Pair Colors | Blue/white |
| Data Pair Shield | Aluminum/Polyester, 100% coverage |
| Drain Wire | 24 AWG (0.20 mm²) stranded tinned copper |
| Power Pair AWG | 18 AWG (0.82 mm²) |
| Power Pair Colors | Red/black |
| Outer Jacket Material | PVC |
| Outer Diameter | 0.25 in. (6.35 mm) nominal |
| Temperature Rating | -4° to 167°F (-20° to 75°C) |
| Spool Weight | 32 lb (14.5 kg) |
| Certifications | NEC Article 800, UL CM, CSA CMG, RoHS |
Frequently Asked Questions
- Can the CRESNET-NP-WH-SP1000 be used in plenum spaces?
- No. This cable has a non-plenum PVC jacket. For plenum-rated installations, use the CRESNET-P series. For high-power or long-run applications, consider CRESNET-HP-NP.
- What is the maximum Cresnet cable run length?
- Crestron recommends a maximum total cable run of approximately 3000 ft (915 m) on a single Cresnet network segment, depending on the number of devices and power requirements.
- Is this cable compatible with all Cresnet devices?
- Yes. This cable meets Crestron certification requirements for the Cresnet bus and is compatible with all Cresnet-connected devices including keypads, thermostats, lighting controls, sensors, and shade motors.
