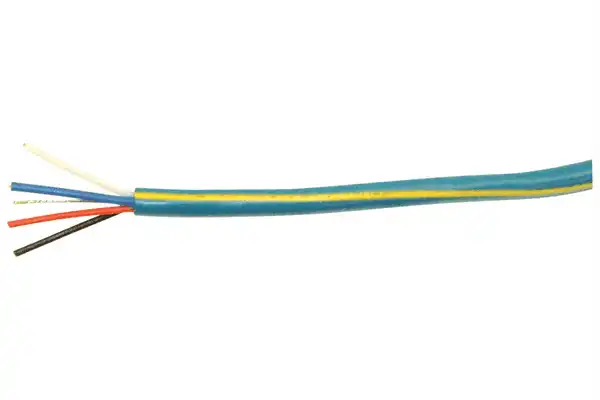

Crestron® certified for use in the wiring of a Cresnet® control network. Provides (1) 22 AWG shielded twisted pair for Cresnet control data, and (1) 18 AWG pair for 24VDC and Ground, within a single PVC jacket.
The Cresnet® bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both homerun and daisy-chain wiring topologies, with cable lengths up to approximately 3000 feet (915 meters) per run.
Within a single non-plenum PVC jacket, CRESNET-NP contains (1) 18 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data. CRESNET-NP is available in four colors: teal, orange, black, or white.
|Conductors||(2) 22 AWG (0.33 mm²) stranded bare copper, twisted|
|Shield||Aluminum/Polyester (100% coverage)|
|Drain||(1) 24 AWG (0.20 mm²) stranded tinned copper|
|Capacitance||12.5 pF/ft (41 pF/m), nominal|
|Impedance||100 Ohms, nominal|
|Conductors||(2) 18 AWG (0.82 mm²) stranded bare copper|
|Thickness||0.032 inch (0.813 mm) nominal|
|Outer Diameter||0.250 inch (6.35 mm) nominal|
|Color Options||Teal w/yellow stripe, orange w/black stripe, black w/yellow stripe, or white w/gray stripe|
|NEC Article 800; UL Subject 13, Type CM; CSA Type CMG; RoHS|
