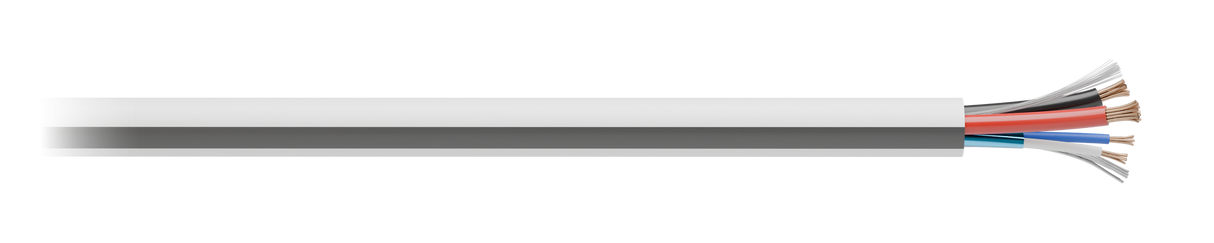

Crestron CRESNET-HP-NP-WH-SP1000 – High-Power Cresnet Control Cable, Non-Plenum, White, 1000 ft Spool

Product Overview

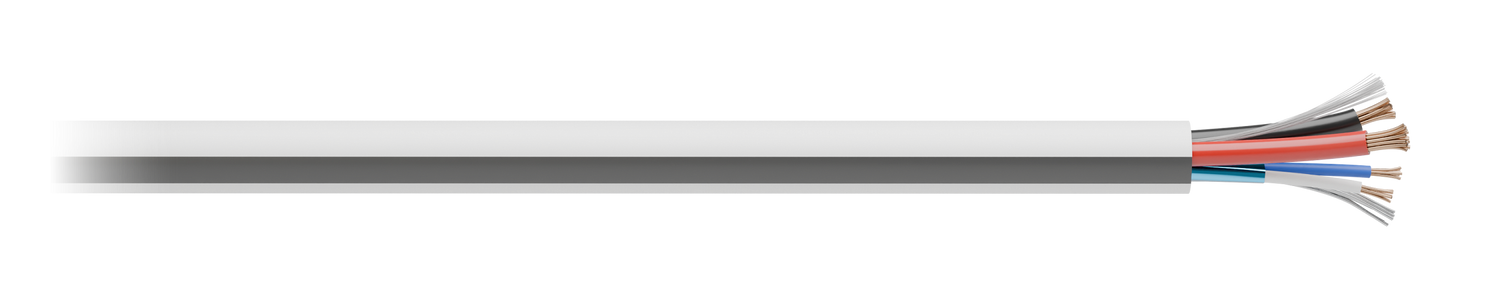

The Crestron CRESNET-HP-NP-WH-SP1000 is a 1000-foot spool of high-power Cresnet control cable in white jacket, rated for non-plenum (CMR) applications. It is designed for use in Crestron installations requiring higher current capacity for powering larger numbers of Cresnet devices or for longer cable runs where standard Cresnet cable would result in excessive voltage drop.

Product Description

Cresnet is Crestron's proprietary 4-conductor control bus that carries both data and power to compatible keypads, sensors, and other Crestron peripherals. The high-power variant uses heavier gauge conductors compared to standard Cresnet cable, allowing it to support greater current loads and longer distances without degrading device performance. This non-plenum version is suitable for installation in walls, conduit, and general building spaces that do not require plenum-rated cable. The 1000-foot spool provides sufficient quantity for medium-to-large installations and reduces the need for mid-run connections.

Key Features

• High-power conductor gauge for increased current capacity
• Non-plenum (CMR) jacket rating for wall and conduit installation
• White jacket for clean aesthetics in visible installation areas
• 1000-foot (304 m) spool for large installations
• Carries both Cresnet data and device power on 4-conductor design
• Suitable for longer runs and high-device-count networks
• Compatible with all Cresnet-enabled Crestron devices

Typical Applications

• Residential and commercial Cresnet wiring for touchscreens, keypads, and sensors
• Long-distance Cresnet runs in large buildings or across multiple floors
• High-device-count Cresnet networks where standard cable would cause voltage drop
• New construction rough-in wiring for Crestron lighting and control systems
• Cresnet distribution in non-plenum ceiling and wall cavities

Technical Specifications

• Model: CRESNET-HP-NP-WH-SP1000
• Cable Type: Cresnet High-Power
• Jacket Rating: Non-Plenum (CMR)
• Jacket Color: White
• Length: 1000 ft (304 m) spool
• Conductors: 4-conductor (data + power)
• Application: Cresnet control bus wiring

Frequently Asked Questions

Q: When should I use high-power Cresnet cable instead of standard Cresnet cable?
A: High-power Cresnet cable is recommended when running longer distances, connecting a large number of devices on a single Cresnet branch, or when powering devices with higher current draw. Consult Crestron's Cresnet design guidelines for specific distance and device count thresholds.

Q: Can this cable be used in plenum spaces?
A: No. This cable has a non-plenum (CMR) jacket and must not be installed in air-handling plenum spaces. For plenum installations, use the CRESNET-HP-P-WH-SP1000 or the appropriate plenum-rated cable.

Q: Is this cable compatible with all Crestron Cresnet devices?
A: Yes. High-power Cresnet cable is backward compatible with all Cresnet-enabled devices and can be used interchangeably with standard Cresnet cable wherever the run length and load budget permits.
