Crestron CP4-R – 4-Series Control Processor for Crestron Home OS

Product Overview

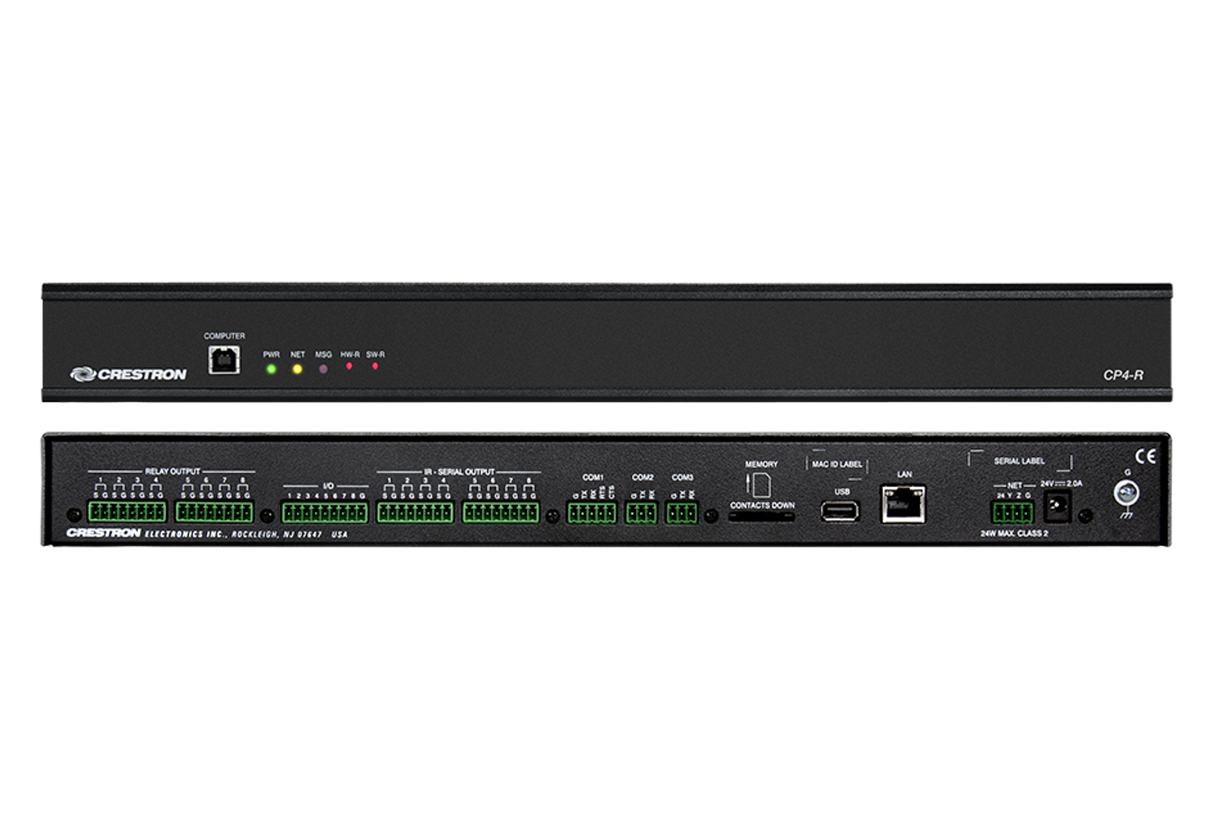

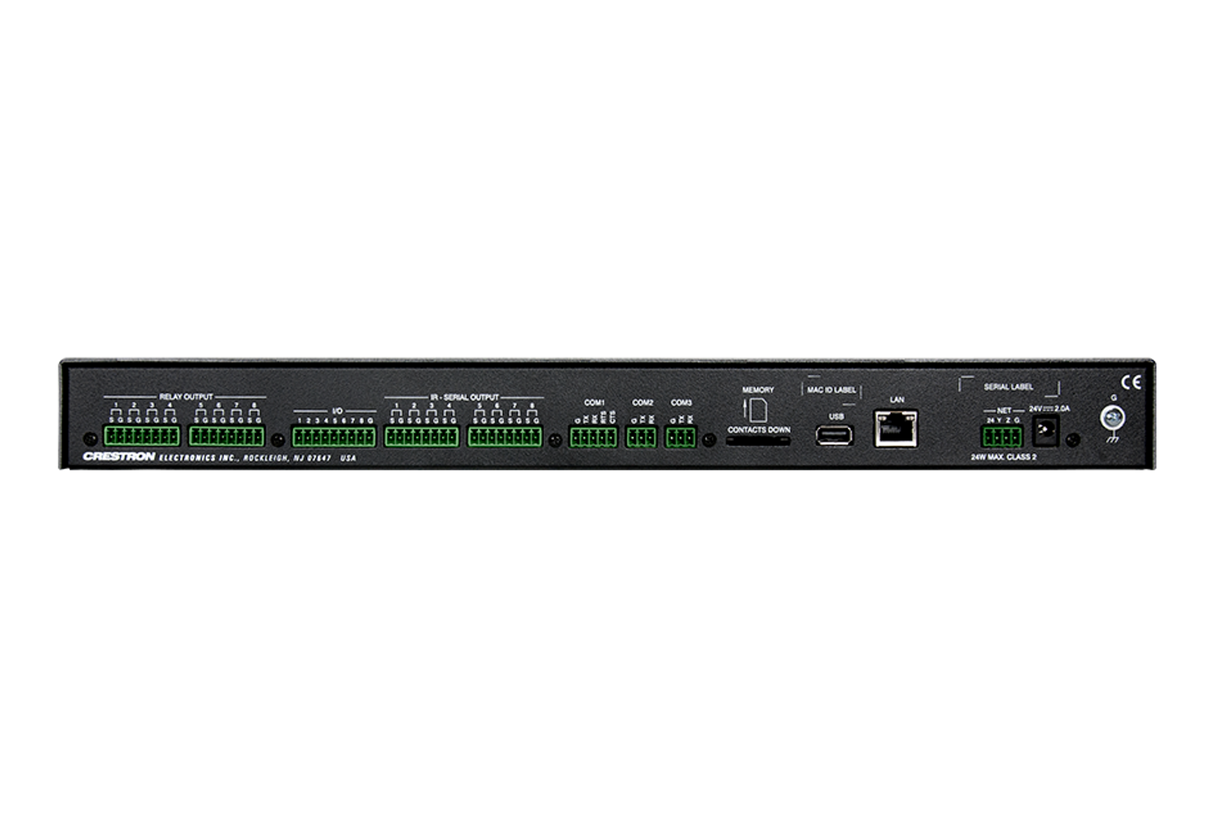

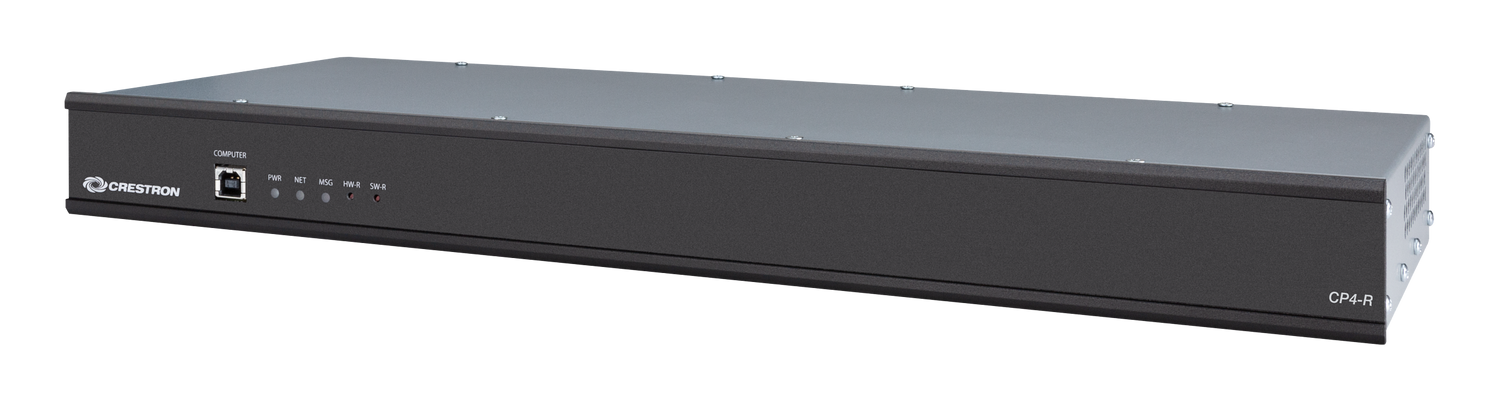

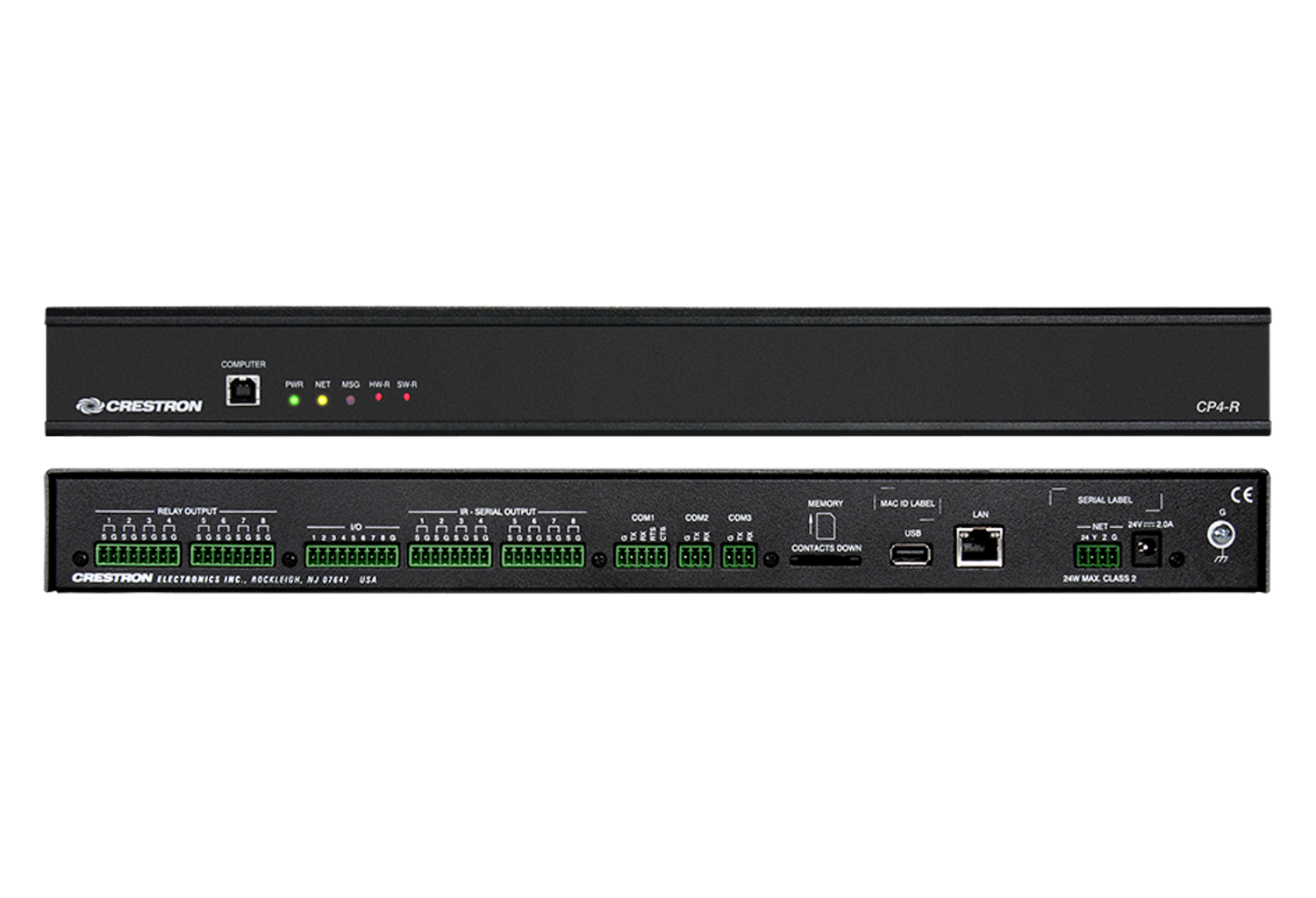

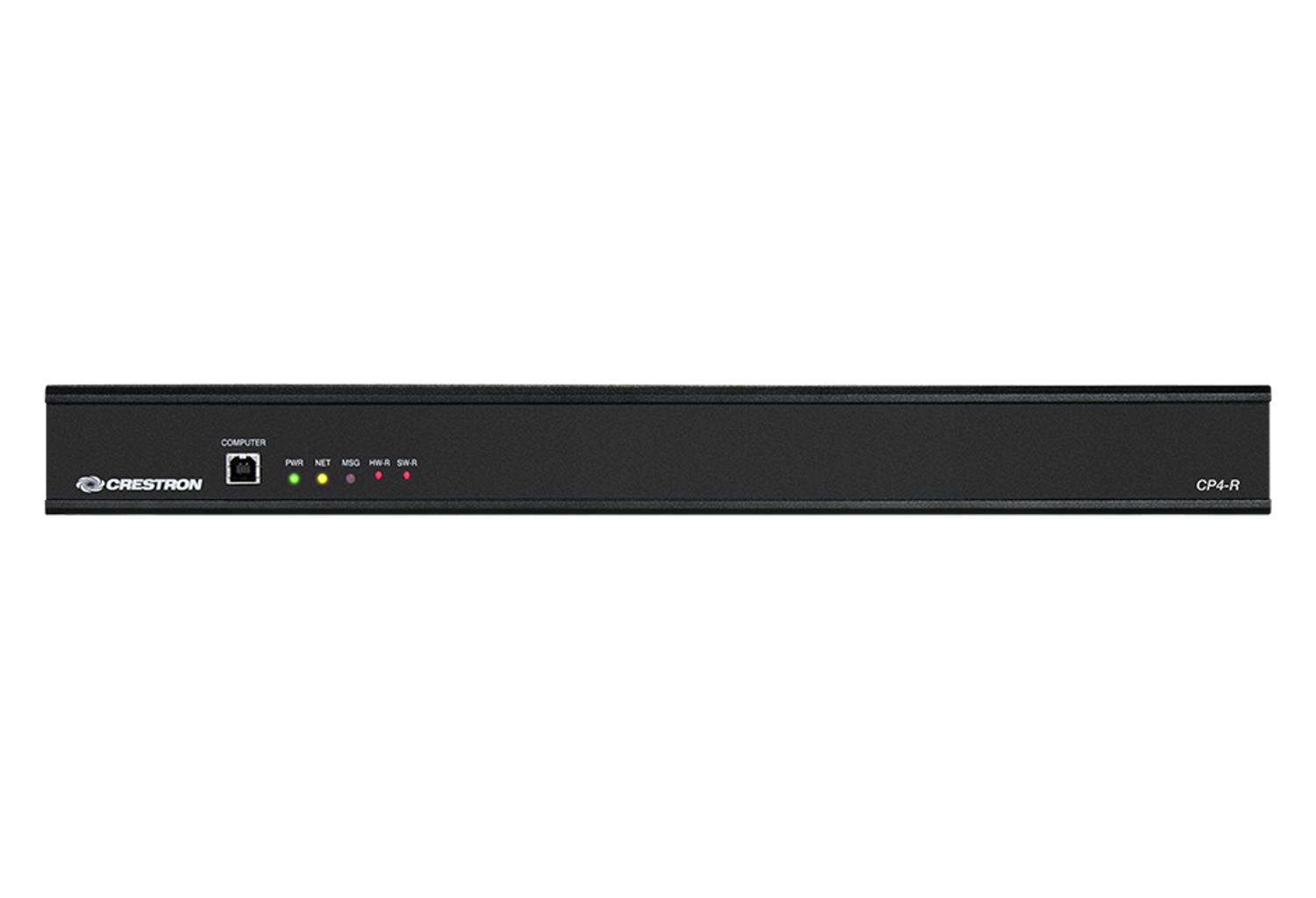

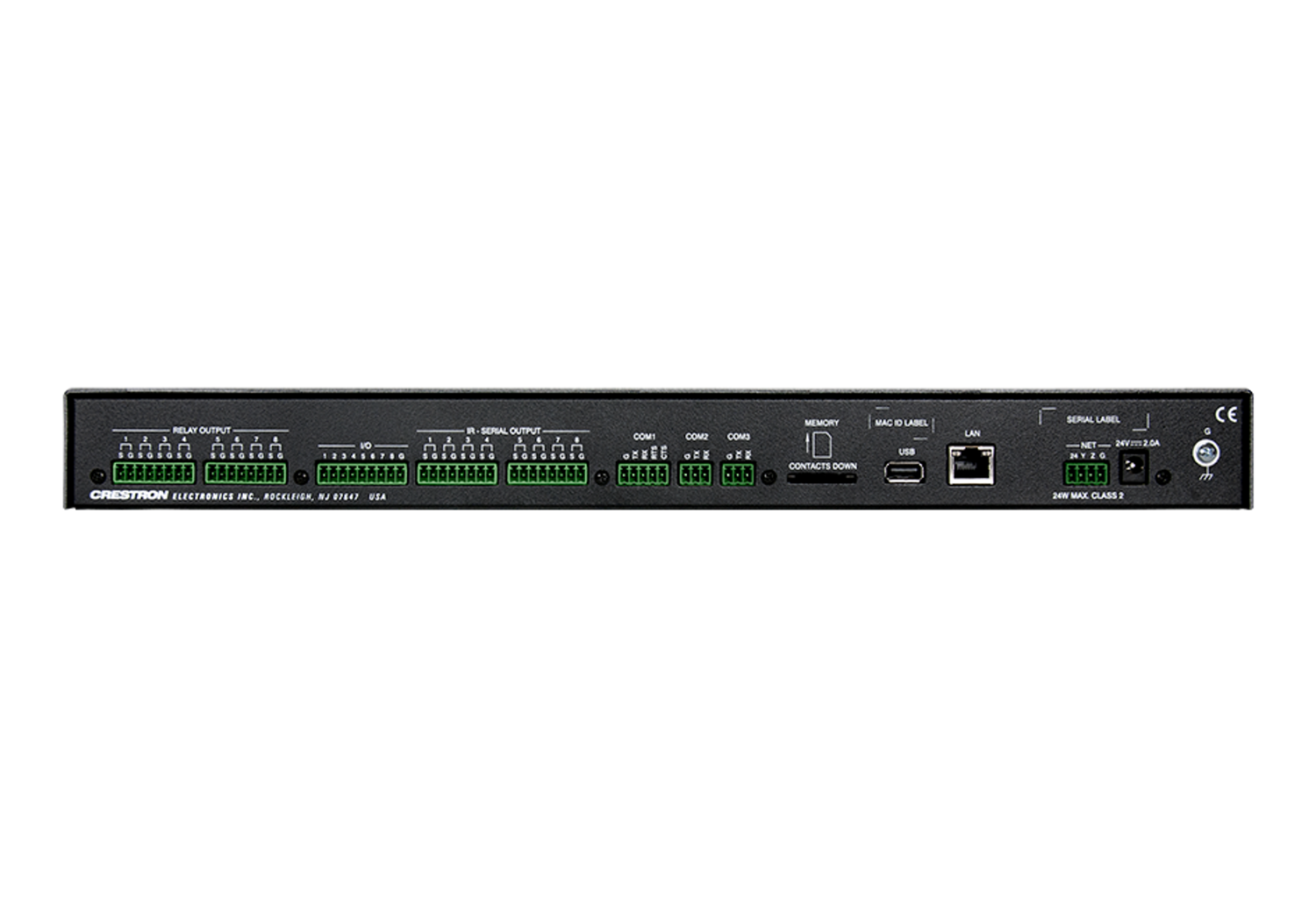

The Crestron CP4-R is a 4-Series control processor running Crestron Home OS, designed for high-performance residential automation installations. It serves as the central intelligence hub for whole-home control of lighting, shading, climate, AV distribution, security, and other building systems. The CP4-R is a rack-mountable 1U processor with extensive I/O, making it well-suited for structured wiring enclosures and equipment rack installations in custom homes.

Product Description

The CP4-R connects to the home network via Gigabit Ethernet and supports a wide range of control protocols including Cresnet, infiNET EX wireless, RS-232/422/485, IR, relay outputs, and Versiport I/O. It provides 24 W of Cresnet power output for driving wired keypads and sensors. BACnet/IP support extends compatibility to building automation systems. The processor runs on Crestron Home OS, enabling dealer-programmed whole-home automation with a consistent, intuitive user experience across mobile apps, touch screens, and remotes.

Key Features

• 4-Series multicore processor running Crestron Home OS
• 1U 19 in. rack-mount form factor (17.28 in. wide, 1.70 in. tall)
• Gigabit Ethernet (100/1000 Mbps) with TCP/IP, SSL, TLS, SSH, SFTP, FIPS 140-2, BACnet/IP
• Cresnet server mode with 24 W available output (1A @ 24 VDC)
• 8 relay outputs (NO isolated, 1A 30 VAC/VDC)
• 8 Versiport digital/analog I/O; 8 IR-serial outputs; RS-232/422/485
• 100-240 VAC universal power supply; 15 W typical consumption
• Certifications: UL Listed (US & Canada), CE, IC, FCC Part 15 Class B

Typical Applications

• Whole-home Crestron Home OS automation hub in custom residential installations
• Multi-zone AV distribution control for large residential estates
• Cresnet device distribution hub connecting keypads, sensors, and dimmers
• Integration with third-party systems via BACnet/IP, RS-232, or IR
• Rack-mounted control processor in an equipment closet or AV rack

Technical Specifications

• Model: CP4-R
• Weight: 3.12 lb (1.42 kg)
• Dimensions (H x W x D): 1.70 in. x 17.28 in. x 6.56 in. (44 mm x 439 mm x 167 mm); 19.00 in. (483 mm) with rack ears
• Power: 100-240 VAC, 50/60 Hz; 15 W typical; Cresnet output 24 W (1A @ 24 VDC)
• Heat Dissipation: 50 BTU/hr
• Ethernet: 100/1000 Mbps; TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, FIPS 140-2, 802.1X, SNMP, BACnet/IP, IPv4/IPv6, HTTPS
• I/O: 8 relays (NO isolated, 1A); 8 Versiport I/O; 8 IR-serial outputs; RS-232/422/485; USB 2.0 host (rear) + USB 2.0 device/console (front); SD/SDHC slot (4 GB included)
• Cresnet: Server mode, 24 W available
• BACnet: BACnet/IP
• Operating Temperature: 41 to 113°F (5 to 45°C)
• Certifications: UL Listed (US & Canada), CE, IC, FCC Part 15 Class B

Frequently Asked Questions

Q: What is the difference between the CP4-R and the MC4-R?
A: The CP4-R is a larger 1U rack-mount processor with 8 relays, 8 Versiports, 8 IR-serial outputs, and RS-232/422/485 — suited for large whole-home installations with extensive wired I/O. The MC4-R is a smaller PoE-powered unit with fewer I/O ports, appropriate for medium-sized Crestron Home systems.

Q: Does the CP4-R support Crestron SIMPL programming?
A: The CP4-R runs Crestron Home OS and is programmed via Crestron Home dealer tools. For open SIMPL or 4-Series commercial programming, the CP4 (without the R suffix) is the appropriate processor.

Q: How many Cresnet devices can the CP4-R support?
A: The CP4-R operates in Cresnet server mode with 24 W available at 1A @ 24 VDC. The maximum number of Cresnet devices depends on each device's power draw and addressing capacity, typically up to 250 Cresnet addresses per network.
