Crestron CM2-SWEX-W-S – Cameo 2 In-Wall Switch, infiNET EX, White Smooth
Crestron CM2-SWEX-W-S – Cameo 2 In-Wall Switch, infiNET EX, White Smooth is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CM2-SWEX-W-S – Cameo 2 In-Wall Switch, infiNET EX, White S...
Product Overview
The Crestron CM2-SWEX-W-S is a Cameo 2 in-wall switch with infiNET EX wireless communication, White Smooth finish. It provides relay-based on/off switching for incandescent, halogen, MLV, electronic ballast, CFL, and motor loads up to 1200 W/VA via the infiNET EX 2.4 GHz mesh network.
Product Description
The CM2-SWEX is the infiNET EX wireless switch in the Cameo 2 platform, requiring 100–240 VAC and a neutral wire at the wall box. It supports 2 to 6 programmable buttons configurable as a combination of rockers and pads, with each button supporting Normal, Tap, Double-Tap, and Press and Hold events. Six RGB LED regions provide backlit text and indicator feedback. An infiNET EX gateway is required and sold separately. A Remote terminal supports companion devices for 3-/4-way configurations. For ordering, visit creationnetworks.net.
Key Features
- Relay switch; 1200 W/VA max (incandescent/halogen/MLV/ballasts/CFL); 1/2 HP motor
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; 150 ft (46 m) indoor range

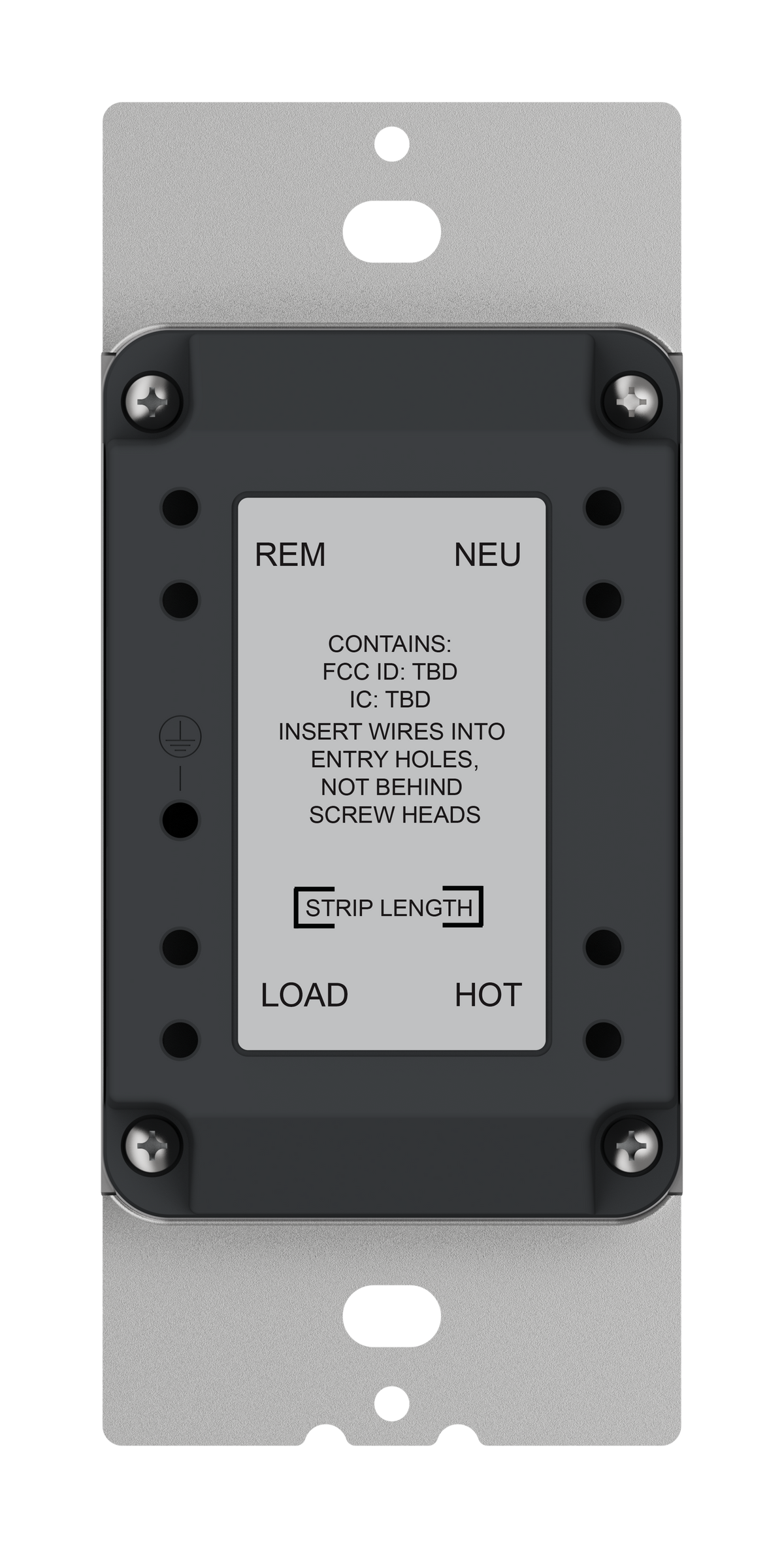

- 100–240 VAC, neutral required; 14–12 AWG screw terminals

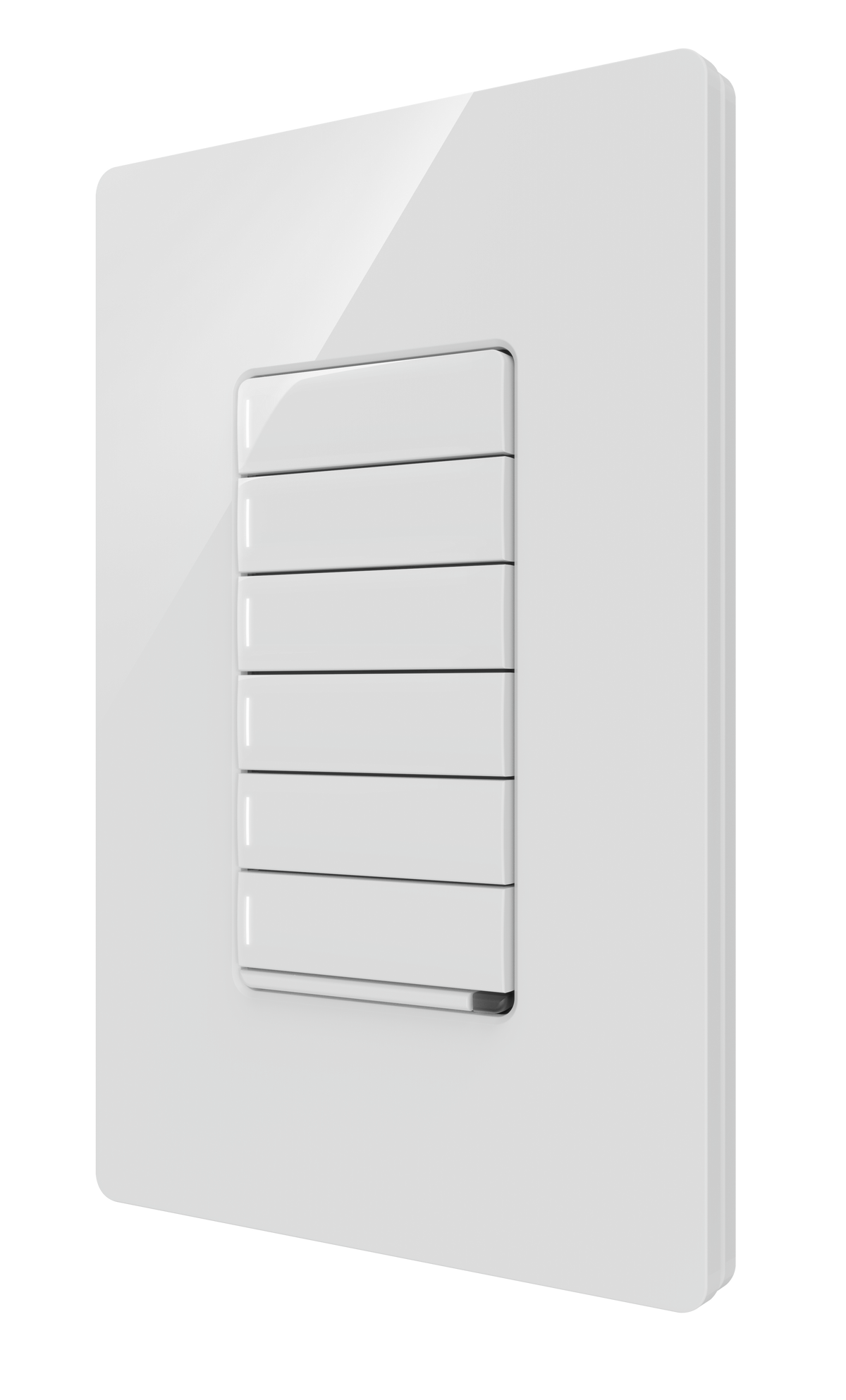

- 2–6 programmable buttons; Normal, Tap, Double-Tap, Press and Hold per button
- 6 RGB backlit text + 6 RGB indicator regions
- White Smooth finish; Remote terminal for 3-/4-way configurations
- Dimensions: 4.06 × 1.75 × 1.59 in. (103 × 45 × 40 mm)
- Certifications: FCC Part 15 Class B, IC, CE, Intertek Listed (US and Canada)
Typical Applications
- On/off lighting control in commercial offices, conference rooms, and institutional spaces
- Motor and fan load switching in commercial and residential Crestron systems
- Retrofit wireless switch installations where Cresnet wiring is not practical
- Multi-location switching with companion devices via Remote terminal
Technical Specifications
| Specification | Value |
|---|---|
| Switch Type | Relay-based on/off |
| Load Types | Incandescent, Halogen, MLV, Electronic Ballast, CFL; 1/2 HP motor |
| Load Rating | 1200 W/VA maximum |
| Power | 100–240 VAC, 50/60 Hz; neutral required |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| RF Range (Indoor) | 150 ft (46 m) |
| Buttons | 2–6 programmable; bottom 4 configurable as rockers |
| Finish | White Smooth |
| Dimensions (H × W × D) | 4.06 × 1.75 × 1.59 in. (103 × 45 × 40 mm) |
| Certifications | FCC Part 15 Class B, IC, CE, Intertek |
| Required Gateway | infiNET EX gateway (sold separately) |
Frequently Asked Questions
- What is the load rating for motor circuits?
- The CM2-SWEX supports motor loads up to 1/2 HP. For motors above this rating, a dedicated motor controller is required.
- Can the CM2-SWEX be used as a dimmer?
- No. The CM2-SWEX is a relay-based on/off switch only. For dimming capability in the Cameo 2 platform, use the CM2-DIMEX (forward phase) or CM2-DIMUNEX (universal phase).
- Does this switch work without a control system?
- Yes. Local button operation functions without a connected control system. Full scheduling, scene control, and automation requires integration with a Crestron processor via an infiNET EX gateway.
