Crestron CM2-KPFCN-W-T – Cameo 2 Fan Control Keypad, Cresnet, White Textured
Crestron CM2-KPFCN-W-T – Cameo 2 Fan Control Keypad, Cresnet, White Textured is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CM2-KPFCN-W-T – Cameo 2 Fan Control Keypad, Cresnet, White...
Product Overview
The Crestron CM2-KPFCN-W-T is a Cameo 2 in-wall fan control keypad with Cresnet wired communication in White Textured finish. It provides programmable button control for ceiling fan speed and direction as part of a Crestron automation system, with two digital/analog input ports for external sensor connections.
Product Description
The CM2-KPFCN shares the Cameo 2 platform chassis and connects to the Crestron control system via the Cresnet wired bus, drawing 2 W (83 mA at 24 VDC) without requiring line voltage at the box. Two daisy-chainable Cresnet ports support straightforward multi-device network wiring. The input ports accept dry contacts, 10K NTC temperature sensors, and 0–10 VDC analog signals with programmable pull-up resistors. Buttons support Normal, Tap, Double-Tap, and Press and Hold events, and each of the six RGB LED regions provides backlit text and indicator feedback. For ordering and integration support, visit creationnetworks.net.
Key Features
- Cresnet fan control keypad: bus-powered 2 W (83 mA @ 24 VDC); no line voltage required
- 2–6 programmable buttons; bottom 4 configurable as side-to-side rockers
- Button events: Normal, Tap, Double-Tap, Press and Hold
- 6 RGB backlit text regions + 6 RGB indicator regions
- 2 digital/analog input ports: 0–24 VDC digital, 0–10 VDC analog; 10K NTC temperature sensor compatible

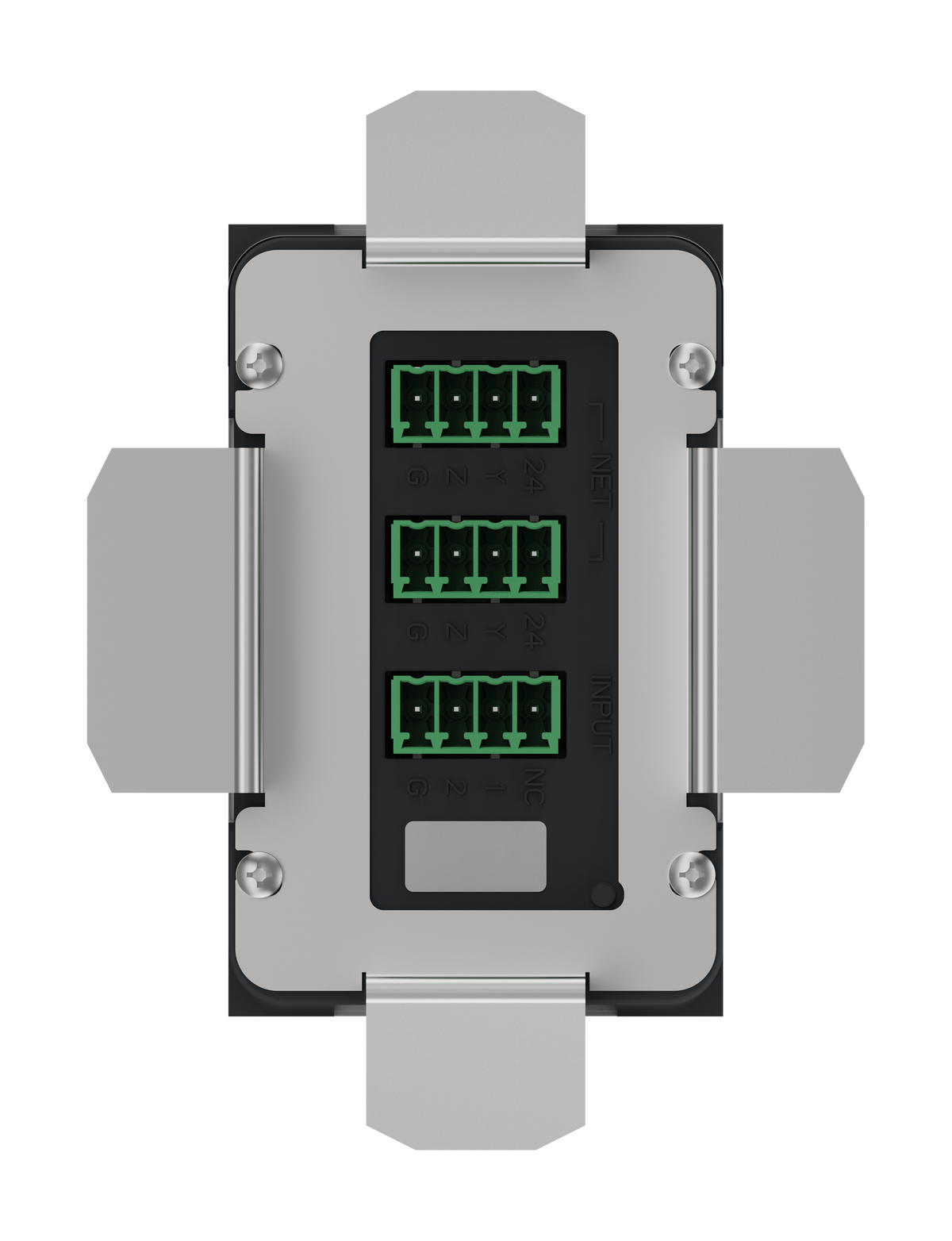

- Dual Cresnet ports (4-pin 3.5 mm terminal blocks) for daisy-chain wiring
- White Textured finish; U.S. electrical box mounting, 3.5 in. depth recommended
- Certifications: FCC Part 15 Class B, IC, CE, Intertek Listed (US and Canada)
Typical Applications
- Ceiling fan speed and direction control integrated with Crestron automation
- Fan and lighting scene control in residential bedrooms and living rooms
- Commercial fan control in hospitality rooms, conference spaces, and open offices
- Companion keypad locations alongside CM2-DIMEX or CM2-SWEX dimmers and switches on Cresnet runs
Technical Specifications
| Specification | Value |
|---|---|
| Communication | Cresnet (wired) |
| Power | 2 W (83 mA @ 24 VDC over Cresnet) |
| Cresnet Ports | 2× 4-pin 3.5 mm terminal blocks (daisy-chain) |
| Sensor Inputs | 2× digital (0–24 VDC) / analog (0–10 VDC); 10K NTC compatible |
| Buttons | 2–6 programmable; bottom 4 configurable as rockers |
| Button Events | Normal, Tap, Double-Tap, Press and Hold |
| LED Feedback | 6 RGB backlit text + 6 RGB indicator regions |
| Finish | White Textured |
| Mounting | Any gang U.S. box; 3.5 in. depth recommended |
| Operating Temperature | 32°–86°F (0°–30°C) |
| Humidity | 10–95% RH, non-condensing |
| Certifications | FCC Part 15 Class B, IC, CE, Intertek |
Frequently Asked Questions
- Does the CM2-KPFCN control a load directly?
- No. The CM2-KPFCN is a keypad that sends commands to the Crestron control system via Cresnet. Fan speed control requires a compatible Crestron fan controller connected on the same system.
- What types of sensors can be connected to the input ports?
- The two input ports accept dry-contact closures, 0–24 VDC digital logic signals, 0–10 VDC analog signals, and 10K NTC temperature sensors. Programmable pull-up resistors are available per input.
- Does the CM2-KPFCN require a dedicated power supply?
- No. It is powered entirely from the Cresnet bus at 2 W. Only a Cresnet cable run is needed at the wall box location.
