Crestron CM2-KPCN-W-S – Cameo 2 Companion Keypad, Cresnet, White Smooth

Product Overview

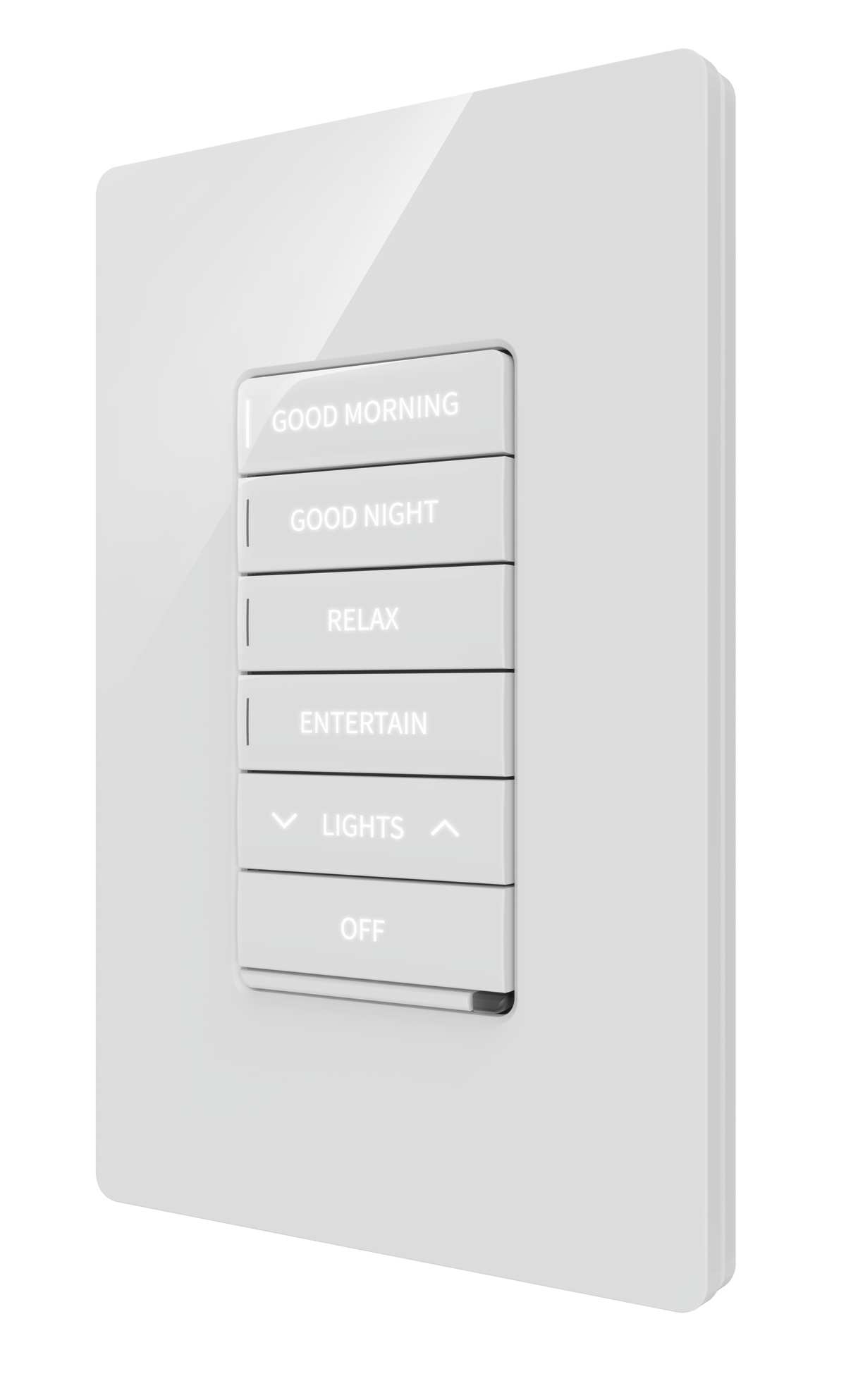

The Crestron CM2-KPCN-W-S is a Cameo 2 companion keypad with Cresnet wired communication in White Smooth finish. It provides 2 to 6 programmable push buttons for scene, source, and system control in multi-location Crestron deployments, drawing power entirely from the Cresnet bus without requiring line voltage at the box.

Product Description

The CM2-KPCN is the Cresnet wired keypad in the Cameo 2 platform, designed for companion control positions alongside dimmers and switches or as a standalone scene and system control device. Dual daisy-chainable Cresnet ports simplify multi-device wiring runs. Two digital/analog input ports accept dry contacts, 0–10 VDC analog signals, and 10K NTC temperature sensors. The six RGB LED regions provide backlit text and status indicator feedback. The White Smooth finish occupies a 1.59 in. depth advantage over the standard textured model at 0.69 in. depth due to the smoother housing profile. For ordering, visit creationnetworks.net.

Key Features

• Cresnet wired keypad: bus-powered 2 W (83 mA @ 24 VDC); no line voltage required
• 2–6 programmable buttons; bottom 4 configurable as side-to-side rockers
• Button events: Normal, Tap, Double-Tap, Press and Hold
• 6 RGB backlit text + 6 RGB indicator regions
• 2 digital/analog input ports: 0–24 VDC digital, 0–10 VDC analog; 10K NTC temperature sensor compatible

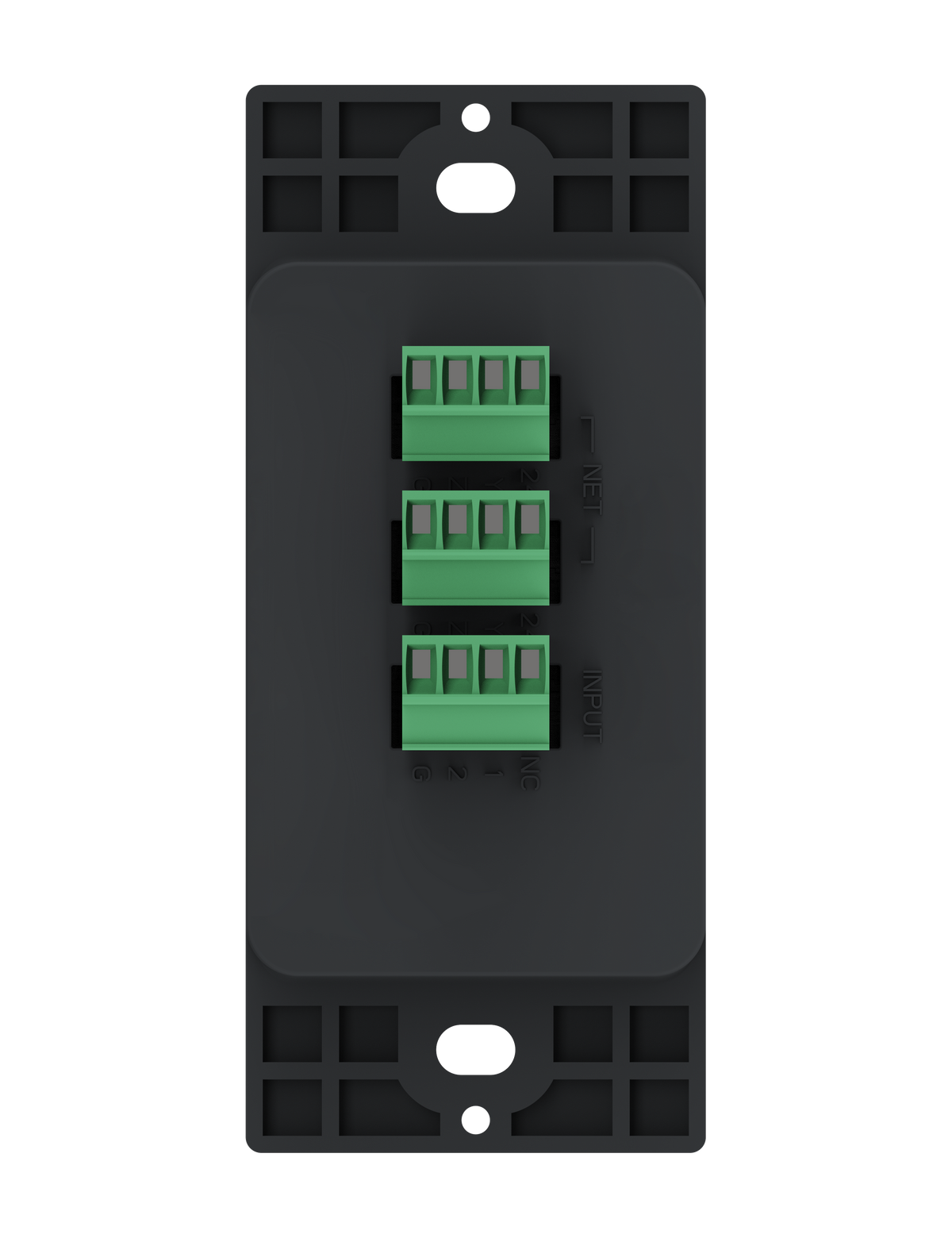

• Dual Cresnet ports (4-pin 3.5 mm terminal blocks) for daisy-chain wiring

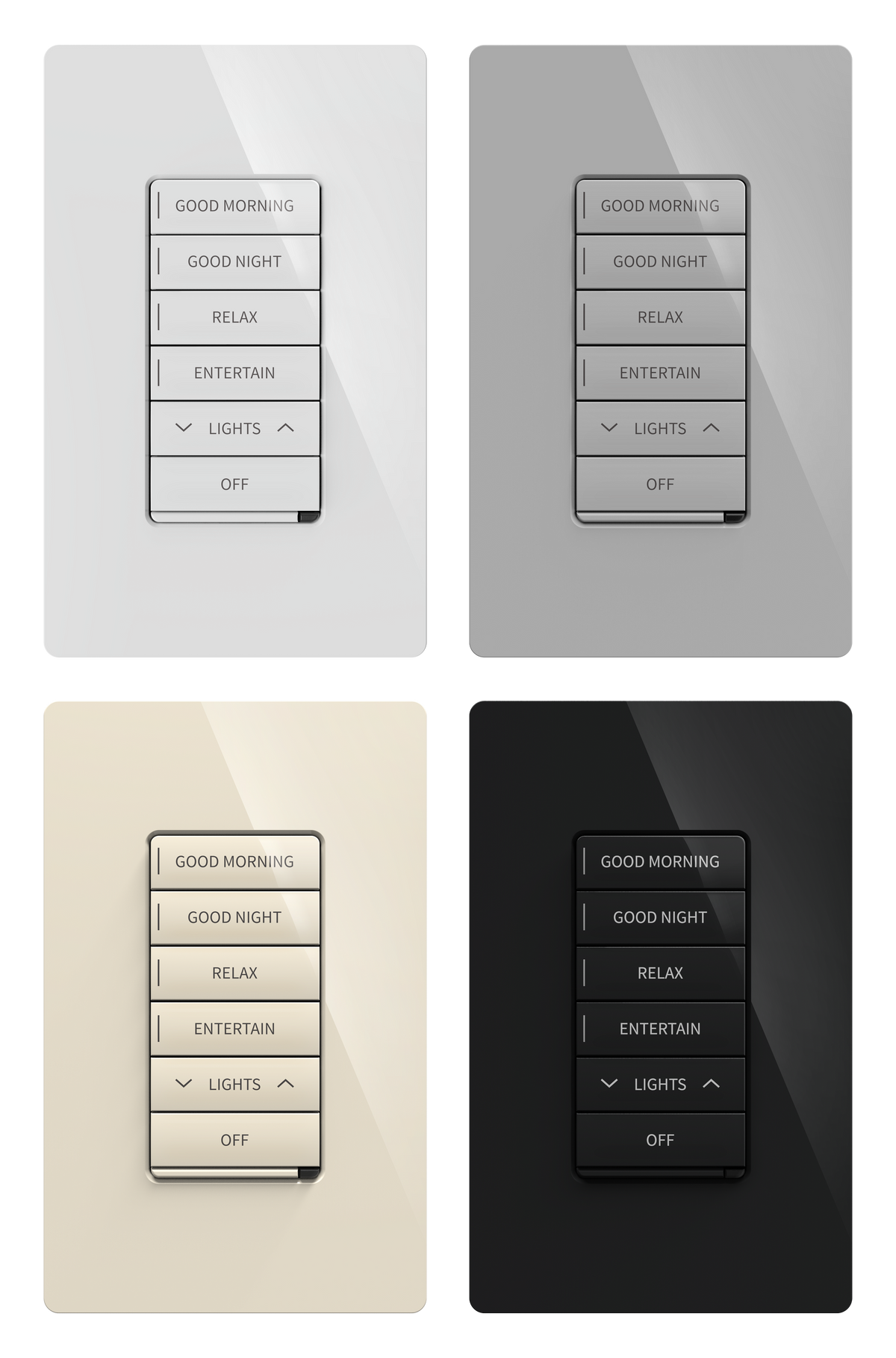

• White Smooth finish; dimensions: 4.06 × 1.75 × 0.69 in. (103 × 45 × 18 mm)
• Certifications: FCC Part 15 Class B, IC, CE, Intertek Listed (US and Canada)

Typical Applications

• Multi-location companion keypads alongside CM2 dimmers and switches in offices and conference rooms
• Scene and AV source control panels at entry points in residential and commercial spaces
• Cresnet deployments requiring a thin-profile keypad (0.69 in. depth) in shallow wall boxes
• Locations combining keypad control with temperature sensing or contact closure monitoring

Technical Specifications

Frequently Asked Questions

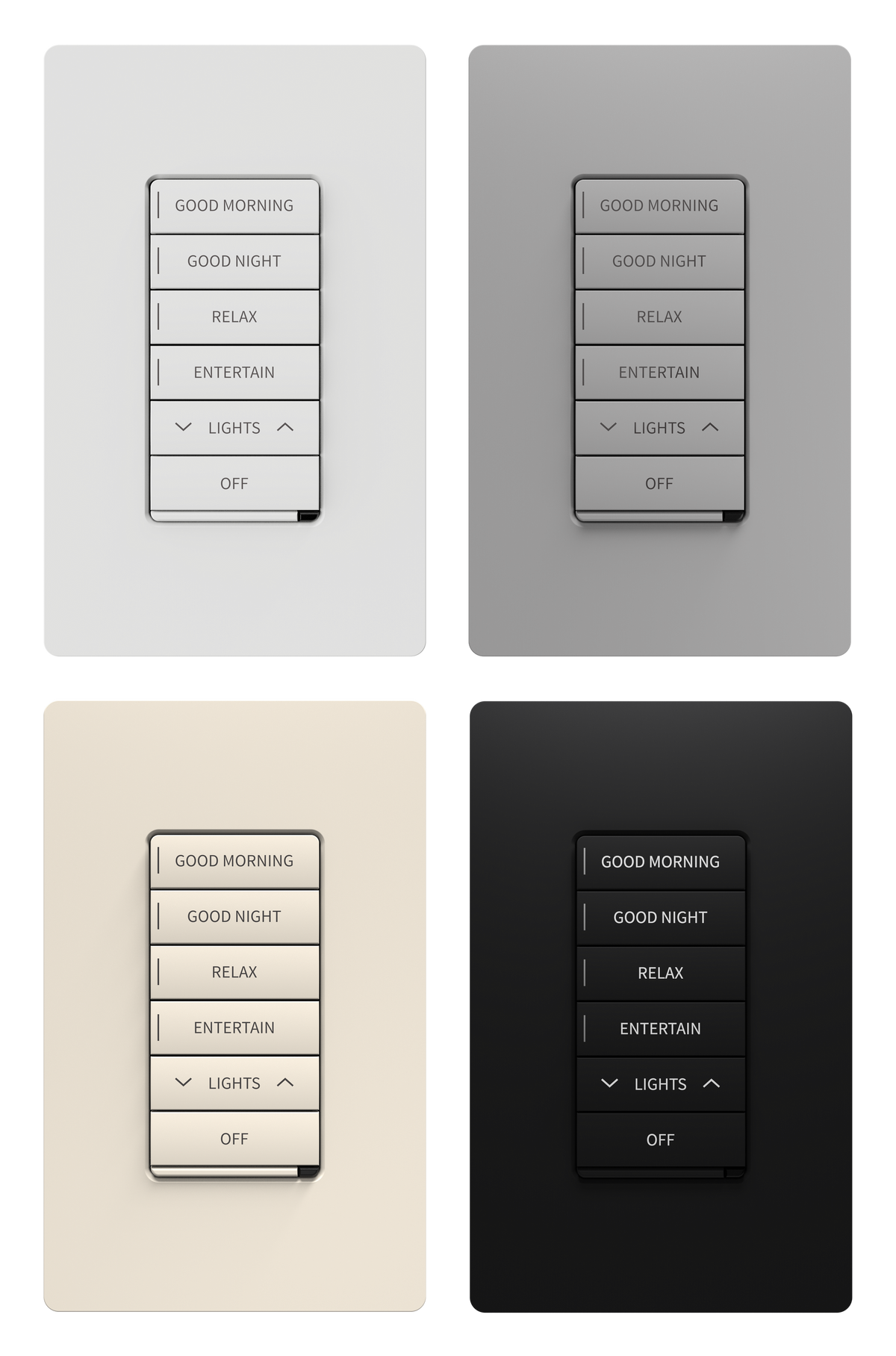

What is the difference between the CM2-KPCN-W-S (Smooth) and CM2-KPCN-W-T (Textured)?

Both variants share the same Cresnet keypad functionality and button configuration. The Smooth (-S) and Textured (-T) suffixes refer to the housing finish. Smooth provides a sleeker profile while Textured has a more matte, tactile surface. The Smooth variant has a 0.69 in. depth matching the Textured variant for the CM2 platform.

Can this keypad be used without a companion dimmer or switch?

Yes. It can be used purely as a scene or system control device sending commands to any Crestron-connected equipment through the control system. No local load wiring is required.

Does it require a separate power supply?

No. Power comes entirely from the Cresnet bus at 2 W / 83 mA. No line voltage is needed at the wall box location.
