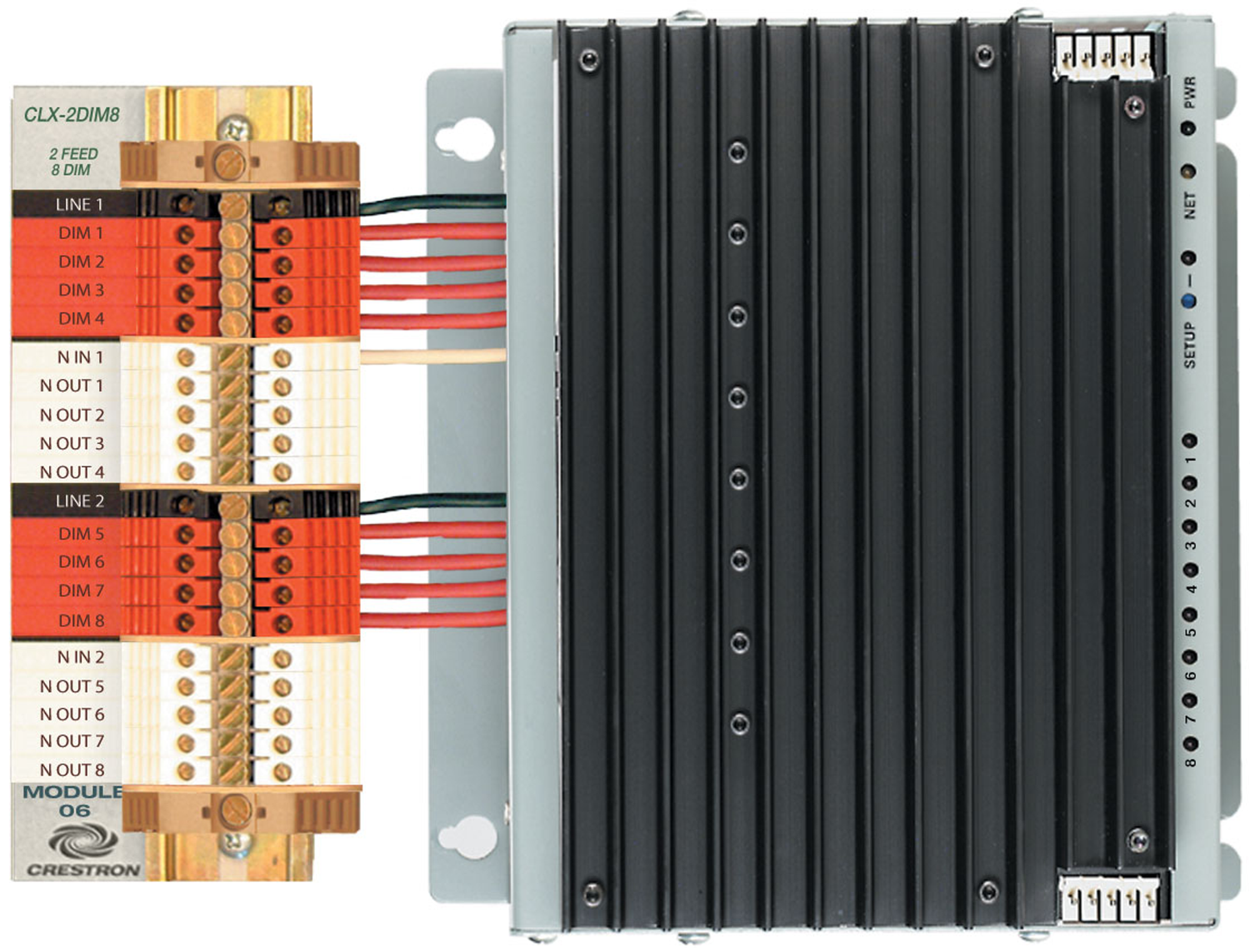

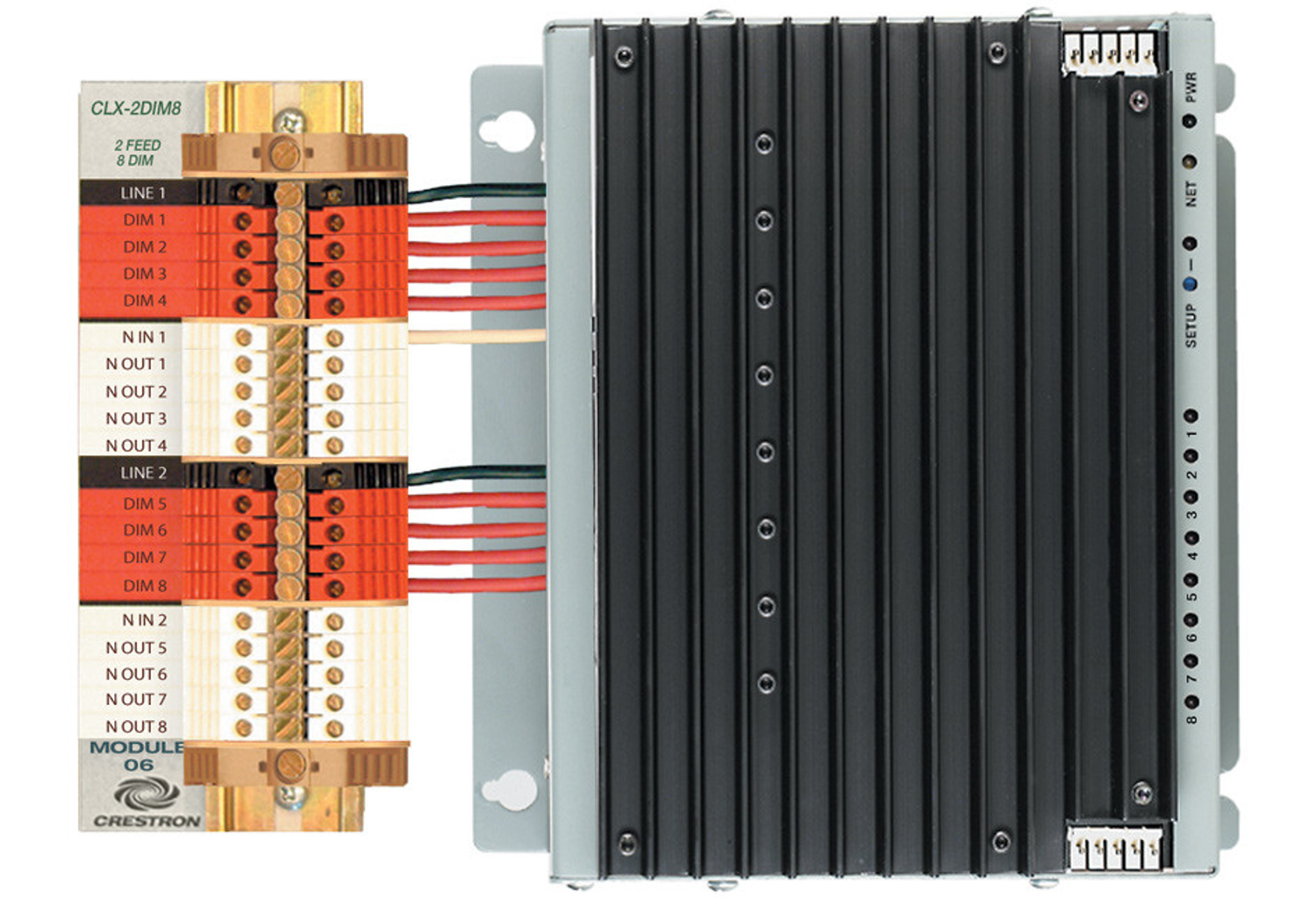

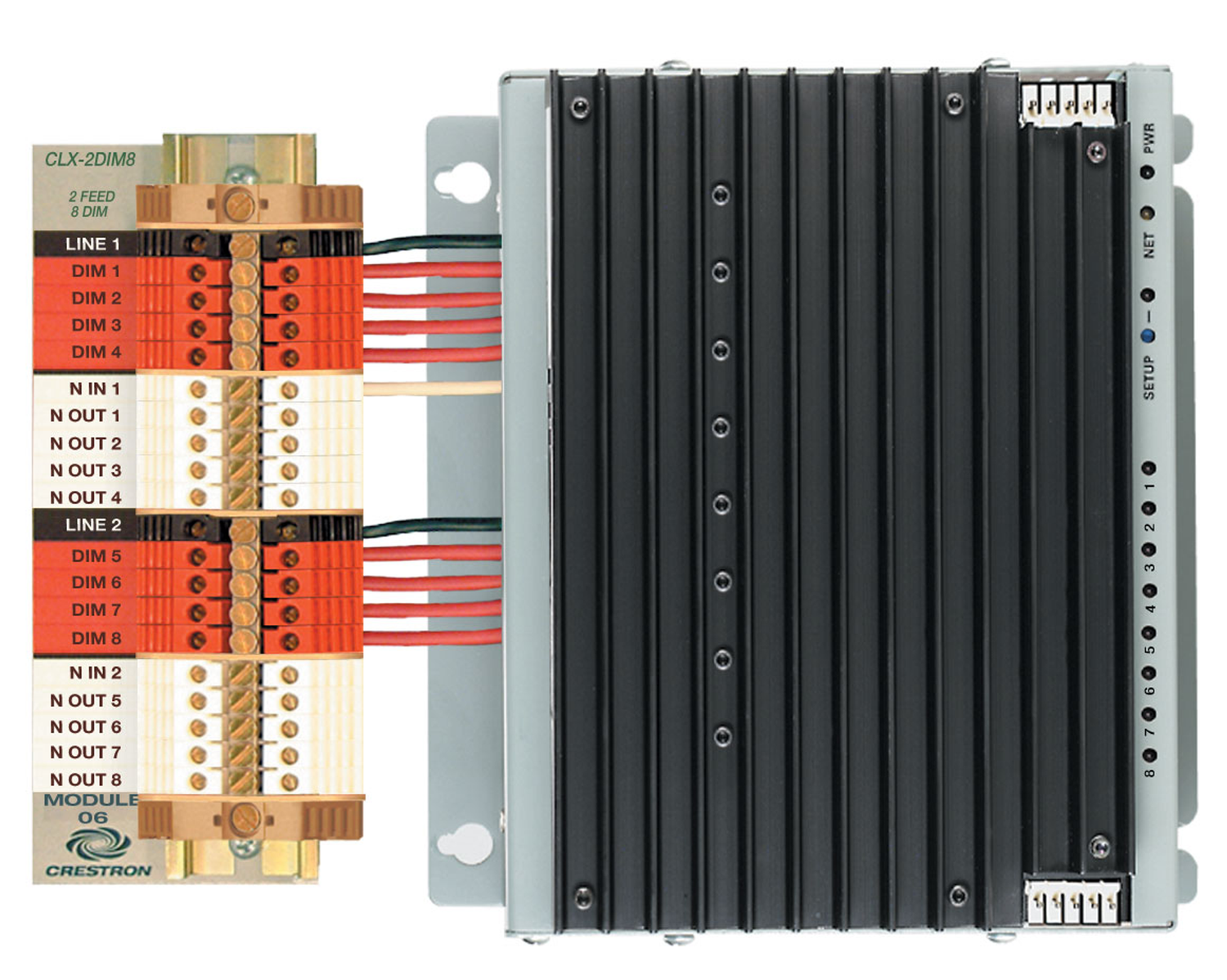

Crestron CLX-2DIM8 – 8-Channel Dimmer Module, 2 Feeds, 120V

Product Overview

The Crestron CLX-2DIM8 is an 8-channel forward-phase dimmer module designed for installation in Crestron CAEN or CAEN-MLO automation enclosures. It accepts two 120V single-phase feeds (same or split phase) and provides 8 independently controlled channels rated at 16A / 1,920W per channel, with a 32A / 3,840W module total. It is suited for incandescent, magnetic low-voltage, neon/cold cathode, and 2-wire fluorescent load types in residential and commercial lighting control installations.

Product Description

The CLX-2DIM8 communicates via Cresnet secondary mode, receiving dimming commands from a Crestron control processor. Its forward-phase (leading edge) dimming method is optimized for incandescent and magnetic low-voltage loads. The module occupies one slot in a CAEN or CAEN-MLO enclosure and requires adequate ventilation for heat management, as maximum heat dissipation reaches 176 BTU/hr at full load. UL, CEC Title 24, and FCC certifications support use in regulated commercial and residential projects.

Key Features

• 8 independently controlled forward-phase dimmer channels
• 16A / 1,920W per channel; 32A / 3,840W total module rating
• Two single-phase 120V feeds; same or split phase
• Load types: incandescent, magnetic low-voltage (MLV), neon/cold cathode, 2-wire dimmable fluorescent
• 25W minimum load per channel
• Cresnet secondary mode for processor control
• Fits 1 module slot in CAEN or CAEN-MLO enclosures
• Certifications: UL Listed (US & Canada), UL 508, UL 924, IC, FCC Part 15 Class A, CEC Title 24 2013

Typical Applications

• Residential whole-home incandescent and halogen lighting control in CAEN enclosure
• Commercial office and hospitality lighting with high-load incandescent or MLV fixtures
• New construction residential lighting control with multiple incandescent circuits
• Stage and theatrical lighting control integrated with Crestron automation
• Hotel guest room lighting control for decorative incandescent and MLV fixture types

Technical Specifications

• Model: CLX-2DIM8
• Weight: 4.50 lb (2.04 kg)
• Dimensions (H x W x D): 7.59 in. x 6.92 in. x 3.43 in. (193 mm x 176 mm x 87 mm)
• Power Input: 120 VAC, 60 Hz; 1 or 2 single-phase feeds (same or split phase)
• Per Channel Load: 16A / 1,920W
• Module Total Load: 32A / 3,840W (with two 20A feeds)
• Minimum Load: 25W per channel
• Dimming Method: Forward phase (leading edge)
• Heat Dissipation: 26 BTU/hr + (4.7 BTU/hr × load current in amps); 176 BTU/hr maximum
• Load Types: Incandescent, MLV, neon/cold cathode, 2-wire dimmable fluorescent
• Communications: Cresnet secondary mode
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Humidity: 10 to 90% RH (non-condensing)
• Certifications: UL Listed (US & Canada), UL 508, UL 924, IC, FCC Part 15 Class A, CEC Title 24 2013

Frequently Asked Questions

Q: Does the CLX-2DIM8 support LED loads?
A: No. The CLX-2DIM8 uses forward-phase (leading edge) dimming, which is not optimized for LED fixtures. For LED-compatible dimming, the CLX-2DIMU8 (universal dimmer) or CLX-2DIMFLV8 (0-10V dimmer) are appropriate alternatives.

Q: How many CAEN enclosure slots does the CLX-2DIM8 require?
A: The CLX-2DIM8 occupies one module slot in a standard Crestron CAEN or CAEN-MLO enclosure.

Q: Can the CLX-2DIM8 use two separate 120V circuit feeds?
A: Yes. The CLX-2DIM8 accepts two single-phase 120V feeds, which can be from the same phase or split phases, providing up to 32A total capacity across the two feeds.
