Crestron CLX-1MC4 – 4-Channel Motor Control Module, 1 Feed, 120V
Product Overview

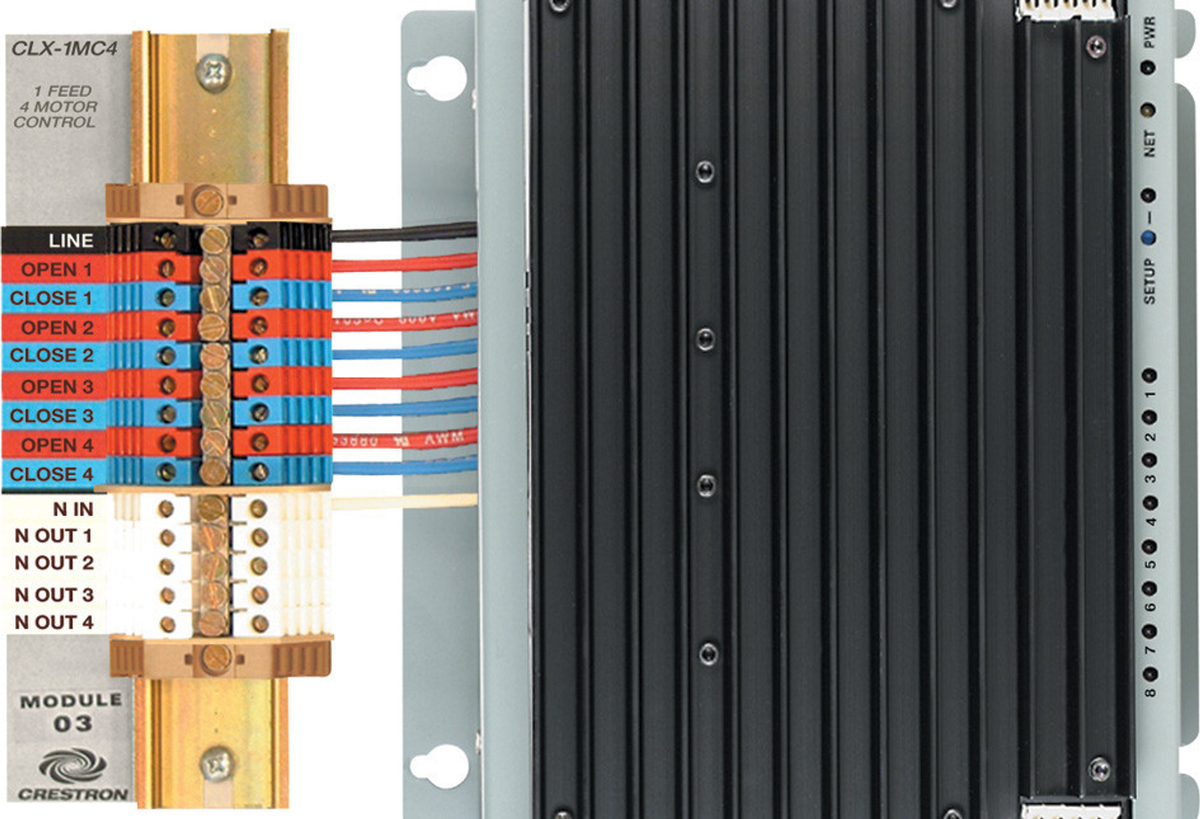

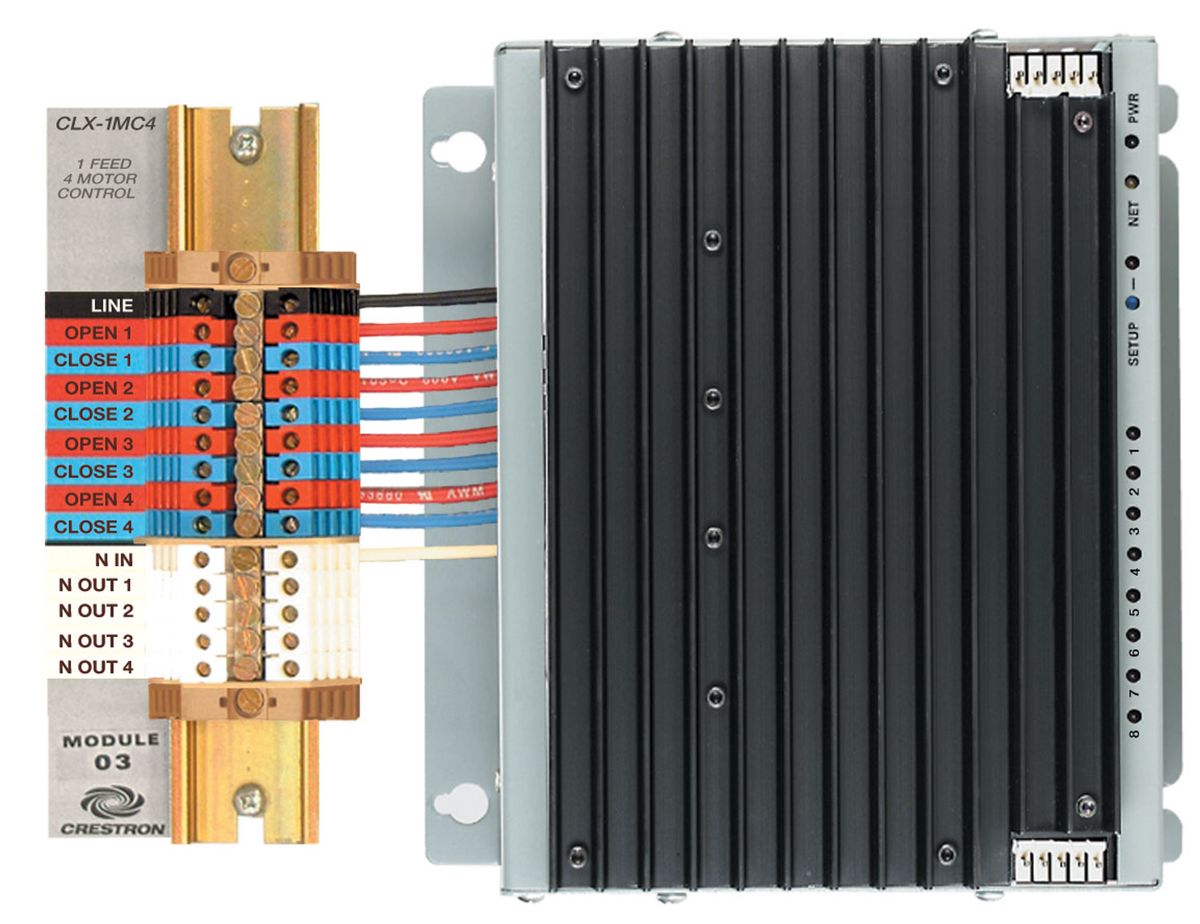

The Crestron CLX-1MC4 is a 4-channel motor control module for the CLX lighting control panel system. Operating at 120VAC with a single feed, it provides independent control of up to four motorized load circuits—including window shades, motorized drapes, and projection screens—within a unified Crestron lighting control enclosure.
Product Description
Designed for installation in Crestron CLX series lighting control enclosures, the CLX-1MC4 occupies a single module slot and provides four discrete motor control channels from one 120VAC feed. Each channel independently drives a motorized load with raise, lower, and stop capability. The module installs alongside dimmer and switch modules in the same CLX enclosure, reducing panel count and simplifying commissioning in residential and light commercial projects. A matching CLT-1MC4 terminal block (sold separately) is required for field wiring.
Key Features
- 4 independent motor control channels from a single 120VAC feed
- Raise, lower, and stop control for each channel
- Installs in CLX series lighting control enclosures
- Occupies a single module slot within the CLX panel
- Compatible with motorized shades, drapes, projection screens, and similar loads
- Integrates with Crestron 4-Series and 3-Series control systems
- Requires CLT-1MC4 terminal block for field wiring connections
Typical Applications
- Motorized window shade control in residential automation systems
- Projection screen and motorized drape control in home theaters and conference rooms
- Light commercial building automation requiring centralized motor control in a lighting panel
- Multi-room projects where shading and motorized architectural elements are controlled alongside lighting
Technical Specifications
- Supply Voltage: 120VAC, 60 Hz
- Motor Channels: 4
- Feeds: 1
- Form Factor: Single-slot CLX module
- Compatible Enclosures: CLX series lighting control panels
- Required Accessory: CLT-1MC4 terminal block (sold separately)
FAQs
What motor load types are compatible with the CLX-1MC4?
The CLX-1MC4 supports standard AC motor loads including roller shades, Roman shades, motorized drapes, and motorized projection screens. Refer to the Crestron product specification sheet for maximum load ratings per channel.
Is the CLT-1MC4 terminal block included?
No. The CLT-1MC4 replacement terminal block is sold separately and is required to complete field wiring of the CLX-1MC4 module.
Where can I purchase the CLX-1MC4?
The Crestron CLX-1MC4 is available at creationnetworks.net.
