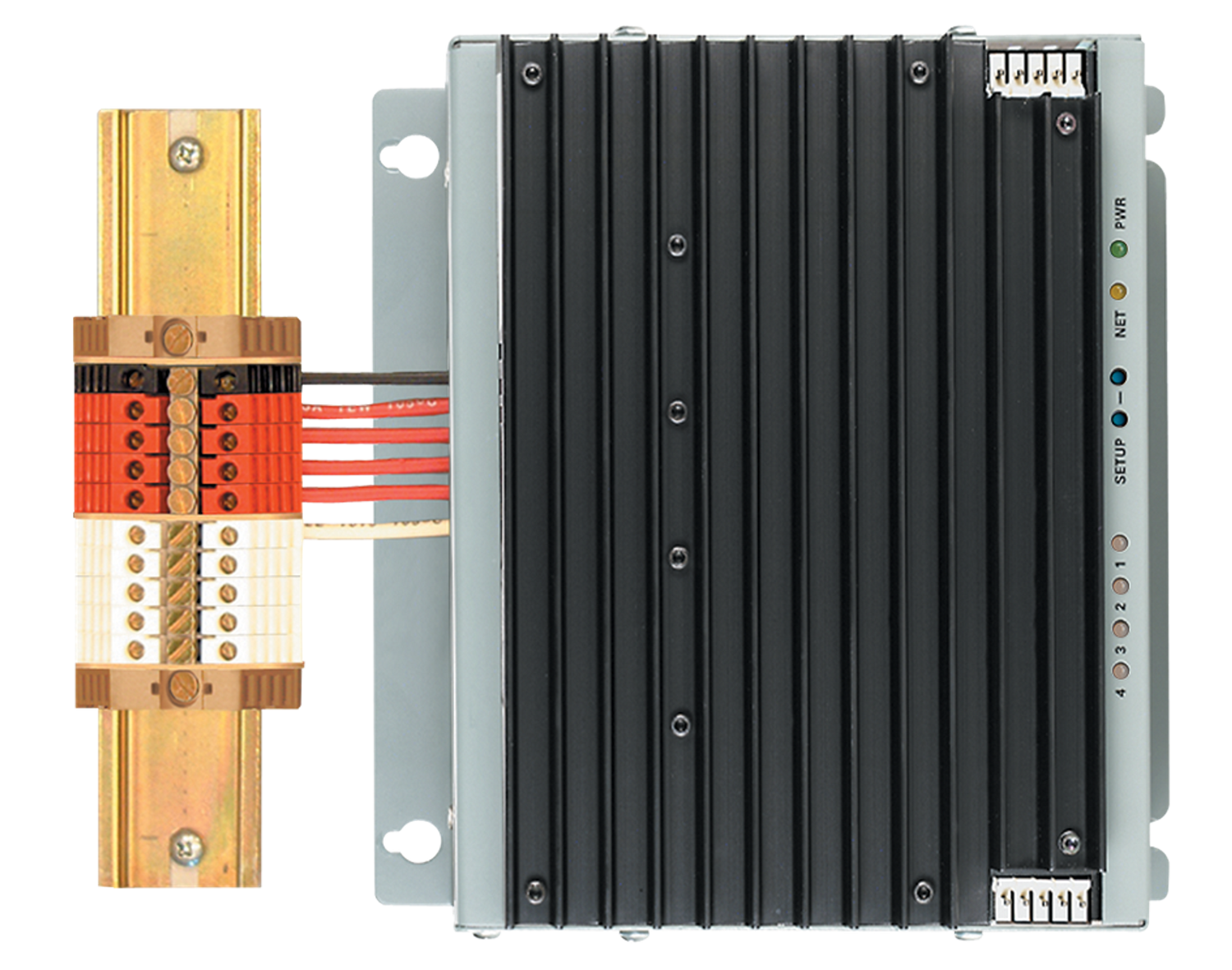

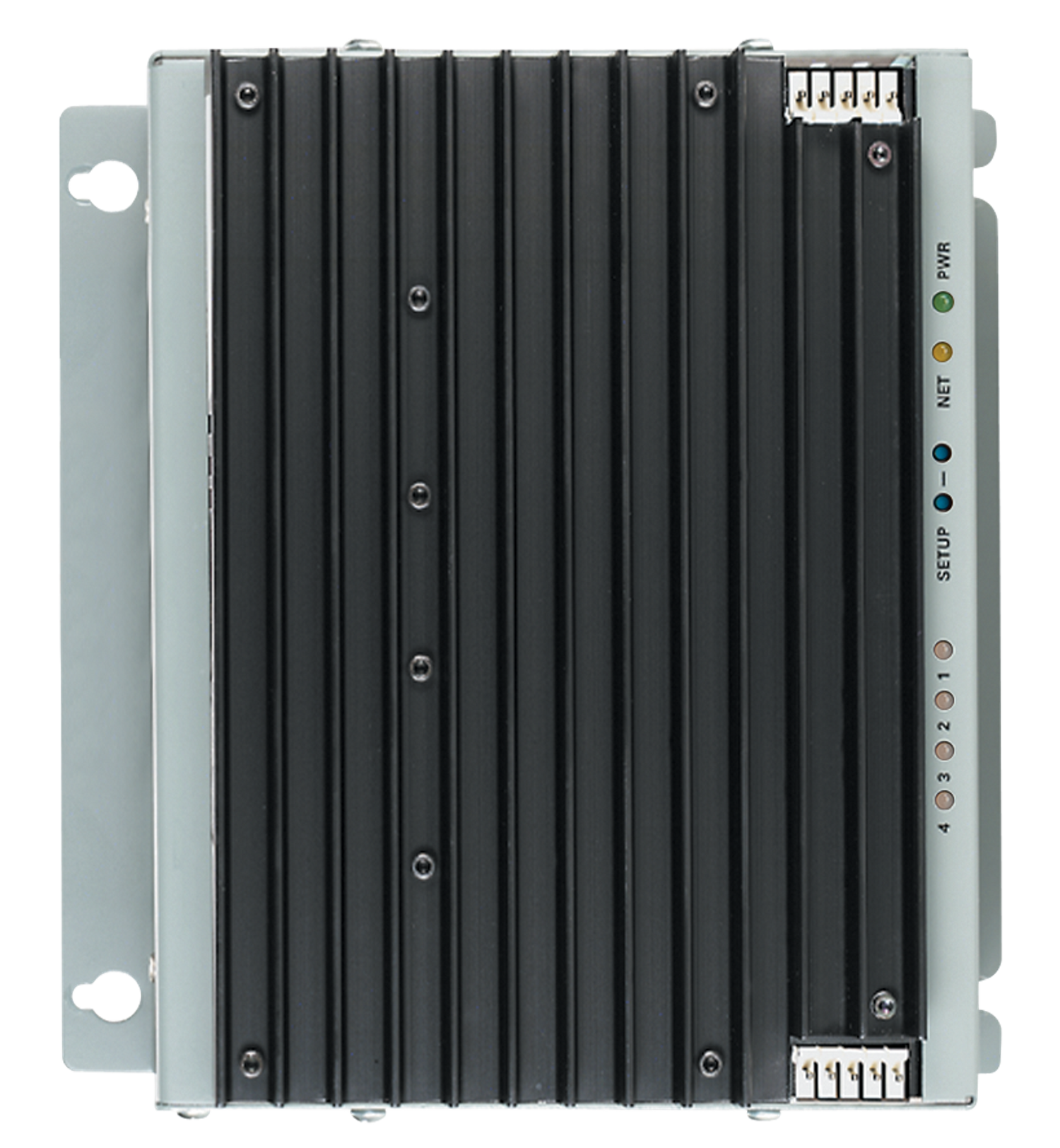

Crestron CLX-1DIMU4-HP – 4-Channel High Power Universal Dimmer Module, 1 Feed, 120V

Product Overview

The Crestron CLX-1DIMU4-HP is a high-power 4-channel universal dimmer module designed for installation in Crestron CAEN or CAEN-MLO automation enclosures. It accepts a single 120 VAC feed and delivers 10A / 1,200W per channel, supporting a broad range of dimmable load types including LED, incandescent, electronic low-voltage (ELV), and magnetic low-voltage (MLV). Its high per-channel capacity makes it appropriate for architectural lighting systems with significant load requirements.

Product Description

The CLX-1DIMU4-HP occupies one module slot in a CAEN or CAEN-MLO enclosure and communicates via Cresnet for control from a Crestron processor. Unlike standard CLX dimmer modules, the HP variant provides 10A per channel (versus 5A standard) and supports a minimum load of 0W, accommodating installations where channel counts vary widely. Wire gauges from 14 to 10 AWG are accepted per load terminal. Heat dissipation starts at 8.5 BTU/hr base with additional dissipation per amp of load current, reaching a maximum of 121 BTU/hr at full load.

Key Features

• 4 independently controlled dimmer channels; 10A / 1,200W per channel
• 16A / 1,920W total module rating
• Universal dimming: LED, incandescent, ELV, MLV, 2-wire dimmable fluorescent
• 0W minimum load per channel (no minimum load requirement)
• 120 VAC, 60 Hz single-phase input; 1 feed
• Fits 1 module slot in CAEN or CAEN-MLO enclosure; Cresnet controlled
• 14-10 AWG per load terminal
• Certifications: UL Listed (US & Canada), UL 508, UL 924, IC, FCC Part 15 Class B, CEC Title 24 2013

Typical Applications

• High-wattage architectural lighting control in large residential great rooms or ballrooms
• Commercial office lighting with high-power LED or incandescent loads per circuit
• Crestron CAEN enclosure lighting control for circuits exceeding standard 5A module ratings
• Hospitality lighting control systems with high-load decorative or theatrical fixtures
• Multi-circuit high-wattage LED driver control in new construction residential projects

Technical Specifications

• Model: CLX-1DIMU4-HP
• Weight: 3.0 lb (1.36 kg)
• Dimensions (H x W x D): 7.63 in. x 6.92 in. x 3.43 in. (194 mm x 176 mm x 87 mm)
• Power Input: 120 VAC, 60 Hz, single-phase; 1 feed
• Per Channel Load: 10A / 1,200W
• Module Total Load: 16A / 1,920W
• Minimum Load: 0W
• Heat Dissipation: 8.5 BTU/hr + (7.03 BTU/hr × load current in amps); 121 BTU/hr maximum
• Load Types: LED, incandescent, ELV, MLV, 2-wire dimmable fluorescent, switched/non-dimmable lighting
• Communications: Cresnet (occupies 1 module slot in CAEN or CAEN-MLO)
• Wire Gauge: 14-10 AWG per terminal
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: UL Listed (US & Canada), UL 508, UL 924, IC, FCC Part 15 Class B, CEC Title 24 2013

Frequently Asked Questions

Q: How does the CLX-1DIMU4-HP differ from the standard CLX dimmer modules?
A: The HP (High Power) variant provides 10A / 1,200W per channel versus the standard 5A / 600W, and supports a 0W minimum load. This makes it suitable for high-wattage circuits where standard modules would be undersized.

Q: Does the CLX-1DIMU4-HP require a specific CAEN enclosure?
A: The CLX-1DIMU4-HP fits any standard Crestron CAEN or CAEN-MLO enclosure that accepts CLX-Series modules. It occupies one module slot.

Q: Is the CLX-1DIMU4-HP compatible with 0-10V dimming or DALI fixtures?
A: No. The CLX-1DIMU4-HP uses phase-cut dimming (forward/reverse). For 0-10V dimming control, the CLX-2DIMFLV8 is the appropriate module.
