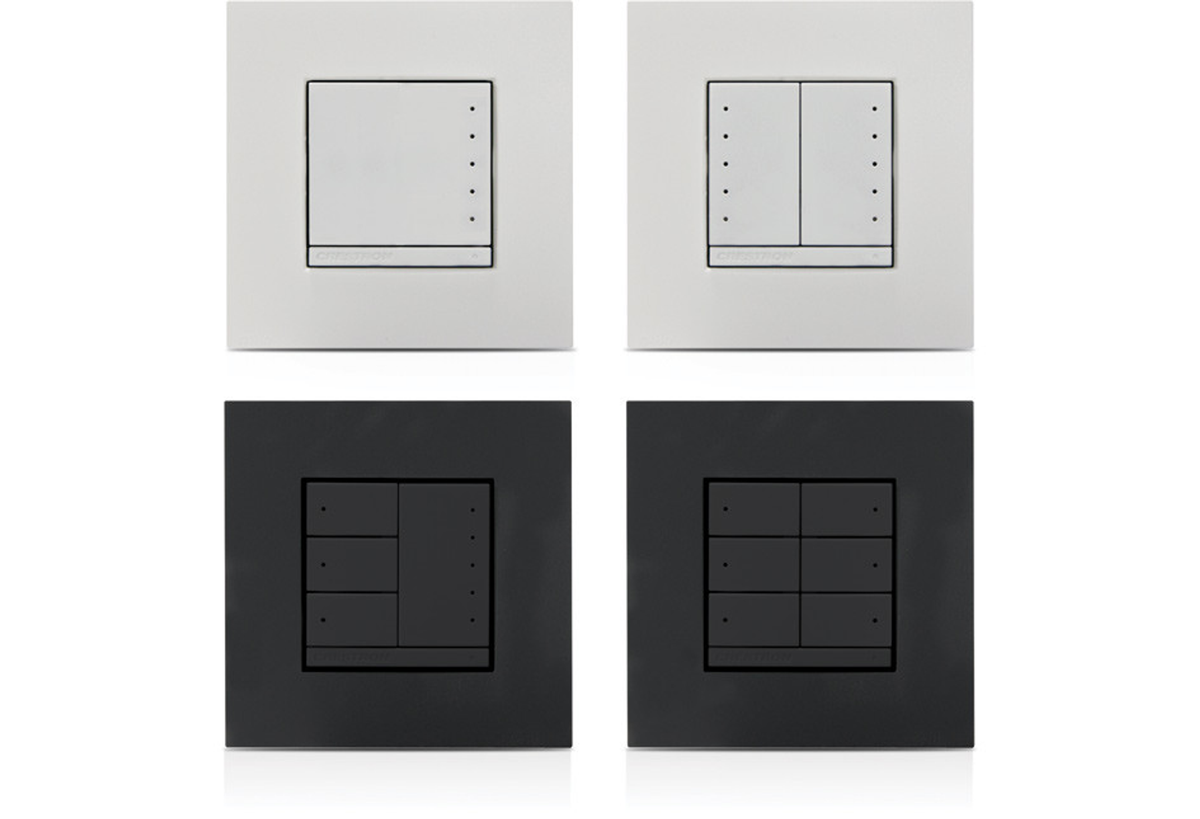

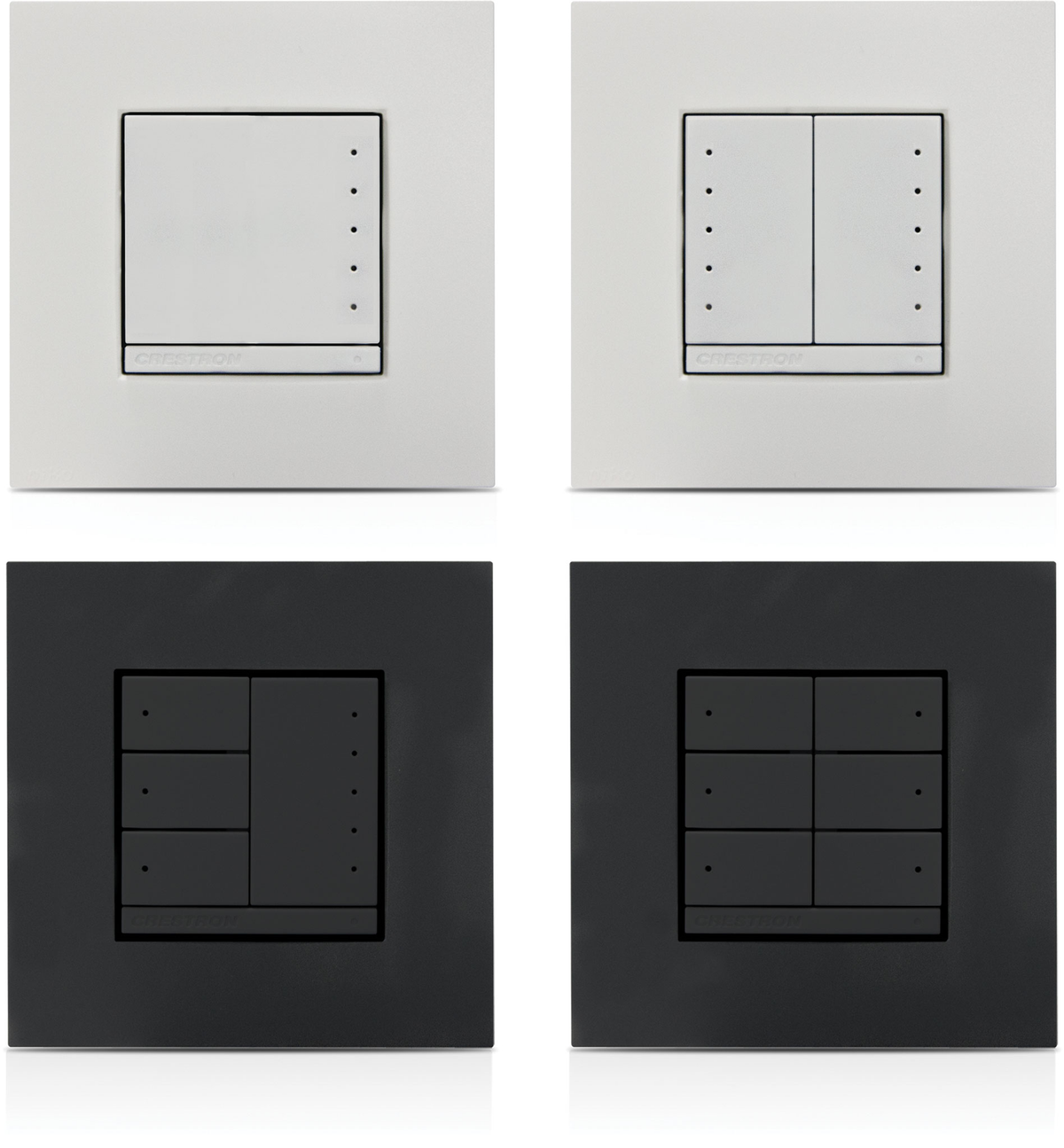

Crestron CLWI-KPLEX-W – In-Wall Wireless Keypad, 230VAC, White
Crestron CLWI-KPLEX-W – In-Wall Wireless Keypad, 230VAC, White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CLWI-KPLEX-W – In-Wall Wireless Keypad, 230VAC, White
Product Overview
The Crestron CLWI-KPLEX-W is a 230VAC line-powered, infiNET EX wireless in-wall keypad for Crestron lighting and load control systems. It provides a dedicated wall station for scene recall and load control without requiring a separate low-voltage wiring run to the controller, operating entirely over the infiNET EX 2.4 GHz mesh wireless network. The White finish suits commercial and residential interiors in international markets.
Product Description
Unlike Cresnet keypads that require a dedicated four-wire home run, the CLWI-KPLEX-W draws power directly from the 230VAC mains at the back box. It communicates with the Crestron control processor via infiNET EX, the frequency-agile, mesh-topology wireless protocol designed for reliable, low-latency control signaling in built environments. The infiNET EX network self-heals around obstacles and automatically selects the least-congested channel, reducing the need for site surveys in most standard commercial installations. Button functions and scenes are programmed via Crestron Studio or SIMPL Windows. Engravable CLWI Series button caps are available separately.
Key Features
- infiNET EX 2.4 GHz wireless communication; no low-voltage wiring run required
- Line-powered from 230VAC mains at the back box
- Single-gang form factor; installs in standard international back box
- White finish; accepts CLWI Series engravable button cap accessories
- Supports scene recall, load control, and custom programming
- infiNET EX mesh network self-heals and selects least-congested channel
- Programmable via Crestron Studio or SIMPL Windows
Typical Applications
- Open-plan offices where running additional low-voltage wiring is impractical
- Hotel guestrooms requiring wireless scene control stations at 230VAC
- Retrofit installations where wall cavities limit wiring access
- International residential automation systems outside North America
- Multi-room commercial spaces using infiNET EX lighting infrastructure
Technical Specifications
- Control Protocol: infiNET EX (2.4 GHz wireless)
- Supply Voltage: 230VAC, 50/60Hz (line-powered)
- Form Factor: Single-gang in-wall
- Color: White
- Wiring: No separate control wiring required
FAQs
How does the CLWI-KPLEX-W communicate with the Crestron processor?
The CLWI-KPLEX-W uses the infiNET EX wireless mesh protocol. It requires an infiNET EX gateway (such as the CEN-GWEXER) connected to the Crestron control processor. No physical low-voltage cable runs between the keypad and the controller.
Can this keypad be mixed with Cresnet keypads in the same system?
Yes. Crestron systems can combine infiNET EX wireless devices and Cresnet wired devices on the same control processor. Contact Creation Networks for system design assistance.
