Product Overview

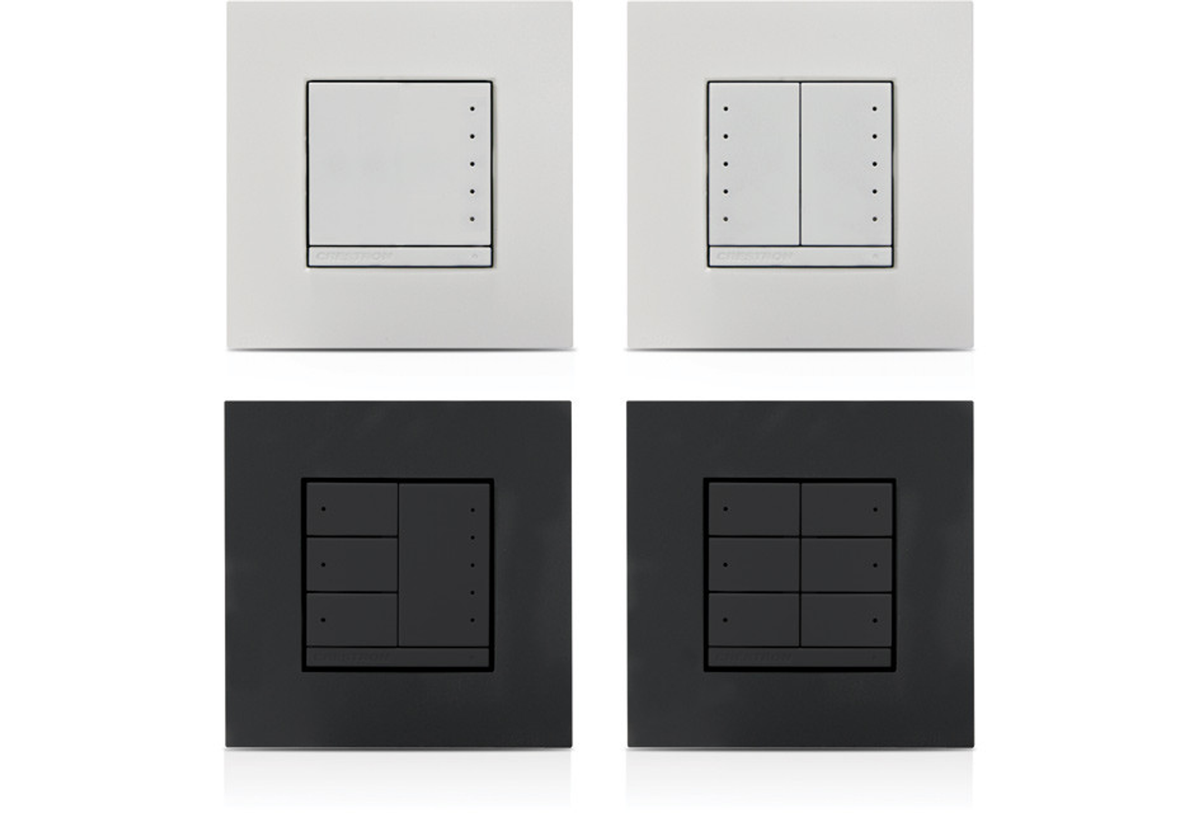

The Crestron CLWI-KPLEX-ANTH is a Cameo Wireless in-wall companion keypad for 230 VAC installations in Anthracite finish. It communicates via infiNET EX 2.4 GHz wireless and provides up to six programmable buttons for lighting scene selection, AV source control, and system commands in European and international deployments.
Product Description
The CLWI-KPLEX-ANTH is the companion keypad for CLWI Wireless dimmers and switches in 230V markets. Line-powered at 220–240 VAC, it requires no Cresnet wiring. Buttons are field-replaceable and engravable, configurable as a single rocker or any combination of up to two small rockers and two three-button strips for a maximum of six buttons, each supporting single tap, double tap, and press-and-hold events. It mounts in a 1-gang UK (BS 4662) or European (DIN 49073) box, with faceplate from the FP-INTENSE or FP-PURE series sold separately. A compatible infiNET EX gateway is required and sold separately. For ordering, visit creationnetworks.net.
Key Features
- 230V line-powered companion keypad for CLWI Wireless dimmers and switches
- Anthracite finish with engravable, field-replaceable button assembly (up to 6 buttons)
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; 150 ft (46 m) indoor range
- 1-gang UK (BS 4662) or EU (DIN 49073) box mounting
- Button events: single tap, double tap, press and hold per button
- Dimensions: 2.80 × 2.80 × 1.24 in. (72 × 72 × 32 mm)
- Required gateway (sold separately): CEN-GWEXER, DIN-AP3MEX, or MC3
- Required faceplate (sold separately): FP-INTENSE or FP-PURE series
Typical Applications
- Secondary lighting scene and AV control locations alongside CLWI dimmers in 230V installations
- Entry/exit scene activation keypads in European commercial offices and conference rooms
- Companion control positions in multi-gang CLWI Cameo Wireless lighting deployments
- International hospitality and residential projects requiring a coordinated Anthracite wireless device suite
Technical Specifications
| Specification | Value |
|---|---|
| Communication | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| RF Range (Indoor) | 150 ft (46 m) |
| Power | 220–240 VAC, 50/60 Hz |
| Buttons | Up to 6 (configurable); engravable, field-replaceable |
| Finish | Anthracite |
| Mounting | 1-gang UK BS 4662 or EU DIN 49073 box |
| Dimensions (H × W × D) | 2.80 × 2.80 × 1.24 in. (72 × 72 × 32 mm) |
| Operating Temperature | 32°–104°F (0°–40°C) |
Frequently Asked Questions
- Is this keypad compatible with 120V North American installations?
- No. The CLWI-KPLEX-ANTH is rated for 220–240 VAC and is designed for European and international 230V markets. For North American companion keypads, use the HZ2-KPEX or CM2-KPCN series.
- Does this keypad control a load directly?
- No. It is a companion keypad only. Load control requires a paired CLWI dimmer or switch, either via wireless command through the Crestron system or by the system routing the button command to the appropriate load controller.
- Is a faceplate included?
- No. An FP-INTENSE or FP-PURE series faceplate is sold separately and required for installation.
