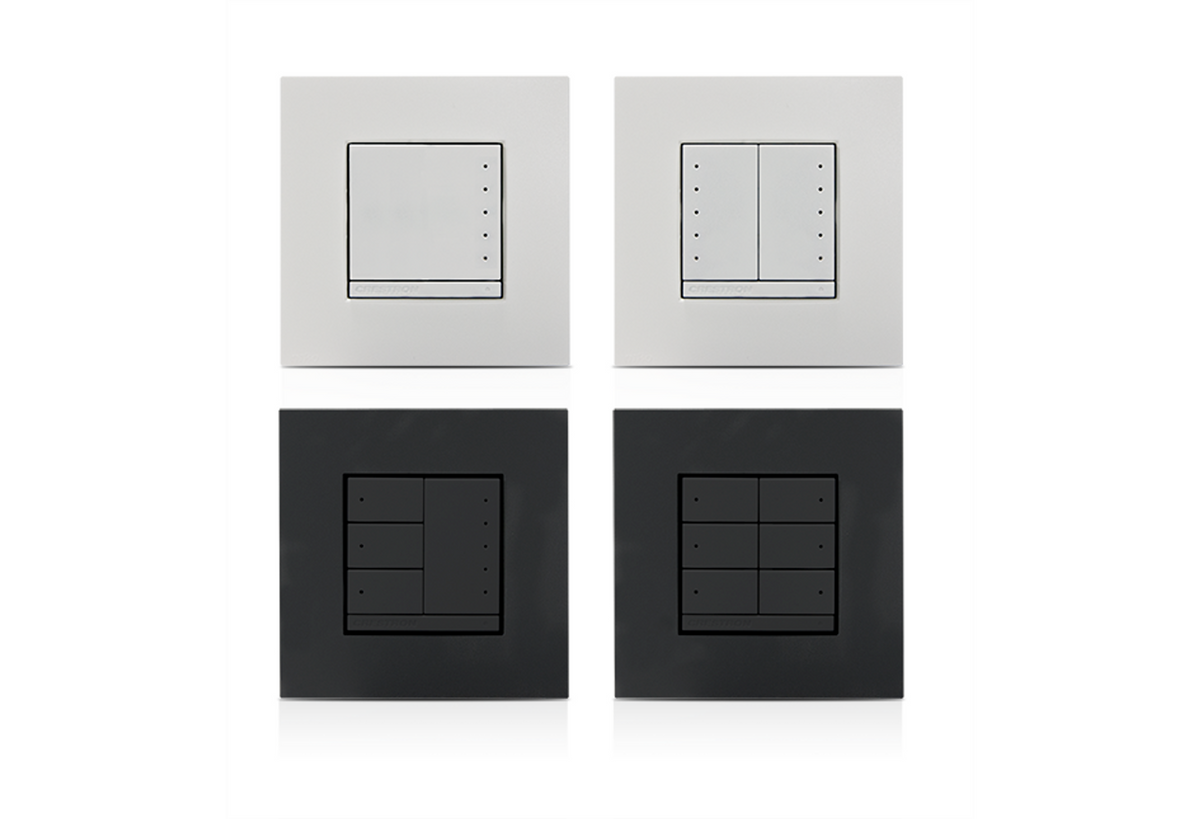

Crestron CLWI-DIMUEX-ANTH – Universal Phase In-Wall Dimmer, 230VAC, Anthracite
Crestron CLWI-DIMUEX-ANTH – Universal Phase In-Wall Dimmer, 230VAC, Anthracite is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CLWI-DIMUEX-ANTH – Universal Phase In-Wall Dimmer, 230VAC,...
Product Overview
The Crestron CLWI-DIMUEX-ANTH is a universal phase in-wall dimmer module designed for international installations operating at 230VAC. Finished in anthracite, it integrates with the Crestron infiNET EX wireless lighting control ecosystem and Cresnet wired networks, providing AV integrators and facilities teams a single-gang dimming solution for a wide range of lamp types.
Product Description
The CLWI-DIMUEX-ANTH installs in a standard single-gang European back box and supports universal phase dimming, making it compatible with leading-edge (TRIAC), trailing-edge (ELV), and dimmable LED/CFL loads. The anthracite finish coordinates with the CLWI series faceplate and button cap options, enabling consistent aesthetics across multi-room and commercial projects. The module communicates over infiNET EX for wireless deployments or can be wired via Cresnet where a wired backbone is preferred.
Key Features
- Universal phase dimming — compatible with leading-edge, trailing-edge, dimmable LED, and dimmable CFL loads
- 230VAC supply voltage for international installations
- infiNET EX wireless mesh communication for cable-free installations
- Cresnet wired communication option for structured wiring environments
- Single-gang form factor installs in standard European wall boxes

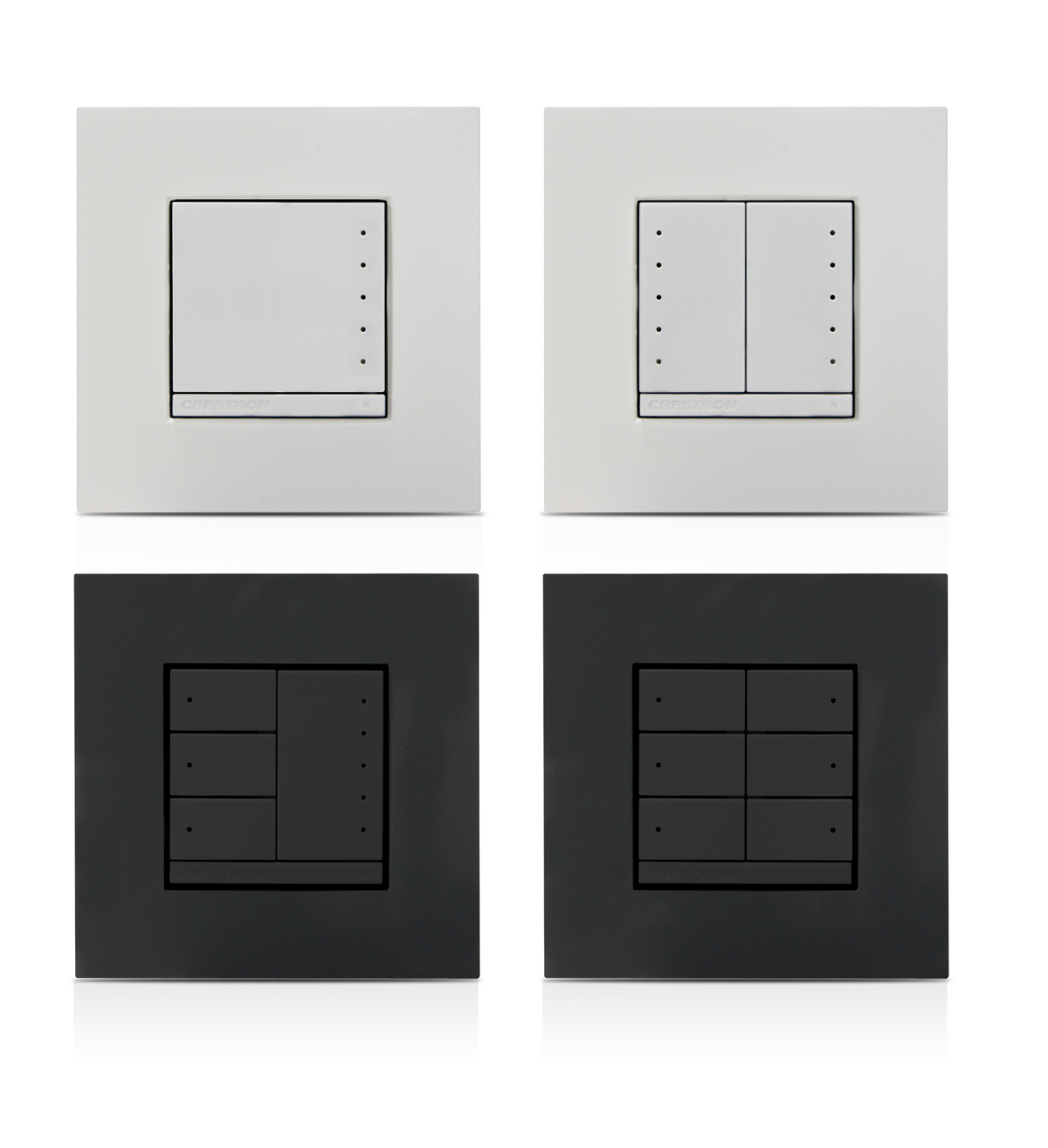

- Anthracite finish coordinates with CLWI series accessories
- Local dim/bright button with programmable rocker and engraving capability
Typical Applications
- Commercial lighting control in EU/UK office and hospitality environments
- Residential automation projects requiring wireless dimming without dedicated wiring runs
- Conference rooms and boardrooms with mixed lamp type inventories
- Retrofit dimming projects where additional control wiring is not feasible
Technical Specifications
- Supply Voltage: 230VAC, 50/60 Hz
- Dimming Method: Universal phase (leading-edge and trailing-edge)
- Form Factor: Single-gang, European
- Communication: infiNET EX wireless; Cresnet
- Finish: Anthracite
- Compatible Series: CLWI In-Wall Dimmer and Switch Series
FAQs
Is the CLWI-DIMUEX-ANTH compatible with standard LED lamps?
Yes. The universal phase dimming circuit supports dimmable LED and dimmable CFL lamps in addition to incandescent and halogen loads.
Does this dimmer require a Crestron processor?
The CLWI-DIMUEX-ANTH can operate as a standalone dimmer with local button control, or it can be integrated into a Crestron system via infiNET EX wireless or Cresnet wired communication. A Crestron processor is required for programmatic control and scene management.
Where can I purchase the CLWI-DIMUEX-ANTH?
The CLWI-DIMUEX-ANTH is available at creationnetworks.net.
