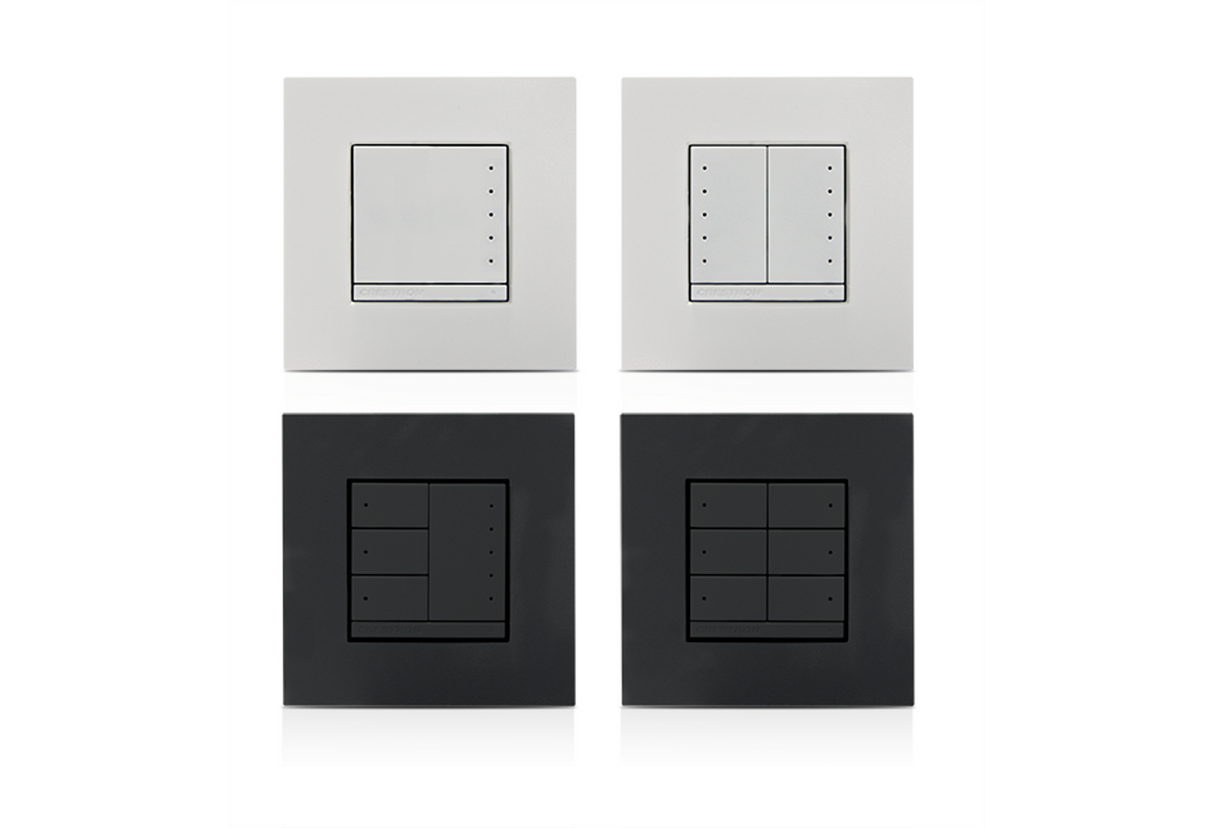

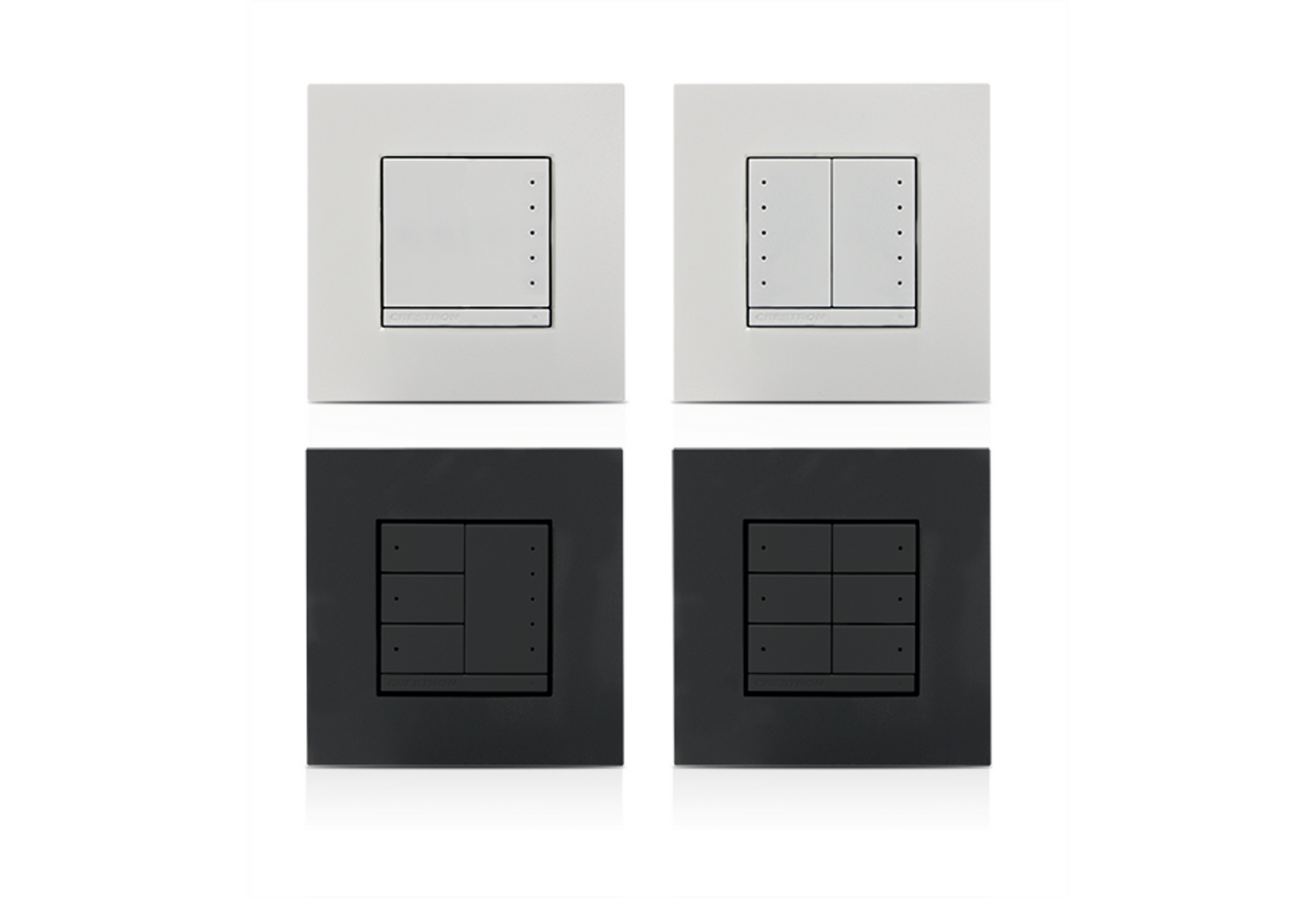

Crestron CLWI-DIMFLVEX-ANTH – Cameo Wireless 0-10V Dimmer, 230V, Anthracite
Crestron CLWI-DIMFLVEX-ANTH – Cameo Wireless 0-10V Dimmer, 230V, Anthracite is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CLWI-DIMFLVEX-ANTH – Cameo Wireless 0-10V Dimmer, 230V, An...
Product Overview
The Crestron CLWI-DIMFLVEX-ANTH is a Cameo Wireless in-wall 0-10V dimmer for 230 VAC applications, finished in Anthracite. It provides native Crestron control over 0-10V LED drivers and fluorescent ballasts via infiNET EX 2.4 GHz wireless in new construction and retrofit installations.
Product Description
The CLWI-DIMFLVEX-ANTH mounts in a standard 1-gang 35 mm deep electrical box and accepts 220–240 VAC. It delivers a 0–10 VDC control signal (30 mA sink per channel) for compatible LED drivers and ballasts while switching the load via line-voltage output. Buttons are field-replaceable and engravable, configurable as a single rocker or up to two small rockers plus button pads for a maximum of six buttons, each supporting single click, double click, and hold functions. Up to 10 white LED bargraph indicators provide visual feedback. A separate faceplate from the FP-INTENSE or FP-PURE series (sold separately, available in 18 finishes up to 5-gang) is required. An infiNET EX gateway is required and sold separately. For ordering, visit creationnetworks.net.
Key Features
- 0-10V dimming output for LED drivers and fluorescent ballasts; 30 mA sink per channel; minimum 7W load
- 230 VAC (220–240 V, 50/60 Hz) for European and international installations
- Anthracite finish with engravable, field-replaceable button assembly (up to 6 buttons)
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- Up to 10 white LED bargraph indicators; up to 3 functions per button press
- Gangable horizontally and vertically in 35 mm deep boxes
- Dimensions: 2.80 × 2.89 × 1.24 in. (72 × 74 × 33 mm); weight 3.4 oz (95 g)
- Required gateway (sold separately): CEN-GWEXER, DIN-AP3MEX, or MC3
- Required faceplate (sold separately): FP-INTENSE or FP-PURE series
Typical Applications
- 0-10V LED driver dimming in 230V commercial offices and conference rooms with Crestron automation
- Retrofit lighting control in European or international installations where Cresnet wiring is not available
- Architectural LED dimming in hotels, hospitality venues, and institutional facilities on 230V systems
- Multi-room Crestron Home lighting control in 230V residential markets
Technical Specifications
| Specification | Value |
|---|---|
| Dimming Technology | 0-10 VDC |
| Load Types | 0-10V LED drivers, fluorescent ballasts (4-wire) |
| Maximum Load | 2 A; 30 mA sink per channel |
| Minimum Load | 7 W |
| Dim Control Output | 0–10 VDC, 30 mA sink |
| Power | 220–240 VAC, 50/60 Hz |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| RF Range (Indoor) | 150 ft (46 m) |
| Finish | Anthracite; engravable buttons |
| Buttons | Up to 6 (configurable); up to 10 white LED indicators |
| Dimensions (H × W × D) | 2.80 × 2.89 × 1.24 in. (72 × 74 × 33 mm) |
| Weight | 3.4 oz (95 g) |
| Operating Temperature | 32°–104°F (0°–40°C) |
Frequently Asked Questions
- Is the CLWI-DIMFLVEX-ANTH compatible with 120V North American installations?
- No. This product is rated for 220–240 VAC (230V) applications and is intended for European and international markets. For 120 VAC North American 0-10V dimming, use the HZ2-DIMLVEX series instead.
- Does this device require an infiNET EX gateway?
- Yes. A compatible infiNET EX gateway (CEN-GWEXER, DIN-AP3MEX, or MC3) is required and sold separately for integration with a Crestron control system.
- Is a faceplate included?
- No. The CLWI series requires a separately purchased faceplate from the FP-INTENSE or FP-PURE series, available in 18 color and finish options for 1- to 5-gang configurations.
