Crestron CLTI-2DIM8 – High-Voltage Wiring Terminal Block for CLXI-2DIM8 Lighting Module
Crestron CLTI-2DIM8 – High-Voltage Wiring Terminal Block for CLXI-2DIM8 Lighting Module is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CLTI-2DIM8 – High-Voltage Wiring Terminal Block for CLXI-2...
Product Overview

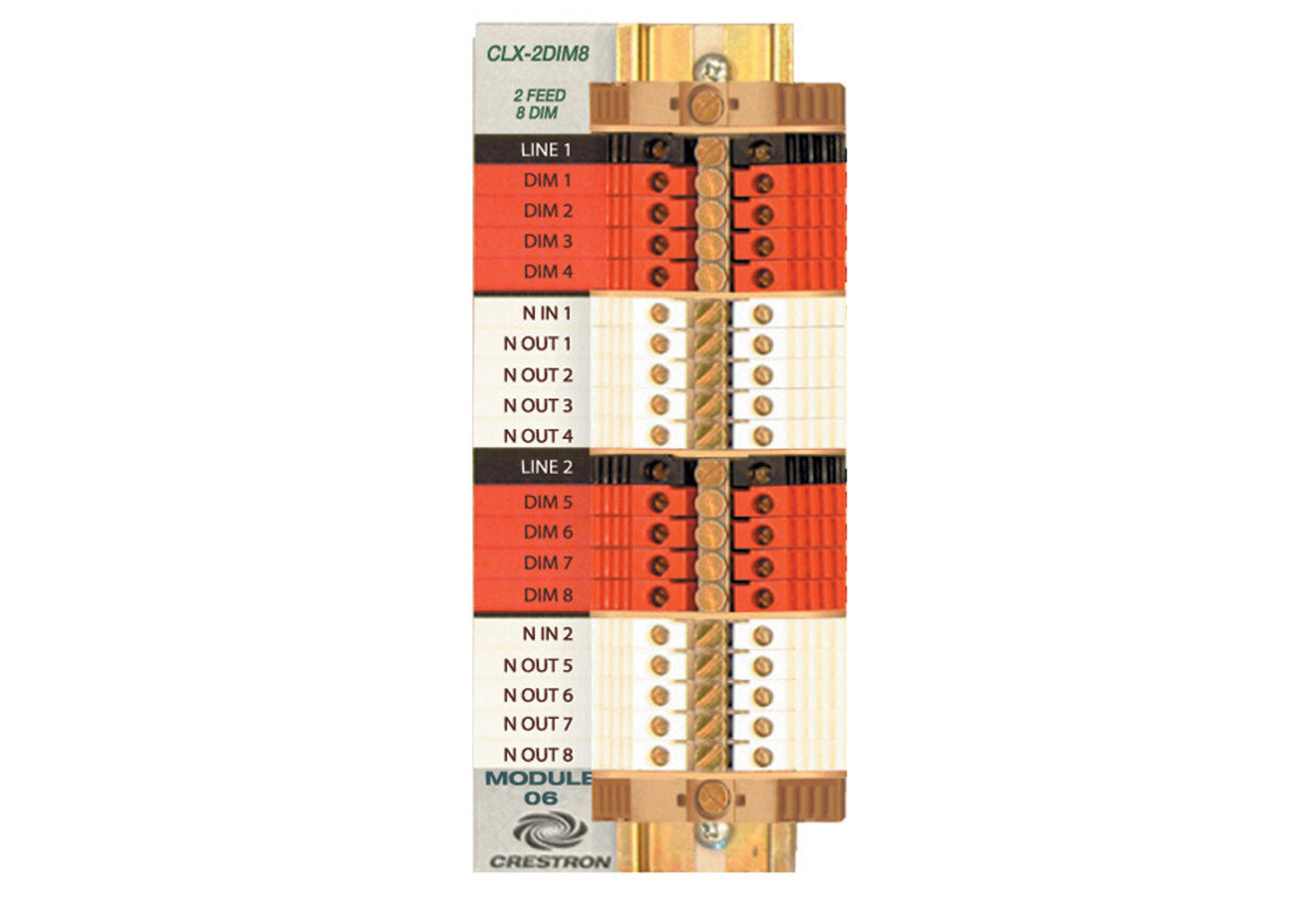

The Crestron CLTI-2DIM8 is a high-voltage wiring terminal block designed for use with the CLXI-2DIM8 lighting control module inside Crestron CAEN or CAENIB automation enclosures. It provides eight dimmer circuit outputs and two feed inputs (LINE + NEUTRAL), supporting incandescent, magnetic low-voltage, neon/cold cathode, and dimmable two-wire fluorescent loads. Maximum load capacity is 16A per controlled circuit and 16A per group of four circuits.
Product Description

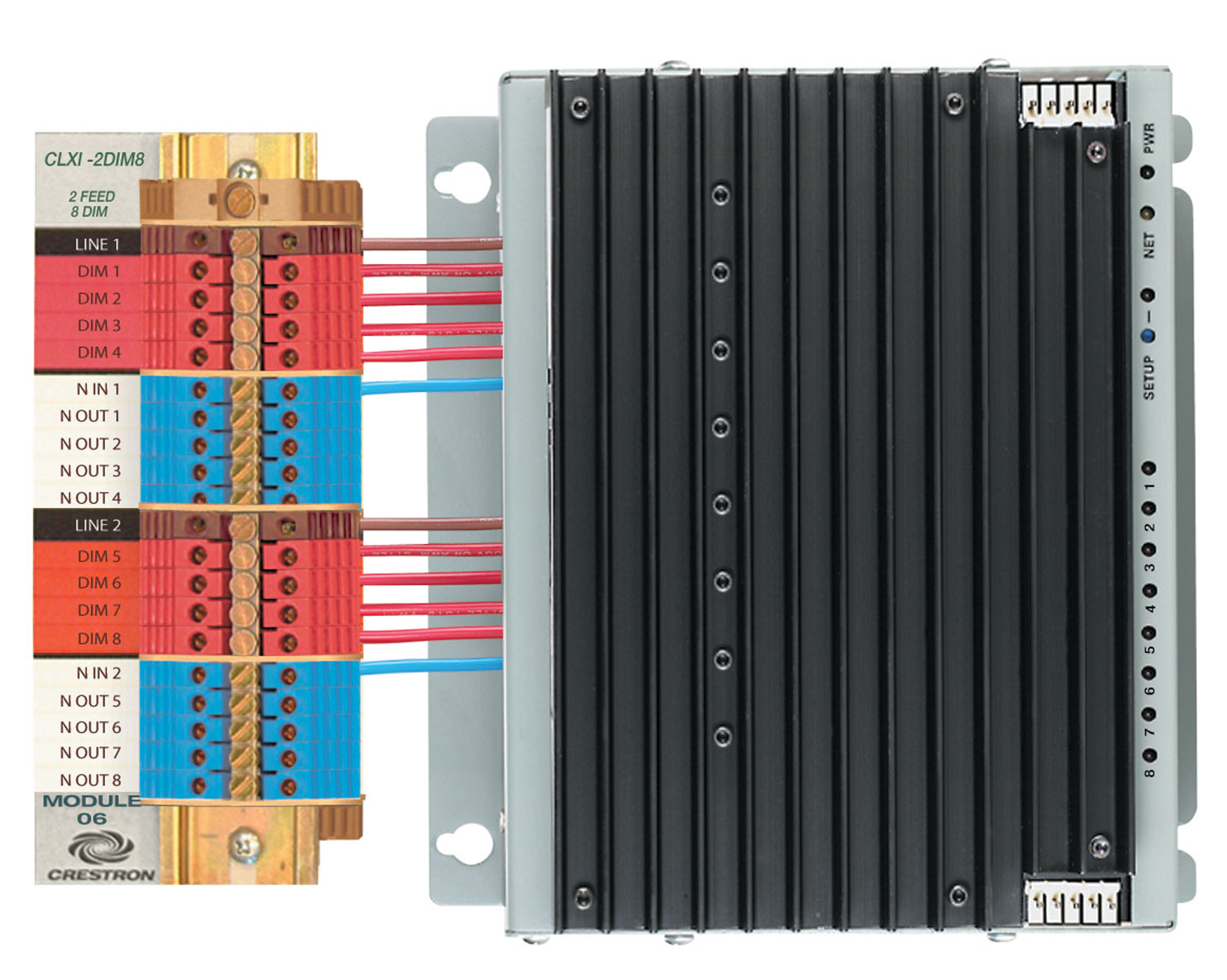

In Crestron centralized lighting control architectures, the CLXI-2DIM8 dimming module handles the control logic while the CLTI-2DIM8 terminal block handles the high-voltage wiring connections in the enclosure. The terminal block mounts on DIN rail inside the automation enclosure, providing color-coded screw terminals, printed labels, and bypass jumpers for organized, inspectable wiring. This separation of high-voltage wiring from the control module simplifies installation, inspection, and servicing. The CLTI-2DIM8 is the wiring accessory counterpart to the CLXI-2DIM8 module; both are required for a complete installation and are sold separately. A CAEN or CAENIB automation enclosure is also required and sold separately.
Key Features
- High-voltage terminal block for CLXI-2DIM8 lighting control module
- 8 dimmer circuit outputs; 2 feed inputs (LINE + NEUTRAL)
- Maximum load: 16A per controlled circuit; 16A per group of 4 circuits
- Supports incandescent, magnetic low-voltage, neon/cold cathode, dimmable 2-wire fluorescent loads
- DIN-rail mounting in CAEN or CAENIB automation enclosures
- Includes color-coded terminals, printed labels, bypass jumpers
- Weight: 227 g (approx.)
Typical Applications
- Centralized lighting control in CAEN enclosure-based Crestron system deployments
- 8-zone dimming circuit terminations in commercial and residential AV installations
- Lighting control panel wiring inside Crestron automation enclosures
- Retrofit and new-construction projects using CLXI-2DIM8 dimming modules
Technical Specifications
- Compatible Module: CLXI-2DIM8
- Compatible Enclosures: CAEN, CAENIB
- Dimmer Outputs: 8
- Feed Inputs: 2 (LINE + NEUTRAL)
- Max Load: 16A per controlled circuit; 16A per group of 4 circuits
- Load Types: Incandescent, magnetic low-voltage, neon/cold cathode, dimmable 2-wire fluorescent
- Mounting: DIN rail
- Includes: Color-coded terminals, printed labels, bypass jumpers
- Weight: Approx. 227 g
FAQs
- Is the CLXI-2DIM8 module included?
- No. The CLTI-2DIM8 is the high-voltage wiring terminal block accessory only. The CLXI-2DIM8 dimming module is sold separately.
- What enclosure is required?
- The CLTI-2DIM8 is designed for Crestron CAEN or CAENIB automation enclosures, which are sold separately.
- What load types are supported?
- Supported loads include incandescent, magnetic low-voltage, neon/cold cathode, and dimmable two-wire fluorescent. LED and electronic low-voltage loads should be verified for compatibility.
- Where can I purchase the CLTI-2DIM8?
- Available from Creation Networks at creationnetworks.net.
