Crestron CLT-2DIMFLV8 – Terminal Block for CLX-2DIMFLV8 0-10V Dimmer Module

Product Overview

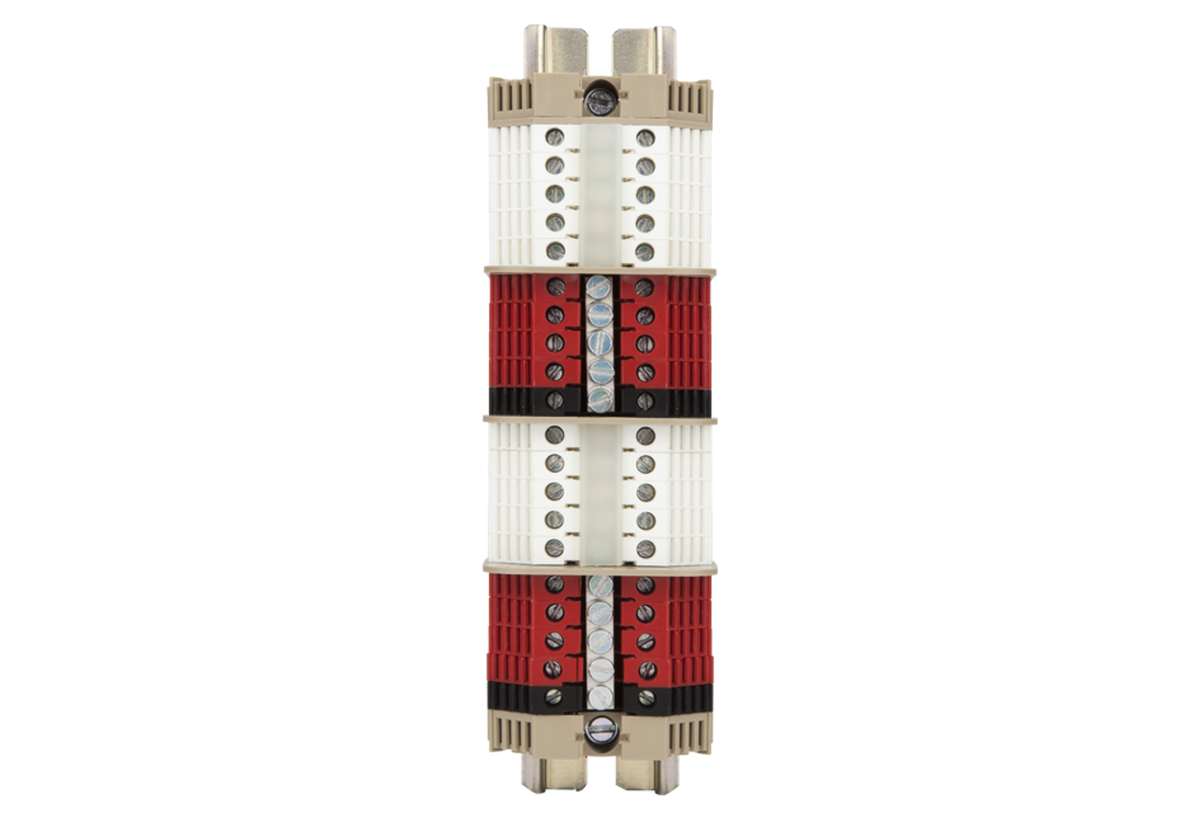

The Crestron CLT-2DIMFLV8 is the color-coded field wiring terminal block for the CLX-2DIMFLV8 eight-channel 0-10V fluorescent/LED dimming module. It installs inside a CAEN or CAEN-MLO enclosure prior to the dimming module itself, allowing electricians to complete and test all line-voltage wiring before the control module is installed.

Product Description

The CLT-2DIMFLV8 separates the field wiring task from the module installation task, which reduces risk during electrical rough-in. The terminal block accepts two single-phase power feeds and provides screw-terminal connections for the line, neutral, and load wires for all eight dimmer channels. Bypass jumpers are pre-installed on the terminal block to maintain circuit continuity during wiring and testing. These jumpers must remain in place until all wiring has been verified and the CLX-2DIMFLV8 module is ready to install. Color coding on the terminal block guides correct wire placement and matches the wiring labels supplied for single-wide and double-wide enclosures. The terminal block is used with both the CLX-2DIMFLV8 (120 VAC) and CLX-2DIMFLV8-277 (277 VAC) dimming modules.

Key Features

• Color-coded terminal block simplifies field wiring for the CLX-2DIMFLV8 dimmer module
• Accepts two single-phase power feeds (can be same or different phases)
• Connects to 14–10 AWG copper conductors rated 75°C or greater
• Pre-installed bypass jumpers maintain circuit continuity during installation and wiring testing
• Compatible with both 120 VAC and 277 VAC CLX-2DIMFLV8 module variants
• Works with CAEN and CAEN-MLO enclosures for centralized lighting panel installation
• Adhesive wiring labels included for left-side and right-side double-wide enclosure layouts

Typical Applications

• Centralized Crestron lighting control panels using CLX-2DIMFLV8 modules in CAEN enclosures
• Retrofit or new-construction installations requiring pre-wired terminal blocks for phased commissioning
• Commercial and residential lighting control where multiple 0-10V fluorescent or LED circuits are controlled from a single enclosure
• Installations requiring separate electrical rough-in and controls finish phases

Technical Specifications

• Model: CLT-2DIMFLV8
• Compatible Module: CLX-2DIMFLV8 (120 VAC), CLX-2DIMFLV8-277 (277 VAC)
• Compatible Enclosures: CAEN series, CAEN-MLO series
• Wire Size: 14–10 AWG copper, rated 75°C minimum
• Terminal Torque: 9 in-lb (line/load); 35–45 in-lb (ground bus, depending on wire gauge)
• Certifications: UL Listed (with CLX-2DIMFLV8 module)

FAQs

Can the CLT-2DIMFLV8 terminal block be wired before the module is installed?

Yes. That is its primary purpose. The terminal block installs first and allows all line-voltage wiring to be completed and tested with bypass jumpers in place. The CLX-2DIMFLV8 module installs after all wiring has been verified and the bypass jumpers are removed from the black and red sections.

Does the CLT-2DIMFLV8 work in double-wide CAEN enclosures?

Yes. The terminal block is compatible with both single-wide and double-wide CAEN enclosures. In double-wide enclosures, the module is rotated 180 degrees when installed on the right side, and right-side adhesive wiring labels (included) are used.

Is this terminal block sold with the CLX-2DIMFLV8 module?

No. The CLT-2DIMFLV8 terminal block is sold separately from the CLX-2DIMFLV8 dimmer module. Both components are required for a complete installation in a CAEN enclosure.
