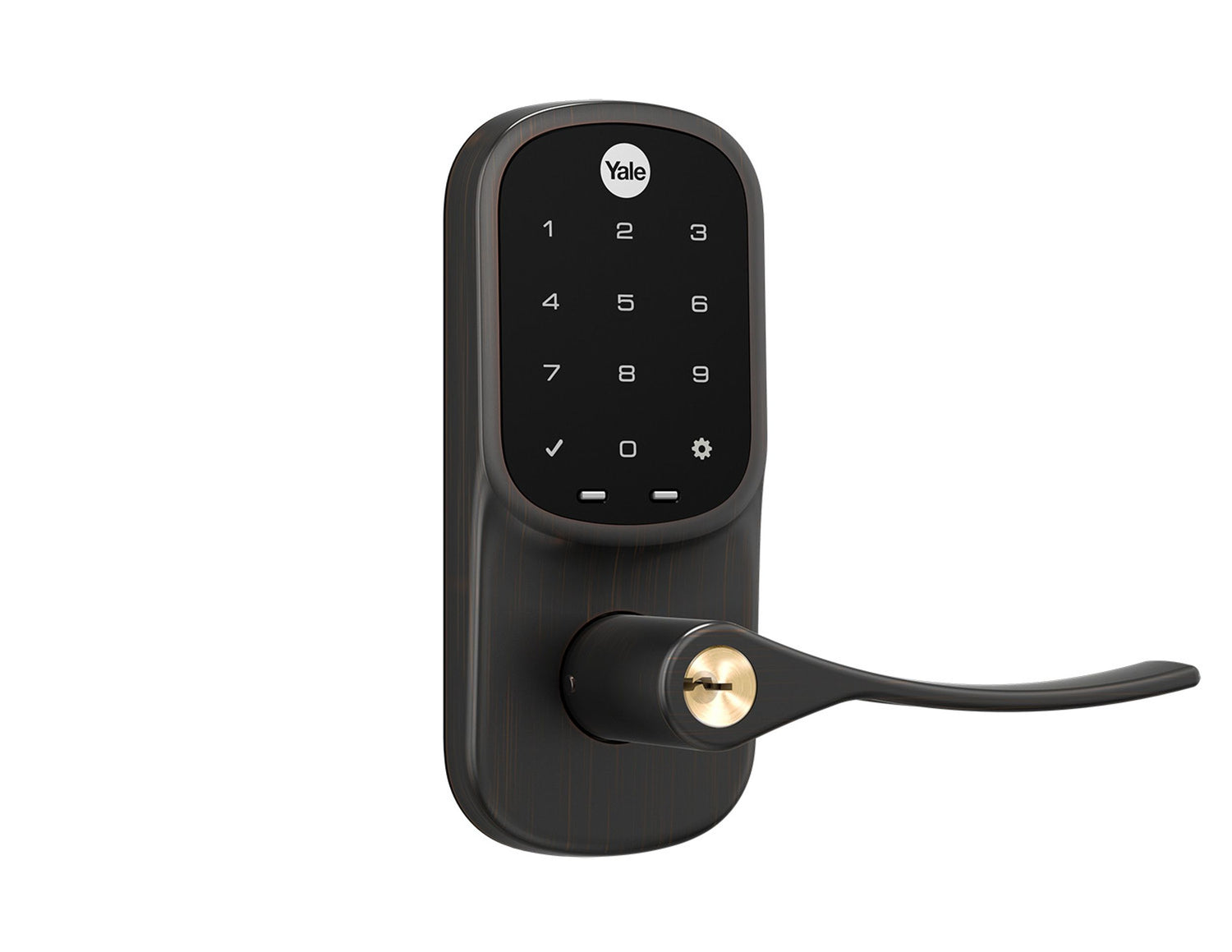

Crestron CLK-YL-YRL226-CR2-OBP – Yale Assure Lever Lock, Touchscreen, Oil Rubbed Bronze

Product Overview

The Crestron CLK-YL-YRL226-CR2-OBP integrates the Yale Assure Lever Lock with a backlit touchscreen keypad and Crestron infiNET EX wireless technology, delivering keyless door access control within a Crestron home or commercial automation system. The Oil Rubbed Bronze finish suits residential and hospitality installations where aesthetic continuity matters.

Product Description

This lever lock replaces a standard door lever and adds PIN-code-based entry without requiring physical keys. It communicates wirelessly via infiNET EX to a Crestron infiNET EX gateway, which then passes lock status and commands to the control processor. Installers program the lock through the Crestron Home or SIMPL/SIMPL# programming environments. The touchscreen keypad provides a backlit interface for entering PINs, checking lock status, and managing access codes. Up to 250 unique PIN codes are supported, including one master PIN. Oil Rubbed Bronze hardware is compatible with a full range of Yale replacement lever styles, cylinders, and latches sold separately by Crestron.

Key Features

• Backlit touchscreen keypad for PIN-code entry and lock status display
• infiNET EX wireless communication integrates directly with Crestron control systems
• Supports up to 250 unique PIN codes including one master PIN
• Oil Rubbed Bronze finish for residential and hospitality applications
• Keyless lever-style door lock replaces standard lever hardware
• Compatible with Yale replacement levers, cylinders, and latches (sold separately)
• Works with Crestron Home OS and SIMPL/SIMPL# programming
• Up to 100 infiNET EX devices per wireless network

Typical Applications

• Residential smart home access control with Crestron Home OS
• Hospitality guest room door management integrated with property automation
• Commercial office or conference room access controlled by a Crestron processor
• Multi-zone residential installations requiring wireless lock integration
• New construction or retrofit projects requiring code-based lever lock access

Technical Specifications

• Model: CLK-YL-YRL226-CR2-OBP
• Wireless Protocol: infiNET EX
• Finish: Oil Rubbed Bronze
• Lock Type: Lever with touchscreen keypad
• PIN Code Capacity: Up to 250 unique codes
• Max infiNET EX Devices per Network: 100
• Compatible Gateways: Crestron infiNET EX Wireless Gateway

FAQs

Does this lock require a Crestron gateway?

Yes. The CLK-YL-YRL226-CR2-OBP uses infiNET EX wireless and requires a compatible Crestron infiNET EX gateway to communicate with the control processor. The gateway is sold separately.

Can this lock be used without a Crestron control system?

The lock includes a standalone touchscreen keypad that allows PIN-code entry independent of the control system. However, full integration—including remote locking, status monitoring, and automation—requires a Crestron processor.

Are replacement lever styles available in Oil Rubbed Bronze?

Yes. Crestron offers a range of Yale lever pair replacements in Oil Rubbed Bronze and other finishes, sold separately, to match or update the aesthetic of the installed lock.
