Crestron CLK-YL-YRL216-CR2-OBP – Yale Assure Lever Lock, infiNET EX, Oil-Rubbed Bronze
Crestron CLK-YL-YRL216-CR2-OBP – Yale Assure Lever Lock, infiNET EX, Oil-Rubbed Bronze is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron CLK-YL-YRL216-CR2-OBP – Yale Assure Lever Lock, infiNET EX...
Product Overview

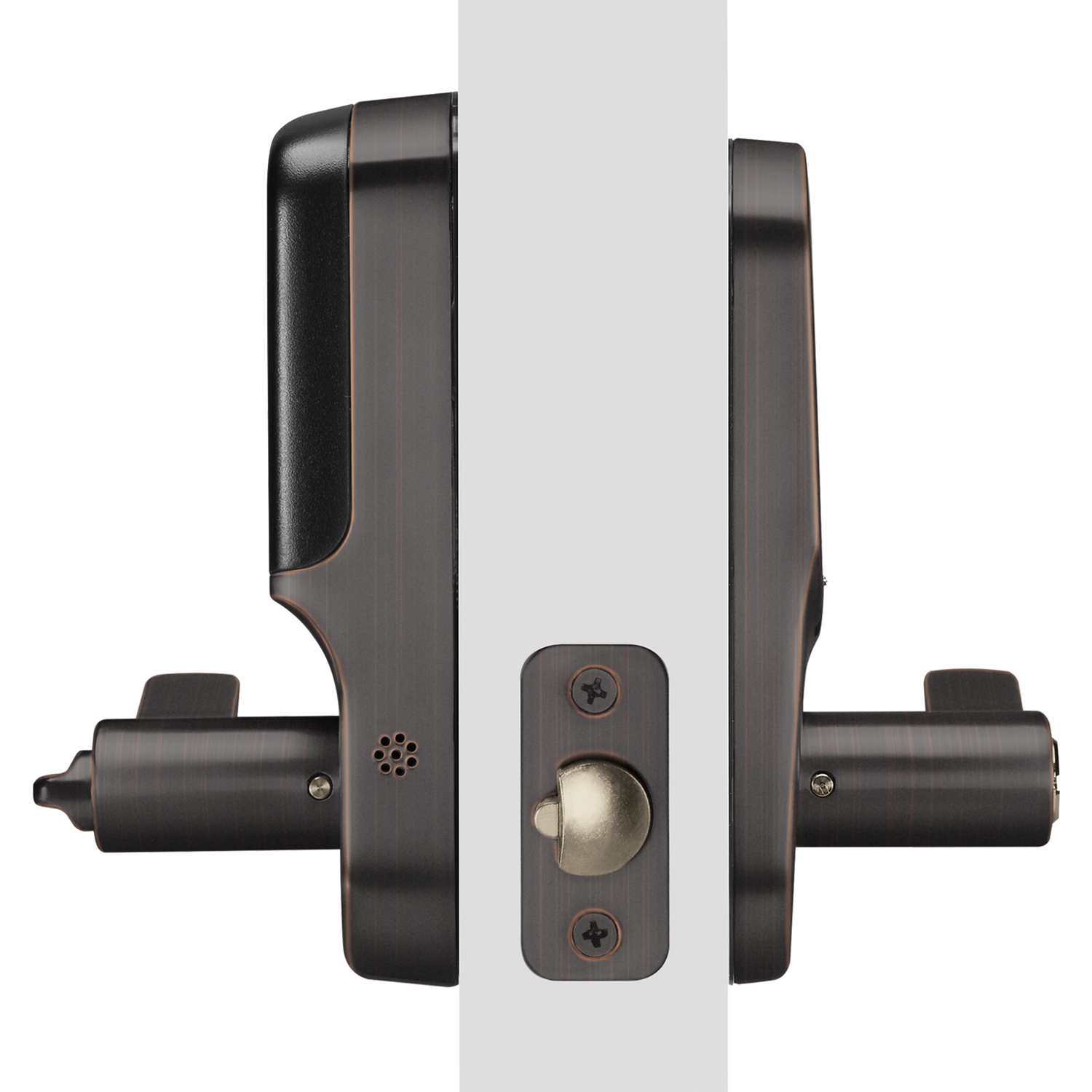

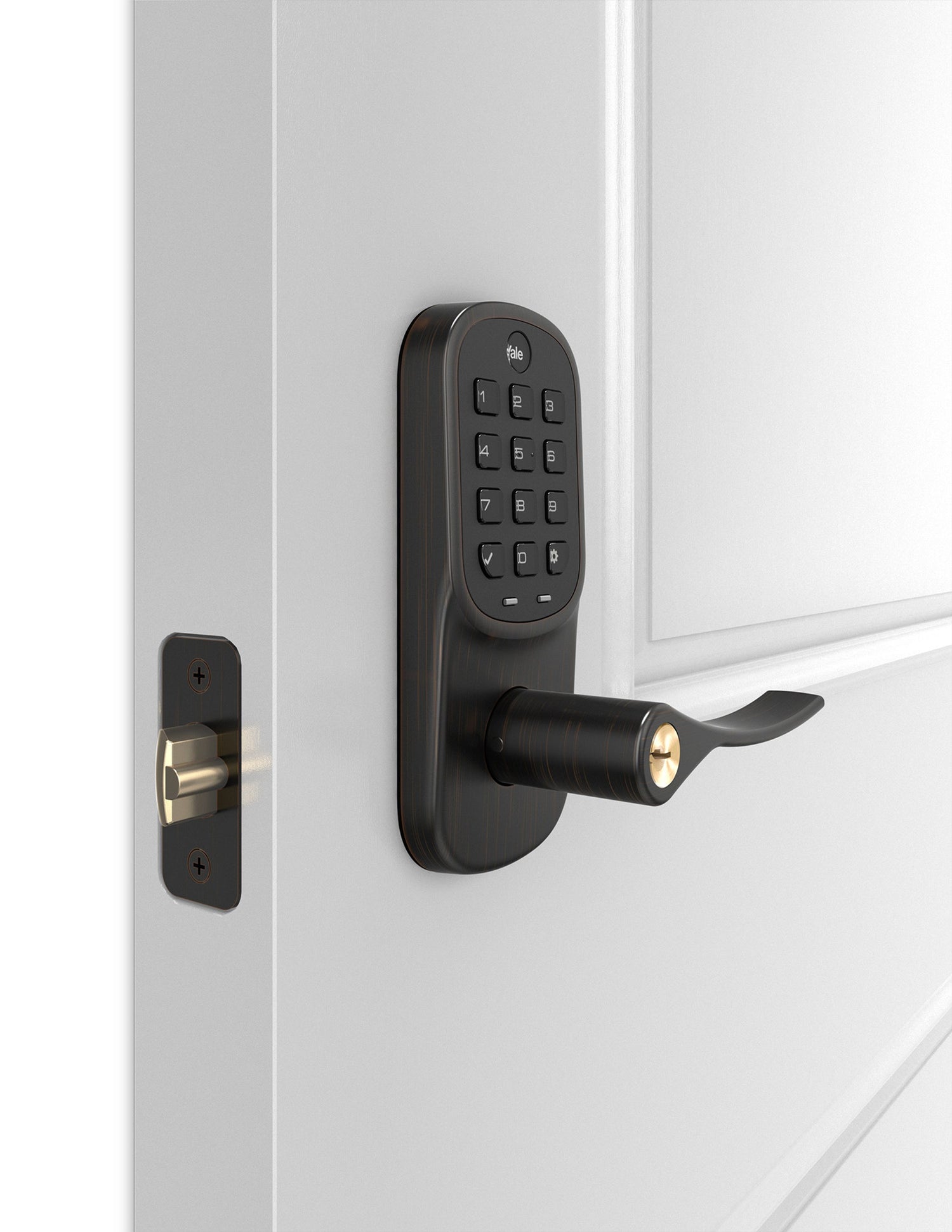

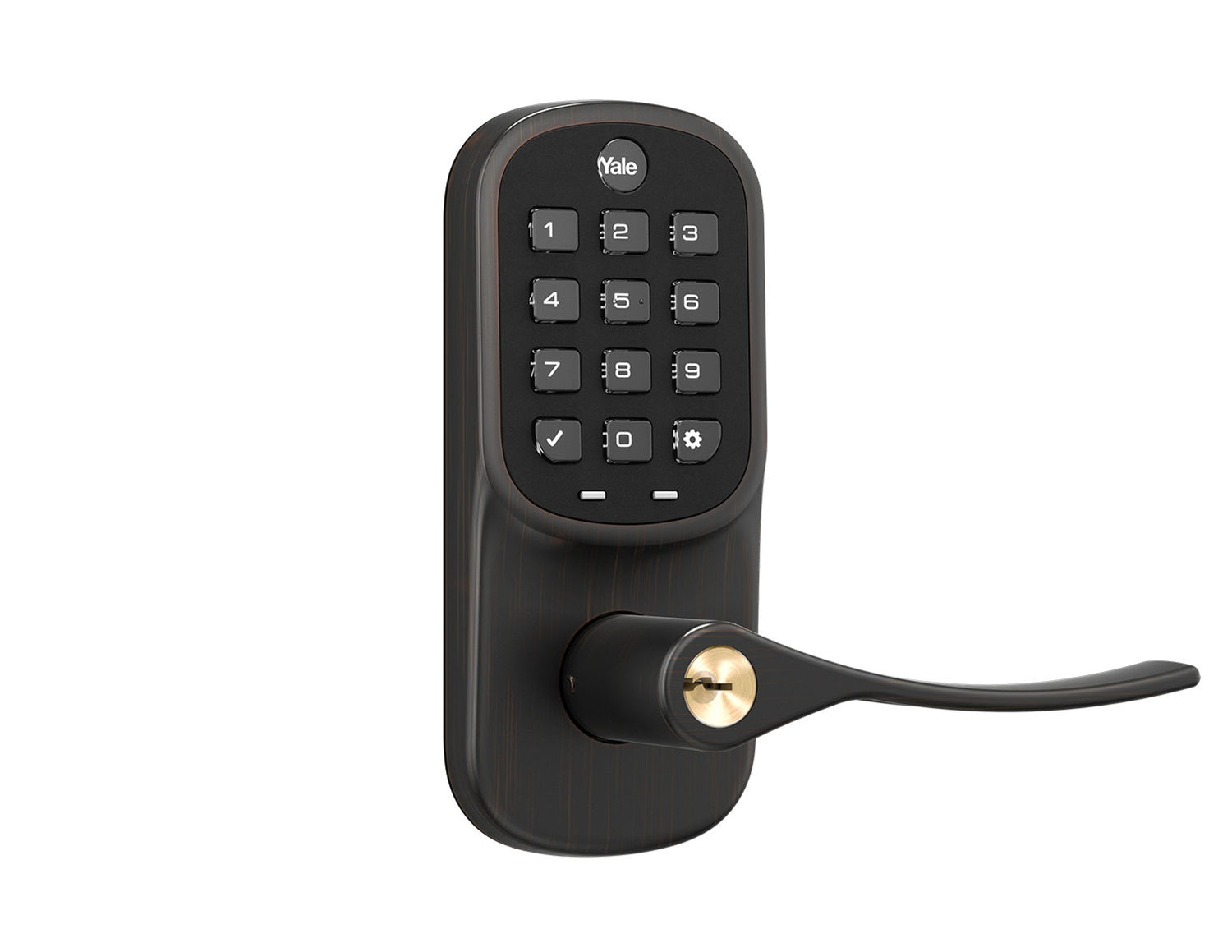

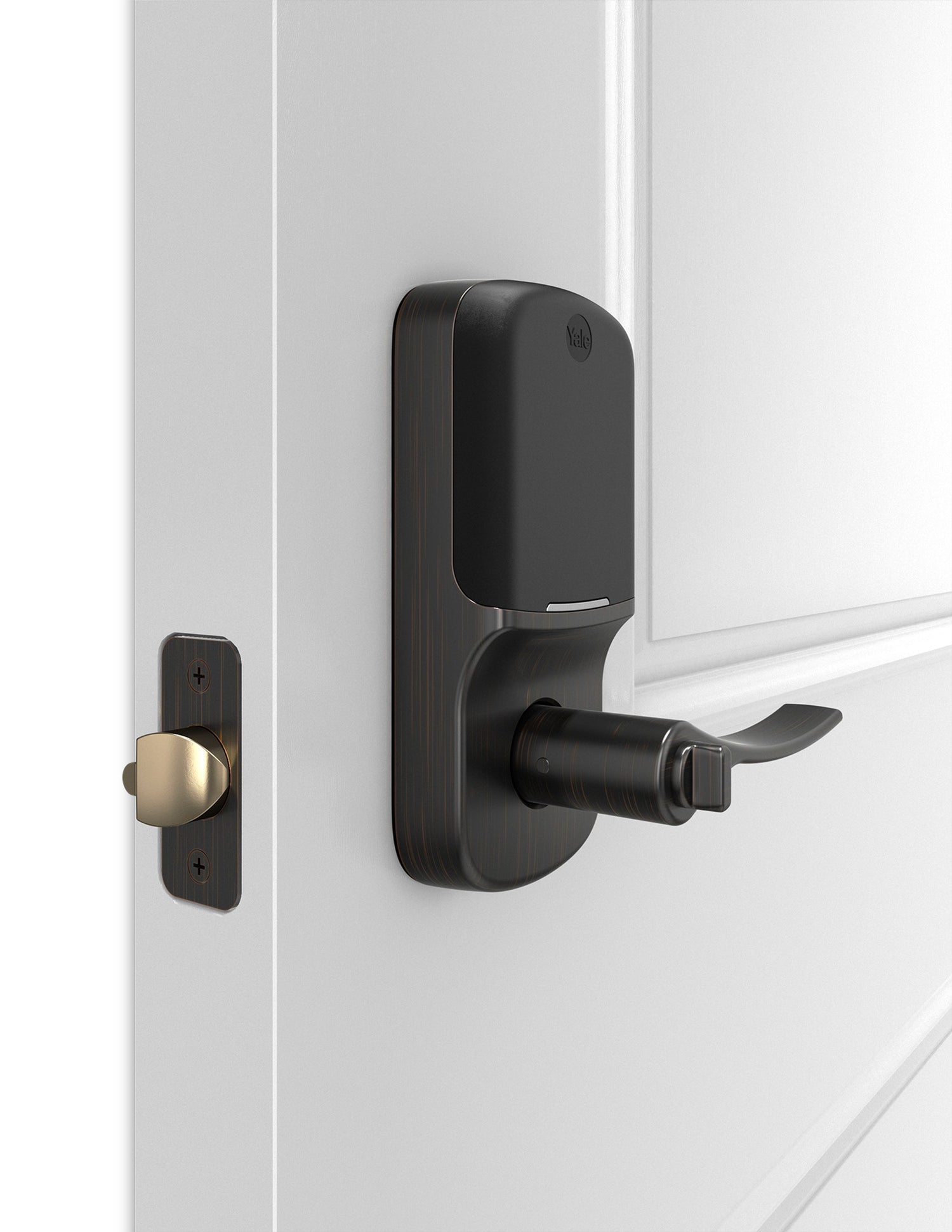

The Crestron CLK-YL-YRL216-CR2-OBP is a Yale Assure Lever lock in Oil-Rubbed Bronze finish, factory-integrated with Crestron infiNET EX wireless technology. It provides keyless PIN code entry via a backlit push-button keypad and communicates lock status and control to a Crestron automation system, making it suitable for secondary and interior doors that do not have a separate deadbolt.
Product Description
The Yale Assure Lever is designed for doors without a deadbolt preparation, such as side entry doors, garage-to-home doors, basement entries, and home office doors. Oil-Rubbed Bronze is a popular choice for residential and light commercial interiors seeking a traditional or craftsman aesthetic. The lock supports up to 250 unique PIN codes, one-touch locking, and Lockout Mode with tamper alarm. A 9 V battery backup terminal provides emergency entry when the four AA batteries are depleted. A compatible infiNET EX gateway (CEN-GWEXER or CEN-GWEXER-PWE) is required and sold separately. This product is for use in the US and Canada only. For ordering and project support, visit creationnetworks.net.
Key Features
- Yale Assure Lever lock with backlit 10-button push-button keypad; Oil-Rubbed Bronze finish
- Designed for doors without a deadbolt preparation (single-point lever locking)
- infiNET EX 2-way RF, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- Wireless range: 150 ft (46 m) indoors / 250 ft (76 m) outdoors
- Up to 250 unique PIN codes; One-Touch Locking; thumb-turn interior locking
- Lockout Mode with audible tamper alarm; scheduled access times
- Text/email lock event notifications; activity log
- Includes 2 physical keys; reversible handing
- Power: 4× 1.5 V AA (included); approximately 1-year battery life; 9 V backup terminal
- Door thickness: 1-3/8 to 1-3/4 in. (35–45 mm); adjustable backset 2-3/8 or 2-3/4 in.
- Weight: 5 lb (80 oz); exterior dimensions: H 6-1/16 × W 2-9/16 × D 2-7/16 in. (154 × 66 × 62 mm)
- US and Canada only
Typical Applications
- Garage-to-home entry doors in residential Crestron automation systems
- Basement and side entry doors requiring keyless access control integrated with AV and security
- Home office doors in executive residences with Crestron access monitoring
- Light commercial secondary doors where a lever-only lock meets code requirements
Technical Specifications
| Specification | Value |
|---|---|
| Lock Type | Lever handle (no deadbolt) |
| Finish | Oil-Rubbed Bronze (OBP) |
| Keypad | 10-button backlit push-button |
| PIN Codes | Up to 250 unique |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| Required Gateway | CEN-GWEXER or CEN-GWEXER-PWE (sold separately) |
| Door Thickness | 1-3/8 to 1-3/4 in. (35–45 mm) |
| Backset | 2-3/8 or 2-3/4 in. (adjustable) |
| Handing | Reversible |
| Exterior Dimensions (H × W × D) | 6-1/16 × 2-9/16 × 2-7/16 in. (154 × 66 × 62 mm) |
| Interior Dimensions (H × W × D) | 6-3/8 × 2-3/4 × 3 in. (163 × 69 × 77 mm) |
| Weight | 5 lb (80 oz) |
| Power | 4× 1.5 V AA (included); 9 V backup terminal |
| Battery Life | Approximately 1 year |
| Operating Temp (Exterior) | -22° to 140°F (-30° to 60°C) |
| Certifications | ANSI/BHMA Grade 2 |
| Geographic Availability | US and Canada only |
Frequently Asked Questions
- Is this lock suitable for exterior front doors?
- The Yale Assure Lever is designed for secondary and interior doors that do not require a deadbolt. For primary entry doors requiring deadbolt security, use the Crestron CLK-YL-YRD614 series deadbolt.
- Can the lock be integrated with a full Crestron Home automation system?
- Yes. When connected via a compatible infiNET EX gateway, the CLK-YL-YRL216-CR2-OBP integrates with Crestron Home OS, enabling lock events to trigger scenes, send notifications, or interact with lighting and camera systems.
- How many PIN codes can be programmed?
- Up to 250 unique PIN codes can be stored, including scheduled access codes that are only active during defined time windows.
