Crestron CLK-YL-YRD654-CR2-P05 – Yale Pro 2 Key Free Touchscreen Deadbolt, Lifetime Brass

Product Overview

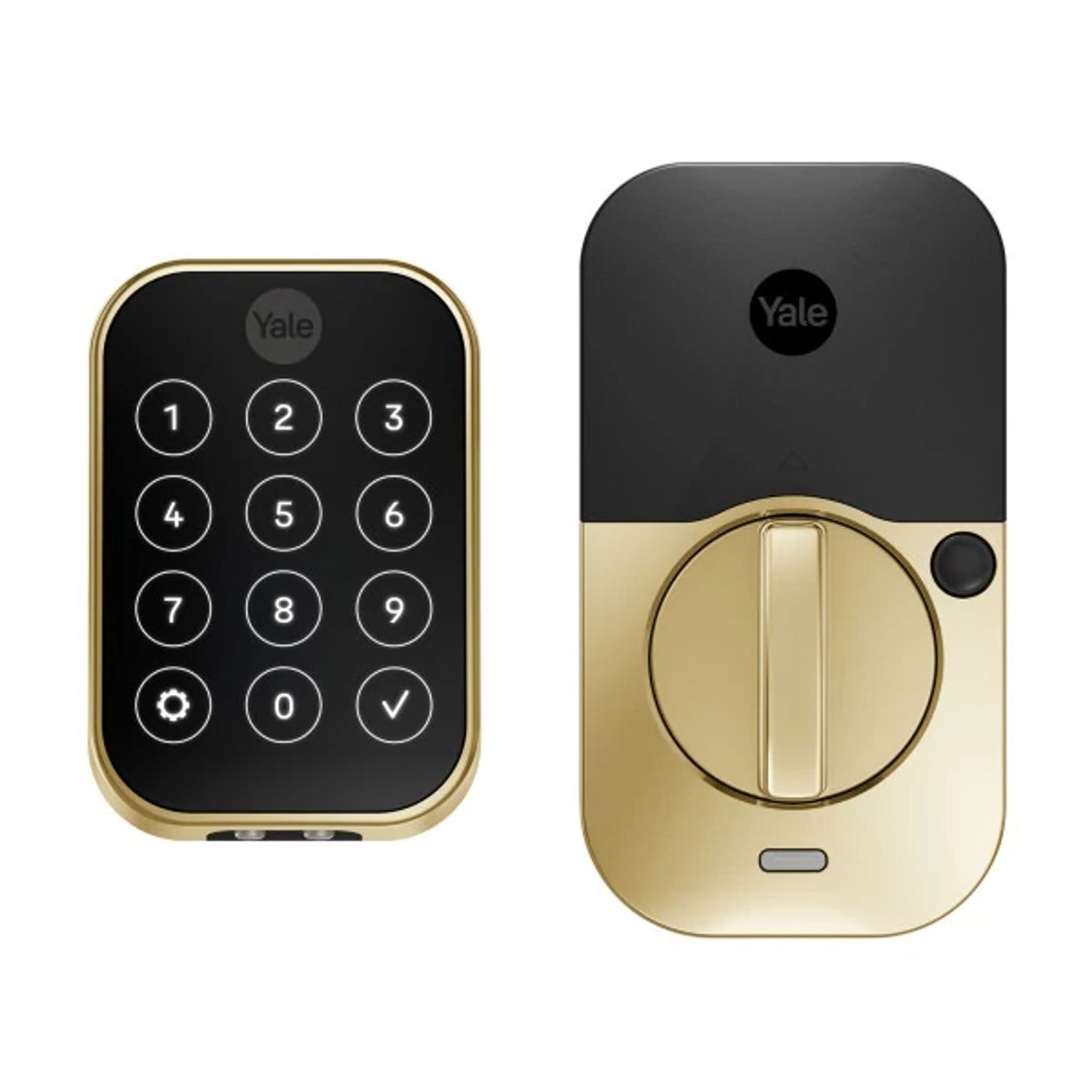

The Crestron CLK-YL-YRD654-CR2-P05 is a Yale Pro 2 key-free deadbolt with a backlit capacitive touchscreen keypad, finished in Lifetime Brass and integrated with Crestron's infiNET EX wireless mesh network. Designed for residential and light commercial applications, this lock eliminates physical keys entirely while providing secure, auditable PIN-code access and full integration with Crestron Home OS. The lock communicates bidirectionally over the 2.4 GHz IEEE 802.15.4 mesh, enabling status monitoring and control from any Crestron system.

Product Description

The YRD654 platform combines a touchscreen capacitive keypad exterior with Yale's DoorSense closed-door sensor technology, giving the Crestron control system real-time verification of both lock status and door position. Up to 250 unique PIN codes can be programmed, and auto-relock is configurable from 30 seconds to 3 minutes. Bluetooth connectivity supports the Yale Access app for geofencing and proximity-based unlocking, adding a mobile credential layer alongside Crestron control. The Lifetime Brass finish provides a classic, corrosion-resistant aesthetic suitable for entry doors in residential estates, hospitality suites, and managed office environments. Installation covers door thicknesses from 1-3/8 in to 2-1/4 in with an adjustable 2-3/8 in or 2-3/4 in backset.

Key Features

• Key-free deadbolt — no cylinder, no physical key required
• Backlit capacitive touchscreen keypad for PIN-code entry
• infiNET EX bidirectional wireless, 2.4 GHz, IEEE 802.15.4, AES-128 encryption
• DoorSense door-position sensor reports open/closed status to control system
• Up to 250 unique user PIN codes
• Auto-relock configurable from 30 seconds to 3 minutes
• Bluetooth for Yale Access mobile app (geofencing, proximity unlock)
• 9V external battery backup terminal
• Lifetime Brass finish with weather-resistant gasket seal
• ANSI/BHMA A156.36 Grade 2 certified, UL 90-minute fire rating

Typical Applications

• Residential smart home entry door integration with Crestron Home OS
• Hospitality suite access control with automated check-in/check-out logic
• Executive offices and private meeting rooms requiring keyless access and audit trails
• Multi-unit residential properties managed via Crestron XiO Cloud
• Light commercial spaces where physical key management is a liability

Technical Specifications

• Model: CLK-YL-YRD654-CR2-P05
• Weight: 4.5 lb (2.04 kg)
• Exterior Escutcheon: 3.7 in H x 2.5 in W x 0.6 in D
• Interior Escutcheon: 4.9 in H x 2.7 in W x 1.7 in D
• Wireless Protocol: infiNET EX, 2.4 GHz, IEEE 802.15.4, AES-128
• RF Range: 50 ft (15 m) to gateway or mesh node
• Door Thickness: 1-3/8 in to 2-1/4 in (35–57 mm)
• Backset: 2-3/8 in or 2-3/4 in (adjustable)
• Power: 4x AA 1.5V alkaline batteries; 9V backup port
• Operating Temperature (Outside): -22° to 140°F (-30° to 60°C)
• Finish: Lifetime Brass
• Certifications: FCC Part 15 Class B, IC, ANSI/BHMA A156.36 Grade 2, UL 90-min fire rating
• Compatible Gateway: CEN-GW1 or CENI-GW1 (sold separately)

Frequently Asked Questions

Q: Does the CLK-YL-YRD654-CR2-P05 require a separate gateway to work with Crestron?
A: Yes. The lock communicates over infiNET EX and requires a compatible infiNET EX gateway, such as the CEN-GW1 or CENI-GW1, which must be connected to your Crestron control system. The gateway is sold separately.

Q: Can this lock be integrated with Crestron Home OS and programmed for scheduling?
A: Yes. When paired with a Crestron processor running Crestron Home OS, the lock supports event-based automation, scheduled locking and unlocking, and real-time status reporting via the DoorSense sensor.

Q: What happens if the batteries die?
A: The lock includes a 9V external battery terminal on the exterior escutcheon, allowing a standard 9V battery to provide temporary power to retract the deadbolt and gain entry while you replace the four AA internal batteries.
