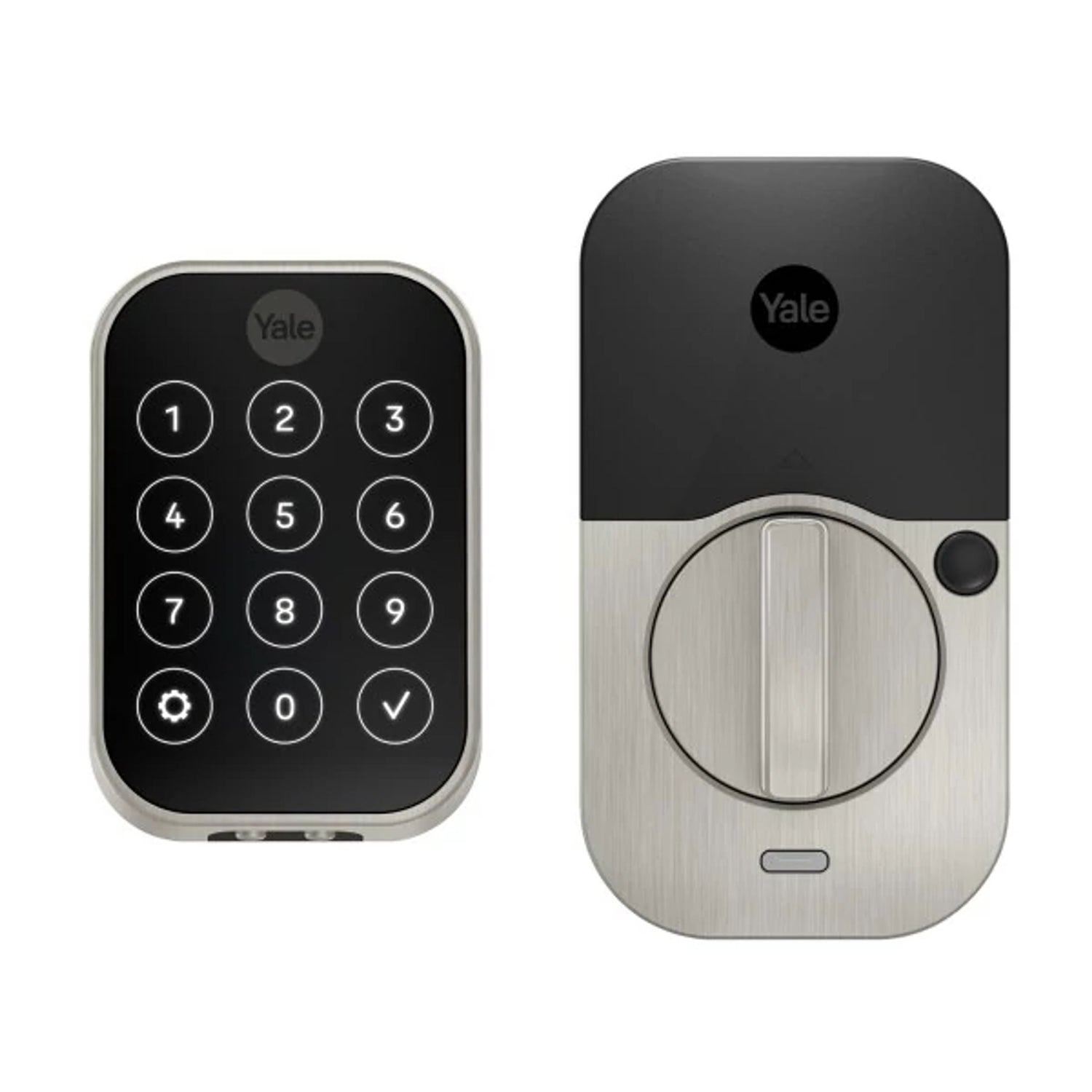

Crestron CLK-YL-YRD654-CR2-619 – Yale Pro 2 Key Free Deadbolt with Touchscreen Keypad, Satin Nickel

Product Overview

The Crestron CLK-YL-YRD654-CR2-619 is a Yale Pro 2 key-free Grade 2 deadbolt with a capacitive touchscreen keypad and infiNET EX wireless communication, finished in Satin Nickel. This model eliminates the exterior key cylinder entirely, providing a clean aesthetic and keyless-only access management. It integrates with Crestron control systems to deliver automated access, real-time status reporting, and event-based door control from a single platform.

Product Description

The key-free design of the CLK-YL-YRD654-CR2-619 means there is no exterior key cylinder, making it suitable for facilities that prioritize PIN-based or remotely managed access without a mechanical key backup option. The touchscreen keypad provides a modern user interface, and the Satin Nickel finish pairs with contemporary door hardware. infiNET EX mesh wireless keeps installation simple by avoiding low-voltage wiring runs to door locations. Crestron integrators can program timed entry windows, occupancy-triggered lock/unlock, and access code management through the Crestron system interface. This combination of Yale hardware quality and Crestron control intelligence makes it a dependable choice for managed residential and hospitality environments.

Key Features

• Key-free deadbolt — no exterior key cylinder for enhanced PIN-only security
• Capacitive touchscreen keypad with backlit display
• infiNET EX 2.4 GHz wireless mesh integration with Crestron systems
• Supports up to 250 user access codes
• Real-time lock/unlock status feedback to Crestron processor
• Auto-lock and timed entry window programming via Crestron
• ANSI/BHMA Grade 2 deadbolt security rating
• Satin Nickel finish for contemporary residential and hospitality hardware

Typical Applications

• Crestron-integrated residential entries where key access is not required
• Hotel and resort guest rooms using Crestron guest room management
• Executive suites and private offices with PIN-controlled entry
• Amenity rooms and common areas in multi-tenant residential buildings
• Vacation rental properties managed remotely with Crestron Home

Technical Specifications

• Model: CLK-YL-YRD654-CR2-619
• Finish: Satin Nickel
• Keypad Type: Capacitive Touchscreen
• Key Cylinder: None (key-free design)
• Communication: infiNET EX 2.4 GHz Wireless Mesh
• Security Grade: ANSI/BHMA Grade 2
• User Codes: Up to 250
• Deadbolt Throw: 1 inch
• Power: 4 x AA batteries
• Compatible Systems: Crestron infiNET EX-enabled processors

Frequently Asked Questions

Q: What is the difference between the YRD654 and YRD624 models?
A: The YRD654 (CLK-YL-YRD654-CR2-619) is key-free, meaning there is no exterior key cylinder. The YRD624 (CLK-YL-YRD624-CR2 series) includes a physical key cylinder as a backup. Choose the YRD654 for installations where PIN-only access is preferred and a mechanical key override is not needed.

Q: Can the lock operate without an active Crestron system connection?
A: Yes. The touchscreen keypad functions independently for PIN code entry even if the Crestron system is offline. However, remote management, status reporting, and automations require an active infiNET EX connection to the Crestron processor.

Q: Does this lock integrate with Crestron Home software?
A: Yes. The CLK-YL-YRD654-CR2-619 is designed for use with Crestron Home and compatible Crestron residential control systems, allowing setup and user code management through the Crestron configuration interface.
