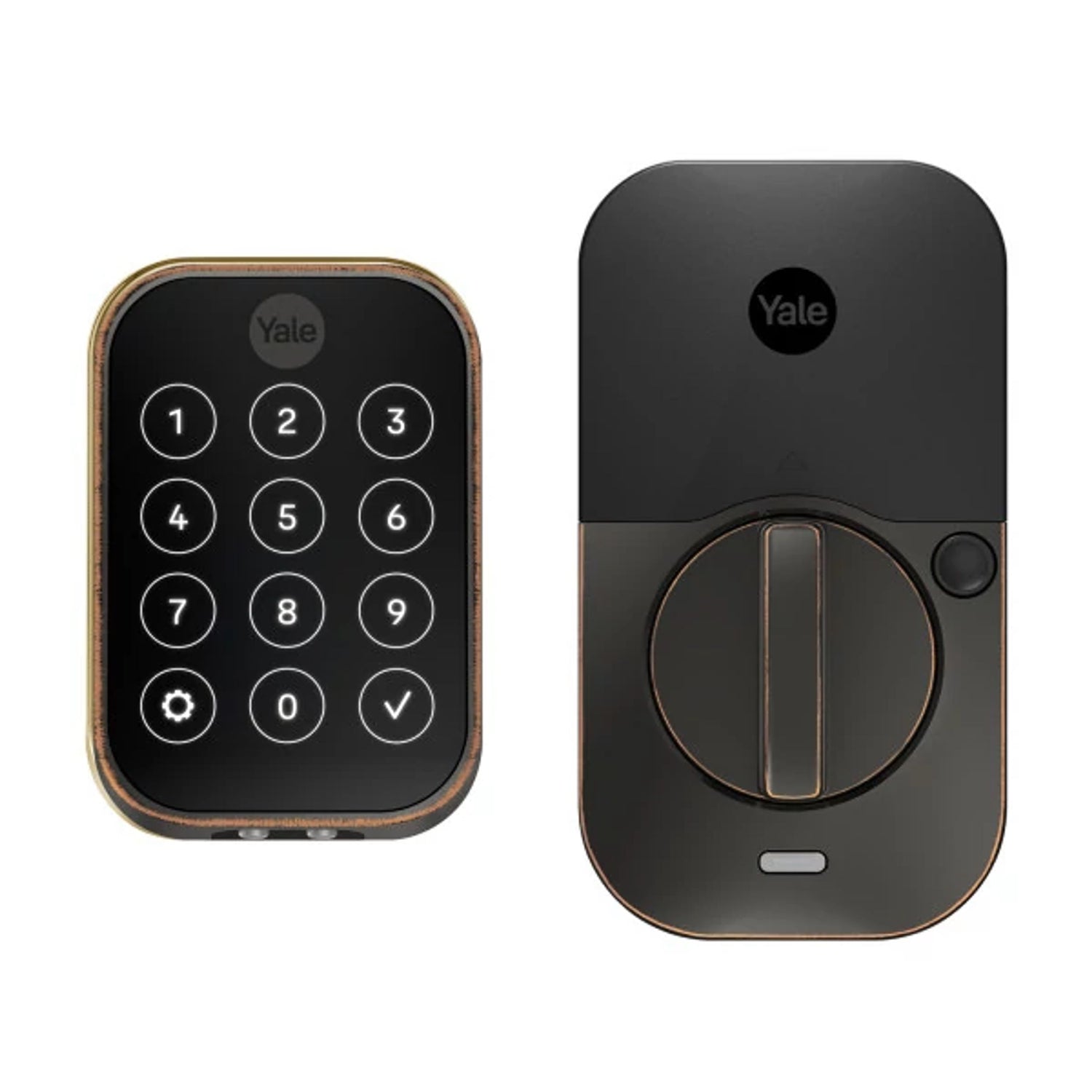

Crestron CLK-YL-YRD654-CR2-0BP – Yale Pro 2 Key Free Touchscreen Deadbolt, Oil Rubbed Bronze

Product Overview

The Crestron CLK-YL-YRD654-CR2-0BP is a Yale Pro 2 key free deadbolt featuring a touchscreen keypad and infiNET EX wireless communication in an oil rubbed bronze finish. This smart lock integrates directly into Crestron automation systems, delivering keyless residential and light commercial access control with remote management capability through the Crestron control platform.

Product Description

The CLK-YL-YRD654-CR2-0BP combines Yale's proven residential deadbolt hardware with Crestron's infiNET EX wireless mesh technology. The key free design eliminates the cylinder entirely, making it well-suited for installations where physical key backup is neither required nor desired. The touchscreen keypad supports PIN entry for up to 250 unique access codes, and the lock communicates wirelessly to a Crestron infiNET EX gateway, where it can be programmed, monitored, and controlled alongside lighting, shading, HVAC, and other building systems.

The oil rubbed bronze finish complements traditional and transitional interior aesthetics. The lock installs on standard US door preps and is compatible with doors from 1-3/8 in. to 2-1/4 in. thick. All programming and status monitoring occur through the Crestron control system, with no separate app or cloud account required for core operation.

Key Features

• Key free deadbolt design — no cylinder, no physical key
• Touchscreen keypad with capacitive touch input and backlit display
• infiNET EX wireless communication for native Crestron integration
• Supports up to 250 user access codes with individual scheduling
• Oil rubbed bronze finish for traditional and transitional installations
• Compatible with standard US single-cylinder door preps
• Low battery indicator and auto-lock feature for added security
• Two-way communication for real-time lock status in the Crestron system

Typical Applications

• Residential smart home installations requiring keyless entry with Crestron integration
• Light commercial spaces such as offices, conference rooms, and hospitality suites
• Multi-room luxury residential projects where unified control of locks and building systems is specified
• Retrofit applications on existing single-cylinder deadbolt door preps

Technical Specifications

• Model: CLK-YL-YRD654-CR2-0BP
• Lock Type: Key free deadbolt
• Keypad Type: Touchscreen
• Finish: Oil Rubbed Bronze
• Wireless Protocol: infiNET EX
• User Codes: Up to 250
• Power: 4x AA batteries (included)
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Handing: Field-reversible
• Standards: ANSI/BHMA Grade 2

Frequently Asked Questions

Does this lock require an internet connection or cloud service to operate?

No. Core lock and unlock functions operate locally through the Crestron infiNET EX network. Cloud connectivity is not required for day-to-day operation. Remote access depends on the configuration of the Crestron control system and any associated network gateway.

What Crestron gateway is required for infiNET EX communication?

This lock requires a Crestron infiNET EX gateway (such as the CEN-GWEXER) connected to your Crestron control system. The gateway manages wireless communication between the CLK-YL-YRD654-CR2-0BP and the Crestron processor. Find compatible accessories at creationnetworks.net.

Is the key free design reversible, or can a key cylinder be added later?

The CLK-YL-YRD654-CR2-0BP is designed as a key free lock and does not support the addition of a key cylinder. If physical key backup is required, Crestron offers alternative Yale Pro 2 models with key cylinder options.
