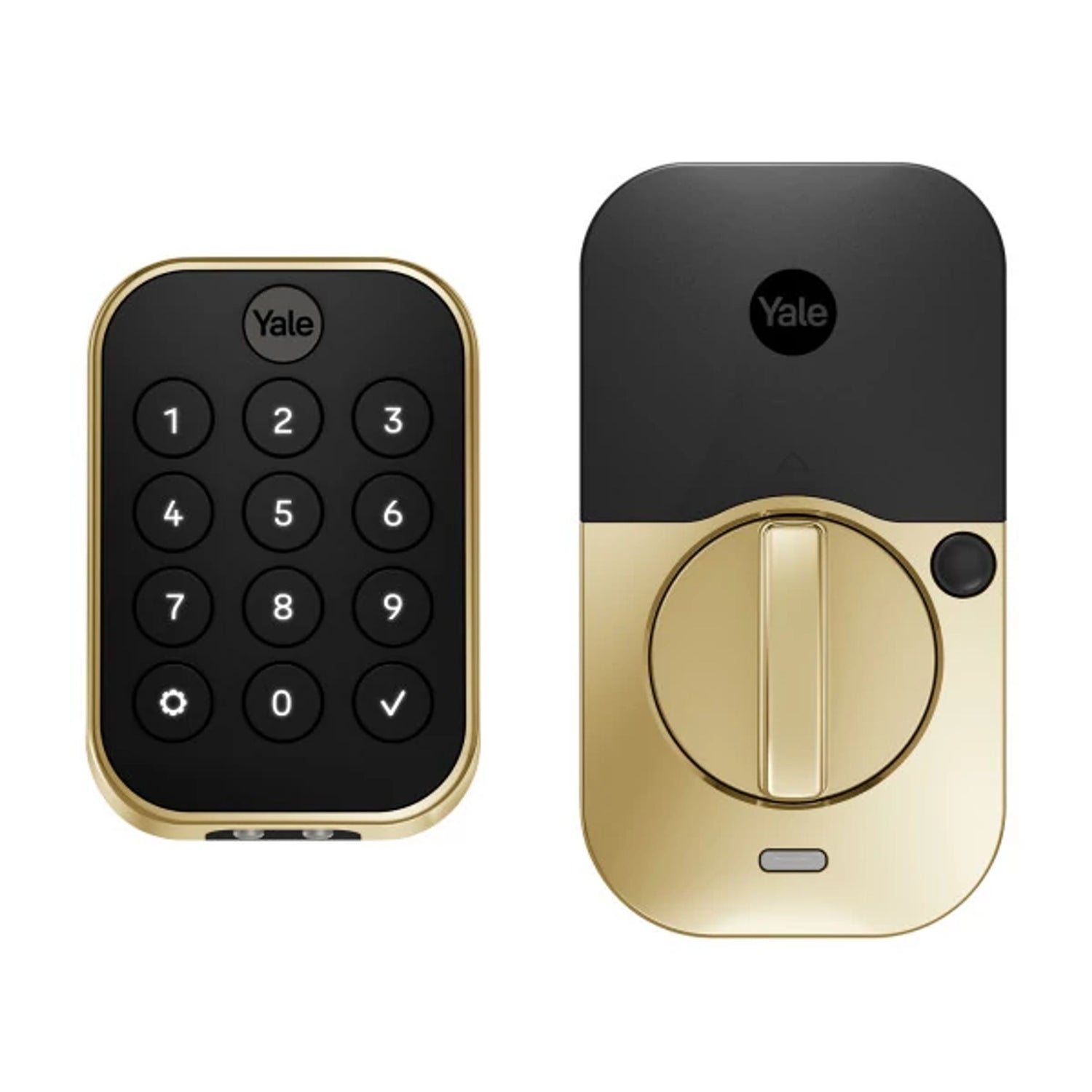

Crestron CLK-YL-YRD634-CR2-P05 – Yale Pro 2 Key-Free Deadbolt, Push Button, Lifetime Brass

Product Overview

The Crestron CLK-YL-YRD634-CR2-P05 is a Yale Pro 2 key-free deadbolt with a backlit push button keypad and integrated infiNET EX wireless communication, finished in lifetime brass. The key-free design eliminates the lock cylinder entirely, preventing picking and bumping while removing the need to carry or distribute physical keys. It connects to Crestron home and building automation systems for remote access control, PIN scheduling, and activity monitoring.

Product Description

Without a lock cylinder, the CLK-YL-YRD634-CR2-P05 offers a higher level of physical security compared to traditional keyed deadbolts. The push button keypad accepts 4-8 digit PINs, with multiple user codes assignable to individual household members or guests, each with configurable schedules and permissions. The DoorSense sensor prevents the auto-relock feature from engaging while the door remains open. Via infiNET EX wireless, the lock integrates with a Crestron automation system using a CEN-GW1 or CENI-GW1 gateway, enabling remote lock/unlock, scheduled access, and text or email alerts per access event. The lock is UL listed for a 90-minute fire rating and is ANSI/BHMA Grade 2 certified.

Key Features

• 100% key-free design — no cylinder, no keys, no picking or bumping vulnerability
• Backlit push button keypad with 4-8 digit PIN access
• infiNET EX 2.4 GHz wireless, AES-128 encrypted, IEEE 802.15.4
• DoorSense sensor prevents auto-lock when door is open
• UL listed for 90-minute fire rating
• ANSI/BHMA Grade 2 certified for strength and durability
• Coastal-grade weather-resistant gasket seal
• Automatic relock (30 sec to 3 min configurable)
• Low battery LED indicator and 9V emergency backup power terminals
• Self-handing; fits standard doors 1 3/8 to 2 1/4 in. thick

Typical Applications

• Residential entry doors where key management and physical security are priorities
• Rental or vacation properties requiring frequent PIN code changes for guests
• Commercial applications where key control is impractical or undesirable
• Smart home integrations combining door access with lighting, shading, and climate scenes
• Multifamily buildings with Crestron Home OS for per-unit access management

Technical Specifications

• Model: CLK-YL-YRD634-CR2-P05
• Finish: Lifetime Brass (code P05)
• Weight: 4.5 lb (2.04 kg)
• Exterior Dimensions: H: 3.7 in (94 mm) x W: 2.5 in (63 mm) x D: 0.6 in (15 mm)
• Interior Dimensions: H: 4.9 in (124 mm) x W: 2.7 in (68 mm) x D: 1.7 in (43 mm)
• Keypad: Backlit push buttons, 10 numeric keys plus check and gear symbol keys
• Wireless: infiNET EX, 2.4 GHz, IEEE 802.15.4, AES-128; 50 ft (15 m) to gateway
• Gateway Required: CEN-GW1 or CENI-GW1 (sold separately)
• Power: 4 x 1.5V AA alkaline batteries (included); 9V backup terminals
• Door Thickness: 1 3/8 to 2 1/4 in. (35-57 mm)
• Backset: 2 3/8 in. (60 mm) or 2 3/4 in. (70 mm) adjustable
• Compliance: ANSI/BHMA A156.36 Grade 2, FCC Part 15 Class B, IC; UL 90-min fire rated

Frequently Asked Questions

Q: What does "key-free" mean and how does the CLK-YL-YRD634-CR2-P05 differ from standard Yale Pro 2 deadbolts?
A: The key-free models have no lock cylinder installed, which means there is no keyhole. The door can only be opened by PIN code or remotely through the Crestron system. This eliminates vulnerabilities associated with lock picking, key bumping, and lost or copied keys. Standard Yale Pro 2 models include a lock cylinder for optional key access.

Q: Is a Crestron control system required to use this lock?
A: No. The deadbolt operates fully as a standalone PIN-code lock without any Crestron connection. The infiNET EX wireless gateway is only needed to add remote control, scheduling, and monitoring through a Crestron automation system.

Q: Can I use the Yale Access mobile app with this lock?
A: Yes. The built-in Bluetooth communications are compatible with the Yale Access app for iOS and Android, enabling setup, configuration, geofencing-based auto-lock/unlock, and Bluetooth proximity access.
