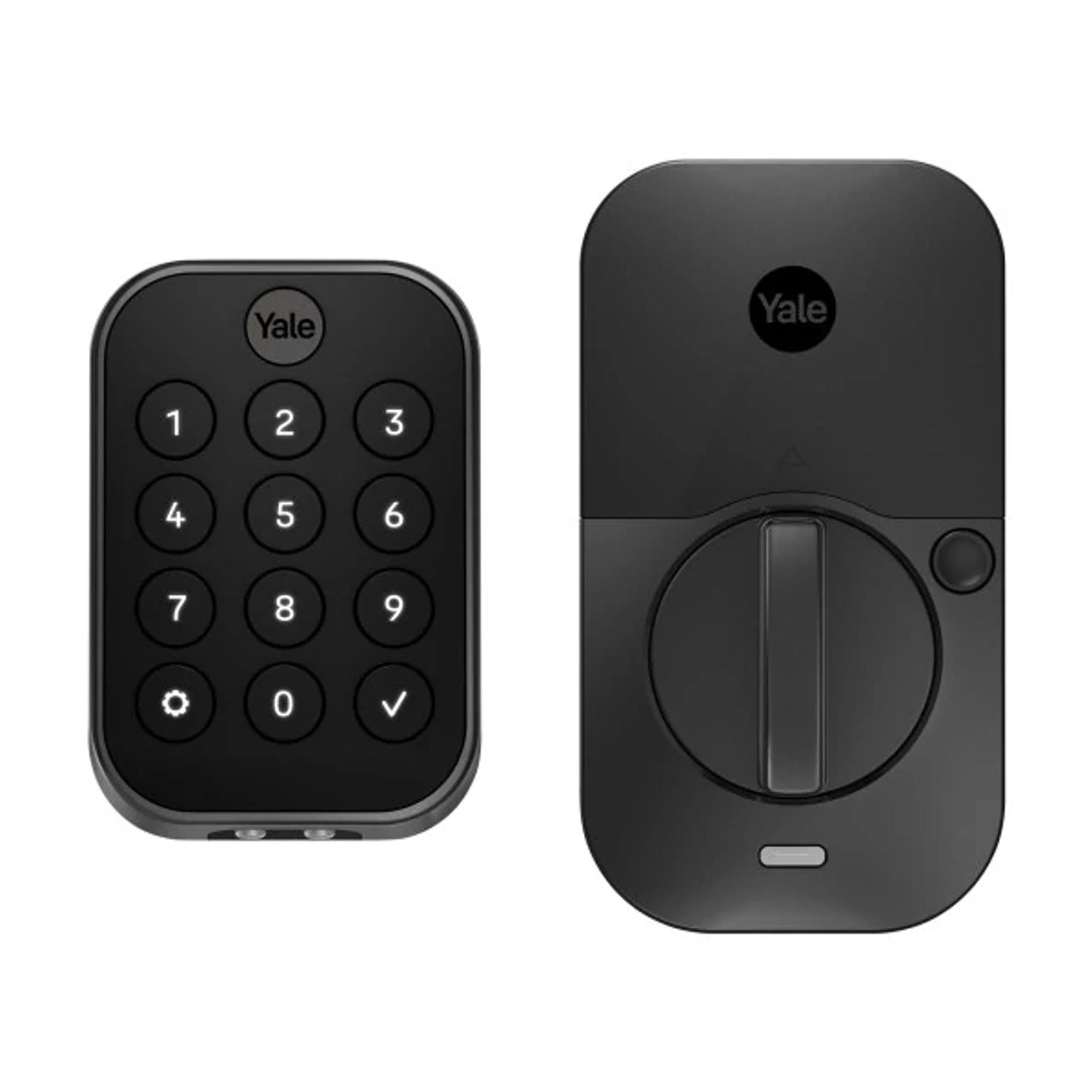

Crestron CLK-YL-YRD634-CR2-BSP – Yale Pro 2 Key Free Push Button Deadbolt, Black Suede

Product Overview

The Crestron CLK-YL-YRD634-CR2-BSP is a Yale Pro 2 key-free deadbolt with a backlit push-button keypad, finished in Black Suede, and integrated with Crestron's infiNET EX bidirectional wireless mesh network. The key-free form factor eliminates the lock cylinder entirely, making it a practical choice for commercial environments where physical key management creates security and operational complexity. Full integration with Crestron Home OS and Crestron processor-based systems enables event-driven automation, remote locking, and real-time status monitoring.

Product Description

The YRD634 uses a tactile, backlit push-button keypad for PIN entry, providing reliable operation in all lighting conditions without requiring a touchscreen surface. The Black Suede finish is a neutral, low-gloss tone that complements modern commercial interiors and is resistant to fingerprint visibility. Up to 250 unique PIN codes can be programmed independently, supporting separate access levels for staff, guests, and service personnel. The lock communicates over the 2.4 GHz infiNET EX mesh with AES-128 encryption, and a weather-resistant gasket protects internal components from moisture ingress. DoorSense technology reports door-closed status back to the Crestron system, enabling automation logic based on actual door position rather than inferred lock state.

Key Features

• Key-free deadbolt — no cylinder or physical key required
• Backlit push-button keypad for PIN-code entry in any lighting condition
• infiNET EX bidirectional wireless mesh, 2.4 GHz, AES-128 encryption
• DoorSense door-position sensor for real-time open/closed status in control system
• Up to 250 unique user PIN codes
• Auto-relock configurable from 30 seconds to 3 minutes
• 9V external battery backup terminal for emergency entry
• Black Suede finish with weather-resistant gasket seal
• Compatible with Crestron Home OS and Crestron processor-based systems
• ANSI/BHMA A156.36 Grade 2 certified

Typical Applications

• Smart home entry door control integrated with Crestron Home OS
• Hospitality and short-term rental access with automated guest PIN management
• Private offices and restricted areas requiring keyless entry with audit capability
• Multi-unit residential buildings managed via Crestron XiO Cloud
• Retrofit deployments replacing keyed cylinders with code-based access

Technical Specifications

• Model: CLK-YL-YRD634-CR2-BSP
• Weight: 4.5 lb (2.04 kg)
• Exterior Escutcheon: 3.7 in H x 2.5 in W x 0.6 in D
• Interior Escutcheon: 4.9 in H x 2.7 in W x 1.7 in D
• Wireless Protocol: infiNET EX, 2.4 GHz, IEEE 802.15.4, AES-128
• RF Range: 50 ft (15 m) to gateway or mesh node
• Door Thickness: 1-3/8 in to 2-1/4 in (35–57 mm)
• Backset: 2-3/8 in or 2-3/4 in (adjustable)
• Power: 4x AA 1.5V alkaline batteries; 9V backup port
• Finish: Black Suede
• Certifications: FCC Part 15 Class B, IC, ANSI/BHMA A156.36 Grade 2
• Compatible Gateway: infiNET EX gateway (e.g., CENI-GWEXER), sold separately

Frequently Asked Questions

Q: What is the difference between the YRD634 and YRD654 in the Crestron lock lineup?
A: Both are key-free deadbolts with infiNET EX wireless. The YRD634 uses a tactile push-button keypad; the YRD654 uses a capacitive touchscreen keypad. The push-button variant is preferred in environments where users prefer physical key feedback or in commercial settings where touchscreens may attract unwanted wear.

Q: Does this lock work with systems other than Crestron Home OS?
A: Yes. The lock integrates with any Crestron processor-based control system via infiNET EX, including systems programmed in SIMPL Windows and Crestron Studio. Crestron Home OS is not required.

Q: Can I add this lock to an existing infiNET EX network already serving other Crestron devices?
A: Yes. The lock joins the existing infiNET EX mesh as a standard node. The infiNET EX gateway serving the network must be within 50 ft RF range of the lock or an intermediate mesh repeater node.
