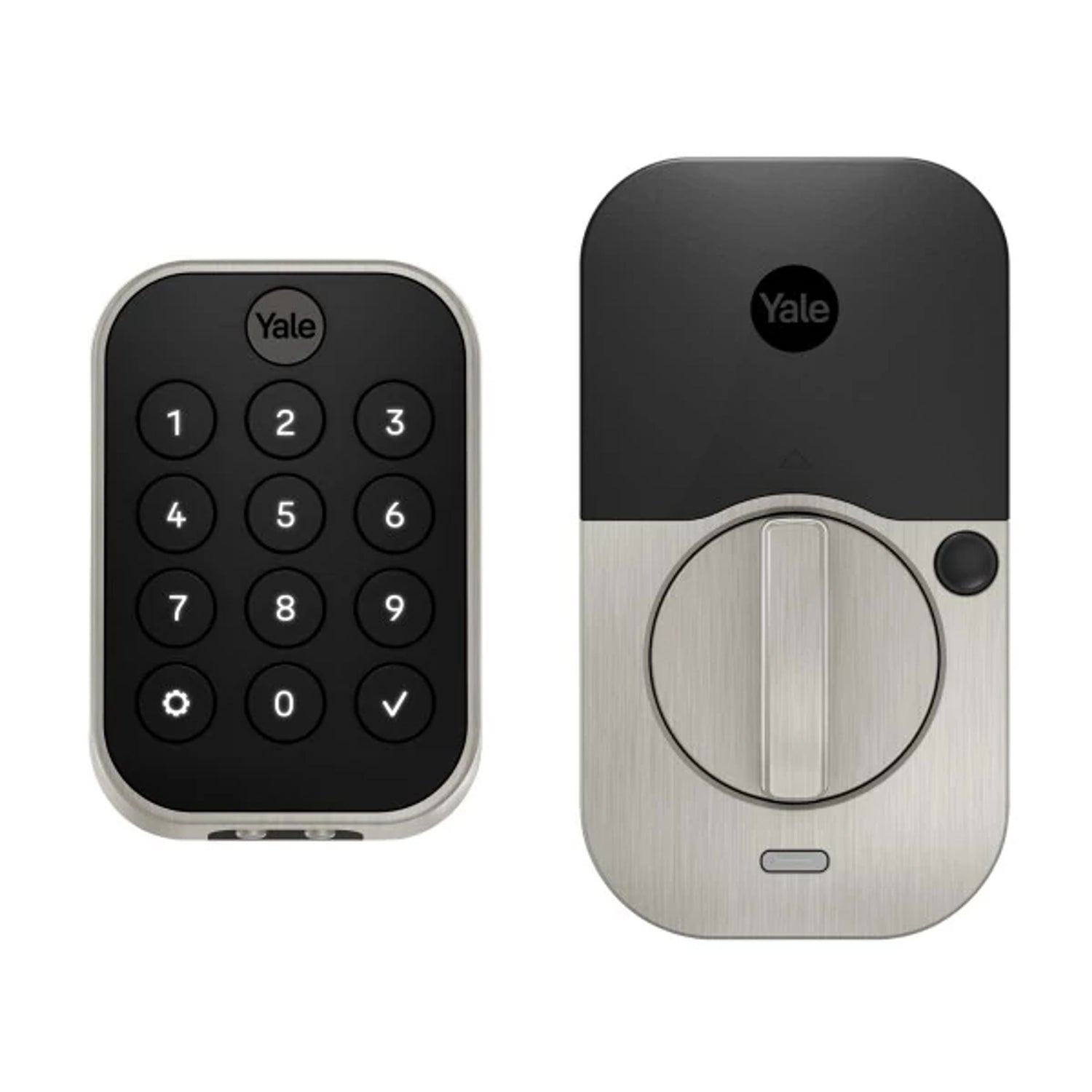

Crestron CLK-YL-YRD634-CR2-619 – Yale Pro 2 Key Free Push Button Deadbolt, Satin Nickel

Product Overview

The Crestron CLK-YL-YRD634-CR2-619 is the Yale Pro 2 Key Free Deadbolt with Push Button Keypad and infiNET EX wireless communication, finished in Satin Nickel. Designed for Crestron home automation integration, this lock is 100% key-free with no cylinder — access is granted exclusively via PIN code or remotely through the Crestron control system. The push button keypad is backlit for reliable low-light operation.

Product Description

The CLK-YL-YRD634-CR2-619 is intended for installations where the homeowner or operator has no need for a physical key backup. Eliminating the key cylinder removes a mechanical vulnerability and presents a cleaner aesthetic on the door. The deadbolt communicates over the infiNET EX 2-way mesh wireless network at 2.4 GHz with AES-128 encryption, reporting lock status and receiving commands from the Crestron control system in real time. Satin Nickel (ANSI/BHMA code 619) integrates with contemporary door hardware finishes and is ANSI/BHMA Grade 2 certified for residential and light commercial use. A 90-minute UL fire rating supports installation in fire-rated door assemblies.

Key Features

• 100% key-free design with no key cylinder on the exterior assembly
• Backlit push button keypad with 4–8 digit PIN code entry
• Integrated infiNET EX 2-way RF at 2.4 GHz, IEEE 802.15.4, AES-128 encryption
• Automatic relock configurable from 30 seconds to 3 minutes
• Up to 250 unique user PIN codes with individual access permissions
• Built-in Bluetooth for optional Yale Access mobile app (iOS and Android)
• 9V battery terminal backup for emergency access
• 90-minute UL fire rating; ANSI/BHMA A156.36 Grade 2 certified
• Operates on 4 x AA alkaline batteries; self-handing design

Typical Applications

• Primary exterior doors in Crestron Home OS residential automation projects
• Secondary entrances in smart home projects where key backup is not desired
• Rental properties requiring remote access and PIN code management
• High-end residential builds where keyless aesthetics are specified
• Multi-zone homes where door lock status integrates with shading and security scenes

Technical Specifications

• Wireless: infiNET EX 2-way RF, 2.4 GHz ISM Ch. 11–26, IEEE 802.15.4, AES-128; 50 ft range to gateway
• Keypad: Backlit push buttons; 10 digit buttons plus functional keys
• Power: 4 x AA alkaline 1.5V batteries; 9V backup terminal
• Exterior dimensions: H 3.7 in. (94 mm) x W 2.5 in. (63 mm) x D 0.6 in. (15 mm)
• Interior dimensions: H 4.9 in. (124 mm) x W 2.7 in. (68 mm) x D 1.7 in. (43 mm)
• Weight: 4.5 lb (2.04 kg)
• Door thickness: 1 3/8 to 2 1/4 in. (35 to 57 mm)
• Finish: Satin Nickel, ANSI/BHMA code 619
• Compliance: IC, ANSI/BHMA A156.36 Grade 2, FCC Part 15 Class B, 90-min UL fire rated

Frequently Asked Questions

What is the difference between the YRD624 and YRD634 models?

The YRD624 (CLK-YL-YRD624 series) includes a touchscreen keypad and has an exterior key cylinder for backup key access. The YRD634 (CLK-YL-YRD634 series) uses a push button keypad and is 100% key-free with no cylinder at all. Choose the YRD634 when keyless-only access is required by design.

Does this lock require a Crestron gateway?

Yes. The CLK-YL-YRD634-CR2-619 requires a separate Crestron infiNET EX wireless gateway to communicate with a Crestron control processor. The gateway must be within 50 ft of the lock or within range of an infiNET EX mesh node.
