Crestron CLK-YL-YRD634-CR2-0BP – Yale Pro 2 Key Free Deadbolt with Push Button Keypad, Oil Rubbed Bronze

Product Overview

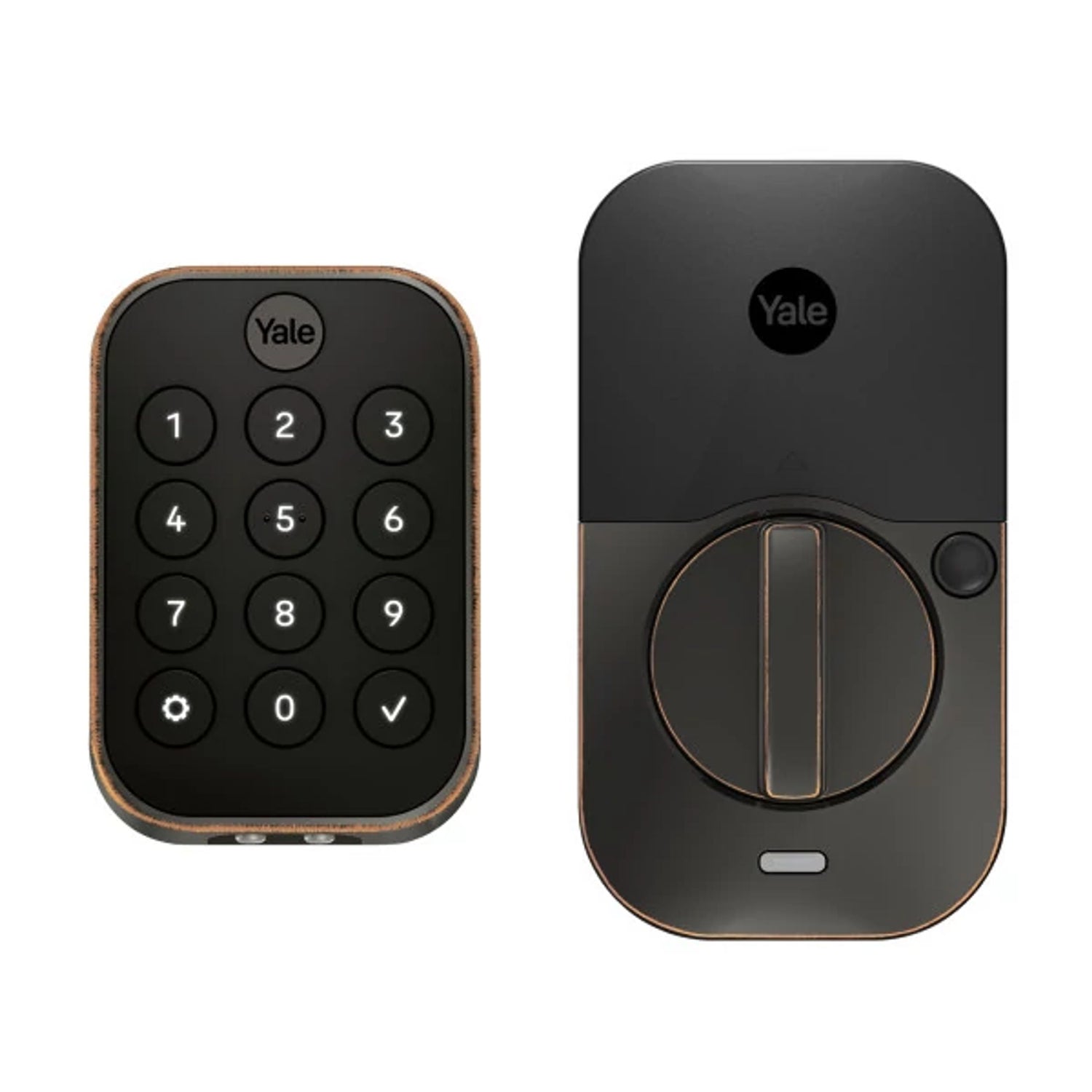

The Crestron CLK-YL-YRD634-CR2-0BP is a Yale Pro 2 key-free Grade 2 deadbolt with a push-button PIN keypad and infiNET EX wireless communication, finished in Oil Rubbed Bronze. The key-free design removes the exterior key cylinder, relying on PIN code entry for all physical access. Integrated with Crestron infiNET EX-enabled processors, this lock delivers real-time access status, automated locking schedules, and remote control from a Crestron home or building management system.

Product Description

Push-button keypads offer a tactile, reliable PIN entry method preferred in applications where touchscreen performance in extreme temperatures or gloved-hand use is a concern. The YRD634 combines this practical keypad format with Yale Pro 2 build quality and Crestron infiNET EX wireless, making it well-suited for residential service entries, utility rooms, and hospitality back-of-house areas. The key-free configuration means there is no exterior key override, which simplifies key management in managed-access environments. The Oil Rubbed Bronze finish complements traditional and craftsman architectural hardware styles. Crestron integrators can assign timed access codes, configure auto-lock intervals, and incorporate door status into broader building automation scenarios through Crestron programming.

Key Features

• Key-free deadbolt — no exterior key cylinder for simplified PIN-only access management
• Push-button keypad for dependable entry in all temperature and lighting conditions
• infiNET EX 2.4 GHz wireless mesh integration with Crestron systems
• Supports up to 250 user access codes
• Auto-lock and timed entry programming via Crestron processor
• Real-time lock/unlock status reporting to Crestron control system
• ANSI/BHMA Grade 2 deadbolt security rating
• Oil Rubbed Bronze finish for traditional and craftsman design applications

Typical Applications

• Residential service entries, utility rooms, and garages in Crestron-controlled homes
• Hotel back-of-house and staff access points integrated into Crestron guest management
• Managed short-term rental properties using Crestron Home remote access
• Multi-family residential common areas with Crestron building management
• Facilities requiring PIN-only access without mechanical key override

Technical Specifications

• Model: CLK-YL-YRD634-CR2-0BP
• Finish: Oil Rubbed Bronze
• Keypad Type: Push Button (capacitive illuminated buttons)
• Key Cylinder: None (key-free design)
• Communication: infiNET EX 2.4 GHz Wireless Mesh
• Security Grade: ANSI/BHMA Grade 2
• User Codes: Up to 250
• Deadbolt Throw: 1 inch
• Power: 4 x AA batteries
• Compatible Systems: Crestron infiNET EX-enabled processors

Frequently Asked Questions

Q: How does the push-button model (YRD634) differ from the touchscreen model (YRD654) in the same key-free series?
A: The YRD634 uses individual capacitive push buttons for digit entry, while the YRD654 uses a full capacitive touchscreen display. The push-button format can be more reliable in outdoor or temperature-variable environments and for users who prefer tactile feedback. Both models are key-free and integrate identically with Crestron infiNET EX.

Q: Can I add or remove access codes remotely through the Crestron system?
A: Yes. When the lock is integrated with a Crestron processor, user code management can be performed from the Crestron interface, enabling remote addition and deletion of codes without physical access to the lock.

Q: Does this lock work if the batteries are low?
A: The lock provides a low-battery warning indicator. Most Yale Pro 2 locks also include a 9V battery terminal on the exterior to provide emergency power for entry if batteries are fully depleted. Refer to the Yale product documentation for specific low-battery behavior.
