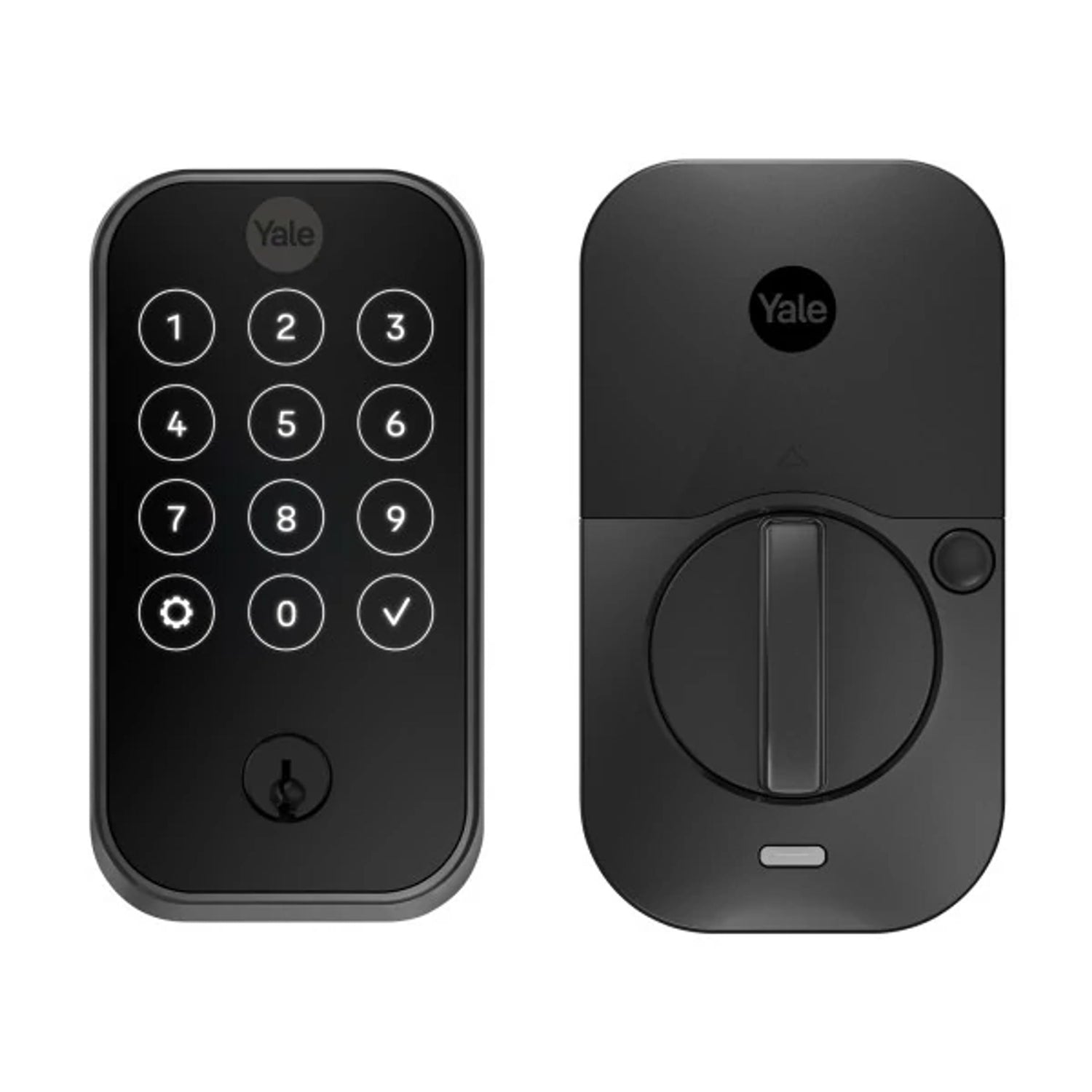

Crestron CLK-YL-YRD624-CR2-BSP – Yale Pro 2 Deadbolt with Touchscreen Keypad, infiNET EX, Black Suede

Product Overview

The Crestron CLK-YL-YRD624-CR2-BSP is a Yale Pro 2 deadbolt lock featuring a backlit capacitive touchscreen keypad and integrated infiNET EX 2-way wireless communication for direct integration with Crestron Home OS and 4-Series control systems. The Black Suede finish provides a durable, modern appearance suited to residential and light commercial applications. The lock carries a 90-minute UL fire rating and coastal-grade certification for corrosion resistance in demanding environments.

Product Description

Keyless entry is provided through a 4- to 8-digit PIN code on the backlit capacitive touchscreen. The infiNET EX transceiver operates on the 2.4 GHz ISM band with AES-128 encryption and communicates with the Crestron automation system via a separately-purchased infiNET EX wireless gateway, extending up to 50 ft to the nearest gateway or mesh node. Integration allows the Crestron system to report lock status, trigger events based on door lock or unlock, and send lock or unlock commands from touchscreens, mobile apps, and schedules.

The lock includes self-handing hardware and accommodates door thicknesses from 1-3/8 in. to 2-1/4 in. with adjustable backset (2-3/8 in. or 2-3/4 in.) and adjustable face bore (2-1/8 in. or 1-1/2 in.). Auto-Lock mode can be bypassed with the interior Passage button. A 9V battery backup terminal below the exterior keypad allows the lock to be temporarily powered by an external battery when internal batteries are depleted, preventing lockout. Powered by four AA alkaline batteries (included).

Key Features

• Backlit capacitive touchscreen keypad with 4- to 8-digit PIN code access
• Integrated infiNET EX 2-way wireless (2.4 GHz, AES-128) for Crestron system integration
• 90-minute UL fire rating and coastal-grade corrosion resistance
• Self-handing — installs on left or right-handed doors without reconfiguration
• Adjustable backset: 2-3/8 in. or 2-3/4 in.; adjustable face bore: 2-1/8 in. or 1-1/2 in.
• Door thickness range: 1-3/8 in. to 2-1/4 in.
• 9V battery backup terminal for emergency access when internal batteries are depleted
• Interior Passage button to disable Auto-Lock for events or maintenance windows
• Communicates with Crestron Home OS and 4-Series control via infiNET EX gateway (sold separately)
• Powered by (4) 1.5V AA alkaline batteries (included); approximately 1 year battery life under normal use

Typical Applications

• Residential smart home main and secondary entry doors integrated with Crestron Home OS automation
• Multi-family residential units where property managers need remote lock control and audit trail capability
• Small commercial offices with Crestron 4-Series control systems requiring automated door access scheduling
• Hospitality guest room entry doors in Crestron-controlled hotel room automation systems
• Home offices and detached structures where keyless entry with smart home integration is required

Technical Specifications

Frequently Asked Questions

Does the CLK-YL-YRD624-CR2-BSP require a Crestron control system to function as a keypad lock?

No. The lock operates independently as a standard keypad deadbolt using the built-in PIN code entry. The infiNET EX wireless radio enables optional integration with a Crestron Home OS or 4-Series control system via an infiNET EX gateway (sold separately), but the gateway is not required for basic lock and unlock functionality.

What infiNET EX gateway is compatible with this lock?

The CLK-YL-YRD624-CR2-BSP is compatible with standard Crestron infiNET EX gateways such as the CEN-GWEXER and related models. See creationnetworks.net for compatible gateway options. The gateway must be registered in the Crestron control system program to enable lock control and status feedback.

Can multiple PIN codes be programmed for different users?

Yes. The Yale Pro 2 platform supports multiple user PIN codes. The exact number of codes and management capabilities (scheduling, audit trail) depend on the Crestron control system integration and the features enabled in the Crestron Home OS or 4-Series program.
